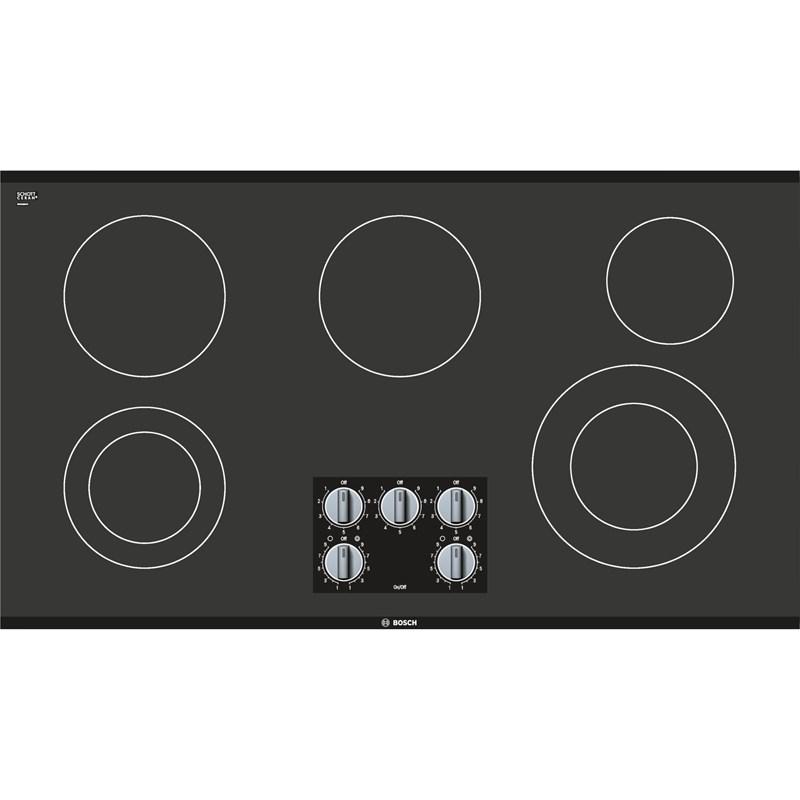

This 36-inch Bosch 500 Series electric cooktop features dual elements, a two-level heat indicator, 5 heating elements and infinite temperature controls for precision cooking.
HEAT INDICATORA light on the cooktop warns if surface is hot due to any residual heat from cooking vessel.
DUAL ELEMENT
A cooktop customized to the size of your cookware, our dual element lets you save energy with a focused area for a small pot or pan, and an enlarged area for a bigger pot or pan.
Features
- Additional Information:
• Dual Elements Offer the Capability to use Multiple Pan Sizes
• Infinite Temperature Controls for Precision Cooking
• Powerful 2,500W Right-Front Burner for Faster Boil Times
• Two-level Heat Indicator - Warns if Cooktop is Warm or Hot
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
Surface Features
Ceramic GlassElements
SmoothtopBurners/Elements
5Power Output
• Front Left: 1,700 / 700 W
• Back Left: 1,800 W
• Center: 1,800 W
• Back Right: 1,200 W
• Front Right: 2,500 / 1,100 WBurner/Element Size
• Front Left Heating Element: 7"/5"
• Back Left Heating Element: 7"
• Center Heating Element: 7"
• Back Right Heating Element: 6"
• Front Right Heating Element: 9"/6"Type
Built-InFuel Type
ElectricSeries Name
500 SeriesColor
BlackManufacturer Color
BlackInformation
• 9,000 W
• 208 / 240 V
• 60 Hz
• 40 AAdditional Information
• Dual Elements Offer the Capability to use Multiple Pan Sizes
• Infinite Temperature Controls for Precision Cooking
• Powerful 2,500W Right-Front Burner for Faster Boil Times
• Two-level Heat Indicator - Warns if Cooktop is Warm or HotHeight
10.2 cmWidth
94.0 cmClass Width
36"Depth
54.0 cmAdditional Dimensions

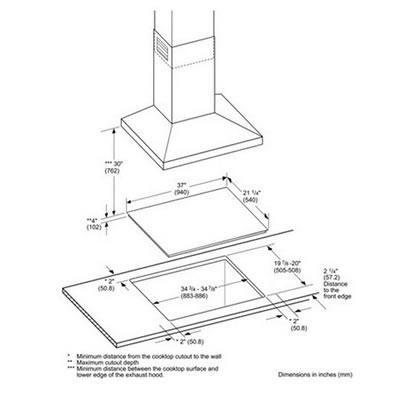

• Required Cutout Size (HxWxD): 4" X 34 7/8" X 20"
• Minimum Distance from Counter Front: 2 1/4"
• Minimum Distance from Rear Wall: 2"Weight
13.61 kgWarranty
Limited 1 Year Parts and LaborUPC#
825225907497
