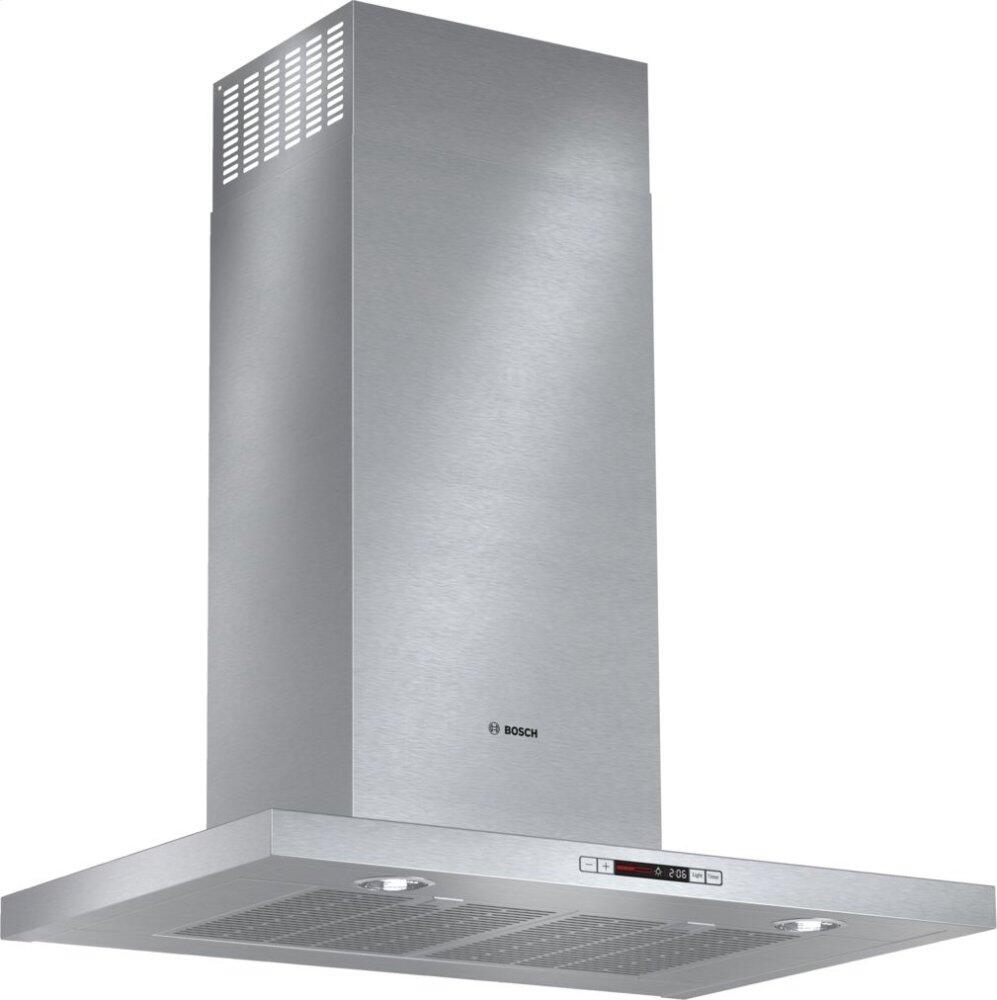

Bosch 30" 500 Series box canopy chimney hood. This hood features a 600 CFM blower, touch controls with LCD display and four speeds.
Features
- Speeds:
4 Speeds - Additional Information:
• 2 halogen lights - 12 Volt, 20 Watt max., G-4 Base
• 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base
• Blower will automatically turn on at high speed if excessive heat is sensed in the control area
• Absorb odors with charcoal replacement filters

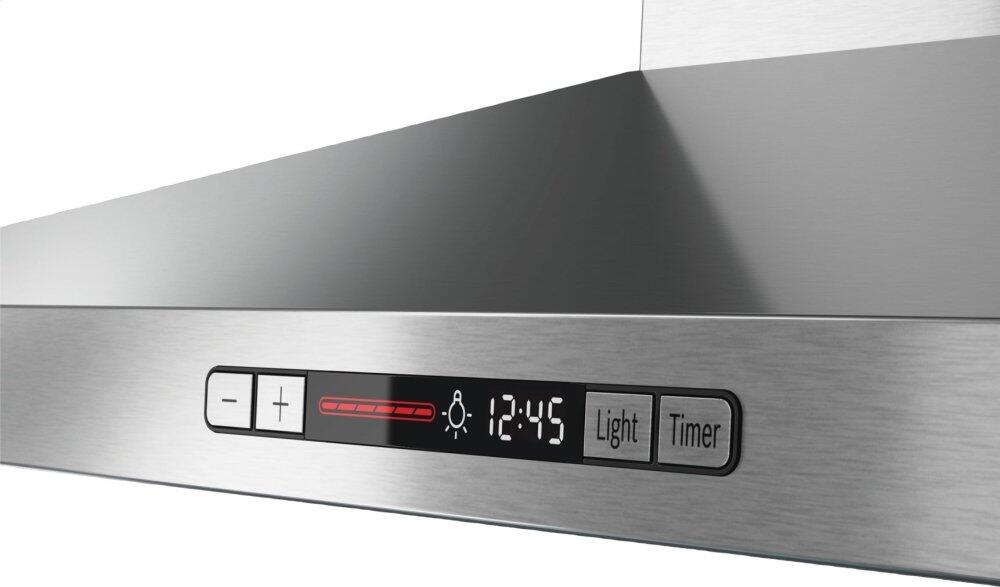

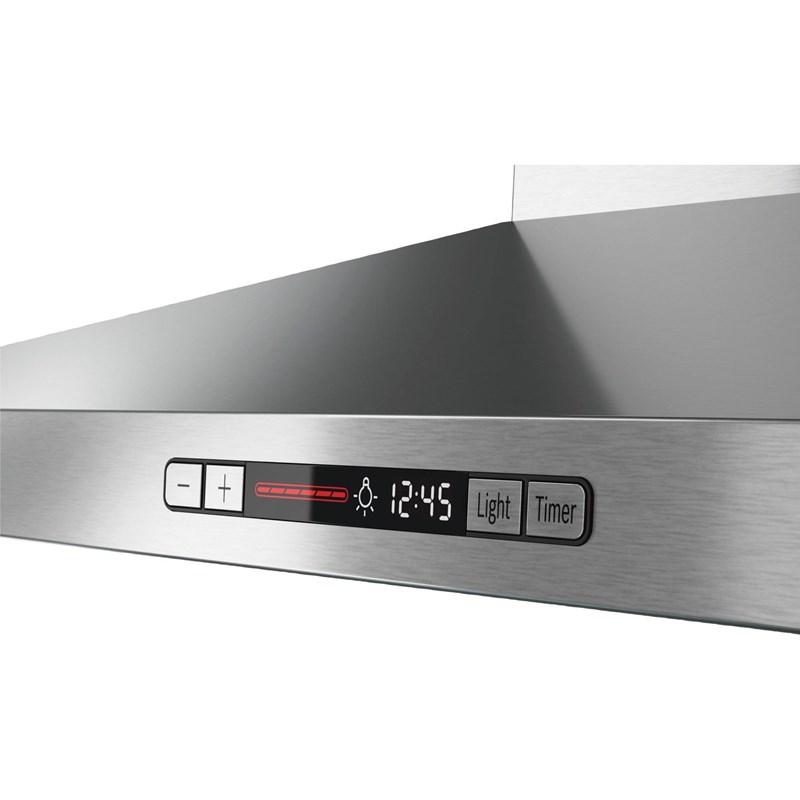

• Convenient timer built into control from 1-60 minutes
• Signal on LCD display will illuminate as a reminder to check filters for cleaning
• Audible tone when select controls are pressed
• Approval certificates: CUL, UL - Dishwasher-Proof Filters:
Y - Ducting Information:
• 8" round duct at discharge
• Convertable: Ducted / Recirculating
• Duct Extension Accessory Kit Available for 9' to 12' Ceilings
Accessories
- Optional:
• HCBEXT5UC Chimney extension for 9-11.5 ft. ceilings
• HCIFILTUC Filter kit
• HCREC5UC Recirculation kit
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
Dimensions
Width30"Height27"Depth19"
Finish: Stainless Steel
MPN: HCB50651UC
Product Details:
Style
ChimneyAirflow
600 CFMSeries Name
500Manufacturer Color
Stainless SteelColor
Stainless SteelInstallation
Wall MountBlower Included
YSpeeds
4 SpeedsAdditional Information
• 2 halogen lights - 12 Volt, 20 Watt max., G-4 Base
• 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base
• Blower will automatically turn on at high speed if excessive heat is sensed in the control area
• Absorb odors with charcoal replacement filters
• Convenient timer built into control from 1-60 minutes
• Signal on LCD display will illuminate as a reminder to check filters for cleaning
• Audible tone when select controls are pressed
• Approval certificates: CUL, ULDishwasher-Proof Filters
YDucting Information
• 8" round duct at discharge
• Convertable: Ducted / Recirculating
• Duct Extension Accessory Kit Available for 9' to 12' CeilingsOptional
• HCBEXT5UC Chimney extension for 9-11.5 ft. ceilings
• HCIFILTUC Filter kit
• HCREC5UC Recirculation kitInformation
• 530 W
• 110 V
• 60 HzWidth
76.2 cmClass Width
30"Height
68.74 cmDepth
50.01 cmAdditional Dimensions

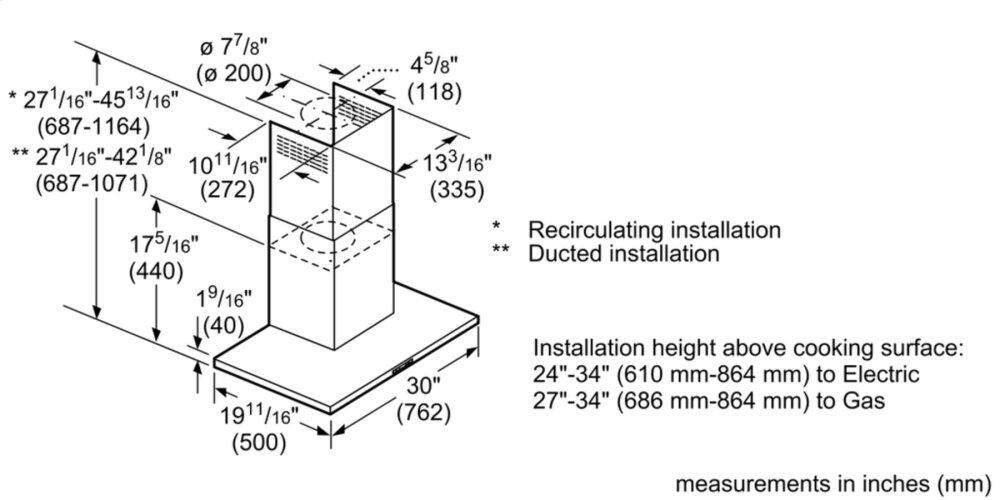

• Height of the chimney: 25 1/2" - 40 9/16"/25 3/8" - 44 1/4"
• Required distance above cooktop/ranges: 24"/27"Weight
23.59 kgWeight
26.31 kgWarranty
Limited 1 year parts and laborUPC#
825225909040
UPC: 825225909040
Weight: 23.59
