Output
- Noise level depends on the built-in situation.
- 3 electronically controlled power levels and 1 intensive mode.
- Automatic function with sensor-controlled run-on function.
- Grease filter saturation indicator.
- Baffle filter, dishwasher-safe.
- Neutral white surface LED light (3500 K), continuously dimmable.
- Lamp output 4 x LED light bars 10W.
- Illuminance 1390 lx.
- Refer to the table on page 180-181 for the matching remote fan units for air recirculation or air extraction mode.
The two-part chimney including the mounting kit must be ordered as an installation accessory. - Connection to the respective appliances via network cable.
- Clearance above gas appliances min. 30".
- Clearance above electric appliances min. 28".
- Air recirculation module with 2 activated charcoal filters is installed in the inner chimney. Special air recirculation chimneys are available for this.
- When installing a ventilation hood with air extraction mode and a chimney-vented fireplace, the power supply line of the ventilation appliance needs a suitable safety switch.
- Total Amps: 10 A.
- Total Amps: 10 A.
- 120 V / 60 Hz.
- Connecting cable 35.4" with plug.

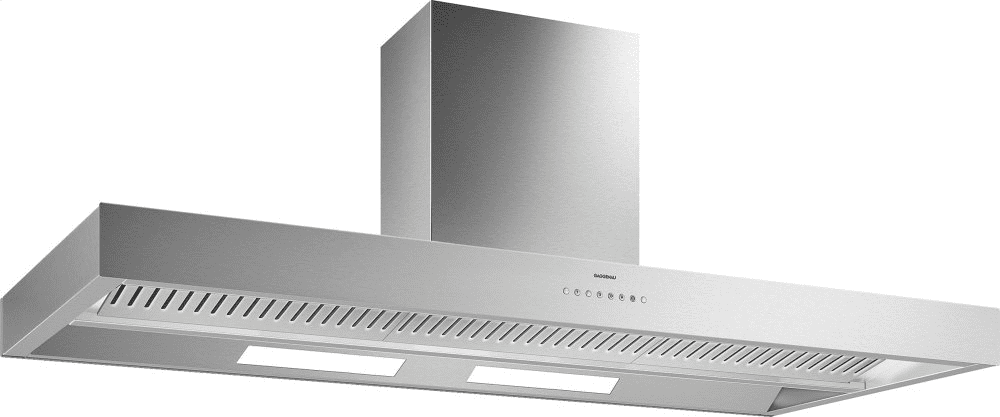

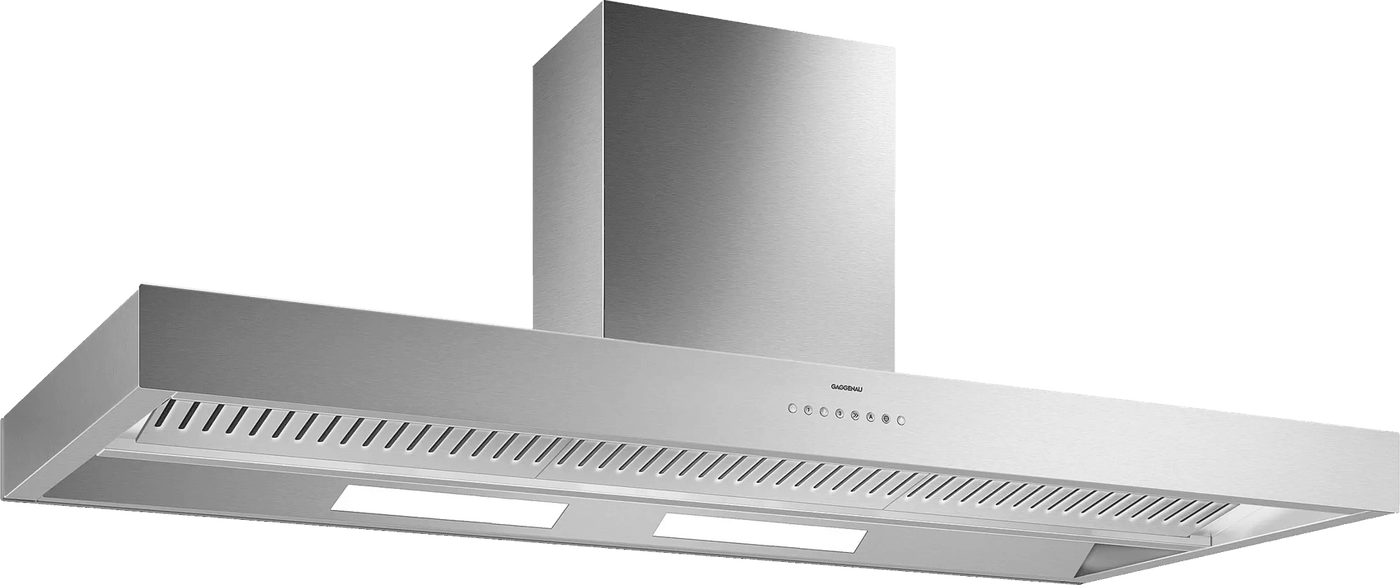

- Professional technology hood combined with classic Gaggenau design
- Highly efficient extraction of cooking vapours due to large vapour collection area
- For operation with 400 series AR400742 inline, AR401742 remote or AR413722 recirculation blower.
- Angled baffle filter with high grease absorption
- Function for automatic, sensor-controlled power adjustment depending on the build-up of cooking vapors
Specifications
UPC: 825225924531
