Hoshizaki 55 Lb Ice Maker Slvr
This compact undercounter Top Hat Icemaker is the perfect addition to any hotel suite, office breakroom, or kitchen. The AM-50BAJ-ADDS is capable of producing approximately 55 lbs of Top Hat style ice cubes per day, and the built-in storage bin will hold up to 22 lbs* of ice at a time. The Undercounter design is less than 32" tall, ADA compliant. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included. Replaces AM-50BAH-ADDS.
- Dimensions: 14-7/8" W x 22-5/8" D x 31-1/2" H
- Up to 55 lbs of ice produced per 24 hours
- Up to 22 lbs of built-in storage capacity (ft3)

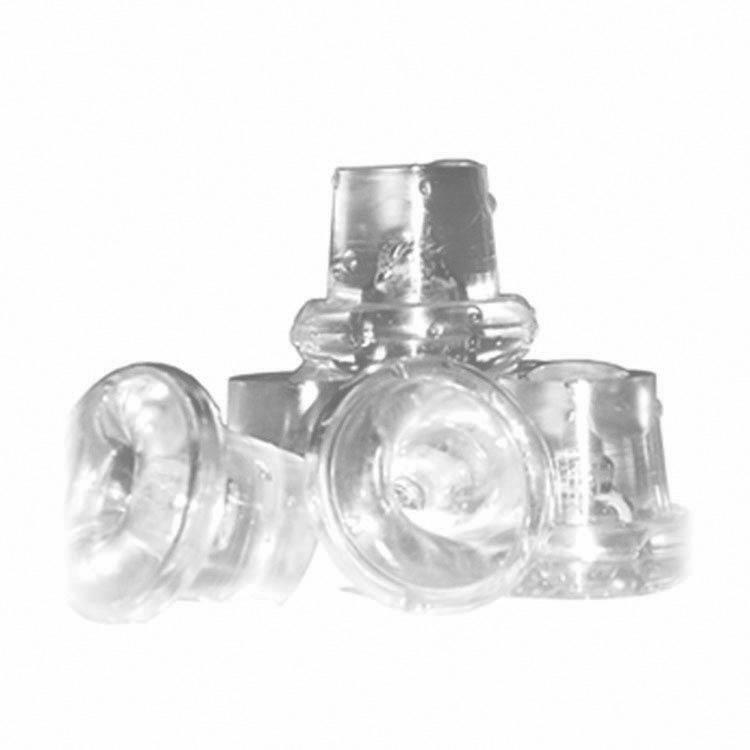

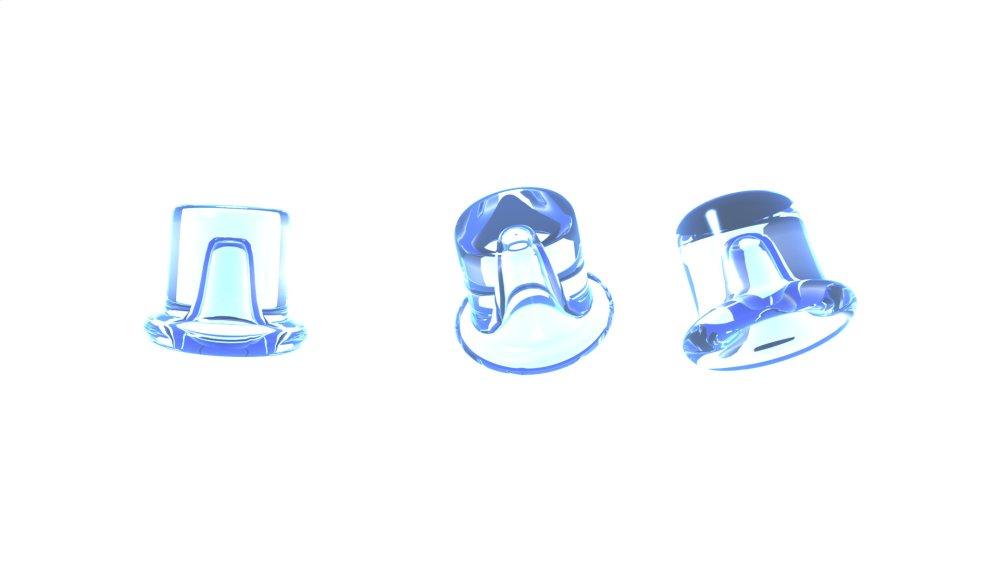

- Produces top hat ice cubes
- Undercounter design is less than 32" tall, ADA compliant
- Front in, front out airflow
- UL approved for outdoor use
- Easily disassembled water circuit for easy cleaning

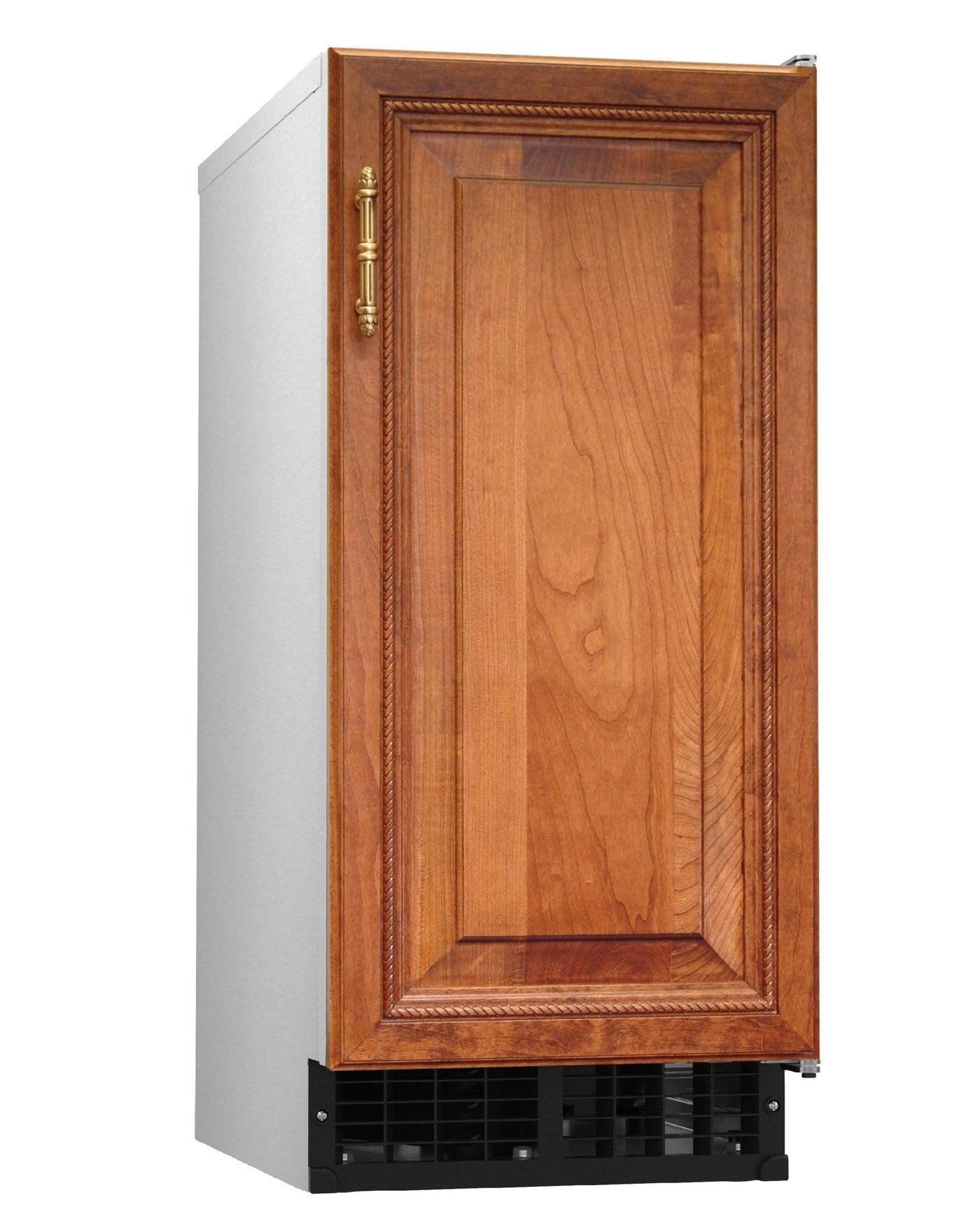

- (-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
- R-134a refrigerant (4.2 oz. / 120 g)
- Heat Rejection:1900 BTU/hr
- Ambient temperature range: 46 - 100(degree)F
- Water temperature range: 46 - 95(degree)F
- Water pressure: 7 - 113psig
- Voltage range: 104 - 127V
- 3.8 amps (15 Amp Max fuse)
- 16.8 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
- Clean ice and easy maintenance lead to longer unit life span
- Two Years: Parts & Labor warranty on entire machine.
- One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.
DimensionsX X in
WarrantyTwo Years: Parts & Labor warranty on entire machine.
Electrical Specs:Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug, Amperage: 3.8, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 1/2" FPT Outlet, Minimum 1/2" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption:16.8 kWh per 100 lbs @ 90/70, 63.9 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:Ambient Temp Range: 46 - 100(degree)F, Water Temp Range: 46 - 95(degree)F, Water Pressure: 7 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 1900 BTU/hr, Refrigerant Charge: R-134a, (4.2 oz. / 120 g)
