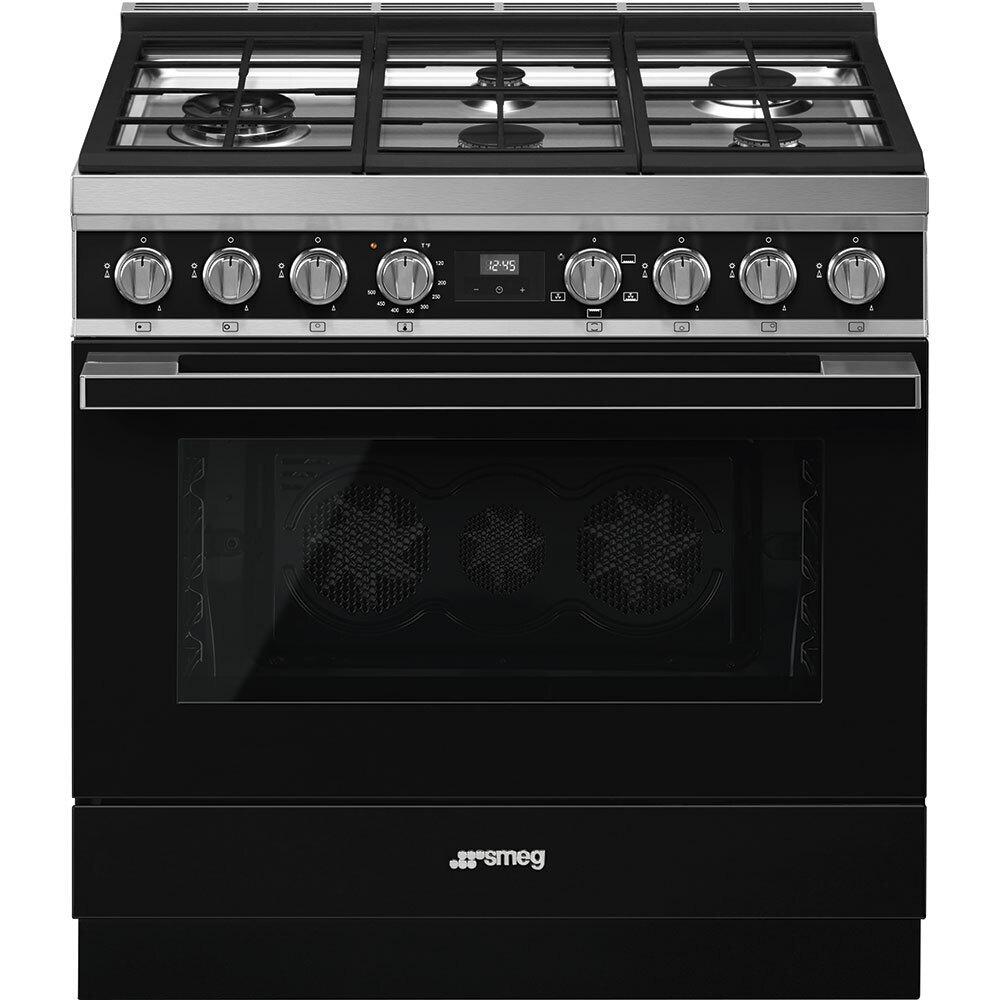

PORTOFINO STYLE
Stainless steel control knobs
Triple Convection
Soft close oven door
Full-width continuous grates
Push-pull stainless steel storage compartment
GAS OVEN:
4 cooking modes
Programmable Timer with Touch display
Adjustable thermostat 120
Air-cooled triple-glazed removable door
Triple Convection
Oven capacity: 4.5 cu. ft.
Ever Clean enameled interior cavity
5 shelf positions
2 x halogen oven lights
GAS RANGETOP:
5 gas burners
Center-rear 4500 BTUs
Center-front 10500 BTUs
Right-rear 12000 BTUs
Right-front 8000 BTUs
Left double-inset super burner 20000 BTUs
Heavy-duty cast iron grates
Automatic electric ignition
LP gas conversion kit included
SAFETY:
Gas safety valves
Air-cooled door to prevent overheating
Connected load nominal power: 200W - 2 Amps
Voltage rating: 120V 60Hz
ACCESSORIES INCLUDED:
1 wok ring
1 deep oven tray
1 total-extraction telescopic guide
2 chrome shelves
1 black toe kick
Specifications
| Type | |
| Product family | Range |
| Range size | 36" |
| Range fuel | Gas |
| N. of ovens | 1 |
| Main oven | Gas with grill |
| EAN code | 8017709265205 |
| Aesthetic | |
| Color | Black |
| Aesthetics | Portofino |
| Design | Flush mounted |
| Material | Painted metal |
| Door | With frame |
| Control panel finish | Metal enameled |
| Cooktop color | Stainless steel |
| Handle | Portofino |
| Controls color | Stainless steel |
| Upstand | Yes |
| Display | Touch |
| Grates | Cast Iron |
| Door glass type | Gray |
| Handle color | Colored |
| Control knobs | Portofino |
| No. of controls | 8 |
| Feet | Stainless steel |
| Plinth | Black |
| Storage compartment | Push-pull |
| Main oven options | |
| Timer | Yes |
| End-of-cooking alarm | Yes |
| Minimum Temperature | 120 °F |
| Maximum temperature | 500 °F |
| Cooktop technical features | |
| Cooking zones | 5 |
| Zone 1 - Position | Left |
| Zone 2 - Position | Rear-center |
| Zone 3 - Position | Front-center |
| Zone 4 - Position | Rear-right |
| Zone 5 - Position | Front-right |
| Zone 1 - Type | Gas - Dual ultra-rapid |
| Zone 2 - Type | Gas - AUX |
| Zone 3 - Type | Gas - Rapid |
| Zone 4 - Type | Gas - Rapid |
| Zone 5 - Type | Gas - Semi-rapid |
| Burners type | Standard |
| Burner caps | Enameled matte black |
| Automatic gas ignition | Yes |
| Gas safety valves | Yes |
| Main Oven Technical Features | |
| Volume | 0.16 cu. ft. |
| Cavity material | EverClean enamel |
| No. of shelves | 5 |
| Shelves type | Metal racks |
| No. of lights | 2 |
| Light type | Halogen |
| Light Power | 40 W |
| Fan number | 3 |
| Time setting | Start and end |
| Door opening | Drop-down |
| Removable door | Yes |
| Full-glass inner door | Yes |
| Removable inner door | Yes |
| Total no. of door glasses | 3 |
| No.of thermo-reflective door glasses | 2 |
| Safety thermostat | Yes |
| Cooling system | Tangential |
| Grill type | Gas |
| Soft Close system | Yes |
| Temperature control | Electro-mechanical |
| Electrical Connection | |
| Electrical connection rating | 200 W |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Power cord length | 47 1/4 " |
| Gas Connection | |
| Gas Type | G20/G25 - 20/25 mbar |
| Logistic Information | |
| Width | 35 7/8 " |
| Height | 36 1/16 " |
| Depth | 25 1/16 " |
| Gross weight | 265 lbs |
| Net weight | 231 lbs |
| Accessories Included | |
| Other gas nozzles included | G30 LPG liquid gas |
| Accessories included for main oven and cooktop | |
| Cast iron wok support | 1 |
| TOP Oven grid with back stop | 2 |
| Grill mesh | 1 |
| 0.8"-deep tray | 1 |
| Telescopic Guide rails, total Extraction | 1 |
