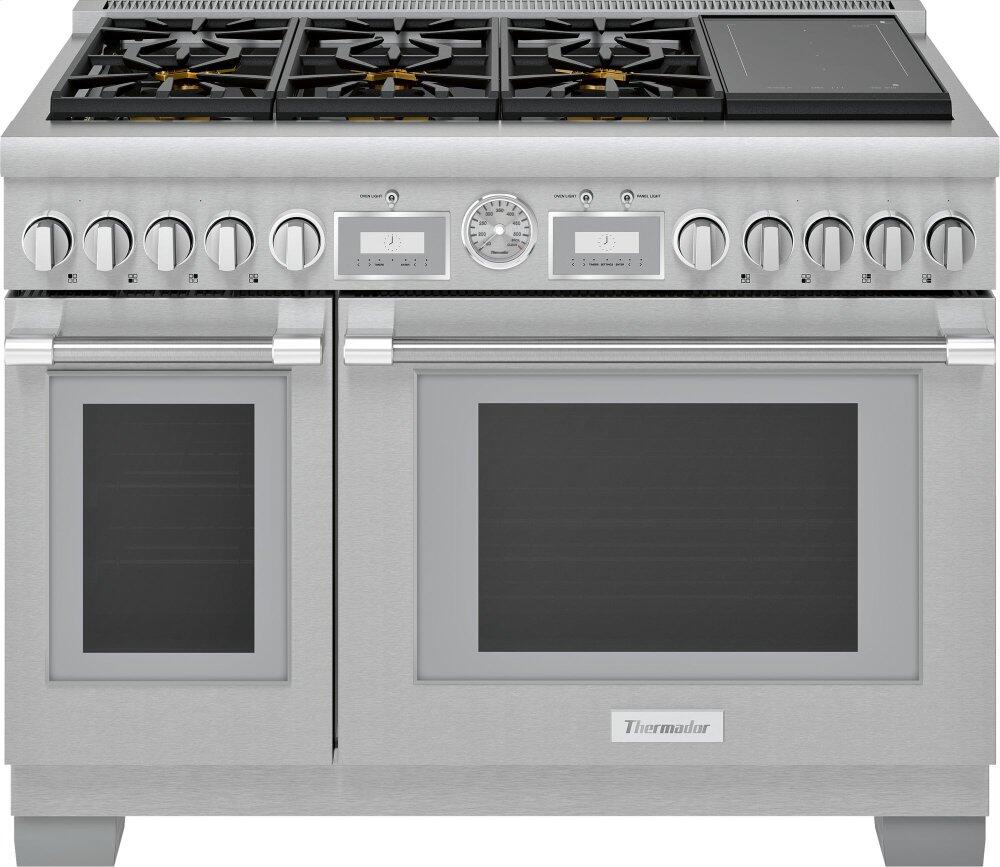

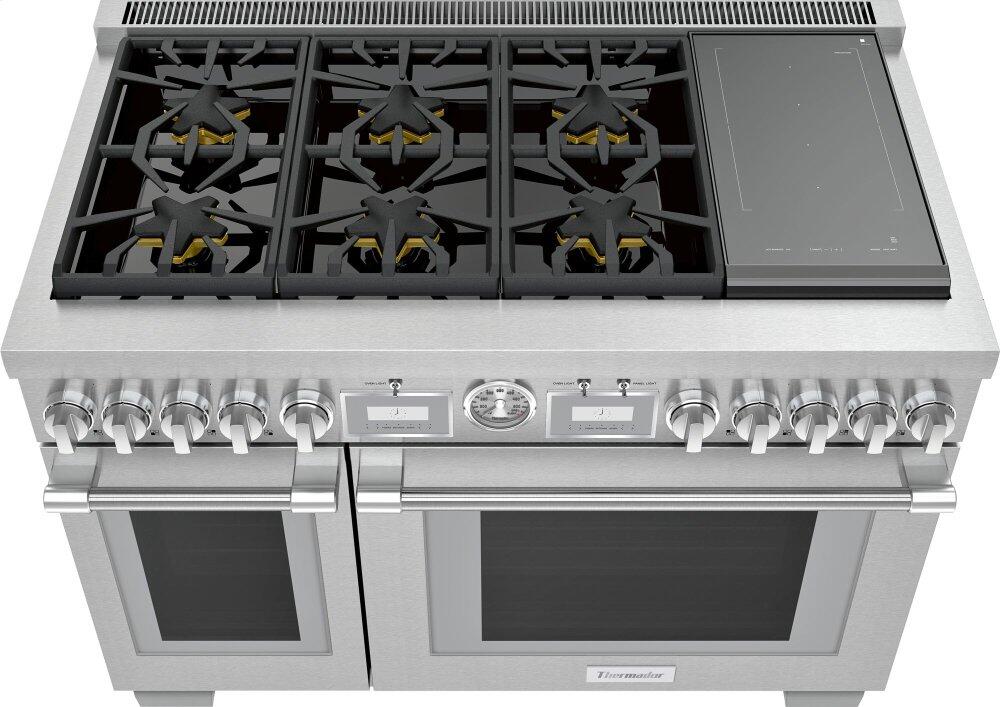

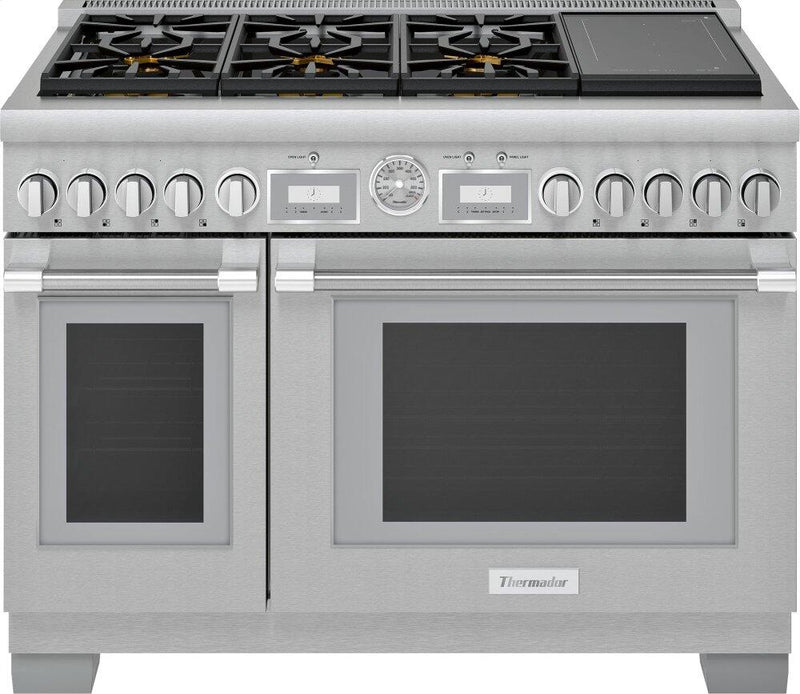

This Thermador 48-inch dual-fuel range is equipped with 6 burners and a 12" induction surface. This model also features ExtraLow® burners, an ExtraHigh Star® burner and a 2.5-hour self-clean mode.
EXTRALOW®The ExtraLow® feature provides the widest variety of temperature control of any simmer system. It cycles on and off to maintain temperatures as low as 100°. Perfect for simmering delicate sauces or keeping food warm without scorching. THERMADOR EXCLUSIVE
STAR-K CERTIFIED
Thermador Professional® Ranges are Star-K certified making it possible to use them on the Sabbath or the Holidays.

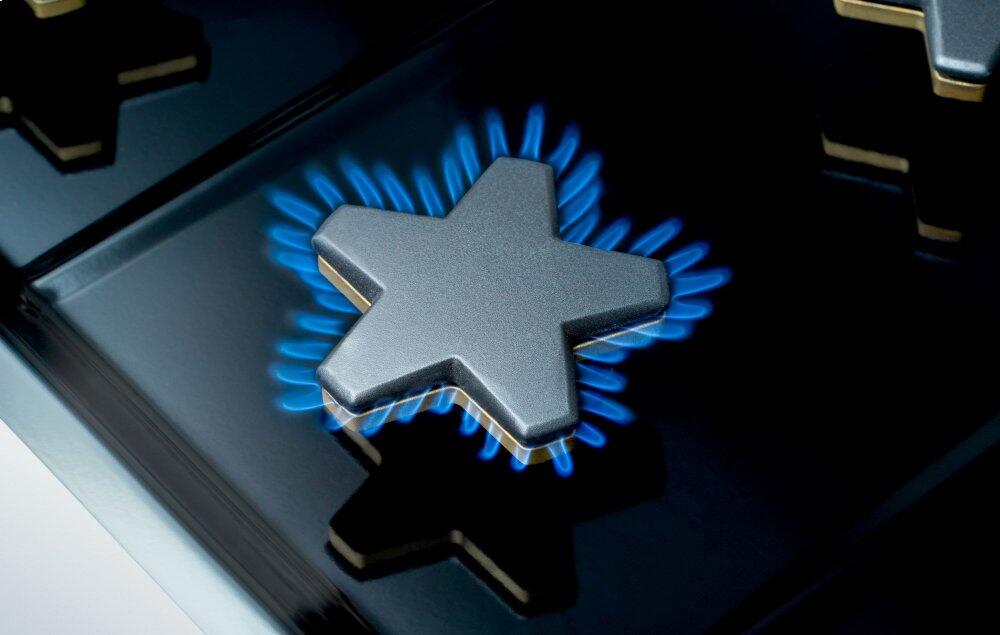

STAR® BURNERS
The Star® Burner’s unique shape isn’t just for show. It creates a perimeter 56% longer than a round burner of the same size, which allows the inclusion of more flame ports. The result is a stove burner that delivers superior flame spread and a reduced cold spot for faster and more even heating across any size pan.
TRUE CONVECTION
offers precise airflow for cooking on multiple levels without flavor transfer.
Features
- Oven Light:
Y - Self-Cleaning:
Y - Digital Temperature Display:
Y - Technologies:
• ExtraLow® Burners
• ExtraHigh Star® Burner
• Hydraulic SoftClose® Hinges
• Induction Technology
• True Convection Technology
• Home Connect™ (Wi-Fi Enabled) (Large Oven Only) - Additional Information:
• Sabbath (Large and Small Oven)
• Self-Clean (Large and Small)
• Telescopic Racks (Large / Small): 3 / 2
• Interior Lights(Large / Small): 2 / 1
• Bake Power(Large / Small): 2,000 W / 1,400 W
• Broil Power (Large / Small): 4,000 W / 2,600 W
• Convection Power (Large / Small): 2,750 W / 1,960 W - Wi-Fi:
Y
Accessories
- Included:
• 3 Telescopic Racks
• 2 Sm. Telescopic Racks
• Multi-Point Meat Probe
• 1 Lg Broil Pan
• 1 Sm. Broil Pan
• Island Trim - Optional:
• PWOKRINGHC Wok Ring
• PAGRIDDLE Professional Griddle, Sits on Top of Grates Over
• PA48WLBSG 7" Low Back Backguard*
• PALPKITHW LP Conversion Kit Dual-Fuel Pro Ranges and Rangetops (4 and 6 Burner)
• PAKNOBLUWG Metallic Blue Knob Kit
• PA48WTKG Toekick
• PAALTKITGW Natural Gas Models from 5,400 ft.–10,200 ft.
• TROASTERT Stainless Steel Roaster Pan
• CHEFSPAN08 10" Stainless Steel Pan
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
Class Width
48"Depth (Including Handles)
77.8 cmAdditional Dimensions

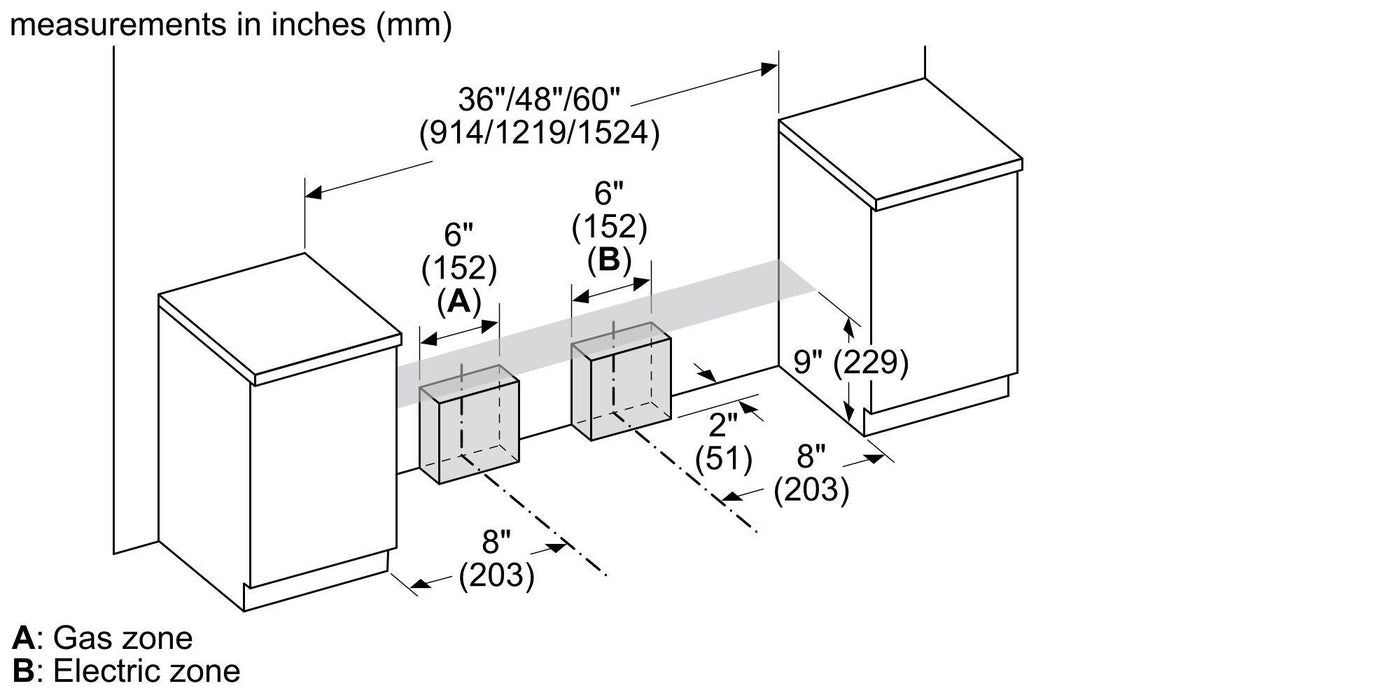

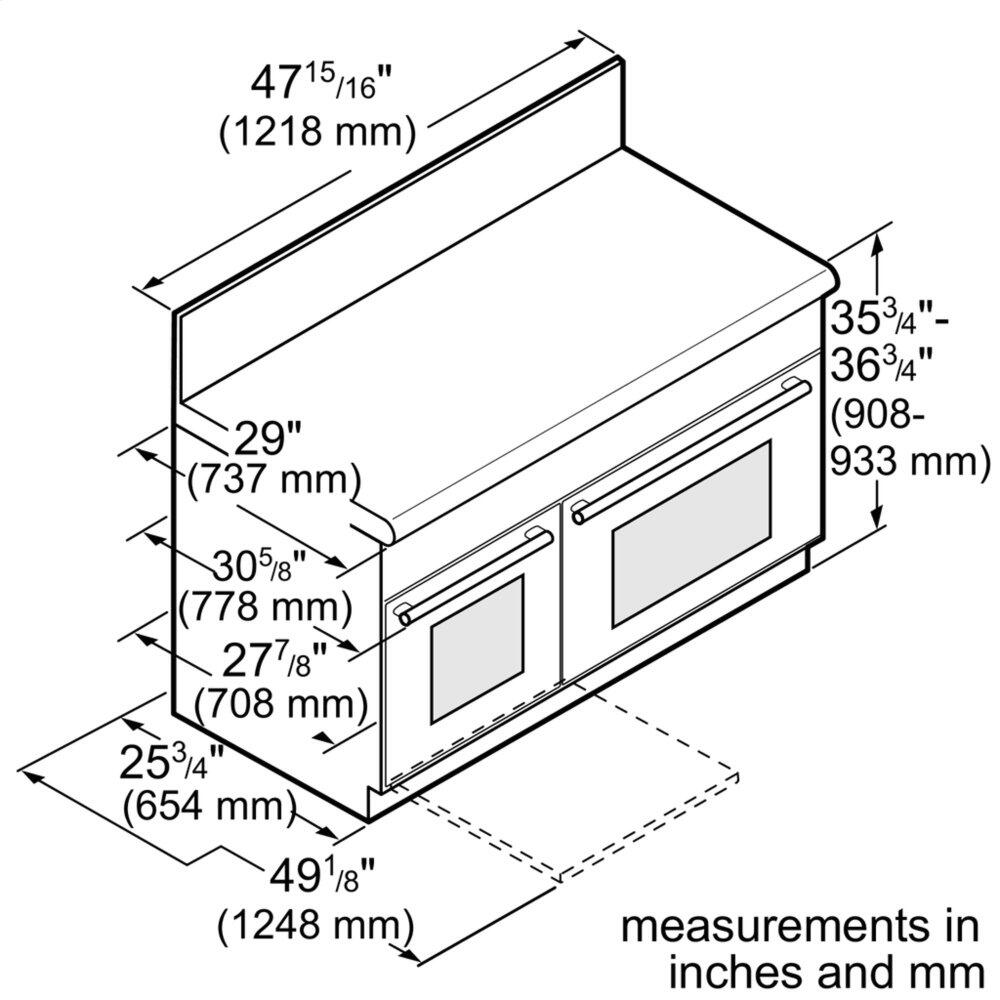

Required Cutout Size (HxWxD): 35 3/4" – 36 3/4" x 48" x 24" – 25 1/8"Weight
223.62 kgWidth
121.8 cmDepth (Without Handles)
73.7 cmHeight
90.8 cmOven Light
YSelf-Cleaning
YDigital Temperature Display
YTechnologies
• ExtraLow® Burners
• ExtraHigh Star® Burner
• Hydraulic SoftClose® Hinges
• Induction Technology
• True Convection Technology
• Home Connect™ (Wi-Fi Enabled) (Large Oven Only)Additional Information
• Sabbath (Large and Small Oven)
• Self-Clean (Large and Small)
• Telescopic Racks (Large / Small): 3 / 2
• Interior Lights(Large / Small): 2 / 1
• Bake Power(Large / Small): 2,000 W / 1,400 W
• Broil Power (Large / Small): 4,000 W / 2,600 W
• Convection Power (Large / Small): 2,750 W / 1,960 WWi-Fi
YBurners
SealedOther
GriddleBurners/Elements
7Burner/Element Size
12" Induction SurfaceBurners/Elements Output
• Power of Back Left Burner BTU: 15,000 and XLO
• Power of Front Left Burner BTU: 22,000 and XHI / XLO
• Power of Back Center Burner BTU: 15,000
• Power of Front Center Burner BTU: 18,000
• Power of Right Back Center Burner BTU: 15,000 and XLO
• Power of Right Front Center Burner BTU: 18,000 and XLO
• Power of Far Right Induction: 3,600 WIncluded
• 3 Telescopic Racks
• 2 Sm. Telescopic Racks
• Multi-Point Meat Probe
• 1 Lg Broil Pan
• 1 Sm. Broil Pan
• Island TrimOptional
• PWOKRINGHC Wok Ring
• PAGRIDDLE Professional Griddle, Sits on Top of Grates Over
• PA48WLBSG 7" Low Back Backguard*
• PALPKITHW LP Conversion Kit Dual-Fuel Pro Ranges and Rangetops (4 and 6 Burner)
• PAKNOBLUWG Metallic Blue Knob Kit
• PA48WTKG Toekick
• PAALTKITGW Natural Gas Models from 5,400 ft.–10,200 ft.
• TROASTERT Stainless Steel Roaster Pan
• CHEFSPAN08 10" Stainless Steel PanInformation
• 240 V / 208 V
• 60 Hz
• 50 AWarranty
Limited 2 Years Parts and LaborUPC#
825225954934Appliance Care
2.5-hour Self-Clean ModeFuel Type
Dual Fuel - Natural GasSeries Name
Pro Grand® ProfessionalManufacturer Color
Stainless SteelColor
Stainless SteelInstallation Type
FreestandingPrograms
• Large Oven:
• Bake
• Convection Bake
• True Convection
• Convection Roast
• Roast
• Convection Broil
• Broil
• Small Oven:
• Bake
• Convection Bake
• Proof
• Keep Warm
• Convection Roast
• Roast
• Convection Broil
• BroilNumber of Ovens
DoubleCapacity (cu. ft.)
• Total Capacity: 8.2 cu.ft.
• Large Oven: 5.7 cu.ft.
• Small Oven: 2.5 cu.ft.Sabbath/Star-K
Y
