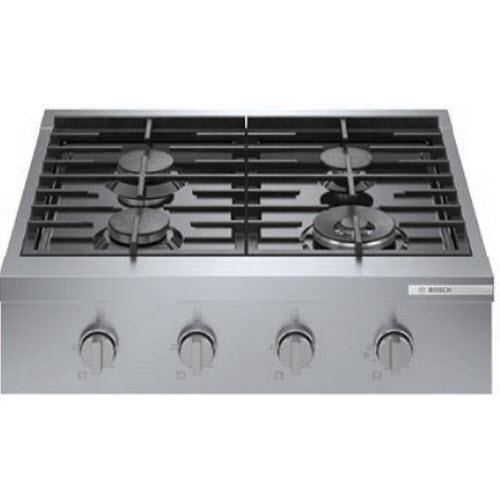

This 30-inch wide Bosch slide-in gas rangetop features OptiSim® burner, cast-iron grates, electric ignition system and 4 sealed burners.
OPTISIM® BURNEROptiSim® Burner – simmer delicate sauces and melt chocolate without scorching
Features
- Technologies:OptiSim® Burner
- Additional Information:• Dual Flame Power Burner
 • Metal Knobs
 • Electric Ignition System
 • Flame Failure Device
 • Continuous Grates
 • Dishwasher Safe
Accessories
- Included:• LP Conversion Kit
 • OptiSim® Cap
- Optional:• Griddle HEZ9GR41UC
 • Wok Ring HEZ9GW23UC
 • 9" Backguard (Stainless Steel) HEZ7YZ30UC
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
- Surface Features• Heavy-Duty Continuous Surface Grates
 • Porcelain Coated Steel
- BurnersSealed
- Burners/Elements4
- Power Output• Total BTU Load (NG / LP): 47,000 / 47,000 BTU
 • Power of Front Left Burner (NG / LP): 12,000 / 12,000 BTU
 • Power of Back Left Burner (NG / LP): 12,000 / 12,000 BTU
 • Power of Back Right Burner (NG / LP) Opti-Sim®: 5,000 / 5,000 BTU
 • Power of Front Right Burner (NG / LP) Dual-Flame: 18,000 / 18,000 BTU
- Information• 120 V
 • 60 Hz
 • 15 A
- Height19.05 cm
- Width76.04 cm
- Class Width30"
- Additional DimensionsRequired Cutout Size (HxWxD): 7 3/8" x 30" x 24"
- Weight14.06 kg
- Depth67.62 cm
- TypeRangetop
- Series Name800 Series
- Fuel TypeNatural Gas
- Manufacturer ColorStainless Steel
- ColorStainless Steel
- ADA CompliantY
- Included• LP Conversion Kit
 • OptiSim® Cap
- Optional• Griddle HEZ9GR41UC
 • Wok Ring HEZ9GW23UC
 • 9" Backguard (Stainless Steel) HEZ7YZ30UC
- TechnologiesOptiSim® Burner
- Additional Information• Dual Flame Power Burner
 • Metal Knobs
 • Electric Ignition System
 • Flame Failure Device
 • Continuous Grates
 • Dishwasher Safe
- UPC#825225960836
