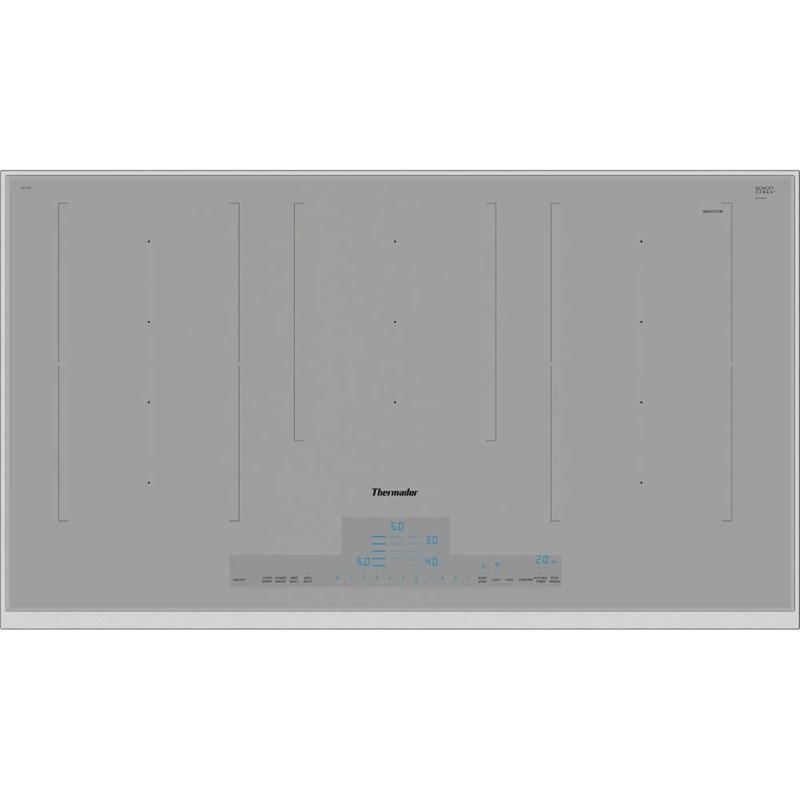

Thermador 36" Liberty® Induction Cooktop, surface mount with frame, is designed for greater flexibility when cooking. The HeatShift® feature has three preset heat zones that allows you to change the power level by simply moving the pot across the cooking zone.
POWERBOOST®Induction PowerBoost® feature heats cookware faster than any other type of cooking technology.
HEATSHIFT™
Thermador HeatShift allows you to change the power level by simply moving the pot across the cooking zone. Perfect for recipes that require multiple heat levels, such as moving from a sauté to a simmer.
MOVEMODE™
Finished cooking the main course and ready to prepare the sauce? MoveMode allows easy transfer of settings without having to reset power levels when moving a pot across the cooktop.
COOKSMART®
Never guess a cooking time or temperature again. With 9 pre-programmed modes and auto-shutoff, you’ll get the perfect results every time you cook. Cooking modes include: pasta, potatoes, rice, dumplings, vegetables, sausages, milk, rice pudding and deep frying. *THERMADOR EXCLUSIVE
Features
- Wi-Fi:Y
- Technologies:• HeatShift® feature has three preset heat zones that allows you to change the power level by simply moving the pot across the cooking zone
 • MoveMode® feature allows easy transfer of settings without having to reset power levels when moving a pot across the cooktop
 • CookSmart® with 5 pre-set temperature levels to effortlessly pan fry a wide range of foods
 • PowerBoost® setting
 • Type of control: Direct Select 2.0
 • FlexInduction
 • FryingSensor Plus
- Additional Information:• Stainless Steel Convenience frame
 • Left and right Liberty® zones can be used as 2 separate cooking zones or combined into one large zone
 • Separate Residual heat indicator
 • Automatic pan recognition
 • Childproof lock
 • Key Lock
 • Power management function
 • Safety time-switch-off
 • Control panel pause
 • 2 stage residual heat indicators
- Control Lock:Y
Accessories
- Optional:• Sensor Frying Pan (Small): 00570364
 • Frying Pan: 11025728 CHEFSPAN08
 • Roasting Pan: 12024196 TROASTERT
 • Teppanyaki - 10" x 13": 12024194 TEPPAN1013
 • Teppanyaki - 10" x 16": 12024195 TEPPAN1016
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
Specifications
- Surface FeaturesExtra-large cooking surface
- ElementsSmoothtop
- Burners/Elements5
- Power Output• Center Left: 3,300W
 • Center Right: 3,300W
 • Front Center: 3,300W
- Wi-FiY
- Technologies• HeatShift® feature has three preset heat zones that allows you to change the power level by simply moving the pot across the cooking zone
 • MoveMode® feature allows easy transfer of settings without having to reset power levels when moving a pot across the cooktop
 • CookSmart® with 5 pre-set temperature levels to effortlessly pan fry a wide range of foods
 • PowerBoost® setting
 • Type of control: Direct Select 2.0
 • FlexInduction
 • FryingSensor Plus
- Additional Information• Stainless Steel Convenience frame
 • Left and right Liberty® zones can be used as 2 separate cooking zones or combined into one large zone
 • Separate Residual heat indicator
 • Automatic pan recognition
 • Childproof lock
 • Key Lock
 • Power management function
 • Safety time-switch-off
 • Control panel pause
 • 2 stage residual heat indicators
- Control LockY
- Information• Watts: 9360
 • Fuse protection: 50
 • Volts: 208-240
 • Frequency: 60
 • Energy consumption of hob: 185.0 Wh/kg
 • Energy consumption of heating elements: 185.0 Wh/kg
- Height18.42 cm
- Width93.98 cm
- Class Width36"
- Additional Dimensions• Minimum distance from counter front: 2 1/2"
 • Minimum distance from rear wall: 2 3/8"
 • Power Cord Length: 37"
 • Required cutout size (HxWxD): 3 7/8" x 34 7/8" x 20"
- Weight24.49 kg
- Depth53.98 cm
- TypeBuilt-In
- Series Name• Masterpiece®
 • Liberty®
- Fuel TypeElectric Induction
- ColorGrey
- Manufacturer ColorTitanium Grey
- Optional• Sensor Frying Pan (Small): 00570364
 • Frying Pan: 11025728 CHEFSPAN08
 • Roasting Pan: 12024196 TROASTERT
 • Teppanyaki - 10" x 13": 12024194 TEPPAN1013
 • Teppanyaki - 10" x 16": 12024195 TEPPAN1016
- Width107 cm
- Height17.94 cm
- Depth67.95 cm
- Weight28.58 kg
- Warranty1-Year parts and labor
- InformationDekra Mark C+US, FCC
- UPC#825225960270
