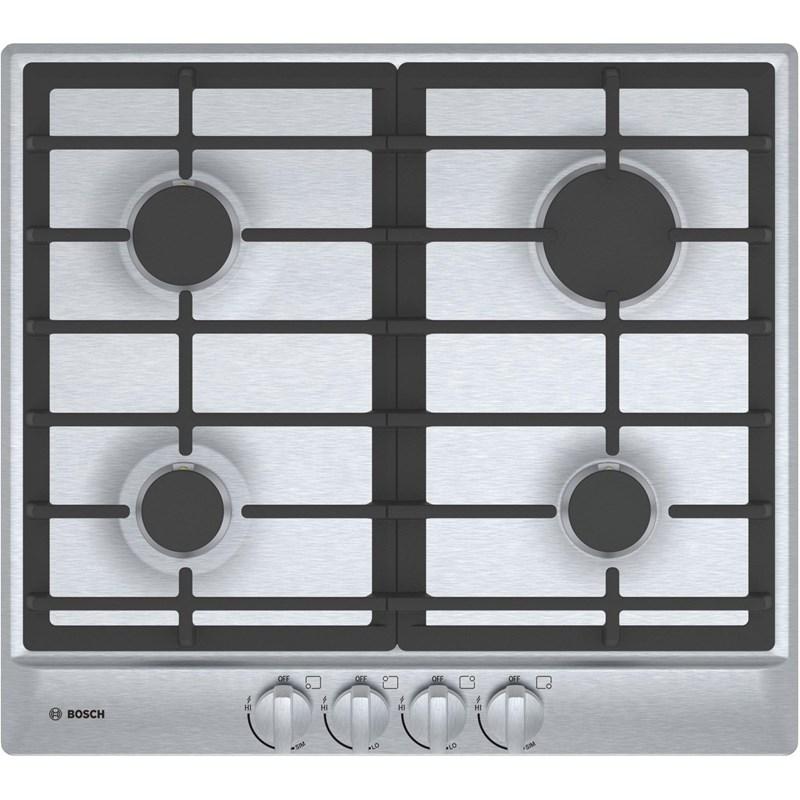

This 24-inch Bosch gas cooktop features 4 sealed burners, heavy-duty metal knobs, electronic re-ignition and a LP conversion kit is included.
HEAVY-DUTY METAL KNOBSHeavy-duty metal knobs for a Premium look and feel.
Features
- Additional Information:
• Sealed Burners Prevent Spills from Entering the Burner Box
• Push-to-Turn Knobs
• Automatic Electronic Re-Ignition
• Heavy-Duty Metal Knobs for a Premium Look and Feel
• Low-Profile Design for an Integrated Appearance
• Perfect Results are Within Reach with Up-Front Centralized Controls
Accessories
- Optional:
LP Conversion Kit
Documents
- Product Sheet (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Assembly Guide (en)
- Additional documents(en)
Specifications
Dimensions
Width22"Height27"Depth20"
Finish: Stainless Steel
MPN: NGM5456UC
Product Details:
Surface Features
Continuous Cast Iron GratesBurners
SealedBurners/Elements
4Power Output
• Total BTU (NG / LP): 30,800 / 27,000
• Front Left Burner (NG / LP): 5,000 / 5,000
• Back Left Burner (NG / LP): 9,300 / 7,000
• Back Right Burner (NG / LP): 11,500 / 10,000
• Front Right Burner (NG / LP): 5,000 / 5,000Information
• 360 W
• 15 A
• 120 V
• 60 Hz
• Plug type: 3 prong
• Gas connection rating: 9,030 WHeight
70 cmWidth
58.2 cmClass Width
24"Additional Dimensions
• Required Cutout Size (HxWxD): 2-3/4" x 20-7/8" x 19-1/4"
• Minimum Distance from Counter Front: 1-3/4"
• Minimum Distance from Rear Wall: 3"
• Power Cord Length: 152 cmWeight
14 kgDepth
52 cmType
Built-InSeries Name
500 SeriesFuel Type
Natural GasManufacturer Color
Stainless SteelColor
Stainless SteelOptional
LP Conversion KitWidth
58.2 cmHeight
7.0 cmDepth
52.0 cmWarranty
Limited 1 Year Parts and LaborUPC#
8.25E+11Additional Information
• Sealed Burners Prevent Spills from Entering the Burner Box
• Push-to-Turn Knobs
• Automatic Electronic Re-Ignition
• Heavy-Duty Metal Knobs for a Premium Look and Feel
• Low-Profile Design for an Integrated Appearance
• Perfect Results are Within Reach with Up-Front Centralized Controls
UPC: 8.25E+11
Weight: 14
