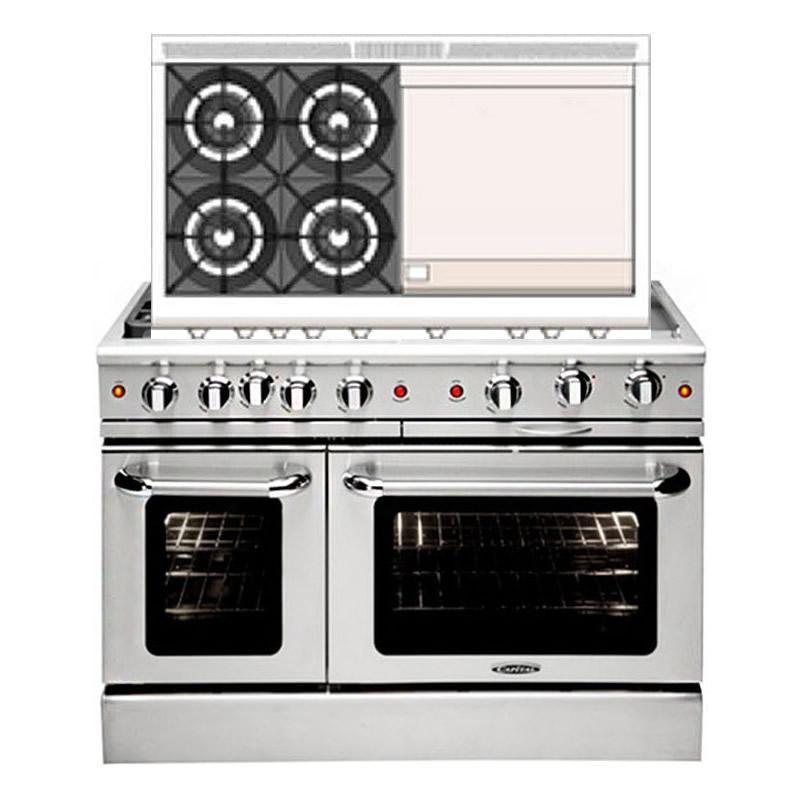

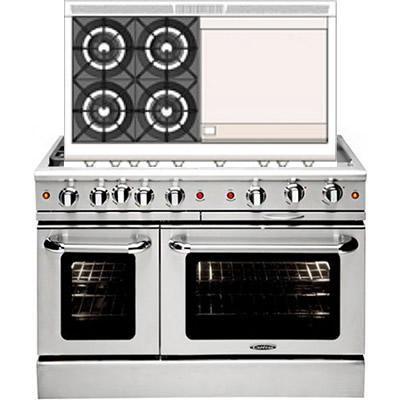

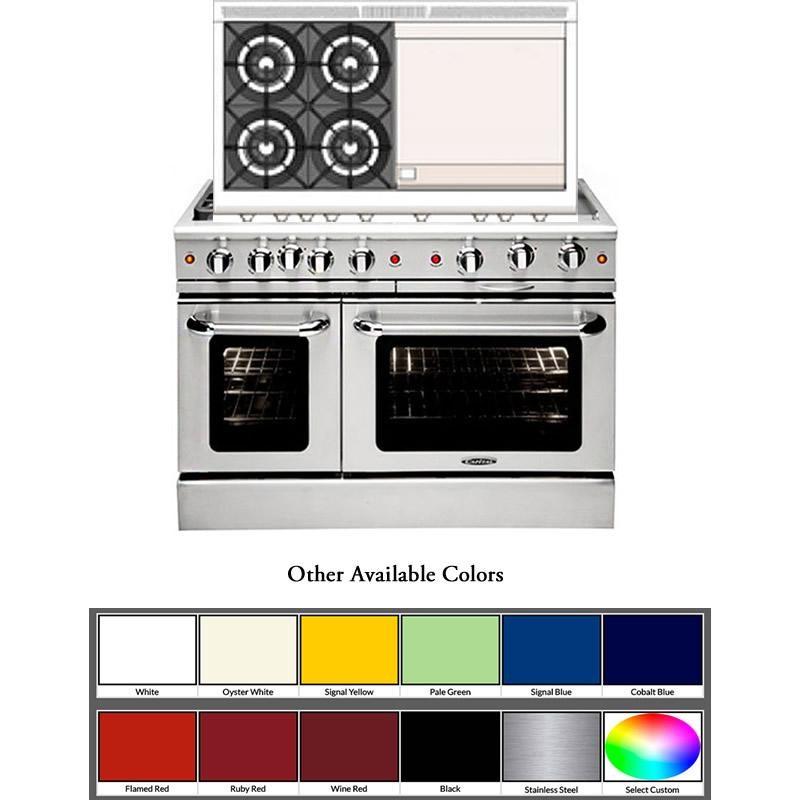

Capital Culinarian series 48" gas range. It features 4 open burners with a 24" thermo-griddle. It has removable EZ-glide drip trays, auto-Ignition for all burners and Stay-cool™ knobs.
CAST IRON WOK GRATECast Iron Wok Grate
EZ-GLIDES™
Full extension removable drip trays mounted on ball bearing rails.
THERMO-GRIDDLE™
Solid stainless steel thermostatically controlled griddle plate gives you precise control over the griddle area.
OPEN BURNERS
Each burner produces 25,000 BTUs of searing heat and also turns down to a delicate, consistent simmer, offering precise control. Perfect for the cooking connoisseur.
Features
- Control Lock:
N - Convection:
Y - Delay Bake/Start:
N - Digital Temperature Display:
N - Downdraft Ventilation:
N - Oven Light:
Y - Self-Cleaning:
N - Additional Information:
• Stay-Cool™ die cast, chrome plated metal knobs
• Professional stye heavy duty cast iron grates with easy to clean matte porcelain finish
• Full extension Drip Trays on EZ-Glides
• Flush Island Friendly Trim
• All burner have auto ignition and re-ignition
• Manual clean (Both ovens)
• Convection oven (Both ovens)
• BAKE (Both ovens)
• CONVECTION BAKE (Both ovens)
• 30,000 BTU oven burner for uniform baking (Large oven)
• 18,000 BTU Infrared Broil burner with Inconel Mesh construction (Large oven)
• 15,000 BTU oven burner for uniform baking (Small oven)
• Titanium speck porcelain oven interior
• 5 Rack Positions w/ 2 Heavy Duty Racks provided
• Broil pan provided
• 1-1/4" diameter professional-style handle (Both ovens)
• Heavy-duty oven door hinges (Both ovens)
• Extra large viewing window (Both ovens)
• Bright 40W oven lights (Both ovens)
Documents
Specifications
Fuel Type
Liquid PropaneInstallation Type
FreestandingManufacturer Color
Stainless SteelSeries Name
CULINARIANColor
Stainless SteelCapacity (cu. ft.)
Large Oven : 4.9Small Oven : 2.7Total Capacity : 7.6Number of Ovens
DoubleBurners
OpenBurners/Elements
5Burners/Elements Output
• Three 25, 000 BTU open style burners turn down to a True Simmer
• One 8,000 BTU Small Pan Burner turns down to an extra low simmer
• 24 inch wide 30,000 BTU Stainless Steel Griddle Plate with Thermostatic Control and Stainless Steel CoverBurner/Element Size
24" Thermo-Griddle™Indicator Light
NInformation
120Control Lock
NConvection
YDelay Bake/Start
NDigital Temperature Display
NDowndraft Ventilation
NOven Light
YSelf-Cleaning
NAdditional Information
• Stay-Cool™ die cast, chrome plated metal knobs
• Professional stye heavy duty cast iron grates with easy to clean matte porcelain finish
• Full extension Drip Trays on EZ-Glides
• Flush Island Friendly Trim
• All burner have auto ignition and re-ignition
• Manual clean (Both ovens)
• Convection oven (Both ovens)
• BAKE (Both ovens)
• CONVECTION BAKE (Both ovens)
• 30,000 BTU oven burner for uniform baking (Large oven)
• 18,000 BTU Infrared Broil burner with Inconel Mesh construction (Large oven)
• 15,000 BTU oven burner for uniform baking (Small oven)
• Titanium speck porcelain oven interior
• 5 Rack Positions w/ 2 Heavy Duty Racks provided
• Broil pan provided
• 1-1/4" diameter professional-style handle (Both ovens)
• Heavy-duty oven door hinges (Both ovens)
• Extra large viewing window (Both ovens)
• Bright 40W oven lights (Both ovens)Sabbath/Star-K
NHeight
91.44 cmWidth
121.6 cmClass Width
48"Depth (Without Handles)
72.07 cmAdditional Dimensions
• Primary Oven Dimensions: 27" W x 15" H x 21"
• Companion Oven Dimensions: 15" W X 15" H X 21" D
• Cutout Dimension: 48-1/8"W X 24"D (std)
• For more information refer to dimension guideWeight
254.01 kgWeight
272.16 kgWarranty
• ONE (1) Year full parts and labor covers entire product with the exception of painted or decorative parts listed below*. (Light bulbs covered for 60 days after installation.) Standard shipping only. Expedited shipping will be at customers' expense
• *Painted and decorative parts will be warranted for 90 days from date of original purchase. Any damages or defects must be reported within this timeframe. Replacement painted parts may have slight color variations from the original parts due to normal manufacturing variables
• FIVE (5) Years limited part replacement warranty. Covers part replacement, as noted below due to malfunction during normal operation
