About this Product

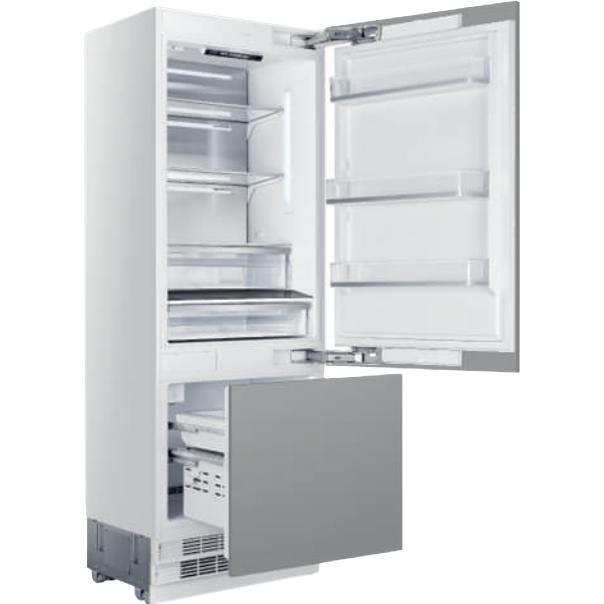

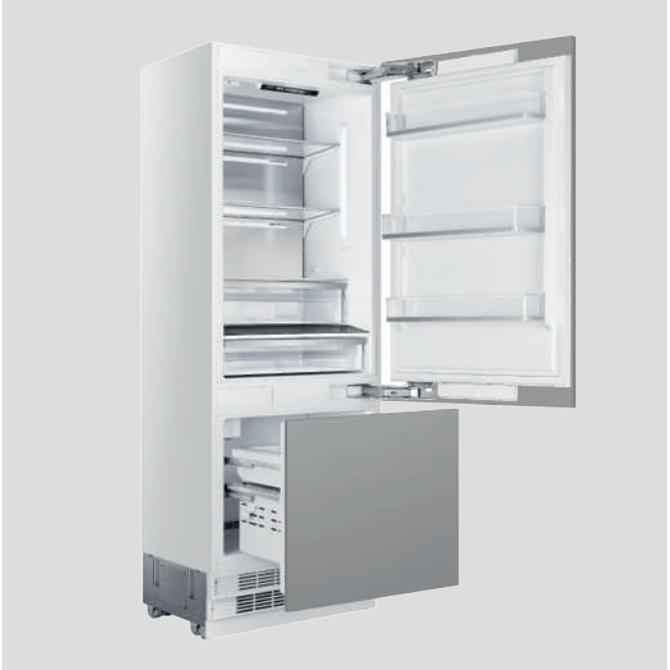

Elica Dolomite 30", bottom-mount, built-1n / panel ready refrigerator boasting an impressive 16 cu. ft. capacity. It is more than an appliance; it's a statement of modern living with large storage space, adjustable temperature and perfect preservation for your food. Elevate your kitchen with a seamlessly integrated appliance with Panel Ready Capabilities and unique 3D adjustment for perfect flush installation.
Documents
Specifications
| Manufacturer Color | Panel Ready | Door Hinge | Right | Color | Panel Ready |
| Series Name | Dolomite | Installation Type | Built-In | Counter-Depth | N |
| Refrigerator Type | Bottom Freezer | Interior Light | Y | Frost Free | Y |
| Digital Display | Y | Gallon Door | Y | Crisper Drawers | Y |
| Filtration Indicator | Y | Water System | None | Ice System | Interior |
| Filtration | Y | Dispenser Features | Ice Maker in Freezer: 3.9 lbs/day with basket capacity 5 lbs | Weight | 155.13 kg |
| Overall Depth | 59.21 cm | Class Height | 70" and More | Additional Dimensions | Cut Out Dimensions: 30 " W x 25" D x 84" H |
| Class Width | 29" to 31.9" | Width | 73.81 cm | Height (With Hinge) | 211.46 cm |
| Sabbath Mode | Y | Energy Star Certified | Y | Freezer | 4.5 cu. ft. |
| Refrigerator | 11.5 cu. ft. | Total | 16.0 cu. ft. | Warranty | 2 Years Parts and Labor |
|
Additional Freezer Information Temperature range: +5°F (-15°C)to-11°F(-24°C) | Drawers: 1 Large Freezer drawer, 1 Metal Freezer Drawer
| |||||
| Optional | |||||
|
Information 115 V/ 60 Hz and 220-240 V/ 50-60 Hz | NEMA 5-15 P plug | Energy consumption: 551 kw/year
| |||||
Accessories
• Pro Handle Stainless Steel Kit: EPHKB30SS
• Tubular Handle Stainless Steel Kit: ETHKB30SS
• Column Joining Kit: ECJKCXX
• Water Filter: ERWFX
• Water Filter: Cover ERWFC
Door Hinge: Right
Specifications
Manufacturer Color
Panel Ready
Door Hinge
Right
Color
Panel Ready
Series Name
Dolomite
Installation Type
Built-In
Counter-Depth
N
Refrigerator Type
Bottom Freezer
Interior Light
Y
Frost Free
Y
Digital Display
Y
Gallon Door
Y
Crisper Drawers
Y
Filtration Indicator
Y
Water System
None
Ice System
Interior
Filtration
Y
Dispenser Features
Ice Maker in Freezer: 3.9 lbs/day with basket capacity 5 lbs
Weight
155.13 kg
Overall Depth
59.21 cm
Class Height
70" and More
Class Width
29" to 31.9"
Width
73.81 cm
Height (With Hinge)
211.46 cm
Weight
175.09 kg
Sabbath Mode
Y
Energy Star Certified
Y
Freezer
4.5 cu. ft.
Refrigerator
11.5 cu. ft.
Total
16.0 cu. ft.
Warranty
2 Years Parts and Labor
Additional Information

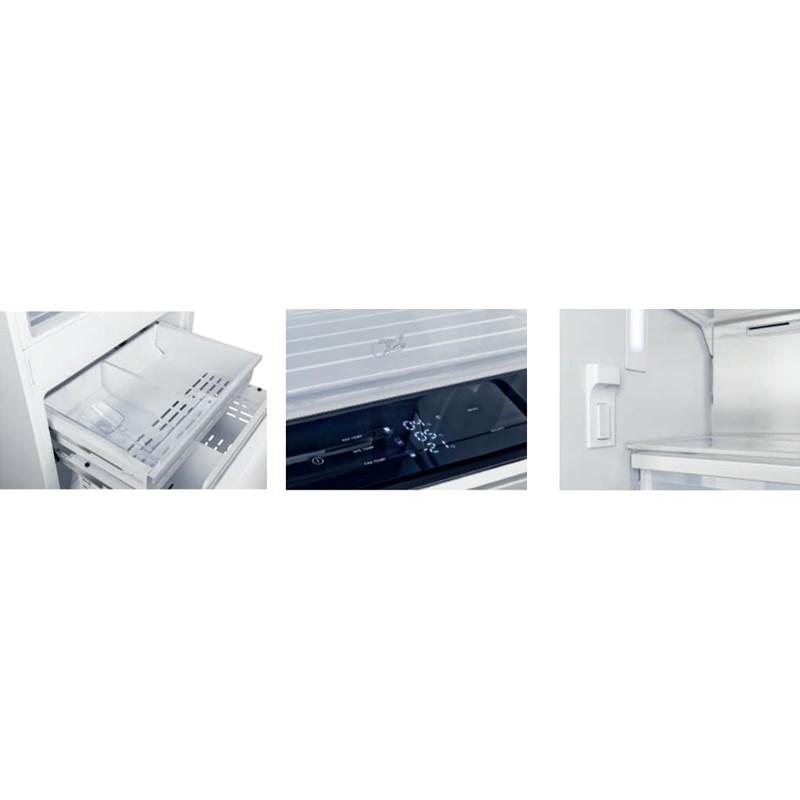

Refrigerant type: R600A | Compressor: Donper | Ultra Quiet 43 db(A) | Lighting: LED 6500K 300 lumens, 100 lumen for Freezer | Controls: Electronic Soft-Touch Digital Black, Glass display | Temperature range: +35°F (2°C) to 46°F (8°C), Chiller drawer 30°F (-1°C) to 41°F(5°C) | Shelving: 3 Height adjustable cantilever, Spill-Proof Glass shelves | Drawers: Humidity control Drawer + Chiller Adjustable Temp Drawer | Door Storage: 3 Height adjustable Bins | ECO Mode
Additional Dimensions
Cut Out Dimensions: 30 " W x 25" D x 84" H
Additional Freezer Information
Temperature range: +5°F (-15°C)to-11°F(-24°C) | Drawers: 1 Large Freezer drawer, 1 Metal Freezer Drawer
Additional Information
Holiday Mode
Optional
30" Stainless Steel Panel Kit: EPNKB30SS (3/4" deep) | Pro Handle Stainless Steel Kit: EPHKB30SS | Tubular Handle Stainless Steel Kit: ETHKB30SS | Column Joining Kit: ECJKCXX | Water Filter: ERWFX | Water Filter: Cover ERWFC
Information
115 V/ 60 Hz and 220-240 V/ 50-60 Hz | NEMA 5-15 P plug | Energy consumption: 551 kw/year
