About this Product

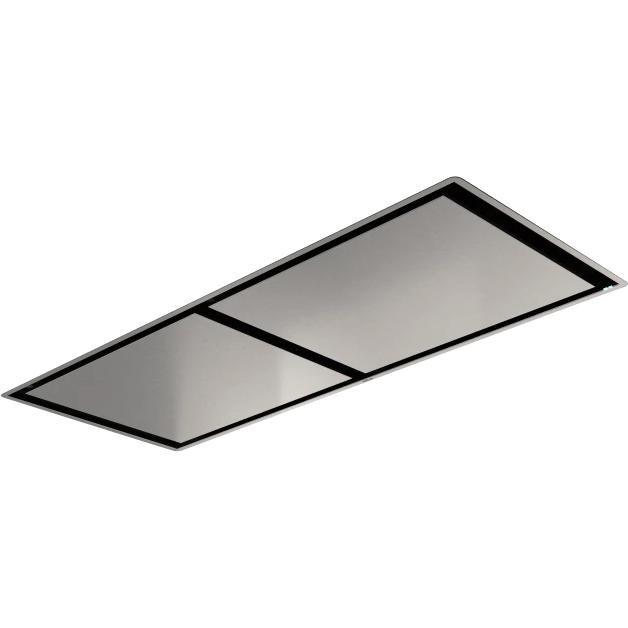

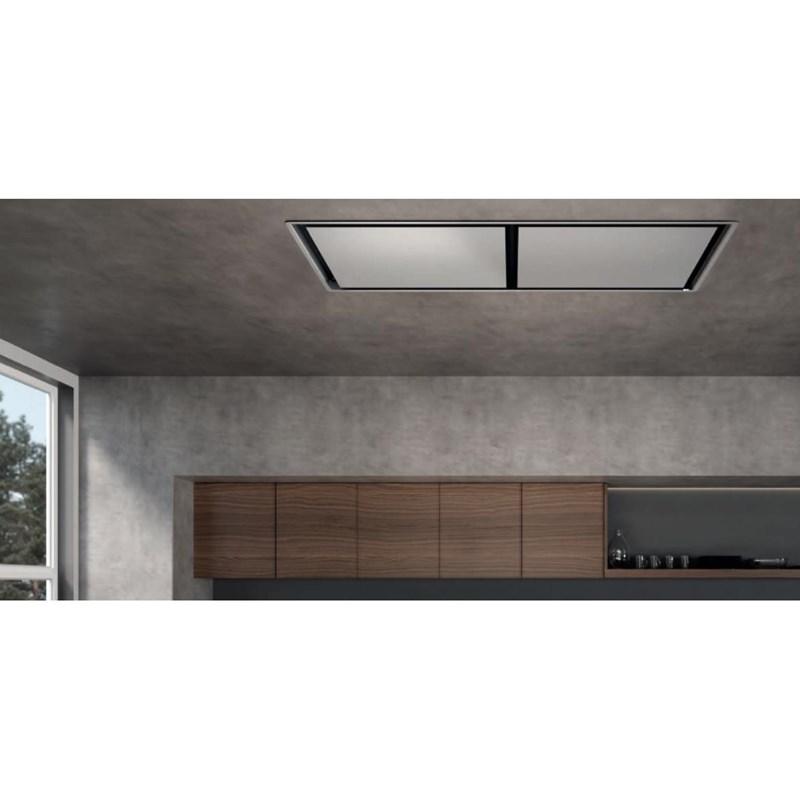

Sold separately as either an internal, inline or an external blower with 600 or 1200 CFM options, Cielo can be equipped to meet any kitchen design needs. Hidden on the ceiling, only 12" of clearance is required for installation due to its multidirection ducting capability. This hood will effectively extract and clean air on ceilings up to 10 ft.With its perimeter aspiration capacity and minimal sound emissions, Cielo enhances the overall kitchen environment, effectively removing vapors and maintaining a peaceful living space. Either with a Stainless Steel Finish or a Panel-ready Option for matching the ceiling design, Cielo is the perfect complement for any space.
Features
- DIM-LIGHT — The Dimmer allows you to adjust the brightness of the light as you wish. With Elica, lighting is customized in a discreet, personal and practical way, in order to contribute in creating the perfect kitchen atmosphere.
- TUNE WHITE — The ability to choose the preferred shade of white always creates the right atmosphere. The Kelvin degrees regulation starts from a very warm tone, 2400°K, to experience intimate and convivial moments, up to a cold colour, 5000°K.
- REMOTE CONTROL — Elica’s ADA compliant Remote Control, provides added convenience to the typical user, as well as, full-function access for those with limited mobility.
- SUPER EASY INSTALLATION — With the exclusive Elica system, installation can be done in total safety in just a few steps, safeguarding the look of the product and the space in which it is positioned.
- PERIMETER ASPIRATION — Perimeter Aspiration: First developed by Elica, this technology literally turned the market 45 degrees and opened the door to hoods that could be mounted on the wall like picture frames. The technology draws air through a narrowed channel around a face plate, which increases suction, without increasing blower speed or energy consumption.
- LONG LIFE FILTER — One of a kind odour filter, capable of regenerating itself and of lasting up to 3 years. To maintain these characteristics, the filter only requires simple maintenance: wash every 2 or 3 months with hot water and mild soap (also in dishwasher at 65 degrees) and dry in the oven for ten minutes at 100 degrees.
- TOTAL INTEGRATION — These products have been designed to be seamlessly integrated into the kitchen whilst maintaining harmony with the surroundings.
- PANEL READY — Seamlessly integrate your hood into your kitchen design by using custom panels. Elica's Panel Ready solution allows an easy and fast installation making it a perfect choice for those who values functionality and aesthetics.
Documents
Highlights
Blower type: Internal or external (sold separately) | Grease Filter: Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration | Controls: Remote control | Finish: Stainless Steel Panel and Frame with Panel Ready Capability | Illumination: 2 LED, 7 W, 2700K-5000K, 315 Lúmenes | Noise (sones): 1.3 - 6.8 Sones (600 CFM) or 1.7-7.0 Sones (1200 CFM)
Specifications
| Style | Custom Insert | Manufacturer Color | Stainless Steel Panel and Frame with Panel Ready Capability | Color | Stainless Steel |
| Installation | Built-In | Blower Included | N | Dishwasher-Proof Filters | Y |
| Ducting Information | Ducted or recirculating with kit (sold separately) | Width | 101.6 cm | Height | 30.48 cm |
| Depth | 50.8 cm | Weight | 24.2 kg | Class Width | 40" |
| Warranty | Two (2) Years Parts & In-Home Labor | Included | White Remote Control: KIT0121468 | ||
|
Series Name Cielo | Iconic Series
| |||||
|
Information 120 V - 60 Hz, 487 W
| |||||
|
Optional 1200 CFM External Blower Kit: KIT0153054 | 1200 CFM Inline Blower Kit: KIT0154387 | 600 CFM Internal Blower Kit: KIT0198147 | 1200 CFM Internal Blower Kit: KIT0198146 | 600 CFM Inline Blower Kit: KIT0198148 | Black Remote Control: KIT0121469
| |||||
|
Information AHAM | cUL | UL
| |||||
Accessories
• 1200 CFM Inline Blower Kit: KIT0154387
• 600 CFM Internal Blower Kit: KIT0198147
• 1200 CFM Internal Blower Kit: KIT0198146
• 600 CFM Inline Blower Kit: KIT0198148
• Black Remote Control: KIT0121469
Specifications
Style
Custom Insert
Manufacturer Color
Stainless Steel Panel and Frame with Panel Ready Capability
Color
Stainless Steel
Installation
Built-In
Blower Included
N
Dishwasher-Proof Filters
Y
Ducting Information
Ducted or recirculating with kit (sold separately)
Width
101.6 cm
Height
30.48 cm
Depth
50.8 cm
Weight
24.2 kg
Class Width
40"
Warranty
Two (2) Years Parts & In-Home Labor
Included
White Remote Control: KIT0121468
Series Name
Cielo | Iconic Series
Additional Information
Blower type: Internal or external (sold separately) | Grease Filter: Dishwasher-Safe, Anodized Aluminum Mesh Filter + Perimeter Aspiration | Controls: Remote control | Finish: Stainless Steel Panel and Frame with Panel Ready Capability | Illumination: 2 LED, 7 W, 2700K-5000K, 315 Lúmenes | Noise (sones): 1.3 - 6.8 Sones (600 CFM) or 1.7-7.0 Sones (1200 CFM)
Information
120 V - 60 Hz, 487 W
Optional
1200 CFM External Blower Kit: KIT0153054 | 1200 CFM Inline Blower Kit: KIT0154387 | 600 CFM Internal Blower Kit: KIT0198147 | 1200 CFM Internal Blower Kit: KIT0198146 | 600 CFM Inline Blower Kit: KIT0198148 | Black Remote Control: KIT0121469
Information
AHAM | cUL | UL
