About this Product

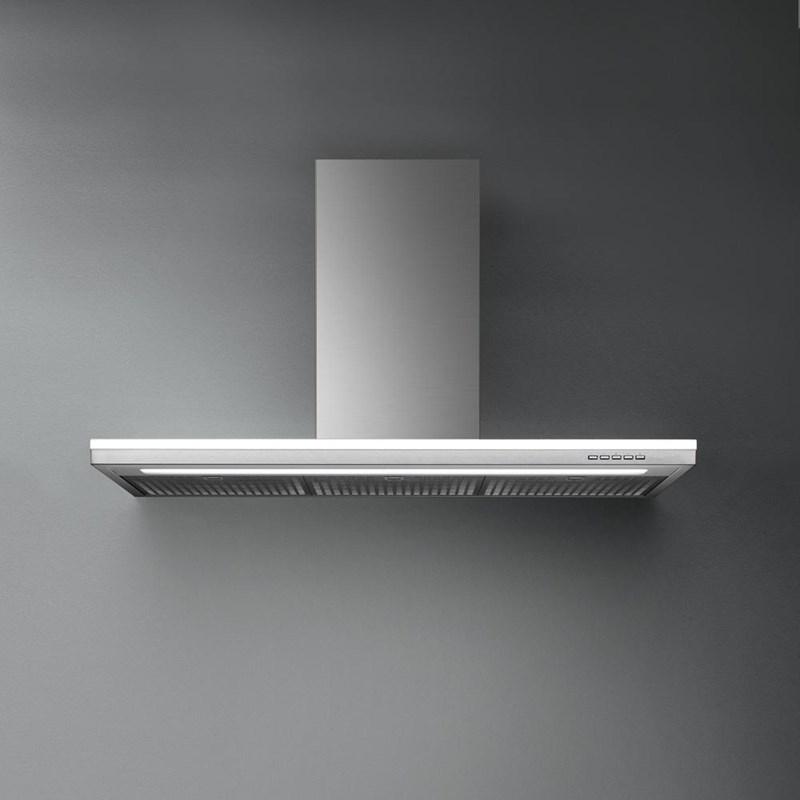

Falmec Lumen 36" (90 cm) Wall Range Hood with a 500 CFM motor. It features a Scotch brite stainless steel finish, electronic control, Fluorescent ambient lighting and the Air Falmec filter for balanced suction.
Documents
Videos
Highlights
Electronic control | Fluorescent ambient light: 1x21 W | Air Falmec filter for balanced suction
Specifications
| Style | Chimney | Airflow | 500 CFM | Manufacturer Color | Scotch brite stainless steel (AISI 304) |
| Color | Stainless Steel | Installation | Wall Mount | Blower Included | Y |
| Speeds | 4 | Width | 91.44 cm | Height | 56 cm |
| Depth | 48 cm | Weight | 19.05 kg | Class Width | 36" |
| UPC# | 8034122324364 | Volume | 10 cu. ft. | Warranty | 1-Year parts and labor |
|
Series Name Lumen | Collection: Design Series
| |||||
|
Information 120V, 60Hz | Maximum consumption: 340 W
| |||||
|
Additional Dimensions Max Height: 41.75" | Minimum distance - Gas hob: 25" | Minimum distance - Electric hob: 21" | 3 x Metallic filter "Air Falmec" - Wall: 285 x 301 mm
| |||||
|
Optional KACL.570#I: Extension H700 - Wall | KACL.571#I: Extension H960 - Wall | KACL.815: Protective cleaning cloths for stainless steel (box 10 pcs) | KACL.798#21F: Motor 600 CFM
| |||||
|
Included Standard with Nema 5-15P power cord | Square charcoal filter - Type 3
| |||||
Accessories
• KACL.571#I: Extension H960 - Wall
• KACL.815: Protective cleaning cloths for stainless steel (box 10 pcs)
• KACL.798#21F: Motor 600 CFM
• Square charcoal filter - Type 3
Specifications
Style
Chimney
Airflow
500 CFM
Manufacturer Color
Scotch brite stainless steel (AISI 304)
Color
Stainless Steel
Installation
Wall Mount
Blower Included
Y
Speeds
4
Width
91.44 cm
Height
56 cm
Depth
48 cm
Weight
19.05 kg
Class Width
36"
Weight
24.04 kg
Width
101.6 cm
Height
48.26 cm
Depth
60.96 cm
Volume
10 cu. ft.
Warranty
1-Year parts and labor
Series Name
Lumen | Collection: Design Series
Additional Information
Electronic control | Fluorescent ambient light: 1x21 W | Air Falmec filter for balanced suction
Information
120V, 60Hz | Maximum consumption: 340 W
Additional Dimensions
Max Height: 41.75" | Minimum distance - Gas hob: 25" | Minimum distance - Electric hob: 21" | 3 x Metallic filter "Air Falmec" - Wall: 285 x 301 mm
Optional
KACL.570#I: Extension H700 - Wall | KACL.571#I: Extension H960 - Wall | KACL.815: Protective cleaning cloths for stainless steel (box 10 pcs) | KACL.798#21F: Motor 600 CFM
Included
Standard with Nema 5-15P power cord | Square charcoal filter - Type 3
