About this Product

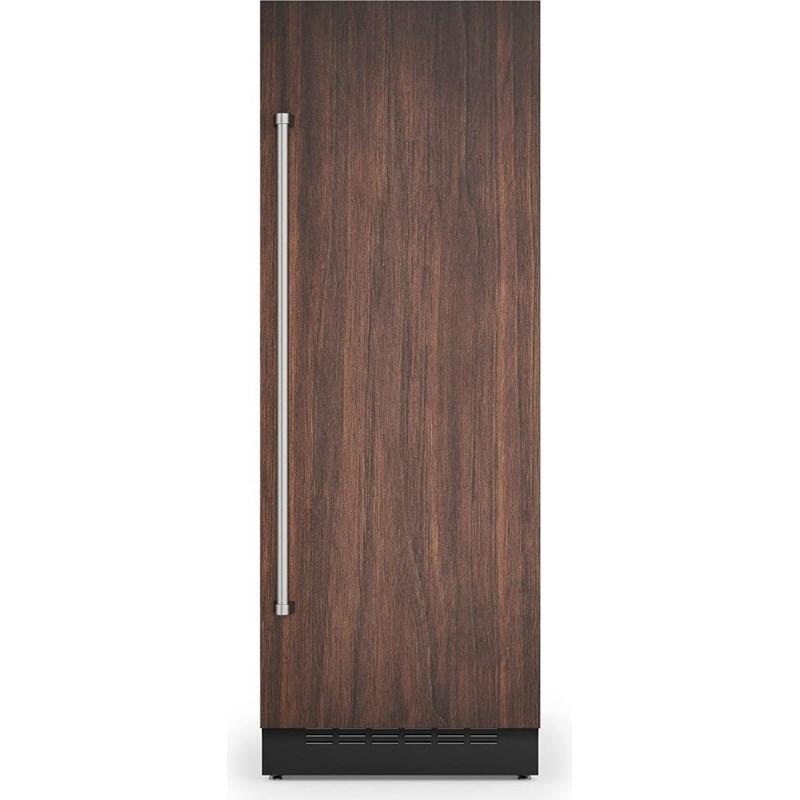

Viking 30-inch Fully Integrated All Freezer with right hinge. It features Extremely quiet compressor system with electronic controls, a Dual size ice maker and Special Modes including Max Freezer, Max Ice, Bottle Chiller, Sabbath, Vacation.
Documents
Highlights
Uniform air circulation maintains consistent temperatures | Ensures food stored in different compartments gets equal treatment | Maintains temperature to within 1ºF to keep food fresher longer | Extremely quiet compressor system with electronic controls | Compressor located on the bottom allows for full integration of the product | Temperature Range: 9°F (-13°C) to -9°F (-23°C) | Innovative touch control maintains consistent temperature in the compartments | Easy user interface allows for personalization of settings | Special Modes include Max Freezer, Max Ice, Bottle Chiller, Sabbath, Vacation | Side and top mounted energy-efficient LED lighting enhances visibility | Patented Easy Lift Shelf Position System adds storage flexibility | Two adjustable glass shelves, four storage drawers, two adjustable door bins | Proprietary Fully Articulating Hinge has three-dimensional adjustability for a perfect fit in integrated installations | Hinge damper allows for smoothness when opening and closing door | Unit is custom panel ready to accept matching cabinetry panels or the Viking Professional and RVL Door Panel Kits
Specifications
| Depth (With Handles) | 60.96 cm | Width | 75.88 cm | Height (With Hinge) | 212.09 cm |
| Lighting | Y | Series Name | RVL Series | Color | Panel Ready |
| Door Hinge | Right | Style | Built-In | Total Capacity | 16.0 cu. ft. |
| Size Range | 16 Cu.Ft. and Below | Type | Upright | Manufacturer Color | Panel Ready |
| Ice Machine | Y | Ice and Water Dispenser | Interior Ice Maker | Sabbath Mode | Y |
| Weight | 175.09 kg | ||||
|
Additional Dimensions Cutout Width: 30" (76.2 cm) | Cutout Height: 84" (91.5 cm) min. to 84-1/16" (213.5 cm) max. | Cutout Depth: 24" (61.0 cm) plus panel thickness
| |||||
|
Additional Ice and Water Information Dual size ice maker | Easily switch between medium and large ice cubes | Max Ice Mode temporarily increase ice cube production for 24 hours | Water filter provides pure water for ice production
| |||||
|
Warranty 2-year full covers complete unit | 6-year full – sealed refrigeration system | 90-day full – cosmetic parts such as glass, painted items, and decorative items | 12-year limited – sealed refrigeration system
| |||||
|
Information 115 volt, 60 Hz, 15 amp dedicated circuit | Maximum Amp Usage 9.9 amps | 3-wire cord with grounded | 9 ft. 3-prong plug attached to product V
| |||||
Door Hinge: Right
Specifications
Depth (With Handles)
60.96 cm
Width
75.88 cm
Height (With Hinge)
212.09 cm
Lighting
Y
Series Name
RVL Series
Color
Panel Ready
Door Hinge
Right
Style
Built-In
Total Capacity
16.0 cu. ft.
Size Range
16 Cu.Ft. and Below
Type
Upright
Manufacturer Color
Panel Ready
Ice Machine
Y
Ice and Water Dispenser
Interior Ice Maker
Sabbath Mode
Y
Weight
175.09 kg
Additional Dimensions
Cutout Width: 30" (76.2 cm) | Cutout Height: 84" (91.5 cm) min. to 84-1/16" (213.5 cm) max. | Cutout Depth: 24" (61.0 cm) plus panel thickness
Additional Information
Uniform air circulation maintains consistent temperatures | Ensures food stored in different compartments gets equal treatment | Maintains temperature to within 1ºF to keep food fresher longer | Extremely quiet compressor system with electronic controls | Compressor located on the bottom allows for full integration of the product | Temperature Range: 9°F (-13°C) to -9°F (-23°C) | Innovative touch control maintains consistent temperature in the compartments | Easy user interface allows for personalization of settings | Special Modes include Max Freezer, Max Ice, Bottle Chiller, Sabbath, Vacation | Side and top mounted energy-efficient LED lighting enhances visibility | Patented Easy Lift Shelf Position System adds storage flexibility | Two adjustable glass shelves, four storage drawers, two adjustable door bins | Proprietary Fully Articulating Hinge has three-dimensional adjustability for a perfect fit in integrated installations | Hinge damper allows for smoothness when opening and closing door | Unit is custom panel ready to accept matching cabinetry panels or the Viking Professional and RVL Door Panel Kits
Additional Ice and Water Information
Dual size ice maker | Easily switch between medium and large ice cubes | Max Ice Mode temporarily increase ice cube production for 24 hours | Water filter provides pure water for ice production
Warranty
2-year full covers complete unit | 6-year full – sealed refrigeration system | 90-day full – cosmetic parts such as glass, painted items, and decorative items | 12-year limited – sealed refrigeration system
Information
115 volt, 60 Hz, 15 amp dedicated circuit | Maximum Amp Usage 9.9 amps | 3-wire cord with grounded | 9 ft. 3-prong plug attached to product V
