About this Product

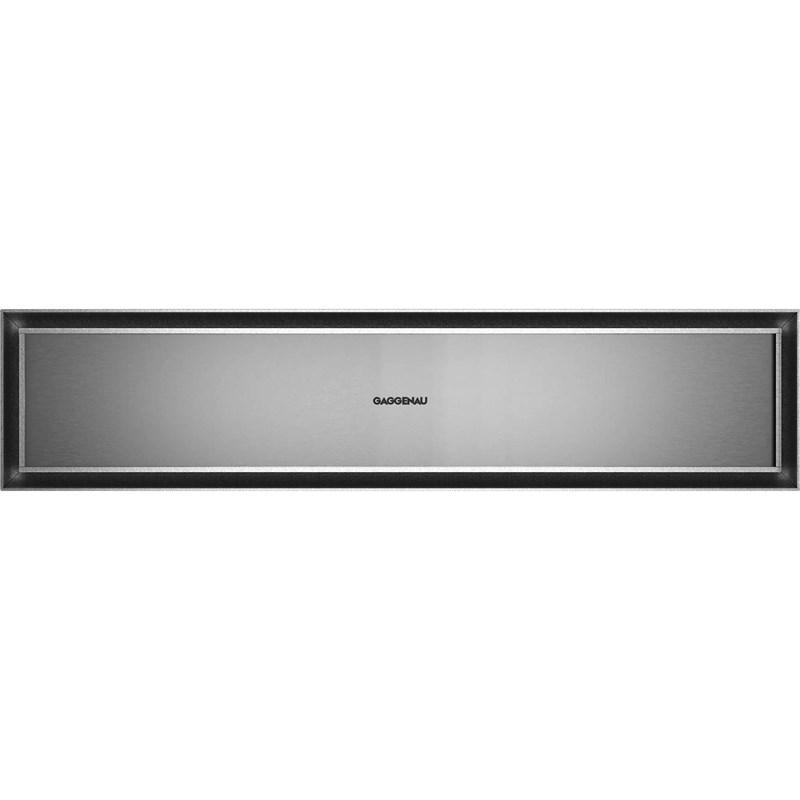

Gaggenau Expressive series warming drawer. It features a Handleless drawer, Bright interior lighting, Push-to-open function and an Hygienic stainless steel interior with glass bottom.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Additional documents(en)
Highlights
Handleless drawer | Bright interior lighting | Push-to-open function | Hygienic stainless steel interior with glass bottom | Direct temperature selection in the range 30 °C to 80 °C | Also for low-temperature cooking, dough proving, herbs and fruits drying, chocolate melting and defrosting | Preheating of small beverages | Warming of dishes | Keeping meals warm | Low-temperature cooking | Direct temperature control | Touch key operation | Net volume 20 litres | Volume capacity: Dinner service for 6 people including ø 27 cm plates and soup bowls, additional bowls and a serving dish depending on size | Capacity load max. 22 lbs | Heating system for even heat distribution and stable cavity temperature | Status indicator, visible on the frame | Glass bottom made of safety glass | Additional programmes and recipes | Remote control and monitoring | Timing function
Specifications
| Series Name | Expressive series | Color | Stainless Steel | Capacity | 0.7 cu. ft. |
| Power | 820 W | Manufacturer Color | Stainless steel behind smoked glass | Handle | Push-to-open |
| Warranty | 1-Year parts and labor | Width | 59.4 cm | Additional Dimensions | Usable interior dimensions: W 21 9/16" × H 3 5/8" × D 16 1/8" (548 mm × 92 mm × 410 mm) |
| Depth | 51.9 cm | Class Width | 24" | Height | 13.5 cm |
|
Installation Type Plan the niche without back wall | Protrusion from appliance front to furniture cabinet 42 mm | Installation of GO/GS/GM/GC directly above the drawer without intermediate shelf | Installation directly above a dishwasher is not allowed | The mains socket must be accessible and located outside the built-in niche | The electric outlet can be planned behind the appliance
| |||||
|
Information Total rating 0.81 kW | Connection cable 1.75 m, detachable
| |||||
|
Technologies Gaggenau Home Connect® | Personalisation function via Home Connect | 16 additional programmes via Home Connect
| |||||
Specifications
Series Name
Expressive series
Color
Stainless Steel
Capacity
0.7 cu. ft.
Power
820 W
Manufacturer Color
Stainless steel behind smoked glass
Handle
Push-to-open
Warranty
1-Year parts and labor
Width
59.4 cm
Depth
51.9 cm
Class Width
24"
Height
13.5 cm
Installation Type
Plan the niche without back wall | Protrusion from appliance front to furniture cabinet 42 mm | Installation of GO/GS/GM/GC directly above the drawer without intermediate shelf | Installation directly above a dishwasher is not allowed | The mains socket must be accessible and located outside the built-in niche | The electric outlet can be planned behind the appliance
Information
Total rating 0.81 kW | Connection cable 1.75 m, detachable
Additional Information
Handleless drawer | Bright interior lighting | Push-to-open function | Hygienic stainless steel interior with glass bottom | Direct temperature selection in the range 30 °C to 80 °C | Also for low-temperature cooking, dough proving, herbs and fruits drying, chocolate melting and defrosting | Preheating of small beverages | Warming of dishes | Keeping meals warm | Low-temperature cooking | Direct temperature control | Touch key operation | Net volume 20 litres | Volume capacity: Dinner service for 6 people including ø 27 cm plates and soup bowls, additional bowls and a serving dish depending on size | Capacity load max. 22 lbs | Heating system for even heat distribution and stable cavity temperature | Status indicator, visible on the frame | Glass bottom made of safety glass | Additional programmes and recipes | Remote control and monitoring | Timing function
Technologies
Gaggenau Home Connect® | Personalisation function via Home Connect | 16 additional programmes via Home Connect
Additional Dimensions
Usable interior dimensions: W 21 9/16" × H 3 5/8" × D 16 1/8" (548 mm × 92 mm × 410 mm)
