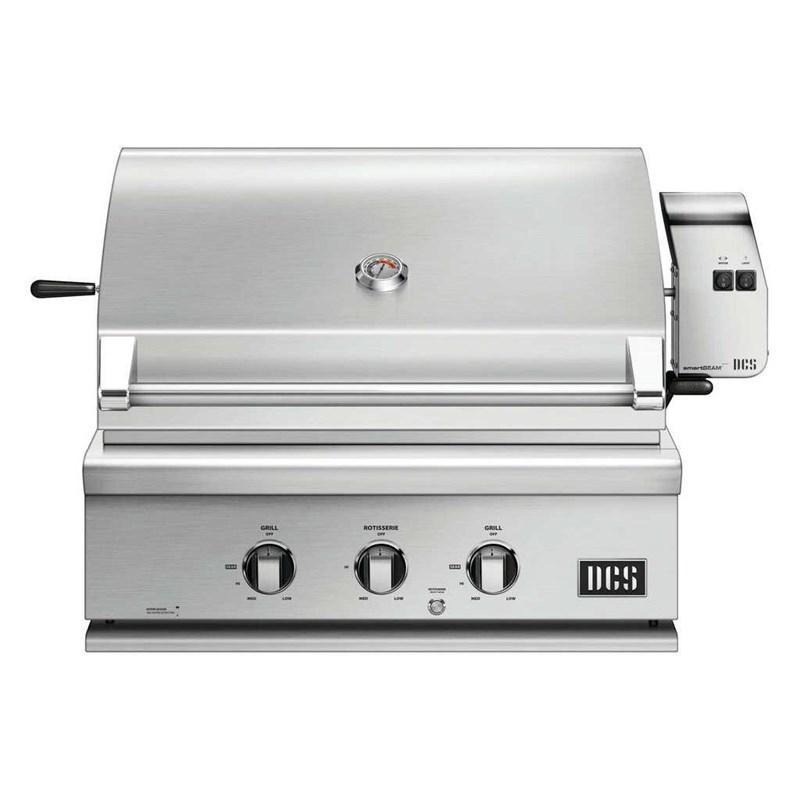

DCS 30" traditional liquid propane grill with rotisserie. Designed with flexibility in mind, DCS Grills allow you to cook a wide variety of meals and are engineered to deliver the functionality and power demanded by a professional chef. DCS Grills are hand-finished to perfection to complement the quality of the DCS premium outdoor kitchen and built to withstand the demands of the serious cook and the extremes of mother nature.
DOUBLE-SIDED CAST STAINLESS STEEL GRILLING GRATESDouble Sided Cast Stainless Steel Grilling Grates - deliver perfect sear lines at the same time as channeling away oil to an easily removable capture tray. Grates feature one side with a gentle radius for support and handling, while the other side is W shaped for maximum grease capture, while leaving perfect sear lines.
FULL SURFACE SEARING
All DCS Grills feature full surface searing rather than uneven hotspots. A combination of precision ported stainless steel burners, ceramic radiant rods and heavy gauge stainless steel burner box construction ensure precise, even searing temperatures across the entire grilling surface.

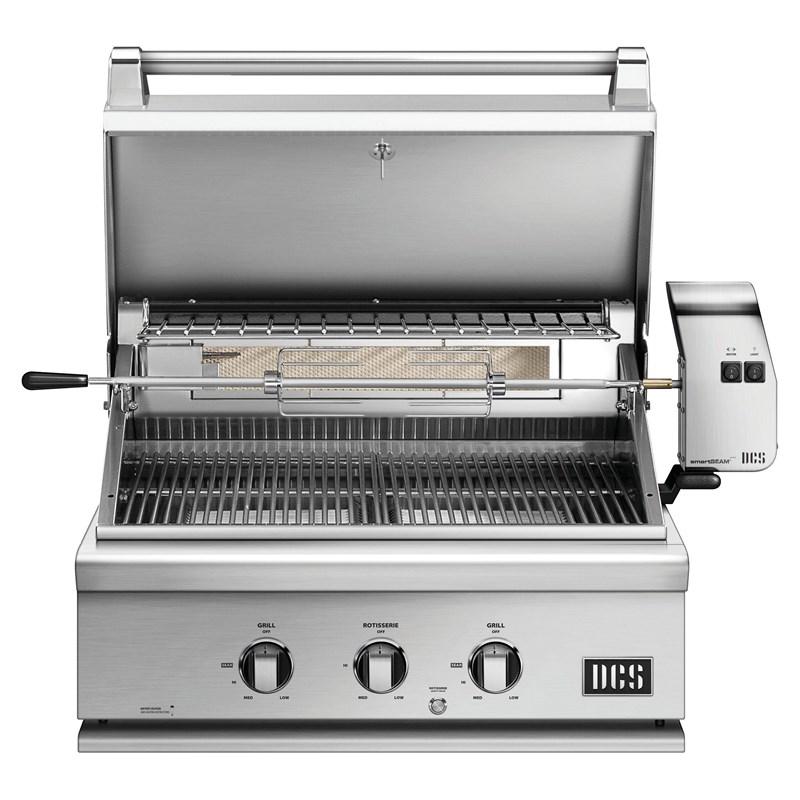

ROTISSERIE
DCS Rotisserie Grill models include a dedicated infrared rotisserie burner, providing controlled searing heat up to 18,000BTU. The heavy-duty rotisserie motor powers a stainless steel hexagonal rod and adjustable forks, which can securely accommodate a 50lbs load.

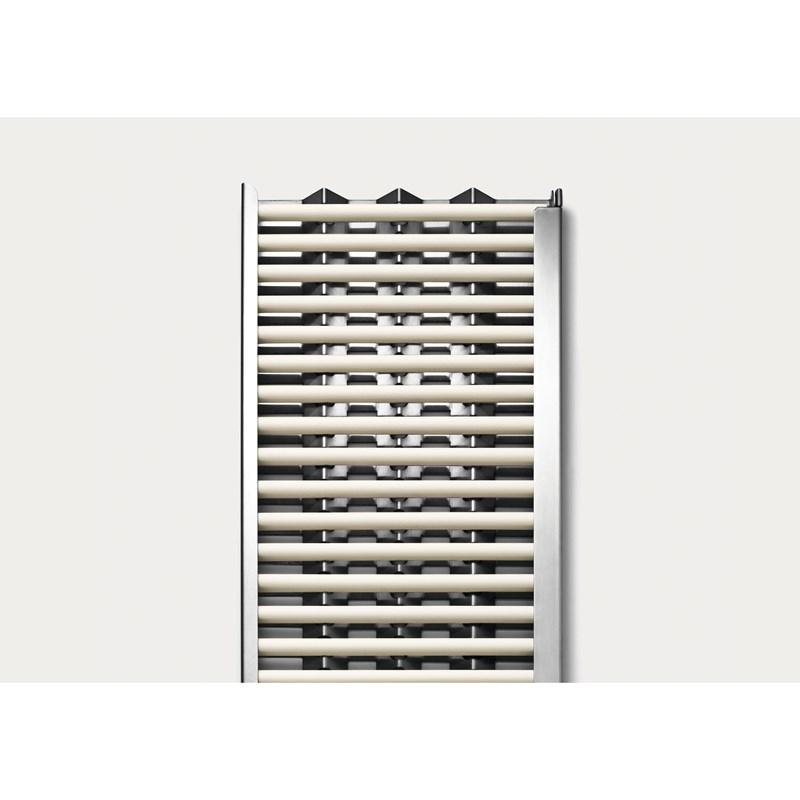

CERAMIC RADIANT TECHNOLOGY
An entire layer of ceramic rods are placed between burners and grill grate. These provide intense yet even heat, meaning you are cooking with controlled heat rater than direc fire. On DCS Grills there is little variance in temperature zones and the total grilling surface is very consistent.

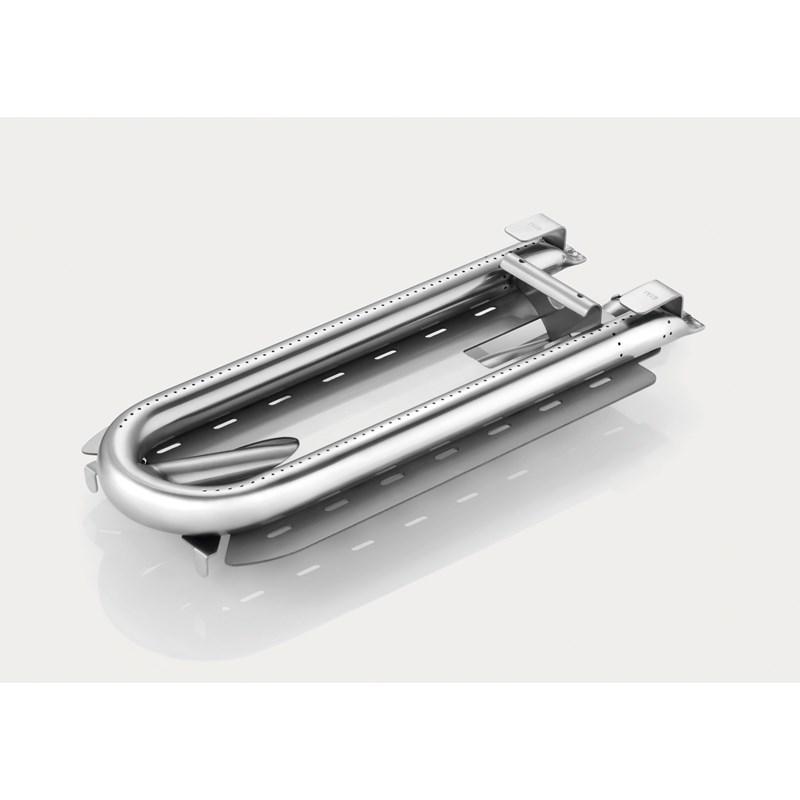

STAINLESS STEEL BURNERS
DIRECT BURNER IGNITION
DCS Grills include an ergonomic ignition solution, where burners are lit directly from the corresponding knobs eliminating the need for a surface ignition button.
SMART BEAM GRILL LIGHT
A 40W halogen light is integrated into the patented weather-proof rotisserie motor of DCS Rottisserie Grill models. The Smart Beam Grill Light is designed to illuminate the entire cooking surface for perfect night grilling.
TEMPERATURE GAUGE
Designed for monitoring temperatures when cooking pizzas or when using indirect heat from adjacent burners, for preparing roast meals.
DRIP PAN
DCS Grills feature a removable dirp pan, conveniently located in a slide-out tray to allow for easy cleaning.
Features
- Included Rotisserie:
Y - Side Burner:
N - Infrared Burner:
N - Warming Rack:
Y - Additional Information:
• Ceramic radiant technology
• Full surface searing
• Weather resistant
• Hood temperature gauge
• One-step direct burner ignition
• Metal dials
• 304 grade stainless steel finish
• 9V battery for ignition
• Rotisserie power supply: 120V 60Hz - Electronic Ignition:
Y - Convection:
N - Technologies:
Smart Beam™ Grill Light
Accessories
- Optional:
Optional cart-mount: CAD1-30/BGB30-CSS
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
Specifications
Type
Built-InFuel Type
PropaneColor
Stainless SteelManufacturer Color
Brushed Stainless SteelTotal Cooking Area
748 in²Primary Area
553 in²Secondary Area
195 in²Maximum Power
64000 BTUBurners
3Rotisserie Output
14000 BTUMain Burner Output
50000 BTUIncluded Rotisserie
YSide Burner
NInfrared Burner
NWarming Rack
YAdditional Information
• Ceramic radiant technology
• Full surface searing
• Weather resistant
• Hood temperature gauge
• One-step direct burner ignition
• Metal dials
• 304 grade stainless steel finish
• 9V battery for ignition
• Rotisserie power supply: 120V 60HzElectronic Ignition
YConvection
NTechnologies
Smart Beam™ Grill LightOverall Width
99.54 cmHeight (Lid Closed)
61.6 cmOverall Depth
69.37 cmAdditional Dimensions
• Overall width of cavity: 28 1/2"
• Overall depth of cavity: 22 3/4"
• Overall height of cavity: 10 1/8"
• Clearance from grill chassis to combustible construction: 18"
• Clearance below countertop to combustible construction: 18"
• Clearance for hood at rear / non-combustible construction: 3"Grill Size
30"Height (Lid Open)
89.3 cmUPC#
780405714510Weight
96.16 kgWarranty
Limited 2 Years Parts & Labor WarrantyOptional
Optional cart-mount: CAD1-30/BGB30-CSS
