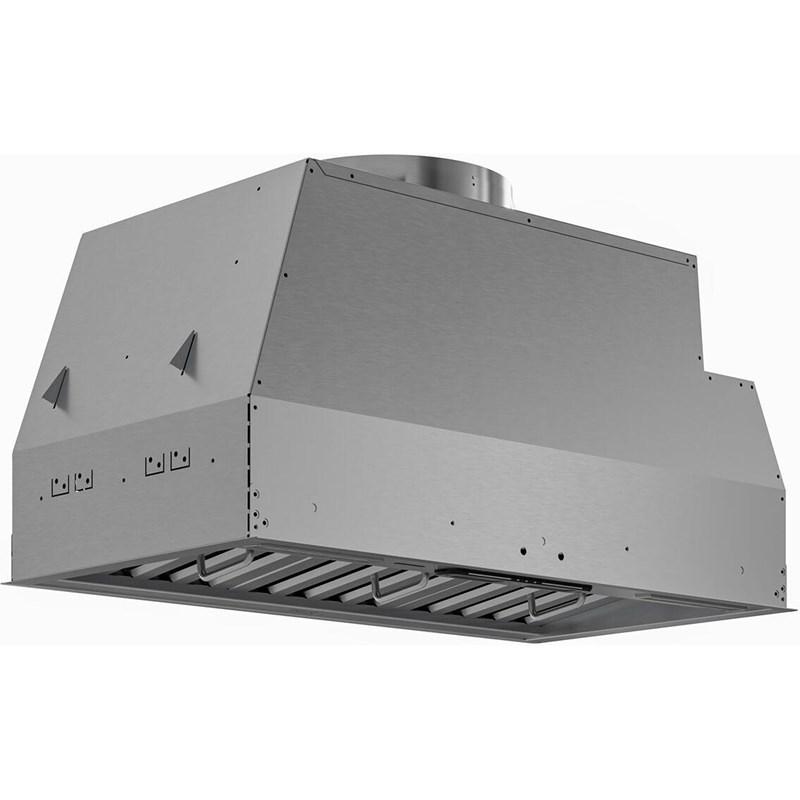

The HBN22 series offers near-silent performance and introduces two innovative technologies: the True iQ Blower System and SmartSense Pro. It also features selectable color temperature lighting (CCT technology). In addition to its advanced technology, the series is equipped with Wi-Fi, Bluetooth, and voice activation capabilities, providing a smarter and more enjoyable cooking experience. Combining exceptional performance, sleek design, easy installation, and safety features, this series is the ultimate all-in-one ventilation solution.

• The Quietest Blower System: Experience near-silent operation with the True iQ Blower System, powered by TrueCFM technology, ensuring performance with automatic real-time calibration. It offers 1240 TrueCFM and less than 0.3 sones at low speed.
• Built-In Versatility: Available in a 15-9/16” depth with Correlated Color Temperature (CCT) lighting and smart connectivity, this insert complements any kitchen design.
• A Perfectly Ventilated Experience: SmartSense Pro offers an automated ventilation solution, using smart algorithms to detect heat from the cooktop and automatically adjust fan speed based on heat, humidity, and VOC pollutants.
• Our TrueCFM Promise: The range hood maintains consistent CFM performance, regardless of unexpected blockages or restrictions.
• CCT Lighting Technology: The Correlated Color Temperature (CCT) technology allows users to match the range hood lighting with kitchen lighting, offering eight color temperature options from 2700K to 5000K via the control panel, and virtually limitless adjustability through the BEST Kitchen app.
• Smart Connectivity: Wi-Fi, Bluetooth, and voice activation capabilities enable hands-free operation.

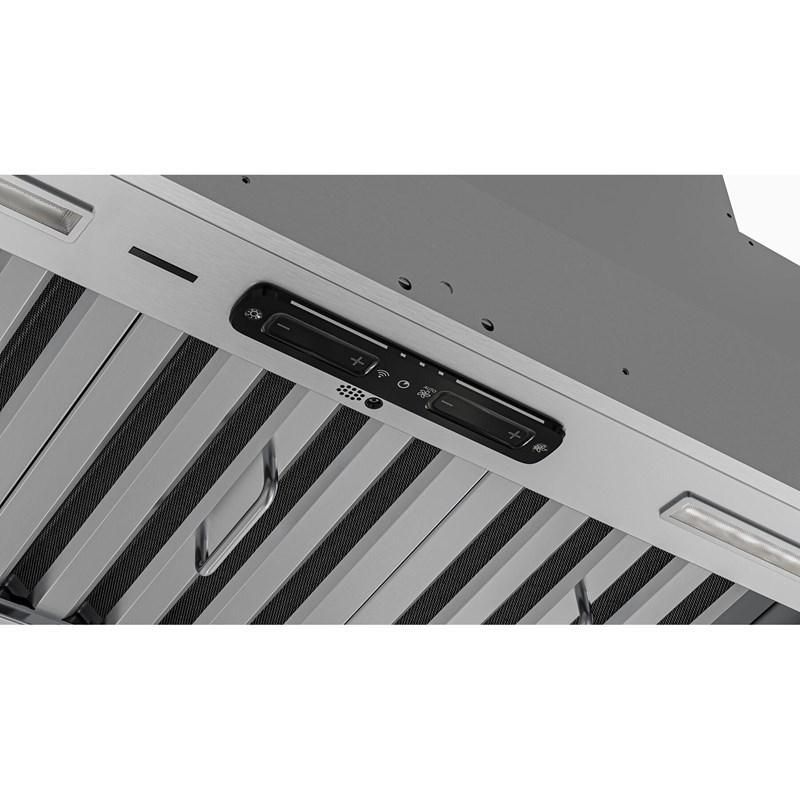

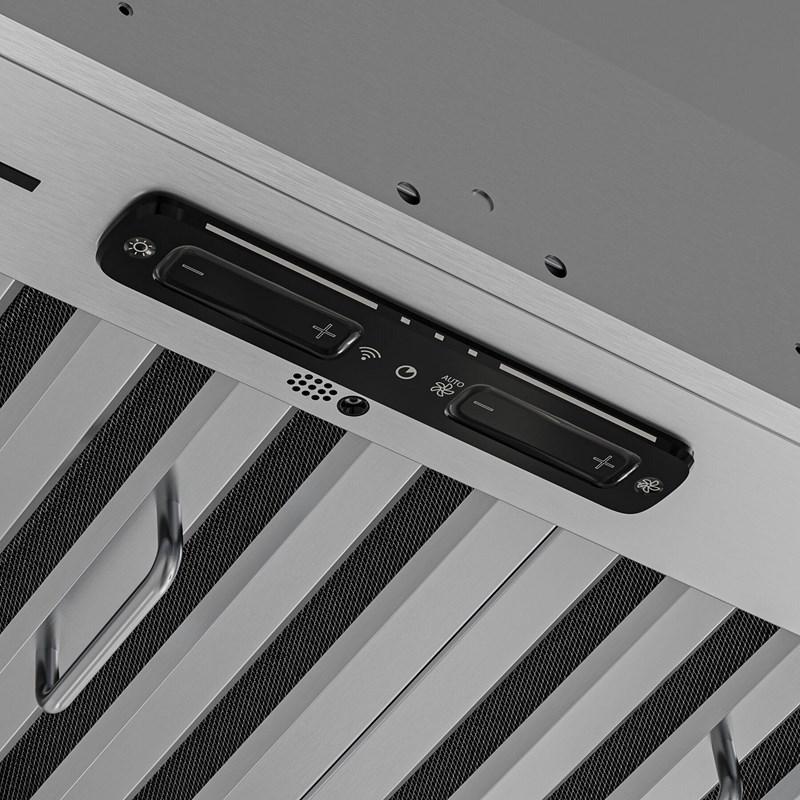

• Intuitive Controls: Capacitive touch slider control provides eight fan speeds and eight LED lighting levels.

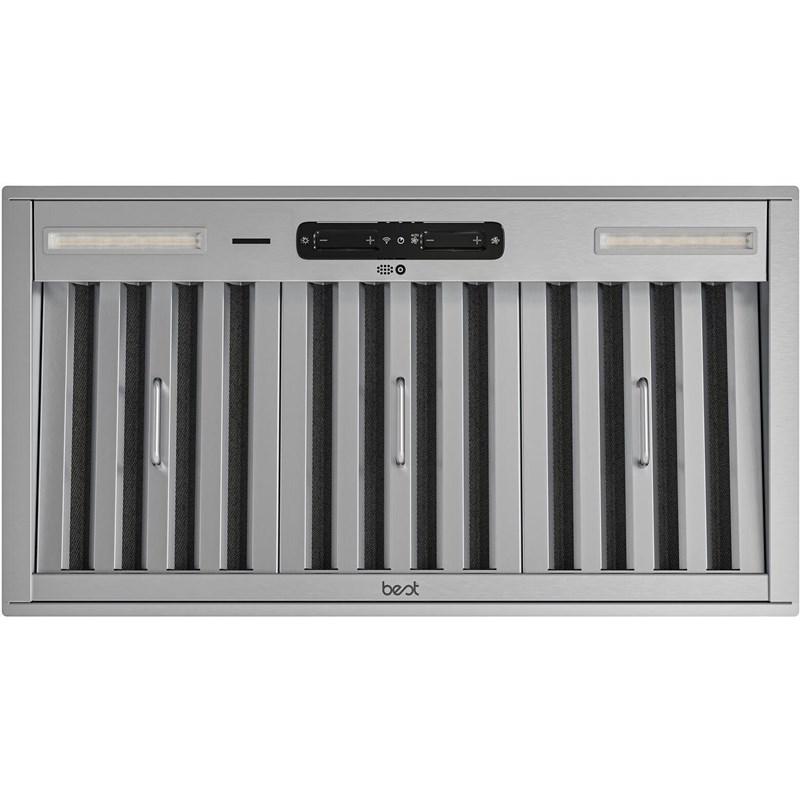

• Hybrid Baffle™ Filters: These filters offer full coverage to remove smoke, odors, and pollutants.
• Easy Installation: Single-person installation is made possible with the EZ Install bracket system.
• Code Ready Technology® (CRT): This feature limits airflow to 300, 400, or 600 CFM to comply with local make-up air code requirements.
• Heat Sentry® Safety: The Heat Sentry® safety feature automatically adjusts blower speed if exhaust temperatures exceed 200°F, ensuring protection for you and your home.
• ENERGY STAR® Certified: This product is ENERGY STAR® certified for energy efficiency.
• Ducting Compatibility: Capable of installation with 10” vertical ducting.

Features

• Bluetooth:Y
• Ducting Information:• Duct Size: 10"
  • Duct Direction: Vertical (round)
• Additional Information:• Delay-off
  • Finish: Brushed Stainless Steel (Grade 430)
  • Lighting Type: LED Modules (6W per module)
  • 2 Lights
  • Lighting Levels: 8
  • Light Modules Included
  • Correlated Color: 8 color temperature options
  • Temperature (CCT): from 2700K to 5000K (more options in the BEST Kitchen app)
  • Control Type: Capacitive Touch Slider
  • Filter Type: Hybrid Baffle
• Wi-Fi:Y
• Speeds:8 Speeds
• Technologies:• Heat Sentry™
  • Wi-Fi / Bluetooth Connectivity
  • Voice Control
  • SmartSense Pro
  • BEST Kitchen app

Accessories

• Optional:• ADA Kit: HAWRK5
  • Universal MUA Damper: MD10TU
  • Power Cord Kit: HCK44
• Included:Backdraft Damper

Documents

• Product Sheet (en)
• Dimensions Guide (en)
• Owner's manual (en)
• Installation guide (en)
