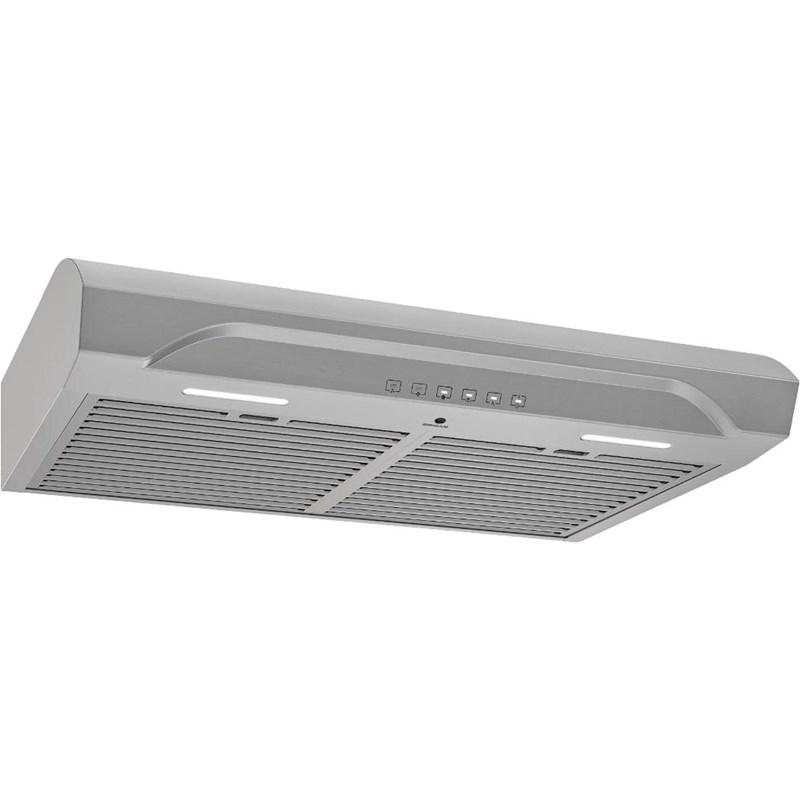

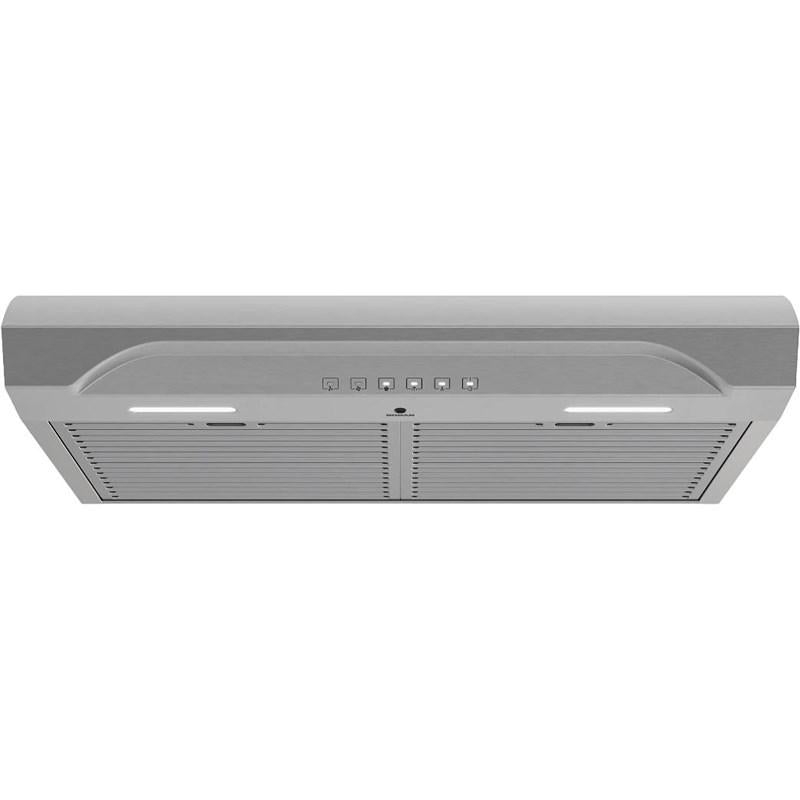

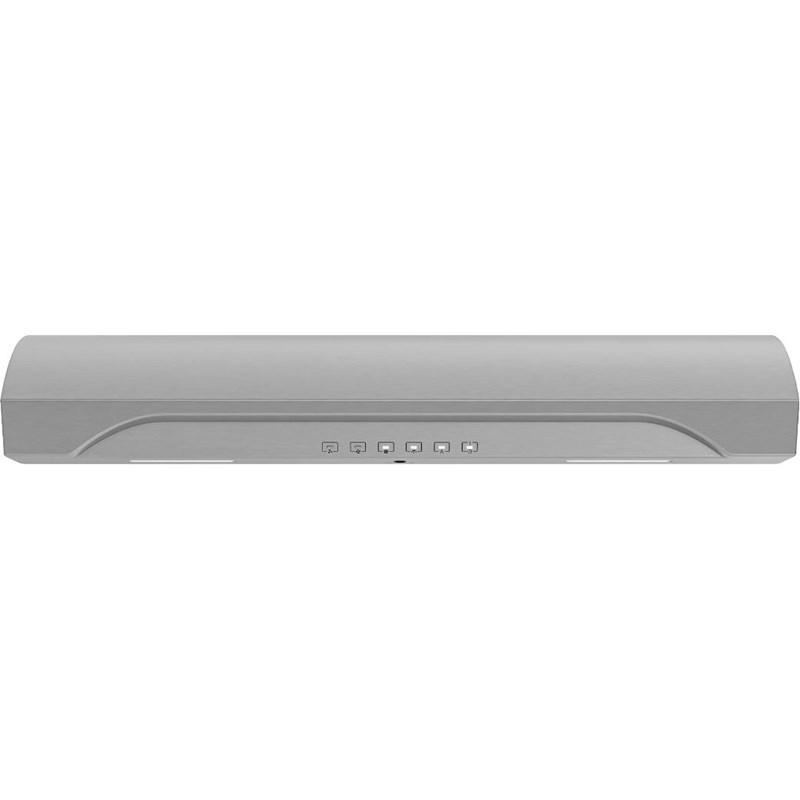

From the leader in residential indoor air quality, this under-cabinet range hood by Broan-NuTone is built to surpass industry standards with over 50 points of inspection, engineered as a reliable ventilation solution. The durable hood vent is equipped with SmartSense Auto Operation that automatically monitors and adjusts the ventilation power needed based on heat coming off the cooktop to maintain the integrity of the IAQ in your space. The Alta range hood is also up to 71% quieter: 1.1 sone is equivalent to a refrigerator running, so it won't interfere with daily life. The EZ1 Install System allows for a quick and easy 1-person installation, and the ENERGY STAR Certification is both code compliant and provides cost savings. Code Ready Technology (CRT) provides capability to reduce the 490 Max Blower CFM down to 300 or 400 CFM to meet local code requirements, and the 2-Level LED lighting modules and a 3-Speed whisper touch infrared control make cooking a breeze.

Features

• Ducting Information:• 3.25 x 10-inch rectangular
  • 7-inch round
• Additional Information:• 50 Points of Inspection: Expect a durable, long-standing ventilation solution engineered by the leader in indoor air quality
  • Up to 71% Quieter: With sound equivalent to a refrigerator running, this vent hood is up to 71% quieter than competition at 1.1 sones on working speed
  • One Person Installation: With the included EZ1 brackets it's an easy install for a single person in half the time, both professional and DiYers
  • Both ENERGY STAR certified and Title 24 compliant (with electric ranges only), this kitchen hood is energy efficient and code compliant
  • Bright 2-level, heat resistant LED modules (included) to enhance your cooking experience

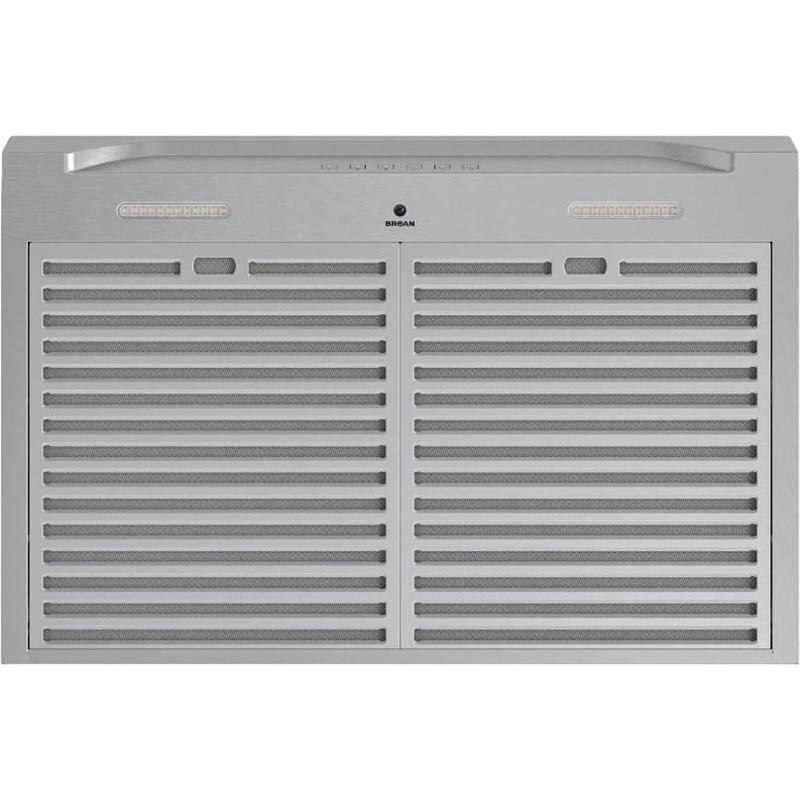

  • Easy-to-clean, fully enclosed bottom with 2 dishwasher-safe high efficiency hybrid baffle filters
  • The infrared controls allow for manual operation to adjust the 3-speed blower and 2 level lighting
  • Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)
  • Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
  • Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption
  • Can be installed for ADA Compliance with the purchase of model HAWSK3 low voltage wiring and wall switch kit
  • Filter Type: Hybrid Baffle
  • Lighting Type: LED
  • Sound Level (Sones): 1.1
  • Light Bulb Wattage: 5
  • Light Levels: 2
  • Material: Stainless Steel
  • Ductless Recirculation Capable
  • Ductless Filter Or Kit Included
  • Switch Control Type: Infrared
  • Country of Origin: China
• Dishwasher-Proof Filters:Y
• Speeds:3 Speeds
• Technologies:Code Ready Technology (CRT): Supports the installer's job with the ability to reduce airflow to 300 or 400 CFM to address local codes or make-up air requirements, originally 490 Max Blower CFM

Accessories

• Included:Damper Included

Documents

• Product Sheet (en)
• Dimensions Guide (en)
• Owner's manual (en)
• Installation guide (en)
• Additional documents(en)
