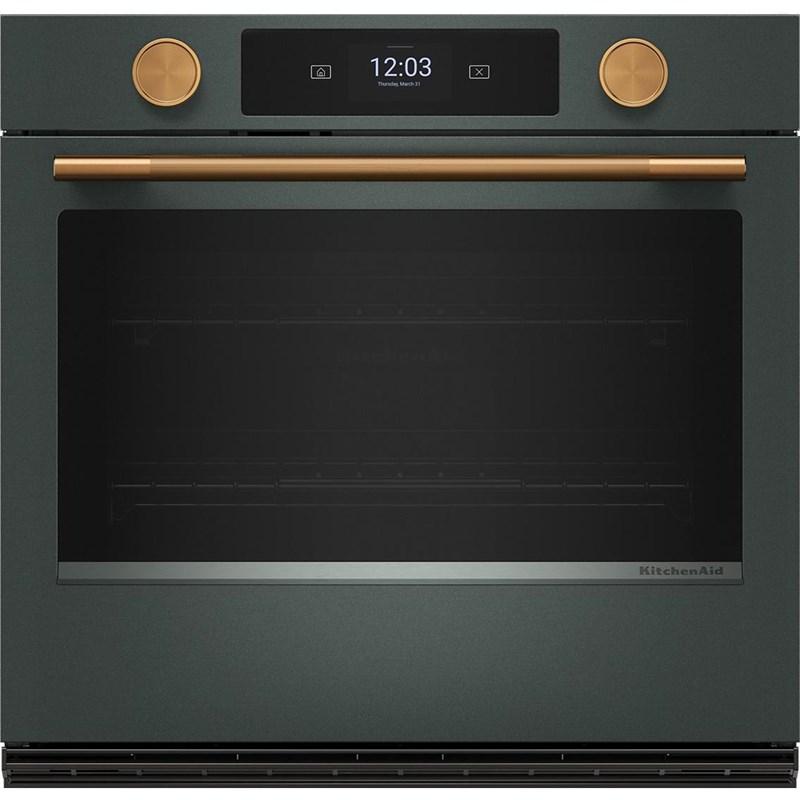

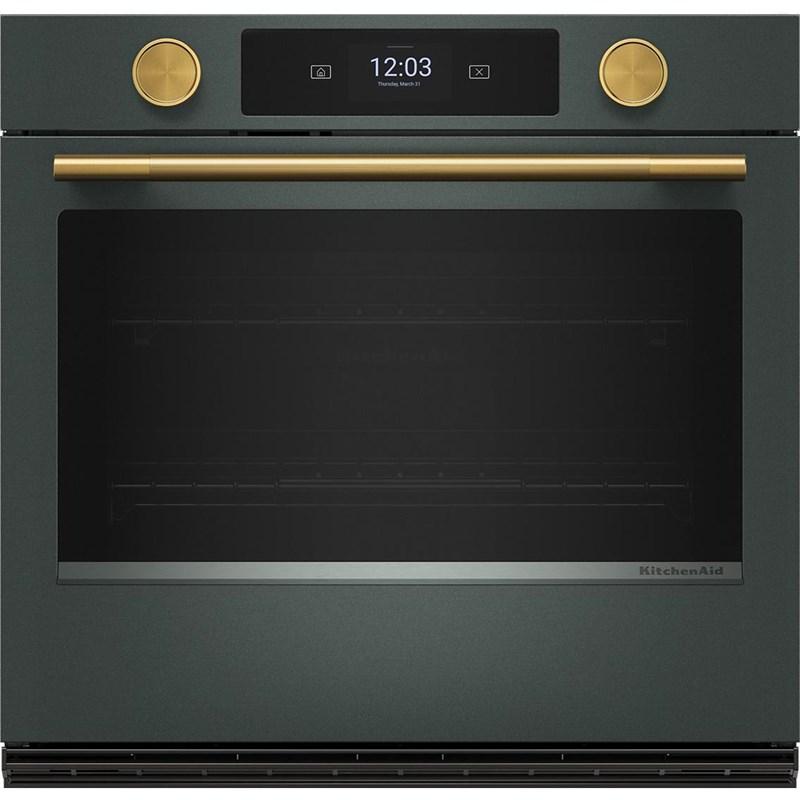

Explore new recipes with built-in tips on this KitchenAid smart wall oven, featuring our Most Precise Even-Heat™ True Convection and Assisted Cooking Modes. LED Touchscreen display and backlit knobs allow for tactile display navigation. The backlit knobs also provide a visual cue throughout the cooking process, illuminating when the oven is preheating and pulsing when cooking is finished. Designed to be personalized, these wall ovens are available in a curated palette of exterior finishes and can be customized with mixed metal hardware.
EVEN-HEAT™ TRUE CONVECTION OVENProvides consistent heating and even cooking on all racks with a unique bow-tie shaped design and convection fan that helps ensure the most even baking.
ASSISTED COOKING MODES
Suggest cook times and temperatures on an easy-to-navigate touch screen so you can explore new recipes with confidence.
STEAM BAKE WITH TRAY
Adds moisture during the baking process so you can enjoy Basque cheesecake, or fluffy, moist honey wheat sandwich bread.
BACKLIT KNOBS
Illuminate when oven is preheating and pulse when cooking is finished. Press the knob for 3 seconds to quick start Bake at 350°F or customize to your most used cook mode and temp.
FRESH PIZZA MODE
Create homemade, restaurant-style pizzas from the comfort of your kitchen. Fresh pizza mode cranks the heat to 550°F for delicious results.

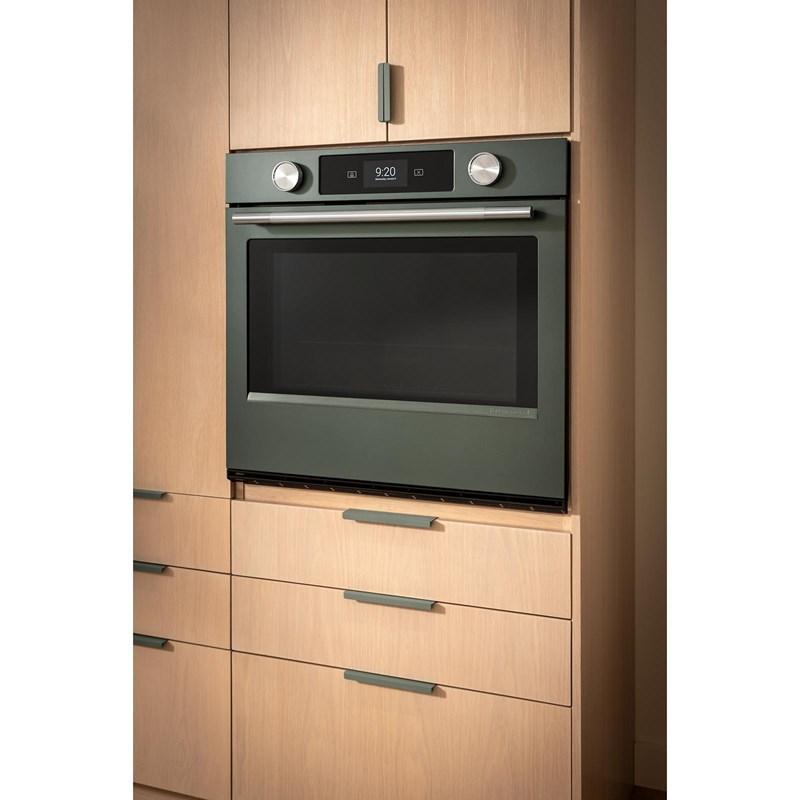

DESIGNED TO BE PERSONALIZED

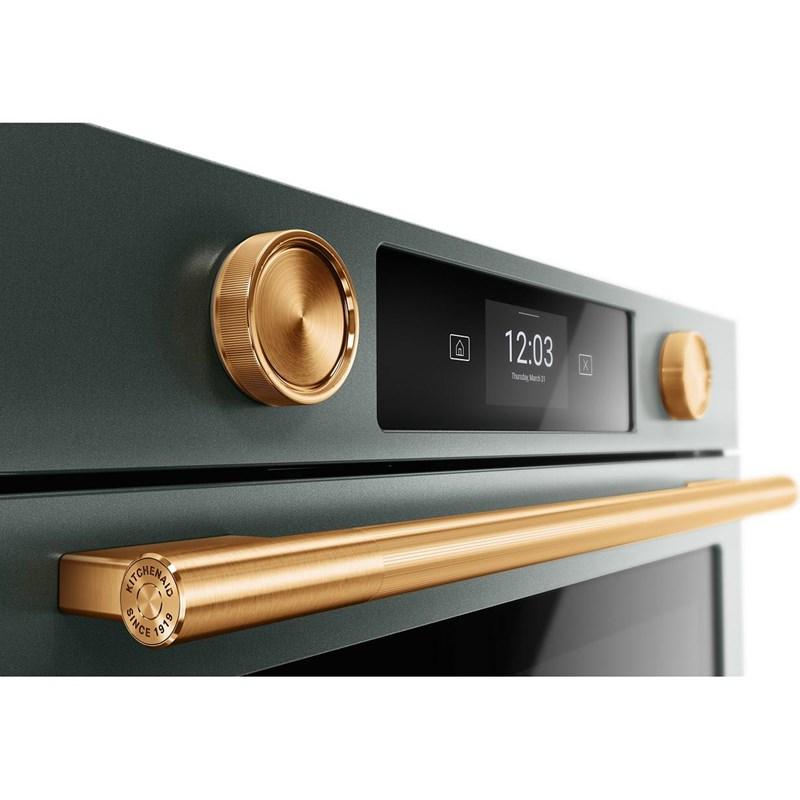

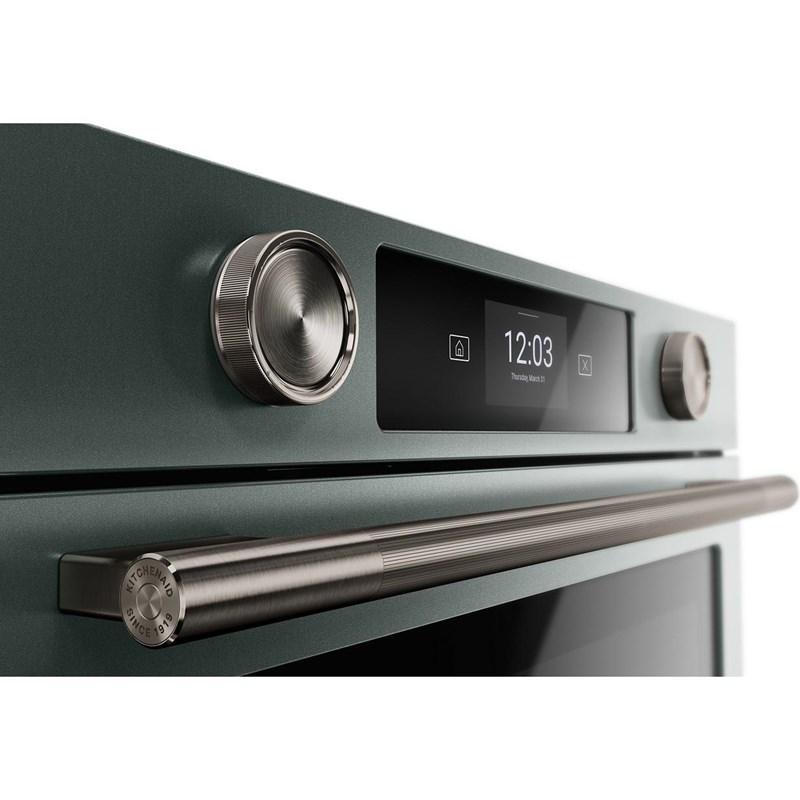

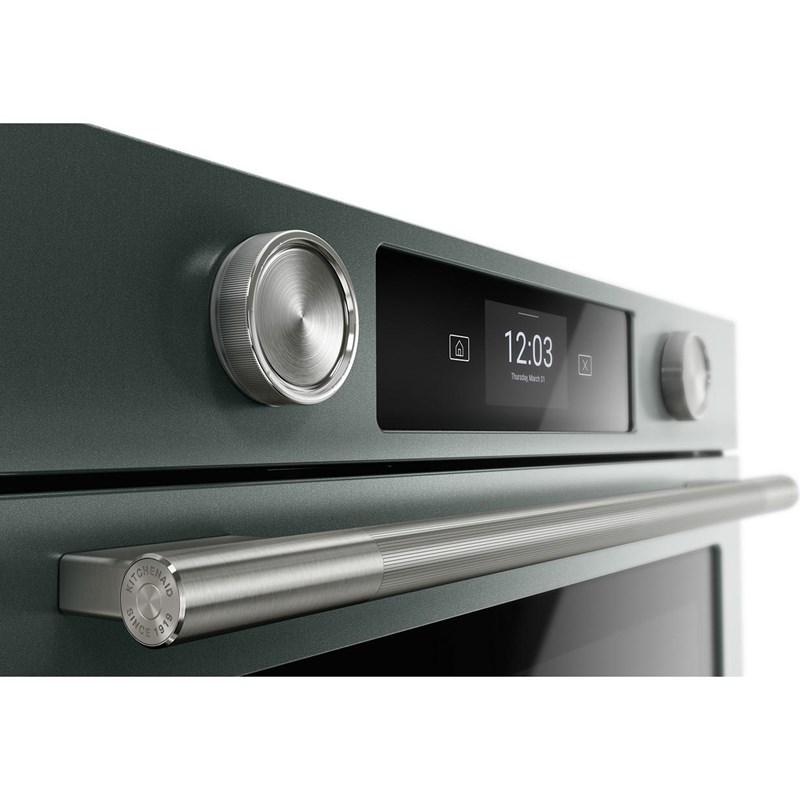

With a curated palette of mixed metal hardware. Change up your look with handle and knob accessory kits (sold separately) in Brass, Bronze, Black Ore and Stainless Steel.
NO PREHEAT SLOW ROAST
Provides tender meats, pastas and much more without the hassle of a separate appliance. Plus high-temp settings for soups, medium-temp settings for braising meats and low-temp settings to keep food warm after cooking.
SMART APPLIANCES
Wi-Fi-enabled model with smart features and mobile app.

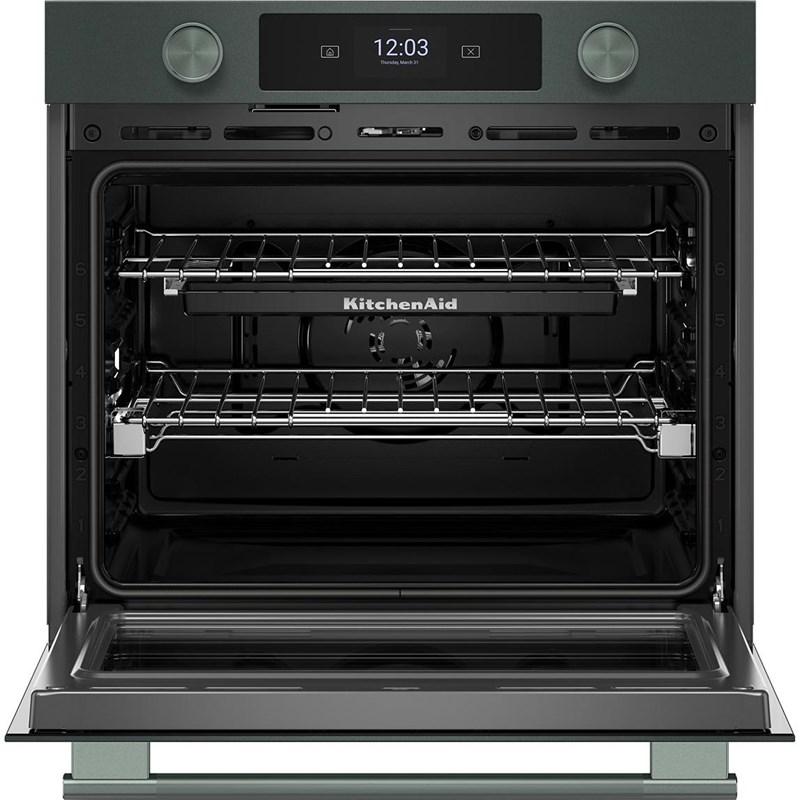

SATINGLIDE™ ROLL-OUT EXTENSION RACK
Allows easy loading and features an easy-grip handle, giving you the confidence when cooking with large or heavy dishes.
TEMPERATURE PROBE
Allows accurate measurement of internal temperature of meats, poultry, and casseroles without having to open the oven door.
NO PREHEAT AIR FRY
Uses heating elements and a fan to circulate hot air within the cavity, crisping and browning food with less oil.
STEAM CLEAN & SELF-CLEANING CYCLES
keep your oven clean with two distinct cycles. The Steam Clean Cycle, perfect for quick, routine maintenance, helps loosen cooked-on food in under an hour. Simply add water to the bottom of the oven and wipe down after the cycle. For a deeper clean, the high-temperature Self-Clean Cycle powers through baked-on spills, leaving the oven cavity clean with just a final wipe-down.
FAR VIEW SCREEN
Automatically enlarges key information like temperature or remaining time after a few minutes of inactivity. This allows you to easily monitor your cooking progress from across the kitchen.
STAR-K CERTIFIED
To meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven remains in baking mode at a constant temperature with lights, displays and tones disabled.
Accessories
- Optional:
Power Cord
Documents
Specifications
Delay Bake/Start
YDigital Temperature Display
YAir Fry
YAdditional Information
• Bake Element Power: 2800W
• Broiler Element Power: 4000W
• Broiler Location: Top of Oven
• Convection Element Power: 3200W (x4 listed)
• Convection Element Type: True Convection
• Door Broil Position: Closed
• Door Removable
• Hidden Bake Element
• Installable Under Cooktop
• Installable Under Oven
• Interior Coating: Porcelain
• Light Type: Halogen
• Number of Bake Elements: 2
• Number of Broil Elements: 1
• Number of Oven Lights: 2
• Number of Oven Racks: 2
• Number of Rack Guides: 6
• Oven Rack Front Material: Metal
• Oven Rack Type: 1 Steam Rack, 1 Gliding Roll-out Rack
• Self-Cleaning Oven Racks: No
• Temperature Conversion: No
• Temperature Probe
• Temperature Sensor
• Door Lock
• Door Type: Metal & Glass
• Oven Window Size: Extra Large
• Flush Installation Approved
• Oven Automatic Shut-Off
• Personalized Hardware
• Power On Indicator Light
• Control Type: Full Color LCD Electronic Touch
• Display Color: Full Color
• Language Conversion: English/French/Spanish
• Light Control: Oven Light Touch PadConvection
YWi-Fi
YControl Lock
YSteam Oven
YClock
YPrograms
• Oven Selections: Air Fry, Assisted Cooking, Audible Signal, Bake, Broil, Cancel/Off, Clock, Control Lock, Convect Bake, Convect Broil, Convect Modes, Convect Roast, Cook Time Indicator, Delay Start, Favorites, Fresh Pizza Mode, Keep Warm/Warm Hold, Language Conversion, P, Sabbath Mode, Slow Cook, Slow Roast, Start Time, Steam Bake, Temperature Probe, Timer
• Convection Functions: Bake, Broil, Air Fry, Convection ConversionOven Light
YTechnologies
• Oven Cooking System: True Convection
• Connectivity: Amazon Alexa, Android, Google Assistant, iOS
• Works With: App, Bluetooth, Remote Access, WiFiSelf-Cleaning
YUPC#
883049923079Weight
78.20 kgAdditional Dimensions
• Oven Interior Depth: 48.26 cm, 19 in
• Oven Interior Height: 45.72 cm, 18 in
• Oven Interior Width: 63.50 cm, 25 in
• Cutout Depth: 60.96 cm, 24 in
• Cutout Height: 71.12 cm, 28 in
• Cutout Width: 72.39 cm, 28-1/2 in
• Depth Closed Excluding Handles: 62.23 cm, 24-1/2 in
• Depth Closed Including Handles: 68.42 cm, 26-469/500 in
• Depth Excluding Doors: 59.06 cm, 23-1/4 inClass Width

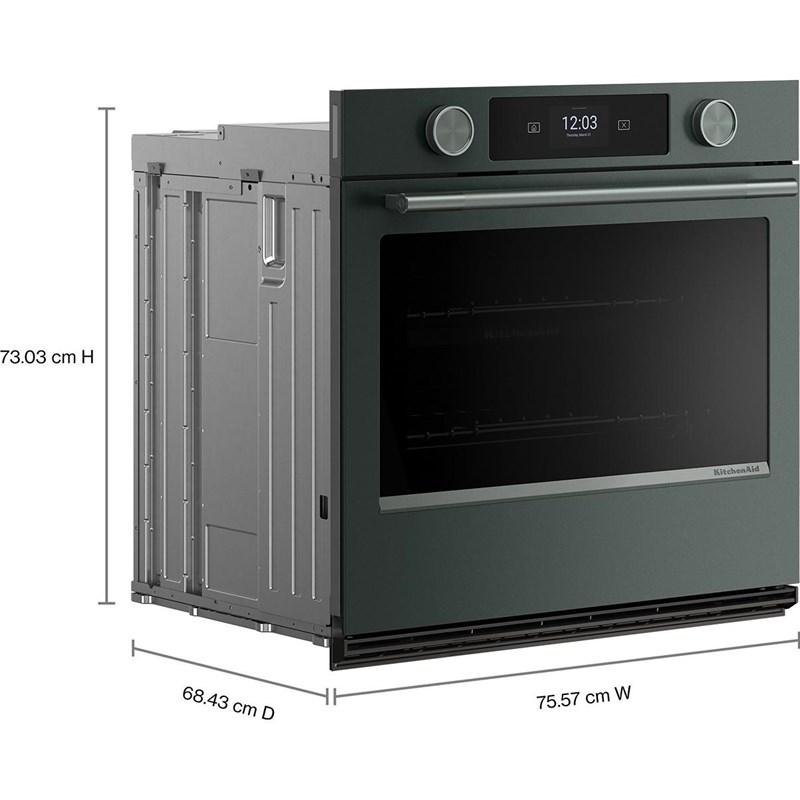

30"Width
75.57 cmWeight
75.93 kgHeight
73.03 cmDepth
68.43 cmOptional
Power CordTotal Capacity
5 cu. ft.Fuel Type
ElectricAppliance Care
Oven Cleaning Type: Self Clean + Steam CleanColor
GreenManufacturer Color
JuniperCertifications
• ADA Compliant
• CUL
• Star K Certified
• ULWarranty
1-Year Parts and laborInformation
• Amps: 20
• Hz: 60
• Volts: 240
