The Sub-Zero Designer Series Undercounter Refrigeration is a helpful addition to a master suite, bar, home office, or media room. This panel ready 24" undercounter compact refrigerator with ice maker features a fully customizable exterior, accepting custom panels for an integrated look within cabinetry or stainless steel accessory panels and handles to coordinate other Sub-Zero, Wolf, and Cove appliances. It offers precise temperature control within one degree of setpoint, preserving dairy, produce, and other perishables at their optimal temperature.
ENERGY STAR® QUALIFIEDEnergy star® qualified
STAR-K CERTIFIED
Star-K certified
SPILL-PROOF
Adjustable spill-proof glass shelves.
INTUITIVE TOUCH CONTROL
Touch control panel allows you to keep temperatures within one degree of set point.

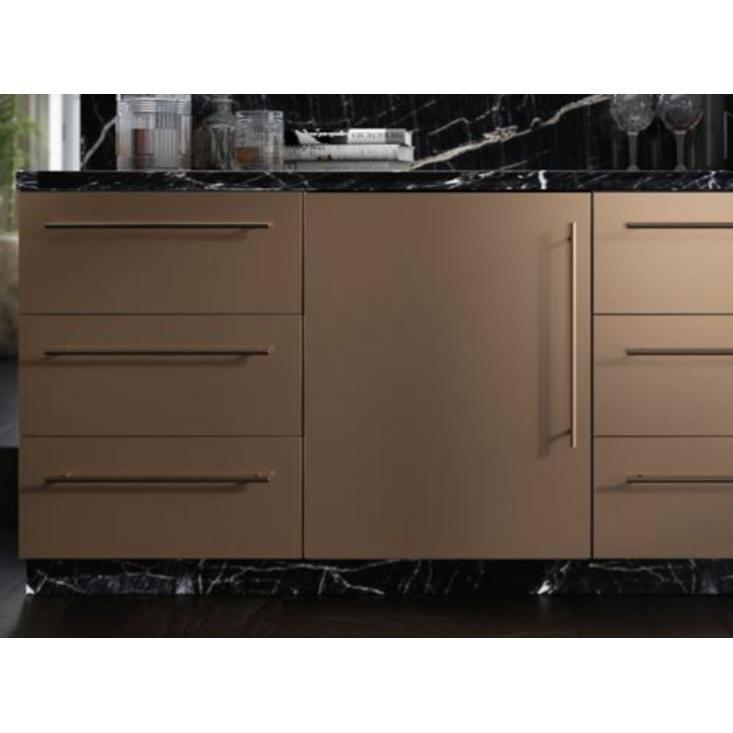

PANEL READY DESIGN
Just add your custom cabinetry panels and handles, and it blends into the décor of any room.
SOFT-ON LED LIGHTING
Energy-efficient LEDs offer varying degrees of brightness, enabling you to customize preferences by controlling intensity levels.
AUTOMATIC ICE MAKER WITH “MAX ICE”
Provides crescent-shaped ice cubes and includes a "max ice" feature capable of increasing ice production by an average of 30 percent for a 24-hour period – just the boost you need for parties and holidays.
Door Hinge
Right
Accessories
- Optional:
• Custom Panel Lock Kit
• Dual Install Kit - Handle-to-Drawer
• Dual Install Kit - Handle-to-Handle
• Pro Handle
• Stainless Steel Dual Kickplate
• Tubular Handle
• Stainless Steel Solid Door Panels
Documents
Specifications
Manufacturer Color
Panel ready (custom panel required, sold separately)Door Hinge
RightColor
Panel ReadySeries Name
Designer SeriesInstallation Type
Built-InRefrigerator Type
CompactInterior Light
YAdditional Information
• Fully customizable exterior

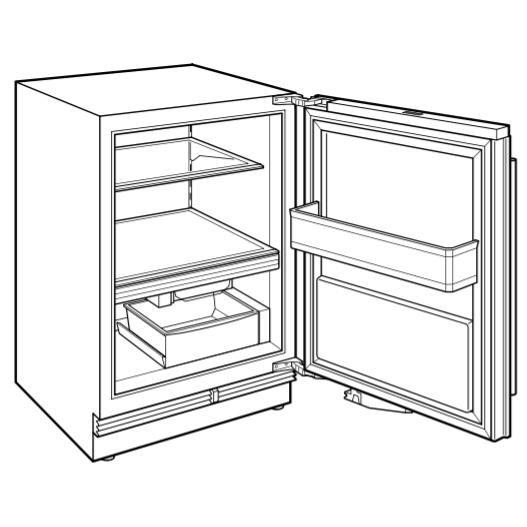

• One stationary and one adjustable shelves
• One on-door shelf
• Soft-on LED lighting
• On-door touch control panel
• Precise temperature control
• Nano-coated, spill-proof shelf
• Wi-Fi enabledDigital Display
YWi-Fi
YAdditional Freezer Information
• Removable ice storage bin
• Plumbing Supply: 1/4" OD copper, braided stainless steel or PEX tubing
• Plumbing Pressure: 20–100 psiSabbath Mode
YEnergy Star Certified
YFreezer
1.7 cu. ft.Refrigerator
3.0 cu. ft.Total
4.7 cu. ft.Ice System
InteriorDispenser Features
• Stores fresh ice in a removable freezer storage bin
• Yields extra cubes with Max Ice ModeAdditional Dimensions
Door Clearance: 26 1/2"Depth (Without Handles)
58.74 cmClass Width
23" to 28.9"Width
60.96 cmHeight (With Hinge)
87.63 cmClass Height
30" - 35"Warranty
• Full 2-Year warranty for parts and labor
• Full 5-Year warranty for sealed system
• Limited 12-Year warranty for sealed systemOptional
• Custom Panel Lock Kit
• Dual Install Kit - Handle-to-Drawer
• Dual Install Kit - Handle-to-Handle
• Pro Handle
• Stainless Steel Dual Kickplate
• Tubular Handle
• Stainless Steel Solid Door PanelsInformation
• Electrical Supply: 115 VAC, 60 Hz
• Electrical Service: 15 amp dedicated circuit
• Receptacle: 3-prong grounding-type
