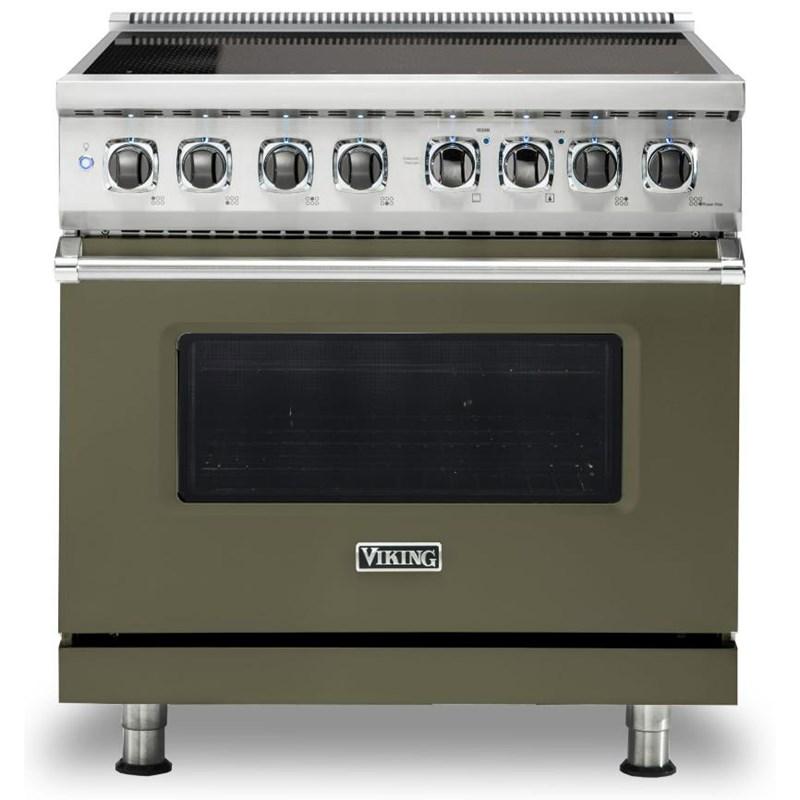

Viking 36-inch induction range features MagneQuick™ induction power generators, 6 induction elements, heavy-duty BlackChrome™ knobs and square bezels, and a total oven capacity of 5.6 cu. ft.

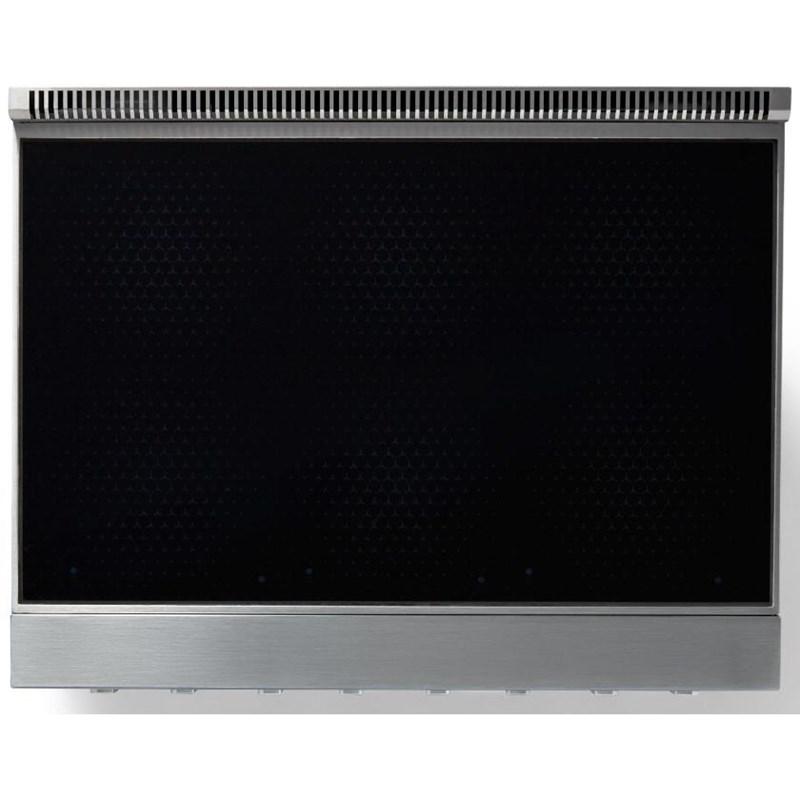

MAGNEQUICK™ INDUCTION ELEMENTSMagneQuick™ Induction Elements convert electricity into a magnetic field, which reacts with iron in your cookware and instantly transforms the pan into the heat source.
VARI-SPEED DUAL FLOW™ CONVECTION
Maximize air flow and fluffiness with Vari-Speed Dual Flow™ Convection system. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blades in the industry provides maximum airflow.
CONCEALED BAKE ELEMENT
Get more control and less mess with the 10-pass concealed bake element. This dual concealed bake element provides finer temperature control and makes oven clean up easy.
RAPID READY™ PREHEAT SYSTEM
Wait less and cook more with the Rapid Ready™ Preheat System. Quick preheat means less time for the user to wait for the oven to be ready to cook in.
EXTRA LARGE CAPACITY OVEN
Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.
EXCLUSIVE GENTLE CLOSE™ DOOR FEATURE
No more worries about slamming the door. With the Gentle Close™ Door, the hinge allows for the door to close slowly behind you.
10-PASS BROILER WITH HEAT REFLECTOR
Go from toasting to searing with the variety of settings available on the electric broiler with heat reflector. 10-Pass Broiler with Heat Reflector with HI, MED, and LOW settings provides intense searing heat for a variety of broiling applications.
Features
- Oven Light:
Y - Self-Cleaning:
Y - Technologies:
• MagneQuick™ Induction Power Generators utilize magnetic energy for superior power, responsiveness, and efficiency
• Patented Vari-Speed Dual Flow™ Convection System has the largest convection fan in the industry; the 8-1/2" fan works bi-directionally for maximum airflow and excellent cooking results
• Rapid Ready™ Preheat provides one of the fastest preheat times, meaning less wait time for the oven to preheat
• Gentle Close™ Door allows door to close slowly - Additional Information:
• Power management induction system provides a boost of superior power on all elements for faster boil times
• Large 9" induction elements each provide up to 3,700 watts of power
• Simmer setting is perfect for gentle melting or keeping cooked food warm
• Heavy-duty BlackChrome™ knobs and square bezels shipped standard
• One of the largest oven cavities in the industry
• Concealed 10-pass dual bake element provides precise temperature control
• Large 10-pass broiler with heat reflector
• Oven has six porcelain-coated rack positions and comes standard with three oven racks
• Three strategically located oven lights provide maximum visibility
• Surface graphics on strong, wear-resistant glass ceramic surface for excellent cleanability
• AHAM Standard – 4.9 cu. ft. - Convection:
Y
Accessories
- Optional:
• BG8536SS – 8"H. backguard for 36" range
• HS24536SS – high shelf for 36" range
• P24CSTSS – countertop side trim (2 pieces)
• P36CRTSS – countertop rear trim for 36" range
• P36CBF4SS – curb base and custom curb base front for 36" range
Documents
Specifications
Class Width
36"Depth (Including Handles)
73.0 cmWeight
238.14 kgWidth
91.1 cmDepth (Without Handles)
66.4 cmHeight
94.0 cmOven Light
YSelf-Cleaning
YTechnologies
• MagneQuick™ Induction Power Generators utilize magnetic energy for superior power, responsiveness, and efficiency
• Patented Vari-Speed Dual Flow™ Convection System has the largest convection fan in the industry; the 8-1/2" fan works bi-directionally for maximum airflow and excellent cooking results
• Rapid Ready™ Preheat provides one of the fastest preheat times, meaning less wait time for the oven to preheat
• Gentle Close™ Door allows door to close slowlyAdditional Information
• Power management induction system provides a boost of superior power on all elements for faster boil times
• Large 9" induction elements each provide up to 3,700 watts of power
• Simmer setting is perfect for gentle melting or keeping cooked food warm
• Heavy-duty BlackChrome™ knobs and square bezels shipped standard
• One of the largest oven cavities in the industry
• Concealed 10-pass dual bake element provides precise temperature control
• Large 10-pass broiler with heat reflector
• Oven has six porcelain-coated rack positions and comes standard with three oven racks
• Three strategically located oven lights provide maximum visibility
• Surface graphics on strong, wear-resistant glass ceramic surface for excellent cleanability
• AHAM Standard – 4.9 cu. ft.Convection
YElements
InductionBurners/Elements
6Burner/Element Size
(6x) Elements: 9"Burners/Elements Output
• Left Front Element: 3,700-watt boost/2,300 watts
• Left Rear Element: 3,700-watt boost/2,300 watts
• Center Front Element: 3,700-watt boost/2,300 watts
• Center Rear Element: 3,700-watt boost/2,300 watts
• Right Front Element: 3,700-watt boost/2,300 watts
• Right Rear Element: 3,700-watt boost/2,300 wattsInformation
• 240-208VAC, 60 Hz electrical connection box on product, connect with locally supplied 3-wire, flexible cord or "pigtail" rated 50 amp 125-250VAC minimum. Cord must be agency approved for use with household electric ranges.
• 50 amp dedicated circuitWarranty
• 2-year full – complete product
• 90-day full – cosmetic parts such as glass, painted items and decorative items
• 5-year limited – induction element componentsAppliance Care
Self-cleaning porcelain ovenFuel Type
Electric - InductionSeries Name
5 Series – VIRManufacturer Color
MartiniColor
GreenInstallation Type
FreestandingPrograms
• High-performance cooking modes include:
• Bake
• Convection Bake
• TruConvec Convection Cooking
• Convection Roast
• Broil
• Convection Broil
• Convection Dehydrate
• Convection DefrostNumber of Ovens
SingleCapacity (cu. ft.)
5.6 cu. ft.Optional
• BG8536SS – 8"H. backguard for 36" range
• HS24536SS – high shelf for 36" range
• P24CSTSS – countertop side trim (2 pieces)
• P36CRTSS – countertop rear trim for 36" range
• P36CBF4SS – curb base and custom curb base front for 36" range
