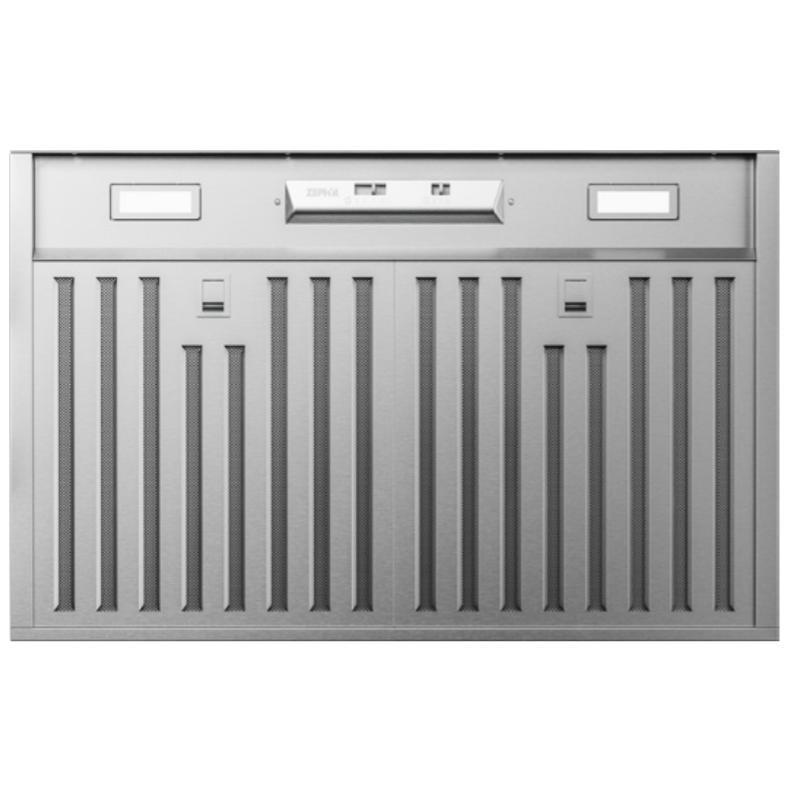

Zephyr-Stainless Steel-Hood Inserts AK9134BS

Sku: 13V9134S
The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product.
$1,099.00
OR
Flexiti Financing
$45.79 + taxes/fees With 24 month financing







Payment Options:

  • visa
  • american express
  • master
Maximum quantity available reached.

About this Product

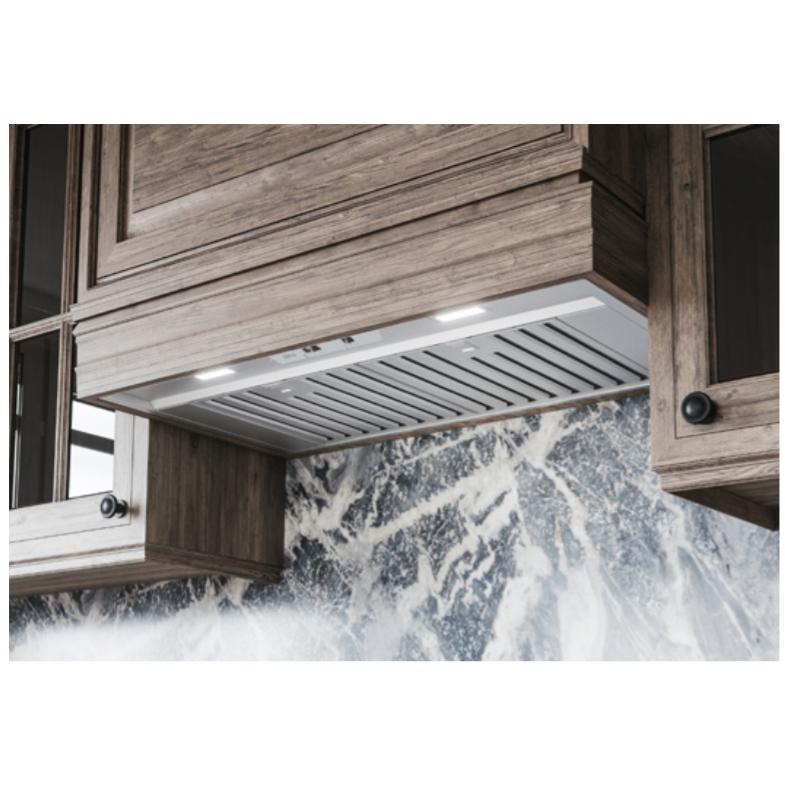

Zephyr 36" Monsoon Mini insert hood that features dual-level LumiLight LED lights, hybrid baffle filters, and a recirculating option for ductless installations.

Features

  • MECHANICAL SLIDE CONTROL — Mechanical slide control
  • HYBRID BAFFLE — Hybrid baffle

Documents

Product Sheet (en)

Product Sheet (en)

Dimensions Guide (en)

Dimensions Guide (en)

Highlights

Controls: Mechanical Slide  |  Lighting: LumiLight LED, 6W x2  |  Dual-Level Lighting  |  Filters: Hybrid Baffle x2  |  Recirculating Option

Specifications

Style Custom Insert Installation Built-In Blower Included Y
Manufacturer Color Stainless Steel Airflow 300 CFM Color Stainless Steel
Height 15.56 cm Width 87.31 cm Additional Dimensions Mounting Height Range: 24" - 36"
Depth 45.88 cm Class Width 36" UPC# 646328009570
Series Name
Monsoon Mini  |  Core Collection
Speeds
Speed Levels: 3  |  Blower CFM (Min. - Max.): 150 - 300  |  Sones (Min. - Max.): 1.5 - 4
Ducting Information
Vertical Internal Blower: 7" Round, 3-1/4" x 10"  |  Horizontal Internal Blower: 3-1/4" x 10"
Information
120V, 60Hz at Max. 2A
Warranty
3-Year limited on parts  |  1-Year limited for labor
Optional
Recirculating Kit: ZRC-9100A  |  Damper 7" Round: AK00067
Information
cULus

Accessories

• Recirculating Kit: ZRC-9100A
• Damper 7" Round: AK00067

Style

Custom Insert

Installation

Built-In

Blower Included

Y

Manufacturer Color

Stainless Steel

Airflow

300 CFM

Color

Stainless Steel

Height

15.56 cm

Width

87.31 cm

Depth

45.88 cm

Class Width

36"

Series Name

Monsoon Mini  |  Core Collection

Speeds

Speed Levels: 3  |  Blower CFM (Min. - Max.): 150 - 300  |  Sones (Min. - Max.): 1.5 - 4

Additional Information

Controls: Mechanical Slide  |  Lighting: LumiLight LED, 6W x2  |  Dual-Level Lighting  |  Filters: Hybrid Baffle x2  |  Recirculating Option

Ducting Information

Vertical Internal Blower: 7" Round, 3-1/4" x 10"  |  Horizontal Internal Blower: 3-1/4" x 10"

Information

120V, 60Hz at Max. 2A

Additional Dimensions

Mounting Height Range: 24" - 36"

Warranty

3-Year limited on parts  |  1-Year limited for labor

Optional

Recirculating Kit: ZRC-9100A  |  Damper 7" Round: AK00067

Information

cULus

Specifications

Dimensions Width34.37"Height6.13"Depth18.06"
Finish: Stainless Steel
MPN: AK9134BS
Product Details:

Style

Custom Insert

Installation

Built-In

Blower Included

Y

Manufacturer Color

Stainless Steel

Airflow

300 CFM

Color

Stainless Steel

Height

15.56 cm

Width

87.31 cm

Depth

45.88 cm

Class Width

36"

Series Name

Monsoon Mini  |  Core Collection

Speeds

Speed Levels: 3  |  Blower CFM (Min. - Max.): 150 - 300  |  Sones (Min. - Max.): 1.5 - 4

Additional Information

Controls: Mechanical Slide  |  Lighting: LumiLight LED, 6W x2  |  Dual-Level Lighting  |  Filters: Hybrid Baffle x2  |  Recirculating Option

Ducting Information

Vertical Internal Blower: 7" Round, 3-1/4" x 10"  |  Horizontal Internal Blower: 3-1/4" x 10"

Information

120V, 60Hz at Max. 2A

Additional Dimensions

Mounting Height Range: 24" - 36"

Warranty

3-Year limited on parts  |  1-Year limited for labor

Optional

Recirculating Kit: ZRC-9100A  |  Damper 7" Round: AK00067

Information

cULus


UPC: 646328009570
