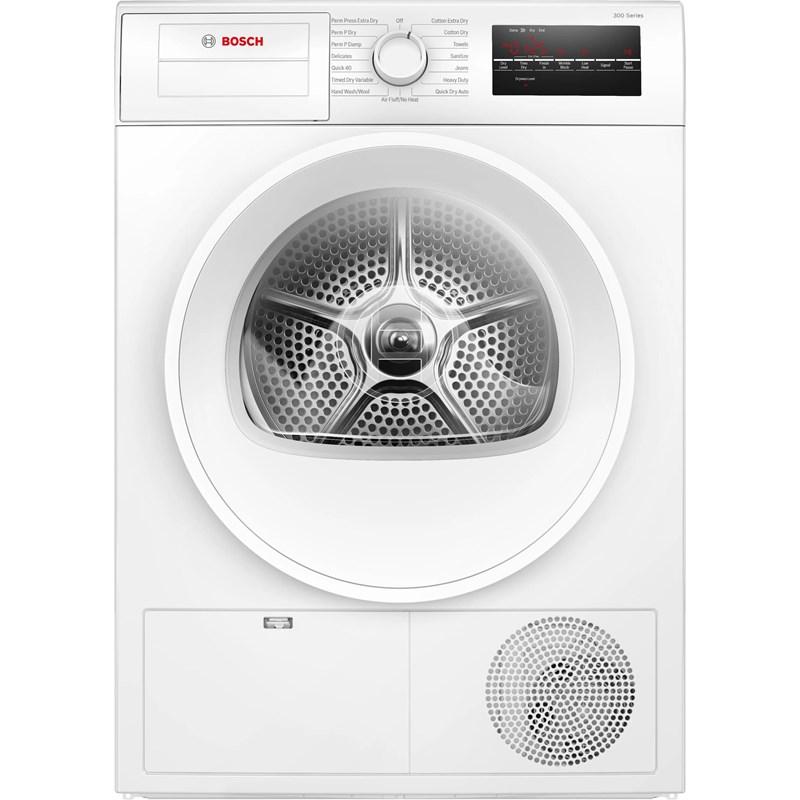

This stackable electric dryer is ENERGY STAR® certified. The Sensor Controlled Condensation Drying system delivers high-quality fabric care and complete drying results.
Features
- Stackable:
Y - Additional Information:
• Dryer type: Condensing
• Silence level: 67 dBA
• Door hinge: Right Side - Reversible Door:
N
Accessories
- Optional:
• WMZ20600: Drying Rack
• WTZPW20D: Dryer Pedestal
Dryer Stacking Kits:
• WTZ11400UC: Kit w/Shelf
• WTZ20410UC: Kit w/out Shelf
• WTZSB30UC: Kit w/Brackets
Power Adapters:
• WTZPA20UC: 4-Prong
• WTZPA30US: 3-Prong
Bosch Dryers are supplied with WTZPA20UC adapter to fit a standard 4-Prong, 30A, Dryer receptacle (NEMA 14-30R) to power both Bosch Washers and Dryers.
• 3-Prong Adapter may be ordered directly from Bosch (not supplied with Washer or Dryer).
• Use of two individual NEMA 6-15R or 6-20R receptacles/circuits may be used as alternative means to power the Washer and Dryer.
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
- Additional documents(en)
Specifications
Dimensions
Width23"Height33"Depth25"
Capacity: 4
Finish: White
MPN: WPA12100UC
Product Details:
Weight
42.64 kgHeight
84.46 cmWidth
59.69 cmClass Width
25" and underDepth
63.5 cmAdditional Dimensions
• Minimum stack height: 67 3/4"
• Power cord length 63" (Full Length)
• Drain hose length 78" (Full Length)Energy Star Certified
YAdditional Information
ADA compliance:
• Meets ADA height and access requirements when installed on a pedestal
• Meets ADA operable parts requirements for controls and lint filterTub Material
Stainless SteelManufacturer Color
WhiteSeries
300 SeriesPower Source
ElectricType
VentlessColor
WhiteInformation
• Energy consumption: 315 kWh/yr
• Watts: 2,520 W
• Circuit breaker: 15 A*
• Volts: 208/220-240 V
• Current: 10.5 A
• Frequency: 60 Hz
• Power Cord (included): 240V; NEMA 6-15, 3-prongDry Cycles
Special Programs: Jeans, Heavy DutyNumber of Cycles
15Options
• Number of Options: 6
• Special Options: Dry Level, Finished InStackable
YAdditional Information
• Dryer type: Condensing
• Silence level: 67 dBA
• Door hinge: Right SideReversible Door
NOptional
• WMZ20600: Drying Rack
• WTZPW20D: Dryer Pedestal
Dryer Stacking Kits:
• WTZ11400UC: Kit w/Shelf
• WTZ20410UC: Kit w/out Shelf
• WTZSB30UC: Kit w/Brackets
Power Adapters:
• WTZPA20UC: 4-Prong
• WTZPA30US: 3-Prong
Bosch Dryers are supplied with WTZPA20UC adapter to fit a standard 4-Prong, 30A, Dryer receptacle (NEMA 14-30R) to power both Bosch Washers and Dryers.
• 3-Prong Adapter may be ordered directly from Bosch (not supplied with Washer or Dryer).
• Use of two individual NEMA 6-15R or 6-20R receptacles/circuits may be used as alternative means to power the Washer and Dryer.Capacity
4.0 cu. ft.
UPC: 0
Weight: 42.64
Dryer Capacity: 4
Freezer Capacity: 4
Refrigerator Capacity: 4
Washer Capacity: 4
Washer Cycles And Options: 15
