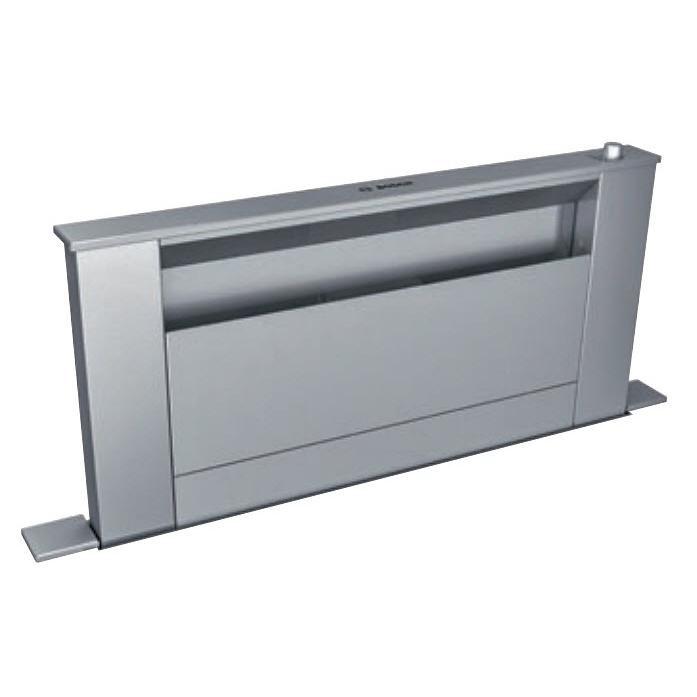

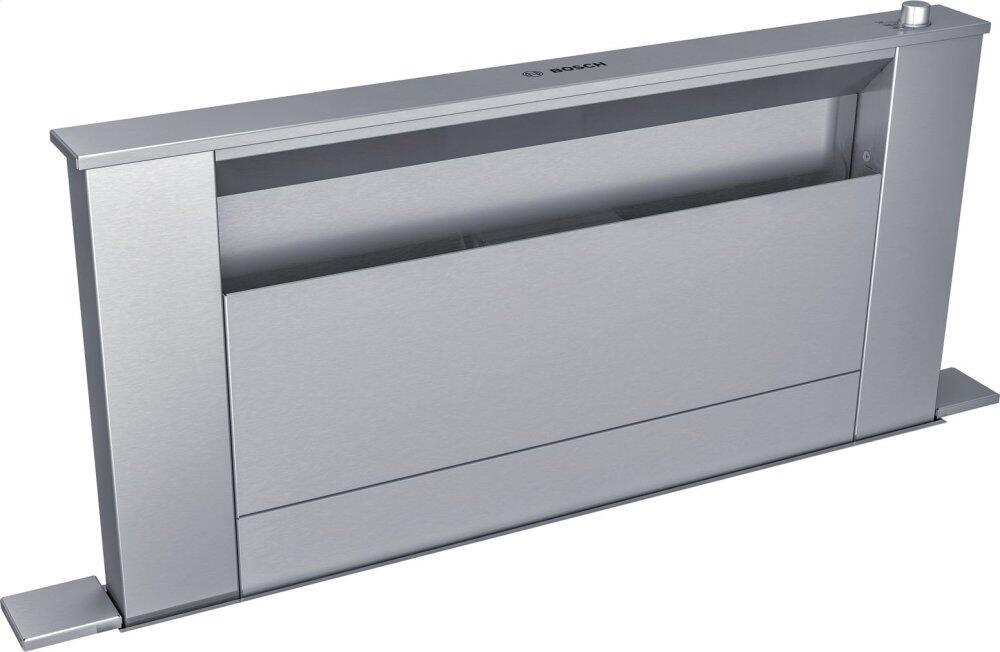

This 30-inch wide Bosch 800 Series downdraft ventilation features a 3-speed vent, 6 exhaust connections possibilities and an aluminum filter. Blower sold separately.
Features
- Ducting Information:
Rond - Convertible: Ducted / Recirculating - Additional Information:
• Sones 11.8 HS / 2.1 WS
• Motor Location External
• Aluminum Grease Filter
• Duct Direction: Front, Left, Right, Rear, Down
• 6 Exhaust Connections Possible (Transition Sold Separately) - Speeds:
3-Speeds
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
*While we place great care into preparing product descriptions and prices, sometimes technical and typographical errors or omissions may occur. Appliance Canada cannot be held responsible for such errors and we apologize for any inconvenience this may cause.
Specifications
Dimensions

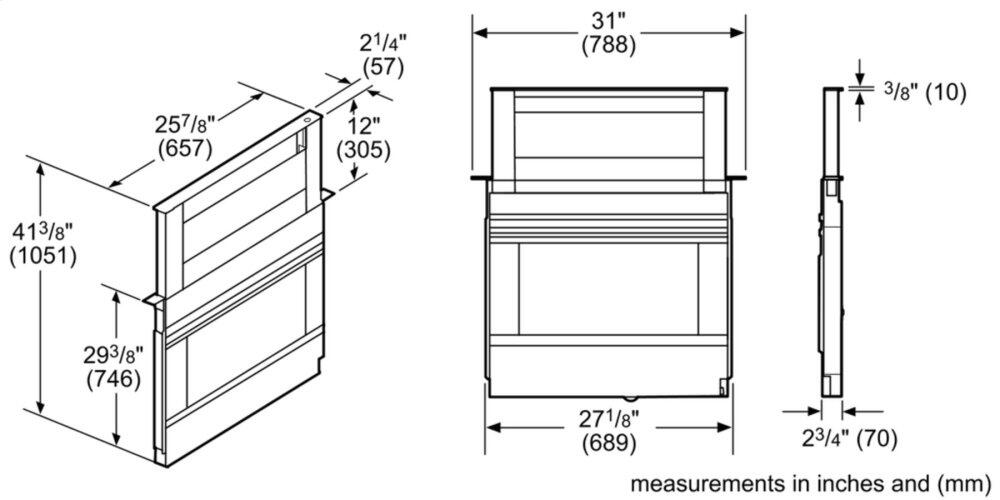

Width25"Height41"Depth2"
Finish: Stainless Steel
MPN: HDD80051UC
Product Details:
Warranty
1 YearOptional
• 6" Side / Rear / Downward Transition HDDSTRAN6
• 8" Side / Rear / Downward Transition HDDSTRAN8
• 6" Round Front Plate HDDFTRAN6
• 8" Round Front Plate HDDFTRAN8
• 600 CFM Flexible Blower DHG602DUC
• 600 CFM Inline Blower DHG6015NUC
• 600 CFM Remote Blower DHG6023RUC
• Recirculation Kit (Compatible with Electric, Induction and FlameSelect Gas Cooktops) HDDREC5UC
• Charcoal Filter HDDFILTUC 30" Gas Cooktop Seal Kit for Downdraft (Required for Installation with Gas Cooktops)
• Trim Kit for 30" FlameSelect® Gas Cooktops HDDTRIM30SDepth
6.99 cmHeight
105.1 cmWidth
65.7 cmClass Width
30"Series Name
800 SeriesStyle
DowndraftManufacturer Color
Stainless SteelColor
Stainless SteelInstallation
CountertopBlower Included
NDucting Information
Rond - Convertible: Ducted / RecirculatingAdditional Information
• Sones 11.8 HS / 2.1 WS
• Motor Location External
• Aluminum Grease Filter
• Duct Direction: Front, Left, Right, Rear, Down
• 6 Exhaust Connections Possible (Transition Sold Separately)Speeds
3-SpeedsInformation
120 V
UPC: 0
