Brigade Professional-Stainless CVGIC53616BSSLP

Sku: 02V1206P
The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product.
$7,676.25
OR
Flexiti Financing
$319.84 + taxes/fees With 24 month financing







Payment Options:

  • visa
  • american express
  • master
Maximum quantity available reached.

About this Product

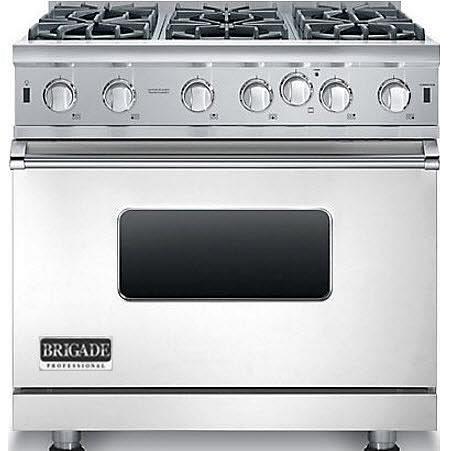

Brigade Professional 36" open burner gas range. This open burner range provides professional styling and a restaurant caliber burner for exceptional performance. The large-capacity oven is equipped with a powerful u-shaped burner and ProFlow™ Convection Air Baffle to ensure perfectly even heat distribution. And six cooking functions from natural airflow baking to Gourmet-Glo infrared broiling deliver the power for any recipe.

Features

  • VARISIMMER™ SETTINGS — The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
  • SURESPARK™ IGNITION SYSTEM — The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
  • GOURMET-GLO™ INFRARED BROILER — Lock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
  • PROFLOW™ CONVECTION BAFFLE — Bake breads and cakes to lofty perfection with the incredibly even heat circulation of the ProFlow™ Convection Baffle system. Each Pro Flow Baffle has been engineered specifically for each oven cavity to maximize even cooking.

Documents

Product Sheet (en)

Product Sheet (en)

Dimensions Guide (en)

Dimensions Guide (en)

Owner's manual (en)

Owner's manual (en)

Installation guide (en)

Installation guide (en)

Warranty Details (en)

Warranty Details (en)

Highlights

Stainless steel burners with porcelain/cast iron caps  |  All burners equipped with SureSpark™ Ignition System  |  Automatic re-ignition  |  Heavy duty metal knobs with stainless steel finish  |  Combination of single U-shaped burner and infrared broiler with SureSpark™ Ignition System  |  Large-capacity ovens with six rack positions  |  Six functions - natural airflow bake, convection bake, infrared broil, convection infrared broil, convection dehydrate, and convection defrost  |  All convection functions utilize the ProFlow™ Convection Air Baffle  |  Two halogen oven lights  |  Island trim shipped standard with range  |  Easy Operation and Cleanup  |  Removable pull-out drip tray with roller bearing glides  |  Removable grate supports with separately removable, dishwasher-safe porcelain burner bowls  |  Heavy-duty, porcelainized, cast-iron removable surface grates

Specifications

Class Width 36" Depth (Including Handles) 72.9 cm Width 91.1 cm
Depth (Without Handles) 71.2 cm Height 91.1 cm Downdraft Ventilation N
Oven Light Y Self-Cleaning N Wi-Fi N
Convection Y Burners Open Burners/Elements 6
Burners/Elements Output (6) Burners: 12,500 BTU (3.7 kW) Weight 226.8 kg Fuel Type Liquid Propane
Series Name 5 Series Manufacturer Color Stainless Steel Color Stainless Steel
Installation Type Freestanding Number of Ovens Single Capacity (cu. ft.) 5.1 cu. ft.
Sabbath/Star-K N
Additional Dimensions
Overall Height To top of side trim : 35-7/8" (91.1 cm) min. 37" (94.0 cm) max., Legs adjust - 1-1/8" (2.9 cm)  |  Overall Depth from Rear To end of side panel: 24-5/16" (61.8 cm)  |  Overall Depth from Rear To front of door - 25-3/4" (65.4 cm)  |  Overall Depth from Rear To end of landing ledge - 28-1/16" (71.2 cm)  |  Overall Depth from Rear To end of door handle - 28-11/16" (72.9 cm)  |  Add 1" to overall depth for ranges with backguards installed against a combustible wall.  |  Addition to base height: add 1" (2.5 cm) to top of island trim  |  Addition to base height: add 8" (20.3 cm) to top of backguard  |  Addition to base height: add 23-1/2" (59.7 cm) to top of high shelf  |  For more information refer to dimension manual
Technologies
VariSimmer™ setting for all burners  |  ProFlow™ Convection Air Baffle  |  GourmetGlo™ Infrared Broiler  |  SureSpark™ Ignition System
Information
120 V  |  60 Hz  |  1.5 A
Warranty
2-year full - complete product  |  90-day full - cosmetic parts such as glass, painted items and decorative items  |  5-year limited - gas burners
Optional
8"H. Backguard - P36BG8SS  |  High Shelf - B36HS24SS  |  Countertop Side Trim - P24CSTSS  |  Countertop Rear Trim - P36CRTSS  |  Curb Base and Custom Curb Base Front - P36CBFSJ

Accessories

• 8"H. Backguard - P36BG8SS
• High Shelf - B36HS24SS
• Countertop Side Trim - P24CSTSS
• Countertop Rear Trim - P36CRTSS
• Curb Base and Custom Curb Base Front - P36CBFSJ

Specifications

Dimensions Width35.87"Height35.87"
Finish: Stainless Steel
MPN: CVGIC5361-6BSSLP
Product Details:

Class Width

36"

Depth (Including Handles)

72.9 cm

Width

91.1 cm

Depth (Without Handles)

71.2 cm

Height

91.1 cm

Downdraft Ventilation

N

Oven Light

Y

Self-Cleaning

N

Wi-Fi

N

Convection

Y

Burners

Open

Burners/Elements

6

Burners/Elements Output

(6) Burners: 12,500 BTU (3.7 kW)

Weight

226.8 kg

Fuel Type

Liquid Propane

Series Name

5 Series

Manufacturer Color

Stainless Steel

Color

Stainless Steel

Installation Type

Freestanding

Number of Ovens

Single

Capacity (cu. ft.)

5.1 cu. ft.

Sabbath/Star-K

N

Additional Dimensions

Overall Height To top of side trim : 35-7/8" (91.1 cm) min. 37" (94.0 cm) max., Legs adjust - 1-1/8" (2.9 cm)  |  Overall Depth from Rear To end of side panel: 24-5/16" (61.8 cm)  |  Overall Depth from Rear To front of door - 25-3/4" (65.4 cm)  |  Overall Depth from Rear To end of landing ledge - 28-1/16" (71.2 cm)  |  Overall Depth from Rear To end of door handle - 28-11/16" (72.9 cm)  |  Add 1" to overall depth for ranges with backguards installed against a combustible wall.  |  Addition to base height: add 1" (2.5 cm) to top of island trim  |  Addition to base height: add 8" (20.3 cm) to top of backguard  |  Addition to base height: add 23-1/2" (59.7 cm) to top of high shelf  |  For more information refer to dimension manual

Technologies

VariSimmer™ setting for all burners  |  ProFlow™ Convection Air Baffle  |  GourmetGlo™ Infrared Broiler  |  SureSpark™ Ignition System

Additional Information

Stainless steel burners with porcelain/cast iron caps  |  All burners equipped with SureSpark™ Ignition System  |  Automatic re-ignition  |  Heavy duty metal knobs with stainless steel finish  |  Combination of single U-shaped burner and infrared broiler with SureSpark™ Ignition System  |  Large-capacity ovens with six rack positions  |  Six functions - natural airflow bake, convection bake, infrared broil, convection infrared broil, convection dehydrate, and convection defrost  |  All convection functions utilize the ProFlow™ Convection Air Baffle  |  Two halogen oven lights  |  Island trim shipped standard with range  |  Easy Operation and Cleanup  |  Removable pull-out drip tray with roller bearing glides  |  Removable grate supports with separately removable, dishwasher-safe porcelain burner bowls  |  Heavy-duty, porcelainized, cast-iron removable surface grates

Information

120 V  |  60 Hz  |  1.5 A

Warranty

2-year full - complete product  |  90-day full - cosmetic parts such as glass, painted items and decorative items  |  5-year limited - gas burners

Optional

8"H. Backguard - P36BG8SS  |  High Shelf - B36HS24SS  |  Countertop Side Trim - P24CSTSS  |  Countertop Rear Trim - P36CRTSS  |  Curb Base and Custom Curb Base Front - P36CBFSJ
