About this Product
This 48-inch wide Signature Kitchen Suite dual-fuel range features built-in sous vide, two Ultra-High™ burners, two induction zones and ProHeat™ convection technology with a rear-wall element and fan to evenly distribute heat to every rack.
Features
- SPEED CLEAN™ — Grease stains or baked-on drippings are no match for Speed Clean™*. Just spray the stain with water, activate Speed Clean™, and in ten minutes you can simply wipe the residue away. No matter how much you use your oven, it will always be moments away from looking brand new. *Cleans a lightly soiled oven automatically. Heavier stains may require engaging full self-cleaning feature.
- WI-FI ENABLED — With Remote Preheating Control you can preheat your oven while you’re still at the store. Smart Diagnosis and Clean Alert will make sure everything is working smoothly. And thanks to Remote Monitoring, you’ll never worry about leaving the gas on while you’re out of the home.
- TWO-ZONE INDUCTION — When the recipe calls for instant temperature and precision control, two induction zones meet the culinary need. The zones can be combined for use with griddle, teppanyaki plate or large cookware.
- TRUE COMBI-STEAM™ — The 18-inch oven combines steam and convection cooking for gourmet level results. The convection system cooks food quickly and evenly while steam helps to preserve texture, appearance and taste. The 30-inch oven features ProHeat™ Convection technology with a rear-wall element and fan to evenly distribute heat, to every rack.

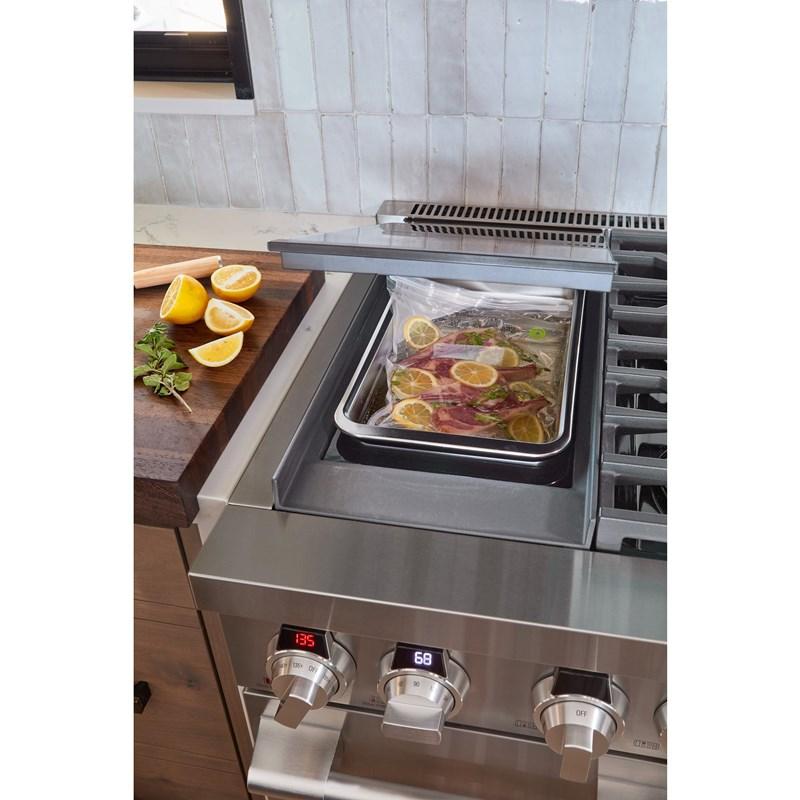

- BUILT-IN SOUS VIDE — There's no excuse for an overcooked steak anymore. Introducing the built-in sous vide, delivering the ultimate in precision cooking, right on the cooktop. Get professional level results every time and capture the full, true flavor of foods.
- POWER UP OR SIMMER DOWN — Two Ultra-High™ Burners deliver pure cooking power for better searing and quick stir-frying. Two Ultra-Low™ Burners simmer down to maintain temperatures as low as 100 degrees to prepare delicate sauces and sugary confections.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Warranty Details (en)
Highlights
Sous Vide + 4 Burners + 2 Zone Induction | 2 Continuous, Dishwasher-Safe Grates | Wok Convertible Grate (On Front Burners) | Heating Element "ON" Indicator Light | LED Power Level Display | Control Lock (Oven Functions Only) | Convection Element: 0.7kW / 2.5 kW | Convection Conversion | Broil Element: 2 kW / 4.2 kW | Bake Element: 2 kW / 2.5 kW | Steam Element: 2 kW | Oven Meat Probe | Touch Oven Controls with LCD Display | Knob Cooktop Controls with LED Display
Specifications
| Number of Ovens | Double | Delay Bake/Start | Y | Self-Cleaning | Y |
| Digital Temperature Display | Y | Oven Light | Y | Convection | Y |
| Wi-Fi | Y | Burners/Elements | 6 | Burners | Sealed |
| Elements | Induction | Sabbath/Star-K | Y | Height | 92.9 cm |
| Width | 121.6 cm | Depth (Without Handles) | 67.8 cm | Weight | 239.95 kg |
| Class Width | 48" | Depth (Including Handles) | 74.5 cm | Fuel Type | Dual Fuel - Natural Gas |
| Installation Type | Freestanding | Manufacturer Color | Stainless Steel | Color | Stainless Steel |
| Warranty | Limited 3 Years Parts and Labor | ||||
|
Capacity (cu. ft.) Total Capacity: 7.9 cu.ft. | Large Oven: 5.2 cu.ft. | Small Oven: 2.7 cu.ft.
| |||||
|
Programs 18-inch Oven - Special Cooking and Steam Maintenance Modes: | Bake | Convection Bake | Convection Roast | Broil | Speed Roast | Steam Cook | Steam Assist | Auto Steam | Auto Cook | Warm | My Recipe | Steam Evaporation | Steam Descaling | Steam Drying | 30-inch Oven - Special Cooking Modes: | ProHeat™ Bake | ProHeat™ Convection Bake | ProHeat™ Convection Roast | Broil | Speed Roast | Auto Cook | Warm | Proof | My Recipe
| |||||
|
Technologies WiFi-Enabled for SmartThinQ™ Control with iPhone / Android App | Ultra-High™ Burners | Ultra-Low™ Burners | Convection System: Single Fan / ProHeat™ | Speed Clean™ | True -Combi-Steam™ Oven
| |||||
|
Burners/Elements Output Simmer - Max. BTU/h (NG): | Left Rear: 950 – 15,000 | Right Rear: 950 – 15,000 | Left Front: 650 – 23,000 | Right Front: 650 – 23,000 | Induction Cooktop (kW): | Front (Level 9 / Boost): 2,000 / 3,650 | Rear (Level 9 / Boost): 2,000 / 3,650 | Flex (Boost): 3,650 | Sous Vide Module: 800W
| |||||
|
Information 240 / 208 V | 60 Hz | 50 A
| |||||
|
Additional Dimensions Overall Width: 47 7/8" | Overall Height Including Grates: 36 9/16" to 38 1/16" | Overall Depth Including Door: 26 7/16" | Overall Depth Including Handle: 29 3/8" | Size of Steam Oven Reservoir: 1 Liter
| |||||
|
Appliance Care Variable Time Self Cleaning (3-4-5 hrs.) | Easy Cleaning
| |||||
|
Included Broiler Pan | Steam Pan | 2 Gliding Racks | 3 Heavy Duty Racks | Cookbook | Cooktop Cleaner | Cleaning Pad | Spray Bottle | Rear Filler
| |||||
Accessories
• Steam Pan
• 2 Gliding Racks
• 3 Heavy Duty Racks
• Cookbook
• Cooktop Cleaner
• Cleaning Pad
• Spray Bottle
• Rear Filler
Specifications
Number of Ovens
Double
Delay Bake/Start
Y
Self-Cleaning
Y
Digital Temperature Display
Y
Oven Light
Y
Convection
Y
Wi-Fi
Y
Burners/Elements
6
Burners
Sealed
Elements
Induction
Sabbath/Star-K
Y
Height
92.9 cm
Width
121.6 cm
Depth (Without Handles)
67.8 cm
Weight
239.95 kg
Class Width
48"
Depth (Including Handles)
74.5 cm
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Freestanding
Manufacturer Color
Stainless Steel
Color
Stainless Steel
Warranty
Limited 3 Years Parts and Labor
Weight
317.06 kg
Capacity (cu. ft.)
Total Capacity: 7.9 cu.ft. | Large Oven: 5.2 cu.ft. | Small Oven: 2.7 cu.ft.
Programs
18-inch Oven - Special Cooking and Steam Maintenance Modes: | Bake | Convection Bake | Convection Roast | Broil | Speed Roast | Steam Cook | Steam Assist | Auto Steam | Auto Cook | Warm | My Recipe | Steam Evaporation | Steam Descaling | Steam Drying | 30-inch Oven - Special Cooking Modes: | ProHeat™ Bake | ProHeat™ Convection Bake | ProHeat™ Convection Roast | Broil | Speed Roast | Auto Cook | Warm | Proof | My Recipe
Additional Information
Sous Vide + 4 Burners + 2 Zone Induction | 2 Continuous, Dishwasher-Safe Grates | Wok Convertible Grate (On Front Burners) | Heating Element "ON" Indicator Light | LED Power Level Display | Control Lock (Oven Functions Only) | Convection Element: 0.7kW / 2.5 kW | Convection Conversion | Broil Element: 2 kW / 4.2 kW | Bake Element: 2 kW / 2.5 kW | Steam Element: 2 kW | Oven Meat Probe | Touch Oven Controls with LCD Display | Knob Cooktop Controls with LED Display
Technologies
WiFi-Enabled for SmartThinQ™ Control with iPhone / Android App | Ultra-High™ Burners | Ultra-Low™ Burners | Convection System: Single Fan / ProHeat™ | Speed Clean™ | True -Combi-Steam™ Oven
Burners/Elements Output
Simmer - Max. BTU/h (NG): | Left Rear: 950 – 15,000 | Right Rear: 950 – 15,000 | Left Front: 650 – 23,000 | Right Front: 650 – 23,000 | Induction Cooktop (kW): | Front (Level 9 / Boost): 2,000 / 3,650 | Rear (Level 9 / Boost): 2,000 / 3,650 | Flex (Boost): 3,650 | Sous Vide Module: 800W
Information
240 / 208 V | 60 Hz | 50 A
Additional Dimensions
Overall Width: 47 7/8" | Overall Height Including Grates: 36 9/16" to 38 1/16" | Overall Depth Including Door: 26 7/16" | Overall Depth Including Handle: 29 3/8" | Size of Steam Oven Reservoir: 1 Liter
Appliance Care
Variable Time Self Cleaning (3-4-5 hrs.) | Easy Cleaning
Included
Broiler Pan | Steam Pan | 2 Gliding Racks | 3 Heavy Duty Racks | Cookbook | Cooktop Cleaner | Cleaning Pad | Spray Bottle | Rear Filler
