Unique Features:
• Operating Temperatures: -6° to 8° F
• Maximum Sound Level: 39 dBA
• Hidden LED True-View™ Interior Lighting
• Digital Controls with White LED Display
• Lift and Go™ Storage Drawers: 3 Soft Close / Self Close
• 3 Adjustable Shelves with LED TrueView™ Lighting, 1 Fixed Shelf
• Temperature Control, Water Filter Reset
• Aluminum Framed Lift and Go™ Door Bins with Removable Inserts: 4 Adjustable
• Speed Freeze
About this Product

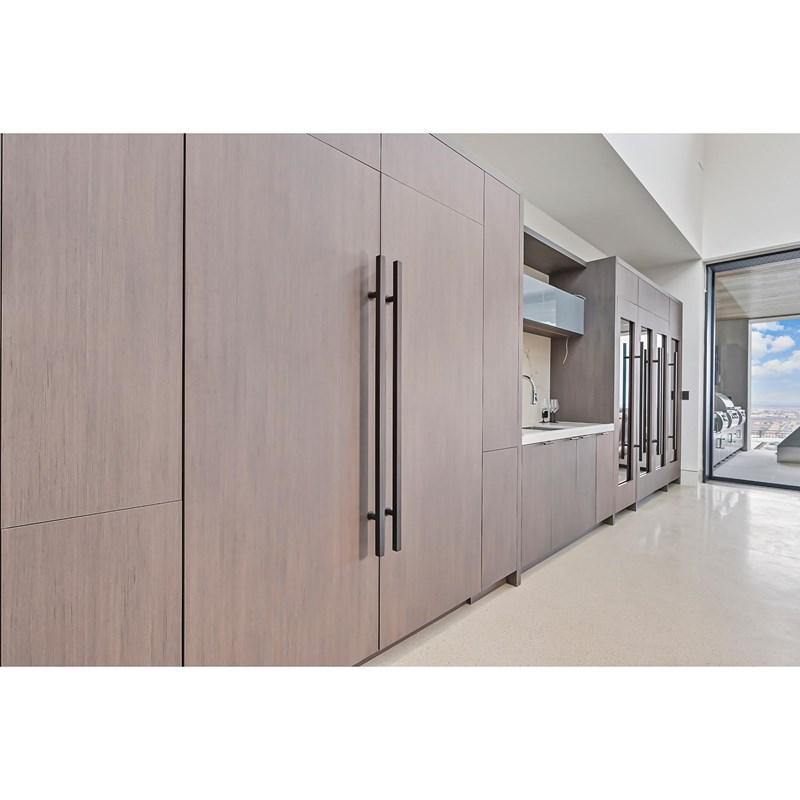

This Signature Kitchen Suite 30-inch integrated column freezer features Inverter Linear Compressor, adaptive defrost, WiFi-enabled for SmartThinQ™ control with iPhone / Android App, and interior ice maker. Image is shown with panel kit (Sold separately).
Features
- TRUEFIT™ INTEGRATED DESIGN — Paired together, the Signature Kitchen Suite 30-inch Integrated Colum Refrigerator and 18-inch Integrated Column Freezer are brilliantly engineered to cleanly fit a 48-inch opening or an existing 47.5-inch opening-perfect for both new construction and replacement applications.
- BRILLIANT INTERIOR — The glass and engineered all-metal interior is not only beautiful, but designed to help the freezer stay within 1-degree of fluctuation of the set temperature by holding and transferring cold fast and efficiently.
- DISTINCTIVE ICE — The square ice shape gives an air of distinction while the removable clear bin holds up to 6 lb, perfect for entertaining.
Documents
Highlights
Reversible Door | Operating Temperatures: -6° to 8° F | Maximum Sound Level: 39 dBA | Hidden LED True-View™ Interior Lighting | Digital Controls with White LED Display | Lift and Go™ Storage Drawers: 3 Soft Close / Self Close | 3 Adjustable Shelves with LED TrueView™ Lighting, 1 Fixed Shelf | Temperature Control, Water Filter Reset | Aluminum Framed Lift and Go™ Door Bins with Removable Inserts: 4 Adjustable | Speed Freeze
Specifications
| Size Range | 17 cu.ft. - 18 cu.ft. | Color | Panel Ready | Door Hinge | Left |
| Manufacturer Color | Panel Ready | Style | Built-In | Total Capacity | 17.8 cu. ft. |
| Type | Upright | Lighting | Y | Defrost System / Frost Free | Y |
| Digital Temperature Display | Y | Wi-Fi | Y | Baskets | Y |
| Ice Machine | Y | Weight | 207.29 kg | Energy Star Certified | Y |
| Sabbath Mode | Y | Width | 75.57 cm | Height (With Hinge) | 212.1 cm |
| Depth (Without Handles) | 62.9 cm | Included | Anti-Tip Bracket | UPC# | 48231798853 |
|
Technologies WiFi-Enabled for SmartThinQ™ Control with iPhone / Android App | Inverter Linear Compressor | Smart Grid | Smart Diagnosis | TrueFit™ Integrated Design | Lift and Go™ Storage Drawers | Lift and Go™ Ice Drawer | Lift and Go™ Door | True-View™ Interior Lighting
| |||||
|
Additional Ice and Water Information Water Filter Indicator | Ice Production (24 Hrs.): 3.5 lbs. | Icemaker On / Off | Removable Ice Bucket Storage Volume: 5.5 lbs. | Lift and Go™ Ice Drawer: 1 Soft Close / Self Close
| |||||
|
Information 115 V | 60 Hz | 15 or 20 A V
| |||||
|
Warranty Limited 3 Years Parts and Labor | Limited 5 Years on Sealed System, Parts and Labor | Limited 10 Years on Sealed System, Parts Only
| |||||
|
Additional Dimensions Overall Height: 83 1/2" Min. – 84 1/2" Max. | Overall Depth Without Panel or Handles: 23 7/8"
| |||||
|
Optional Stainless Steel Panel / Handle / Toekick Kit SKSPK305CS | Retrofit Frame Kit SKSFK800CS | Brushed Aluminum Handle Medium – 31 11/16" SKSHK310HS, Long – 48" (For Columns) SKSHK480HS | Replacement Water Filter LT1000P-S
| |||||
Accessories
• Retrofit Frame Kit SKSFK800CS
• Brushed Aluminum Handle Medium – 31 11/16" SKSHK310HS, Long – 48" (For Columns) SKSHK480HS
• Replacement Water Filter LT1000P-S
Door Hinge: Left
Specifications
Size Range
17 cu.ft. - 18 cu.ft.
Color
Panel Ready
Door Hinge
Left
Manufacturer Color
Panel Ready
Style
Built-In
Total Capacity
17.8 cu. ft.
Type
Upright
Lighting
Y
Defrost System / Frost Free
Y
Digital Temperature Display
Y
Wi-Fi
Y
Baskets
Y
Ice Machine
Y
Weight
207.29 kg
Energy Star Certified
Y
Sabbath Mode
Y
Weight
182.8 kg
Width
75.57 cm
Height (With Hinge)
212.1 cm
Depth (Without Handles)
62.9 cm
Included
Anti-Tip Bracket
Additional Information
Reversible Door | Operating Temperatures: -6° to 8° F | Maximum Sound Level: 39 dBA | Hidden LED True-View™ Interior Lighting | Digital Controls with White LED Display | Lift and Go™ Storage Drawers: 3 Soft Close / Self Close | 3 Adjustable Shelves with LED TrueView™ Lighting, 1 Fixed Shelf | Temperature Control, Water Filter Reset | Aluminum Framed Lift and Go™ Door Bins with Removable Inserts: 4 Adjustable | Speed Freeze
Technologies
WiFi-Enabled for SmartThinQ™ Control with iPhone / Android App | Inverter Linear Compressor | Smart Grid | Smart Diagnosis | TrueFit™ Integrated Design | Lift and Go™ Storage Drawers | Lift and Go™ Ice Drawer | Lift and Go™ Door | True-View™ Interior Lighting
Additional Ice and Water Information
Water Filter Indicator | Ice Production (24 Hrs.): 3.5 lbs. | Icemaker On / Off | Removable Ice Bucket Storage Volume: 5.5 lbs. | Lift and Go™ Ice Drawer: 1 Soft Close / Self Close
Information
115 V | 60 Hz | 15 or 20 A V
Warranty
Limited 3 Years Parts and Labor | Limited 5 Years on Sealed System, Parts and Labor | Limited 10 Years on Sealed System, Parts Only
Additional Dimensions
Overall Height: 83 1/2" Min. – 84 1/2" Max. | Overall Depth Without Panel or Handles: 23 7/8"
Optional
Stainless Steel Panel / Handle / Toekick Kit SKSPK305CS | Retrofit Frame Kit SKSFK800CS | Brushed Aluminum Handle Medium – 31 11/16" SKSHK310HS, Long – 48" (For Columns) SKSHK480HS | Replacement Water Filter LT1000P-S
