About this Product

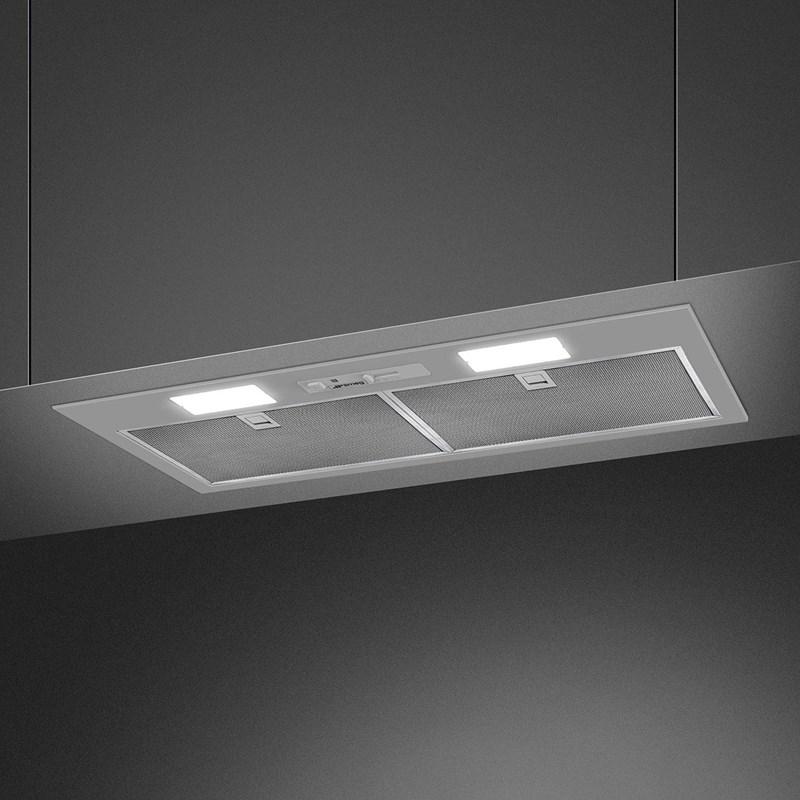

This Smeg insert hood combines seamless design with powerful functionality. With its fully-integrated design, it blends effortlessly into your kitchen, offering discreet ventilation. You can adjust the airflow with three speed levels to suit your cooking needs, while the energy-efficient LED lighting ensures a well-lit workspace. The aluminum grease filters efficiently capture cooking odors and grease, making cleaning a breeze.
Documents
Highlights
No. of lights: 2 | Lighting: LED | Light power: 5 W | Light color temperature scale (°K): 3000 °K | Maximum extraction capacity at free mode: 200 CFM | Motor power: 110 W | No. of filters: 2 | Anti-grease filters: Aluminum | Non-return valve
Specifications
| Style | Custom Insert | Airflow | 200 CFM | Series Name | Universal |
| Manufacturer Color | Silver | Color | Silver | Installation | Built-In |
| Blower Included | Y | Width | 68.58 cm | Height | 17.94 cm |
| Depth | 28.58 cm | Weight | 4.99 kg | Class Width | 30" |
| UPC# | 8017709296841 | Warranty | 1-Year parts and labor | ||
|
Speeds Speed levels: 3 | SPEED 1- Extraction rate: 90 CFM | SPEED 1 - Noise level: 55 dB(A) | SPEED 2 - Extraction rate: 150 CFM | SPEED 2 - Noise level: 64 dB(A) | SPEED 3 - Extraction rate: 200 CFM | SPEED 3 - Noise level: 71 dB(A) | Control setting: Slider
| |||||
|
Information Voltage: 110-127 V | Frequency (Hz): 60 Hz
| |||||
|
Additional Dimensions Minimum distance from gas cooktop: 30" | Minimum distance from electric cooktop: 24" | Vent outlet: 120" | Power supply cable length: 39-3/8"
| |||||
|
Optional Recirculating KIT accessory
| |||||
Accessories
Specifications
Style
Custom Insert
Airflow
200 CFM
Series Name
Universal
Manufacturer Color
Silver
Color
Silver
Installation
Built-In
Blower Included
Y
Width
68.58 cm
Height
17.94 cm
Depth
28.58 cm
Weight
4.99 kg
Class Width
30"
Weight
6.8 kg
Width
78.42 cm
Height
30.64 cm
Depth
36.99 cm
Warranty
1-Year parts and labor
Speeds
Speed levels: 3 | SPEED 1- Extraction rate: 90 CFM | SPEED 1 - Noise level: 55 dB(A) | SPEED 2 - Extraction rate: 150 CFM | SPEED 2 - Noise level: 64 dB(A) | SPEED 3 - Extraction rate: 200 CFM | SPEED 3 - Noise level: 71 dB(A) | Control setting: Slider
Additional Information
No. of lights: 2 | Lighting: LED | Light power: 5 W | Light color temperature scale (°K): 3000 °K | Maximum extraction capacity at free mode: 200 CFM | Motor power: 110 W | No. of filters: 2 | Anti-grease filters: Aluminum | Non-return valve
Information
Voltage: 110-127 V | Frequency (Hz): 60 Hz
Additional Dimensions
Minimum distance from gas cooktop: 30" | Minimum distance from electric cooktop: 24" | Vent outlet: 120" | Power supply cable length: 39-3/8"
Optional
Recirculating KIT accessory
