About this Product

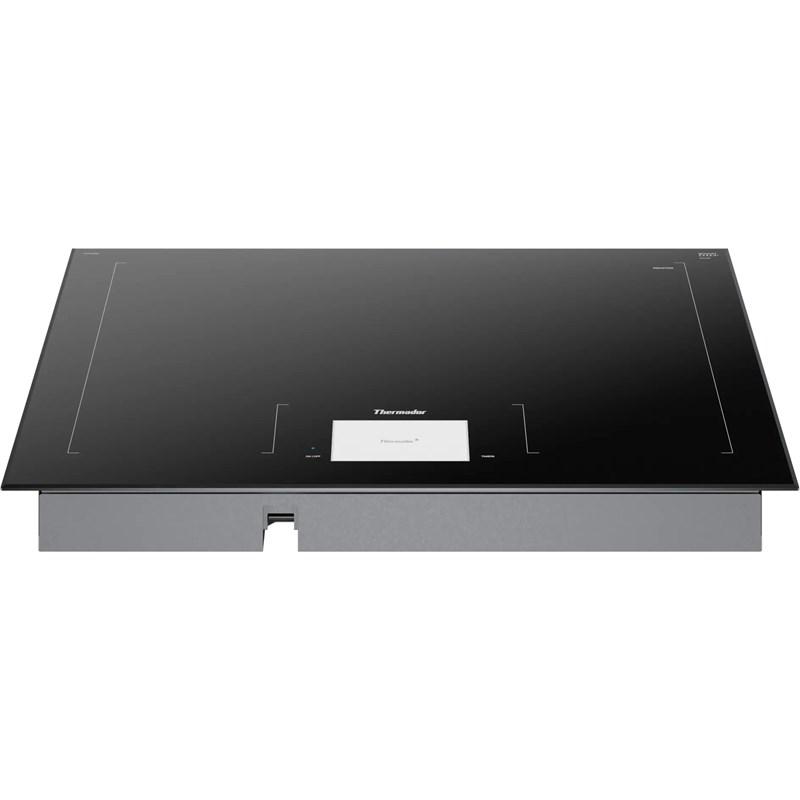

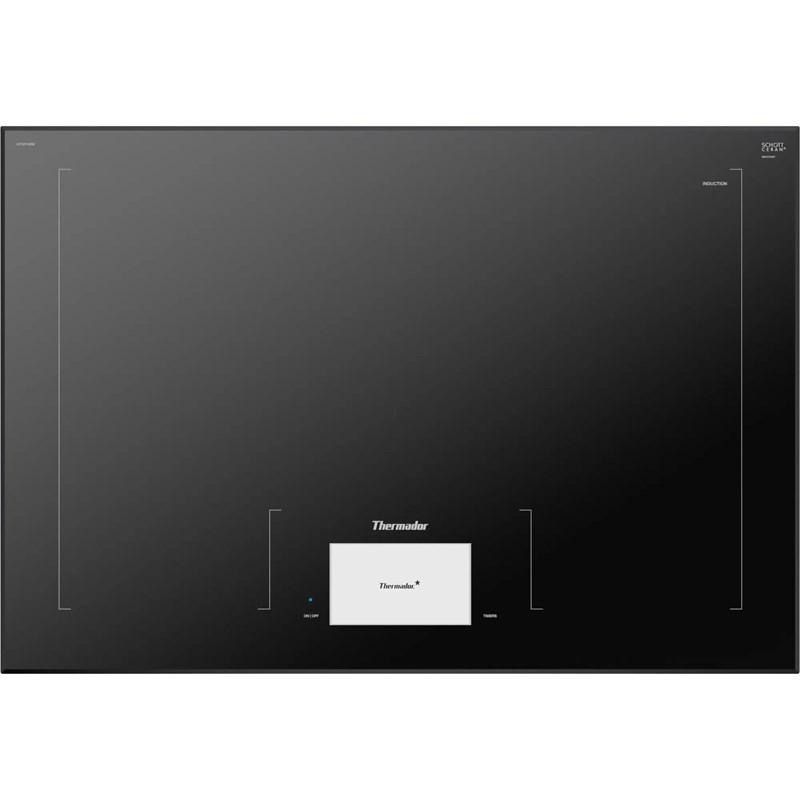

Thermador 30-inch built-in Induction Cooktop with Wi-Fi Connectivity. With Freedom® induction the entire surface of the cooktop can be used as one large cooking area. Up to 5 pots or pans can be heated simultaneously in any position and controlled using a full color touch screen. The Thermador Connected Experience by Home Connect®, provides added flexibility and personalization.
Documents
Product Sheet (en)
Dimensions Guide (en)
Highlights
Full Color Touch Screen Display | 48 inductor elements combined with pot detection automatically recognizes the size, shape and position of your cookware on the cooktop | Cookware detection - the position, size and shape of the cookware used is automatically detected by the cooktop | Transfer function allows you to transfer all of the settings of one cooking position to another cooking position | Residual heat indicator for each side of the cooktop indicates any side that is still hot | Stopwatch Timer function displays the time that has elapsed since activation
Specifications
| Wi-Fi | Y | Digital Display | Y | Control Lock | Y |
| Height | 10.5 cm | Width | 78.8 cm | Class Width | 30" |
| Weight | 29.48 kg | Depth | 54.0 cm | Type | Built-In |
| Series Name | Masterpiece® Freedom® | Fuel Type | Electric Induction | Color | Grey |
| Manufacturer Color | Dark Grey | Included | 1 x wireless temperature sensor for cooktop | Warranty | 2 Years Parts and Labor |
| UPC# | 825225961338 | Elements | Smoothtop | Burners/Elements | 5 |
|
Technologies Home Connect™ (Wi-Fi Enabled) | TeppanyakiPro™ Function | MyZone™ | PanBoost™ | PowerBoost®
| |||||
|
Information 7,200 W | 30 A | 208 / 240 V | 50 / 60 Hz | 39" Flexible 3-Wire
| |||||
|
Additional Dimensions Required Cutout Size (HxWxD): 4 1/8" x 28 3/4" x 19 7/8" | Minimum Distance From Counter Front: 2 1/2" | Minimum Distance From Rear Wall: 2"
| |||||
|
Power Output Power of Full Surface Heating Element 3,500 W | Power of Full Surface Heating Element (In Boost) 5,500 W | Burners With Booster
| |||||
Accessories
Specifications
Wi-Fi
Y
Digital Display
Y
Control Lock
Y
Height
10.5 cm
Width
78.8 cm
Class Width
30"
Weight
29.48 kg
Depth
54.0 cm
Type
Built-In
Series Name
Masterpiece® Freedom®
Fuel Type
Electric Induction
Color
Grey
Manufacturer Color
Dark Grey
Included
1 x wireless temperature sensor for cooktop
Warranty
2 Years Parts and Labor
Elements
Smoothtop
Burners/Elements
5
Technologies
Home Connect™ (Wi-Fi Enabled) | TeppanyakiPro™ Function | MyZone™ | PanBoost™ | PowerBoost®
Additional Information
Full Color Touch Screen Display | 48 inductor elements combined with pot detection automatically recognizes the size, shape and position of your cookware on the cooktop | Cookware detection - the position, size and shape of the cookware used is automatically detected by the cooktop | Transfer function allows you to transfer all of the settings of one cooking position to another cooking position | Residual heat indicator for each side of the cooktop indicates any side that is still hot | Stopwatch Timer function displays the time that has elapsed since activation
Information
7,200 W | 30 A | 208 / 240 V | 50 / 60 Hz | 39" Flexible 3-Wire
Additional Dimensions
Required Cutout Size (HxWxD): 4 1/8" x 28 3/4" x 19 7/8" | Minimum Distance From Counter Front: 2 1/2" | Minimum Distance From Rear Wall: 2"
Power Output
Power of Full Surface Heating Element 3,500 W | Power of Full Surface Heating Element (In Boost) 5,500 W | Burners With Booster
