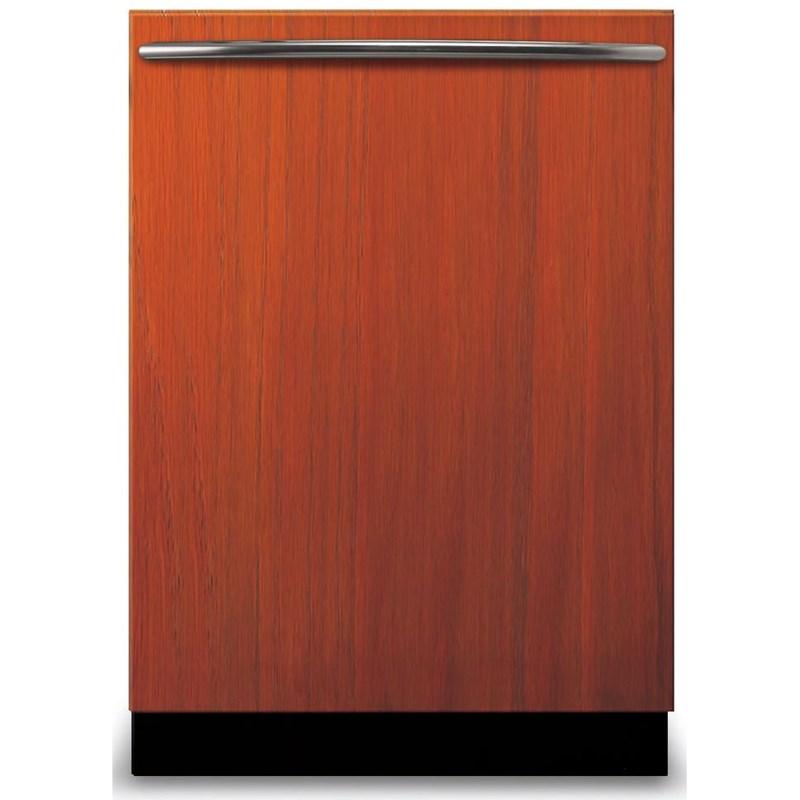

Viking 24" Panel Ready Dishwasher. The OpenAir™ Drying Function automatically opens the door to naturally dry dishes at the end of the cycle. Dishes always emerge perfectly dry. The CornerClean™ Wash Technology allows the bottom wash arm to rotate on a moving axis with water jets that can reach every corner of the dishwasher.

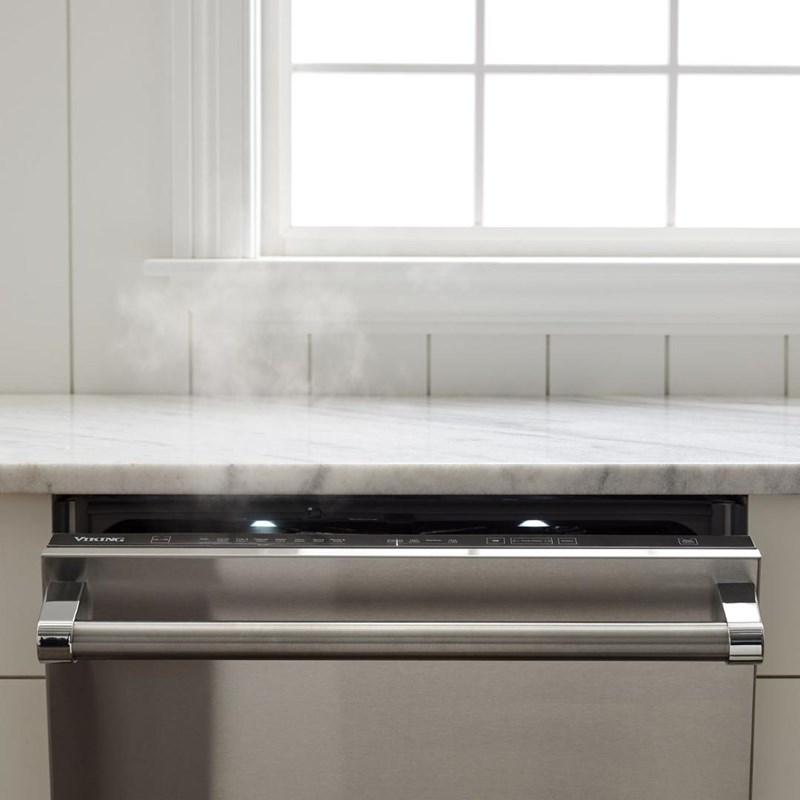

OPENAIR™ DRYING FUNCTIONAutomatically opens the door to naturally dry dishes at the end of the cycle. Dishes always emerge perfectly dry.
QUIET CLEAN™ PERFORMANCE PACKAGE
Three layers of insulation – bitumen, cotton and full side walls create one of the quietest dishwashers on the market.
BLUE CYCLE INDICATOR LIGHT
Never wonder if the dishwasher is running because the light shows on the floor.
TURBO FAN DRY
Circulates air for efficient drying performance.

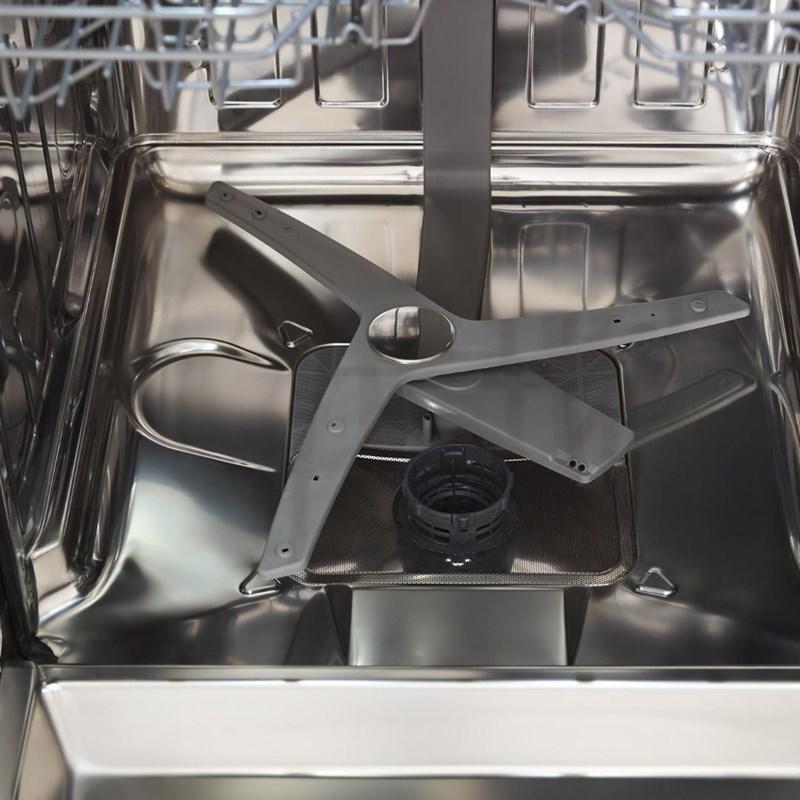

CORNERCLEAN™ WASH TECHNOLOGY
This exclusive technology allows the bottom wash arm to rotate on a moving axis with water jets that can reach every corner of the dishwasher.

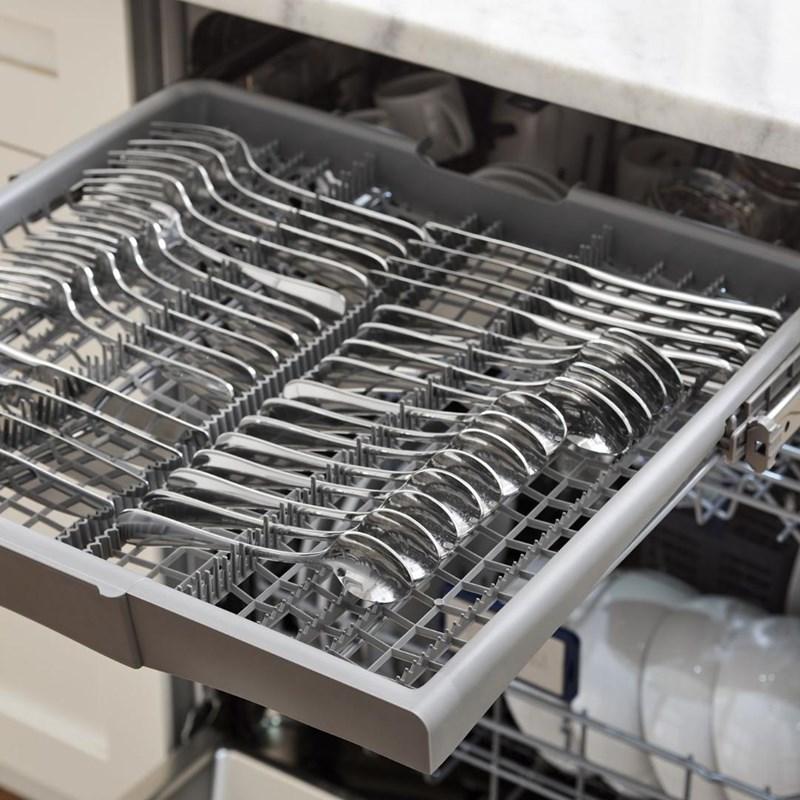

FULL-WIDTH CUTLERY RACK
Sliding cutlery basket can be moved horizontally to any position and can accommodate large cutlery and utensils.
Features
- Delay Start Information:
Allows delayed activation for up to 24 hours - Silverware Basket:
Y - Additional Information:
• Bottom wash arm rotates on a movable axis, allowing water jets to reach every corner of the dishwasher
• Uses less water and energy than standard wash arms
• Variable pressure wash adjusts water volume, pressure, and temperature according to load size and soil levels
• Turbidity sensor monitors the soil level of dishes for superior quality
• Flow-through water heater is concealed to provide a safer alternative to exposed heaters
• Three layers of insulation – bitumen, cotton, and full side walls create one of the quietest dishwashers on the market
• Brushless discharge and circulation motor

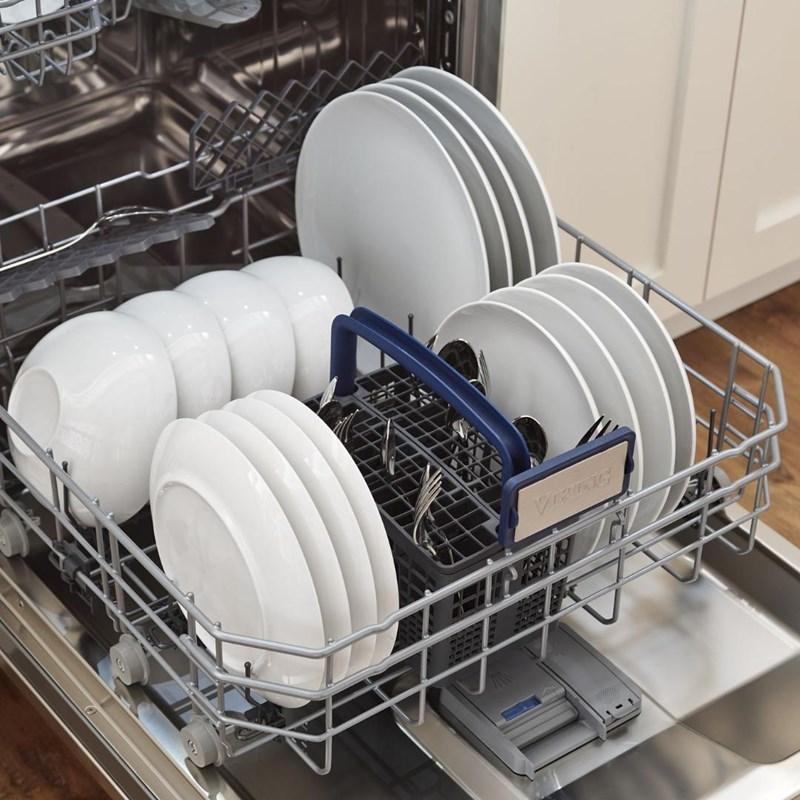

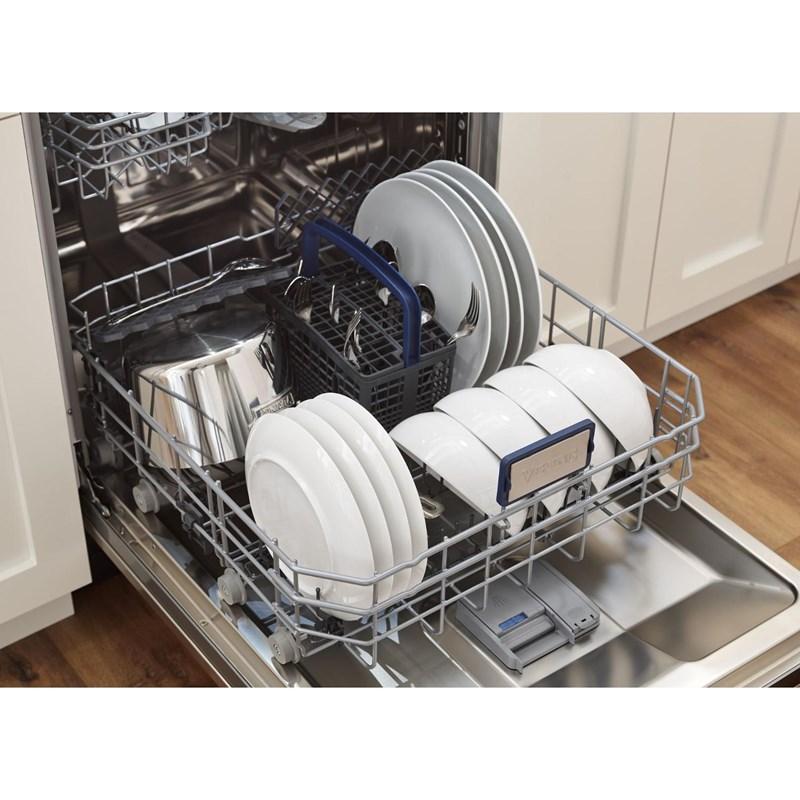

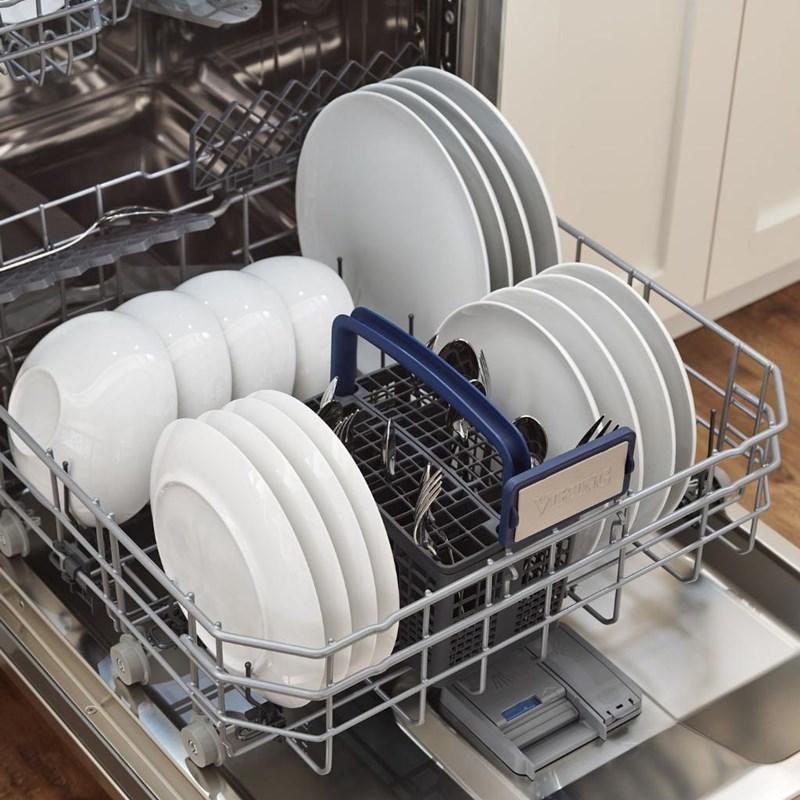

• Industry-leading heavy gauge top and bottom dish baskets hold even the heaviest dishes
• Full-width cutlery rack is designed to allow cleaning of cutlery while washing tall items simultaneously in upper rack
• Holds up to 16 international place settings along with silverware and cutlery

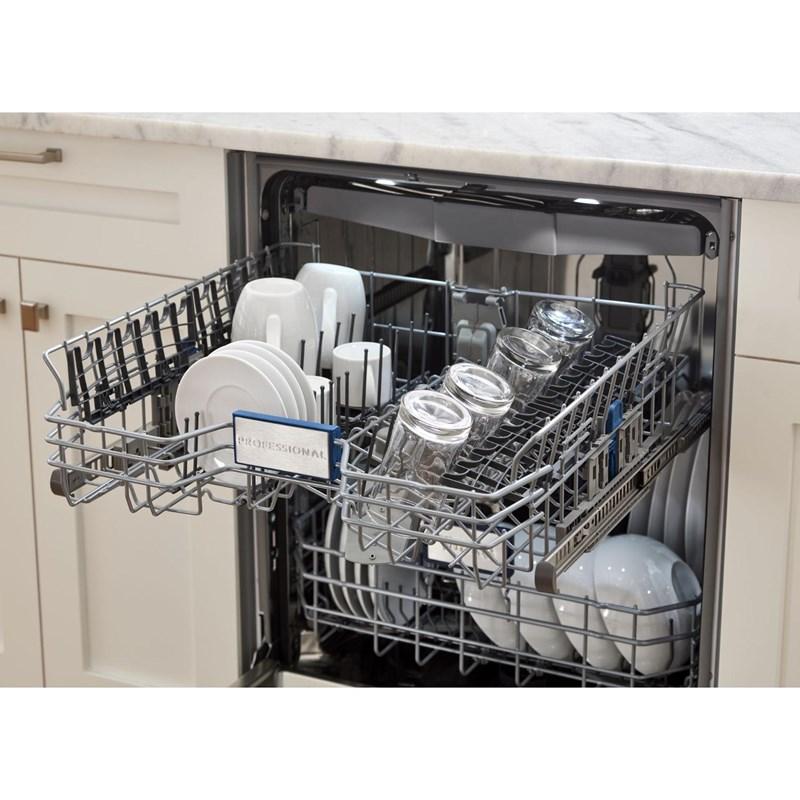

• Top rack is 3-positon adjustable with or without dishes for versatile loading
• Telescopic rail provides smooth motion for upper basket
• Adjustable stemware shelves can be used for holding ladles or other small utensils
• Foldable tines provide versatility for the loading of pots, pans, and uniquely sized items in top and bottom racks
• Bottom rack has eight and top rack has six split foldable tines with variable setting from flat to vertical

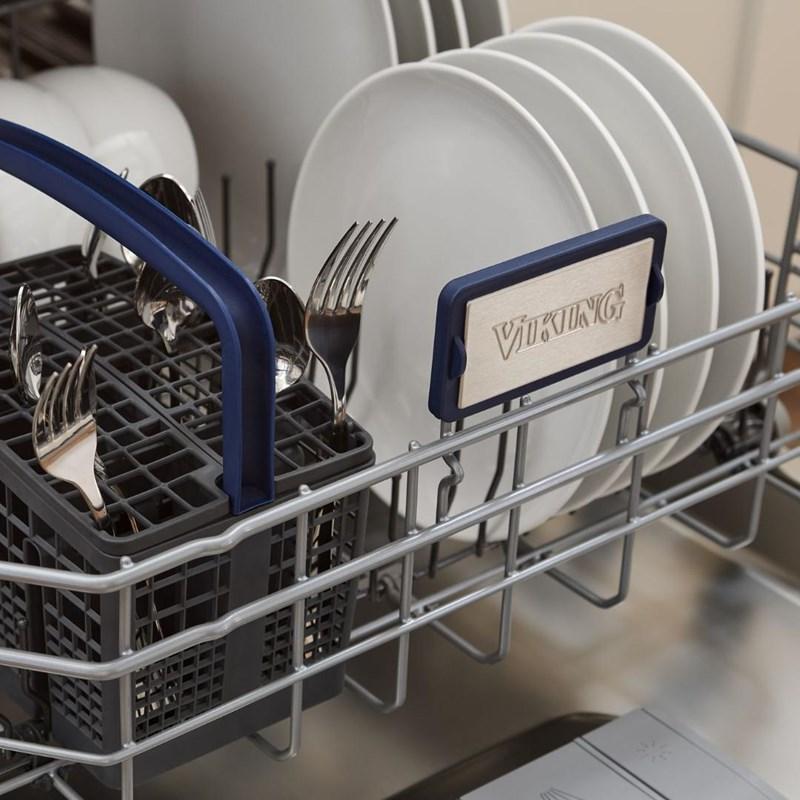

• Sliding cutlery basket can be moved horizontally to any position
• Interior LED lighting brightly illuminates interior for easy loading
• LCD screen with remaining time indicator

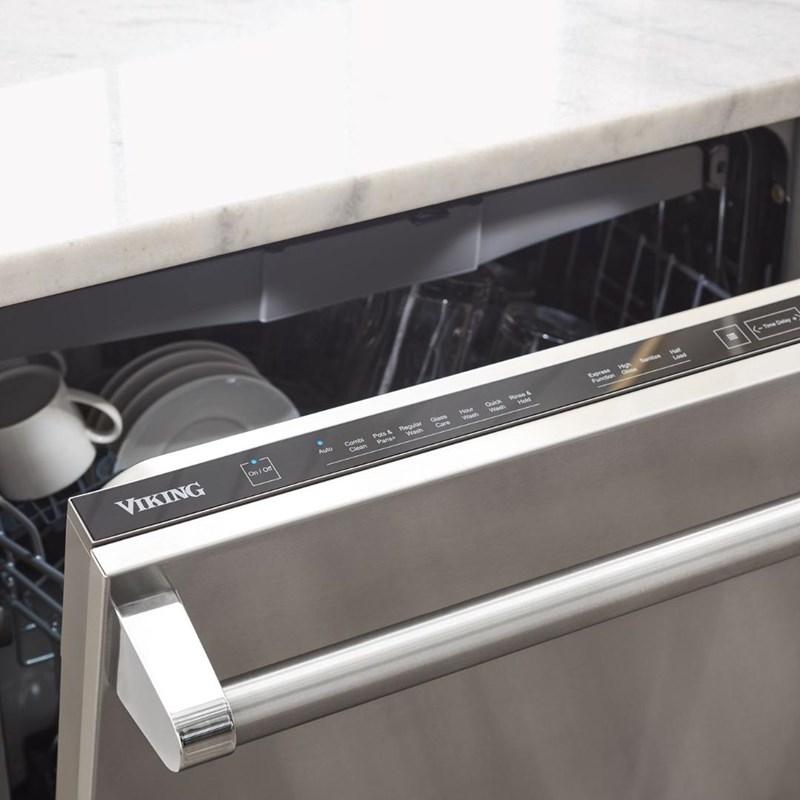

• Touch button direct access control
• Blue cycle indicator light on floor - Technologies:
• OpenAir™ Drying Function
• Quiet Clean™ Performance Package
• CornerClean™ Wash Technology
• OdorEliminator™ Ionizer removes odors inside dishwasher without using planet or people-harming chemicals
• TriClean™ Triple filtration system removes the smallest particles for clean water circulation - Delay Start:
Y - Cutlery Tray:
Y
Accessories
- Optional:
• PDDP524 Viking door panel - for use with FDWU models in exclusive color finishes

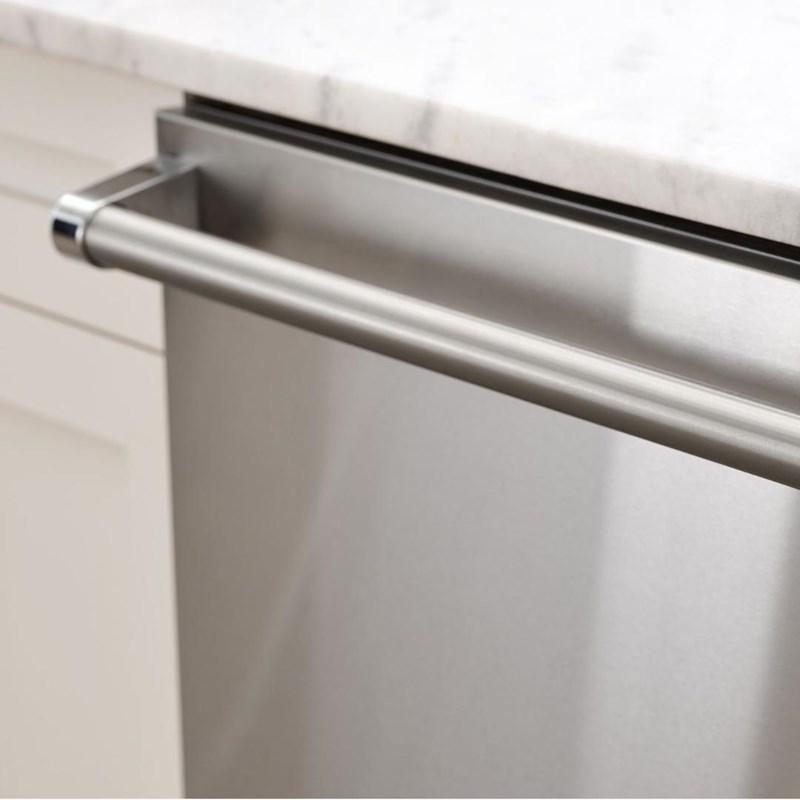

• PHK23 – Professional Handle Kit - for use with FDWU models - Included:
6.4' (1.9m) drain hose provided
Documents
Specifications
Dimensions
Width23"
Finish: Panel Ready
MPN: FDWU724
Product Details:
NSF® Certified
YEnergy Star Certified
YPlace Settings
16Color
Panel ReadyTub Material
Stainless SteelManufacturer Color
Panel ReadySeries Name
7 SeriesType
Built-InSilence Rating
39 dBWarranty
• Two-year full – complete product
• Ninety-day full – cosmetic parts such as glass, painted items, and decorative items
• Lifetime limited – tank and inner door
• Five-year limited – electronic controls, racks, motor/pump assemblies and water distribution systemOptional
• PDDP524 Viking door panel - for use with FDWU models in exclusive color finishes
• PHK23 – Professional Handle Kit - for use with FDWU modelsIncluded
6.4' (1.9m) drain hose providedDelay Start Information
Allows delayed activation for up to 24 hoursSilverware Basket
YAdditional Information
• Bottom wash arm rotates on a movable axis, allowing water jets to reach every corner of the dishwasher
• Uses less water and energy than standard wash arms
• Variable pressure wash adjusts water volume, pressure, and temperature according to load size and soil levels
• Turbidity sensor monitors the soil level of dishes for superior quality
• Flow-through water heater is concealed to provide a safer alternative to exposed heaters
• Three layers of insulation – bitumen, cotton, and full side walls create one of the quietest dishwashers on the market
• Brushless discharge and circulation motor
• Industry-leading heavy gauge top and bottom dish baskets hold even the heaviest dishes
• Full-width cutlery rack is designed to allow cleaning of cutlery while washing tall items simultaneously in upper rack
• Holds up to 16 international place settings along with silverware and cutlery
• Top rack is 3-positon adjustable with or without dishes for versatile loading
• Telescopic rail provides smooth motion for upper basket
• Adjustable stemware shelves can be used for holding ladles or other small utensils
• Foldable tines provide versatility for the loading of pots, pans, and uniquely sized items in top and bottom racks
• Bottom rack has eight and top rack has six split foldable tines with variable setting from flat to vertical
• Sliding cutlery basket can be moved horizontally to any position
• Interior LED lighting brightly illuminates interior for easy loading
• LCD screen with remaining time indicator
• Touch button direct access control
• Blue cycle indicator light on floorTechnologies
• OpenAir™ Drying Function
• Quiet Clean™ Performance Package
• CornerClean™ Wash Technology
• OdorEliminator™ Ionizer removes odors inside dishwasher without using planet or people-harming chemicals
• TriClean™ Triple filtration system removes the smallest particles for clean water circulationDelay Start
YCutlery Tray
YHeight (Min.)
86 cmWidth
59.8 cmClass Width
24"Additional Dimensions
• Cutout Width: 24" (61.0 cm)
• Cutout Height: 34" (86.4 cm) minimum to 36 1/4" (92.0 cm) maximum
• Cutout Depth: 24" (61.0 cmDepth (Without Handle)
56.4 cmWeight
46.27 kgWash Cycles
• Pots/Pans Plus – Extra-heavy soil level
• GlassCare
• Auto – determines the amount of water and temperature, needed
• CombiClean – washes delicate items in upper basket and heavier soiled items in lower basket
• Regular Wash – Normal soil level
• HourWash
• Quick Wash – 35 Minutes!
• Rinse/Hold – Pre-rinse dishes cleanOptions
• Express Function – Sensor detects rinse aid and automatically sets drying cycle duration
• Sanitize Function – Raises water temperature in final rinse to meet NSF requirements
• High Gloss – Provides superior drying performance
• Half-Load - Use when dishwasher not completely full
• Delay Start – Allows delayed activation for up to 24 hoursNumber of Cycles
8Information
• Electrical Requirements: 12.0 amps, 120V/60Hz; 4" (120cm) electrical cord with supplied with unit
• Water-Heating Element Rating: 1100 watts
UPC: 0
Washer Cycles And Options: 8
