VGR5366BNABB

Sku: 02V36BNA
The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product.
$17,719.00
OR
Flexiti Financing
$738.29 + taxes/fees With 24 month financing







Payment Options:

  • visa
  • american express
  • master
Maximum quantity available reached.

About this Product

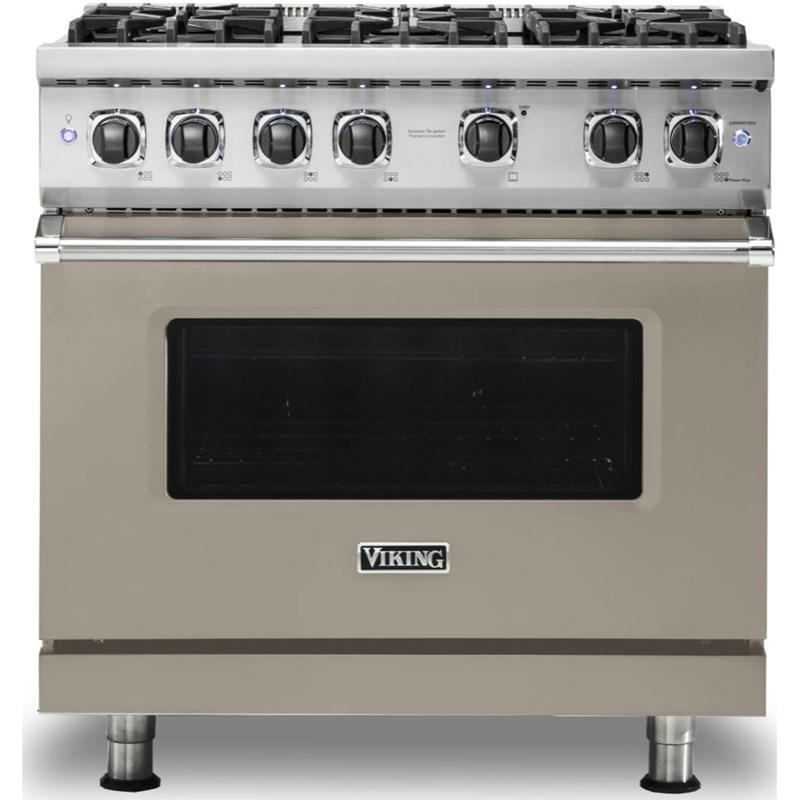

This 36-inch wide Viking, 5 Series gas range with 6 burners. This range features VSH™ Pro sealed burner System, VariSimmer™ setting on all burners, SureSpark™ ignition system and Gourmet-Glo™ gas infrared broiler. Model with Brushed Brass Trim.

Features

  • GOURMET-GLO™ GAS INFRARED BROILER — Lock in all the savory juices of even the thickest porterhouse with the intense heat of the restaurant-quality Gourmet-Glo™ Infrared Broiler. Intense heat from broiler sears meats and fish locking in juices.
  • PORCELAINIZED COOKING SURFACE — Keep spills in one place with the raised edges of our exclusive one-piece tooled porcelainized cooking surface. Raised edges around perimeter seal top to completely contain spills. Porcelanized for easy cleaning, durability and long lasting finish.
  • PROFLOW™ CONVECTION BAFFLE — Bake breads and cakes to lofty perfection with the incredibly even heat circulation of the ProFlo™ Convection Baffle system. Each ProFlow™ Baffle has been engineered specifically for each oven cavity to maximize even cooking.
  • SURESPARK™ IGNITION SYSTEM — The exclusive SureSpark™ Ignition System ensures automatic ignition/re-ignition should the burners extinguish any time while cooking.
  • VARISIMMER™ SETTING — The VariSimmer™ Setting on ALL burners provides gentle, even simmering at precisely low cooking temperatures.
  • VSH™ PRO SEALED BURNER SYSTEM — Cook like a pro with up to 18,500 BTUs and infinite settings of easy-to-clean high performance sealed burners. A combination of a unique patented burner and surface design provides cleanability plus superior performance at any temperature setting.

Documents

Product Sheet (en)

Product Sheet (en)

Dimensions Guide (en)

Dimensions Guide (en)

Owner's manual (en)

Owner's manual (en)

Installation guide (en)

Installation guide (en)

Warranty Details (en)

Warranty Details (en)

Additional documents(en)

Additional documents(en)

Highlights

Porcelainized Cooking Surface  |  6 Oven Rack Positions  |  3 Racks  |  Two Halogen Oven Lights  |  Broil Burner: 18,000 BTU  |  Bake Burner: 30,000 BTU  |  Automatic Re-Ignition; Surface Burners Light at any Position on the Knob and Re-light if Extinguished, Even on Lowest Setting  |  Heavy-Duty BlackChrome™ Knobs and Square Bezels Shipped Standard  |  Heavy-Duty, Porcelainized, Cast-Iron Removable Surface Grates

Specifications

Oven Light Y Convection Y Depth (Without Handles) 65.4 cm
Height 91.1 cm Width 91.1 cm Depth (Including Handles) 72.9 cm
Class Width 36" Burners Sealed Burners/Elements 6
Series Name 5 Series Fuel Type Natural Gas Installation Type Freestanding
Manufacturer Color Nantucket Color Grey Number of Ovens Single
Capacity (cu. ft.) 5.1 cu.ft. Weight 226.8 kg
Technologies
VSH™ Pro Sealed Burner System  |  VariSimmer™ Setting  |  SureSpark™ Ignition System  |  Gourmet-Glo™ Gas Infrared Broiler  |  Gentle Close™ Door  |  ProFlow™ Convection Baffle
Additional Dimensions
Overall Height from Bottom: Base Height to Top of Side Trim – Minimum 35-7/8" (91.1 cm) to Maximum 37" (94 cm); Legs Adjust 1-1/8" (2.9 cm)  |  Overall Height from Bottom: Additions to Base Height To top of Island Trim – Add 1" (2.5 cm); to Top of Backguard – Add 8" (15.2 cm); to Top of High Shelf – Add 23 1/2" (59.7 cm)  |  Overall Depth from Rear: To end of Side Panel – 24 5/16" (61.8 cm); to Front of Door – 25-3/4" (65.4 cm); to End of Door Handle – 28-11/16" (72.9 cm)
Burners/Elements Output
(1x) Burner TruPowerPlus™: 18,500 BTU  |  (5x) Burners: 15,000 BTU
Optional
8"H. Backguard – BG8536BSS  |  High Shelf – HS24536SS  |  Countertop Side Trim - P24CST  |  Countertop Rear Trim - P36CRT  |  Curb Base and Custom Curb Base Front - P36CBF4  |  LP/Propane Conversion Kit - LPKPDR
Included
Island Trim (shipped standard with 36" range)  |  Brushed Brass Trim
Appliance Care
One-Piece Tooled and Porcelainized Cooking Surface for Easy Cleanup  |  Burner Caps are Easily Removable for Quick Cleaning
Information
120 V  |  60 Hz  |  1.5 A
Programs
Natural Airflow Bake  |  Convection Bake  |  Infrared Broil  |  Convection Infrared Broil  |  Convection Dehydrate  |  Convection Defrost
Warranty
Two-Year Full – Complete Product  |  Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items  |  5-Year Limited – Gas Burners

Accessories

• 8"H. Backguard – BG8536BSS
• High Shelf – HS24536SS
• Countertop Side Trim - P24CST
• Countertop Rear Trim - P36CRT
• Curb Base and Custom Curb Base Front - P36CBF4
• LP/Propane Conversion Kit - LPKPDR
• Island Trim (shipped standard with 36" range)
• Brushed Brass Trim

Specifications

Dimensions Width35.87"Height35.87"
Finish: Grey
MPN: VGR536-6BNABB
Product Details:

Oven Light

Y

Convection

Y

Depth (Without Handles)

65.4 cm

Height

91.1 cm

Width

91.1 cm

Depth (Including Handles)

72.9 cm

Class Width

36"

Burners

Sealed

Burners/Elements

6

Series Name

5 Series

Fuel Type

Natural Gas

Installation Type

Freestanding

Manufacturer Color

Nantucket

Color

Grey

Number of Ovens

Single

Capacity (cu. ft.)

5.1 cu.ft.

Weight

226.8 kg

Technologies

VSH™ Pro Sealed Burner System  |  VariSimmer™ Setting  |  SureSpark™ Ignition System  |  Gourmet-Glo™ Gas Infrared Broiler  |  Gentle Close™ Door  |  ProFlow™ Convection Baffle

Additional Information

Porcelainized Cooking Surface  |  6 Oven Rack Positions  |  3 Racks  |  Two Halogen Oven Lights  |  Broil Burner: 18,000 BTU  |  Bake Burner: 30,000 BTU  |  Automatic Re-Ignition; Surface Burners Light at any Position on the Knob and Re-light if Extinguished, Even on Lowest Setting  |  Heavy-Duty BlackChrome™ Knobs and Square Bezels Shipped Standard  |  Heavy-Duty, Porcelainized, Cast-Iron Removable Surface Grates

Additional Dimensions

Overall Height from Bottom: Base Height to Top of Side Trim – Minimum 35-7/8" (91.1 cm) to Maximum 37" (94 cm); Legs Adjust 1-1/8" (2.9 cm)  |  Overall Height from Bottom: Additions to Base Height To top of Island Trim – Add 1" (2.5 cm); to Top of Backguard – Add 8" (15.2 cm); to Top of High Shelf – Add 23 1/2" (59.7 cm)  |  Overall Depth from Rear: To end of Side Panel – 24 5/16" (61.8 cm); to Front of Door – 25-3/4" (65.4 cm); to End of Door Handle – 28-11/16" (72.9 cm)

Burners/Elements Output

(1x) Burner TruPowerPlus™: 18,500 BTU  |  (5x) Burners: 15,000 BTU

Optional

8"H. Backguard – BG8536BSS  |  High Shelf – HS24536SS  |  Countertop Side Trim - P24CST  |  Countertop Rear Trim - P36CRT  |  Curb Base and Custom Curb Base Front - P36CBF4  |  LP/Propane Conversion Kit - LPKPDR

Included

Island Trim (shipped standard with 36" range)  |  Brushed Brass Trim

Appliance Care

One-Piece Tooled and Porcelainized Cooking Surface for Easy Cleanup  |  Burner Caps are Easily Removable for Quick Cleaning

Information

120 V  |  60 Hz  |  1.5 A

Programs

Natural Airflow Bake  |  Convection Bake  |  Infrared Broil  |  Convection Infrared Broil  |  Convection Dehydrate  |  Convection Defrost

Warranty

Two-Year Full – Complete Product  |  Ninety-Day Full – Cosmetic Parts Such as Glass, Painted Items, and Decorative Items  |  5-Year Limited – Gas Burners
