About this Product

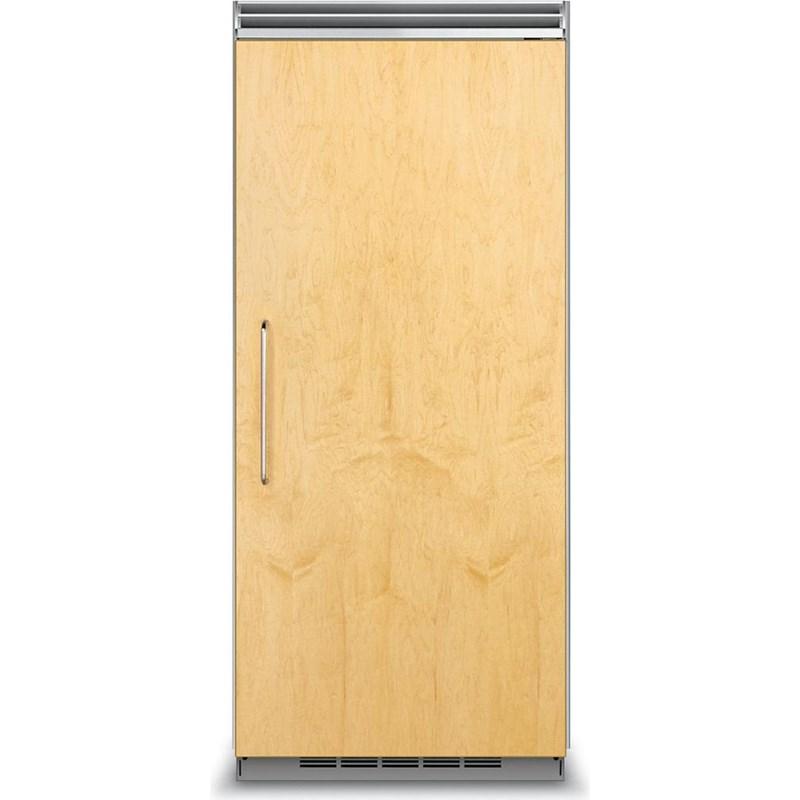

Viking 22 cu. ft. Built-in Panel-Ready All Refrigerator featuring an EXCLUSIVE Plasmacluster™ Ion Air Purifier and Variable Speed DC Overdrive™ Compressor, this refrigerator ensures superior freshness. * Panel Kit Sold Separately.
Features
- PROCHILL™ TEMPERATURE MANAGEMENT — ProChill™ Temperature Management System with variable speed DC Overdrive™ compressor. Single compressor system includes the quietest compressor available. Electronic controls provide precise temperature management with digital readout.
- MULTI-CHANNEL AIRFLOW. — Enjoy less humidity and less odor with our Multi-Channel Airflow.

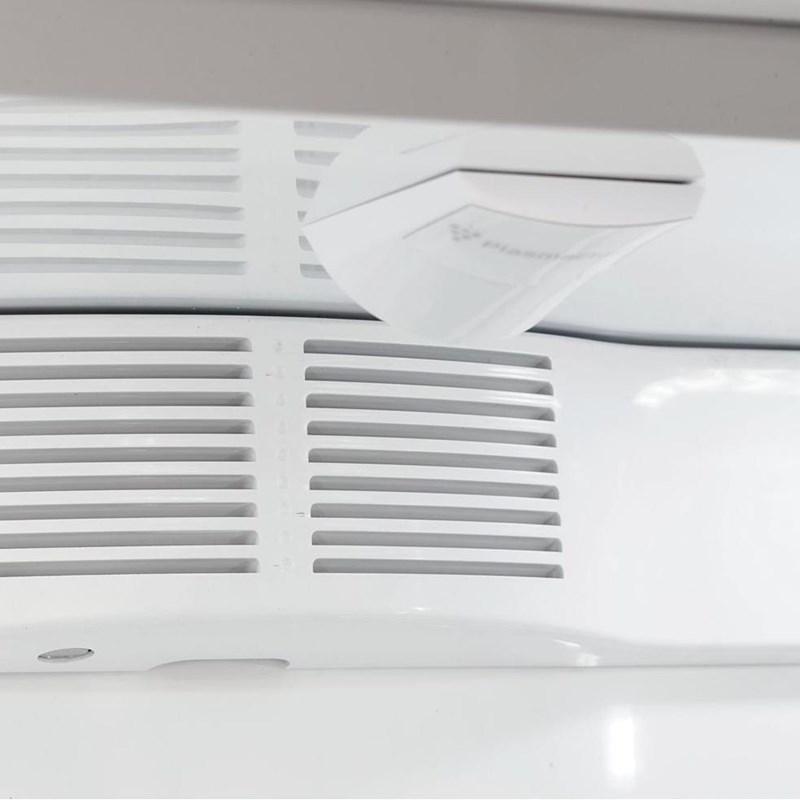

- FILTER-FREE FRESHNESS — The Plasmacluster™ Ion Air Purifier uses ions to eliminate airbourne bacteria and mold spores, remove odors and enhance food preservation. Plasmacluster™ is a trademark of Sharp Corporation.
- ADJUSTABLE HUMIDITY ZONE™ DRAWERS — Produce the freshest leafy vegetables and fruits in moisture-adjustable drawer(s) with soft-close feature.

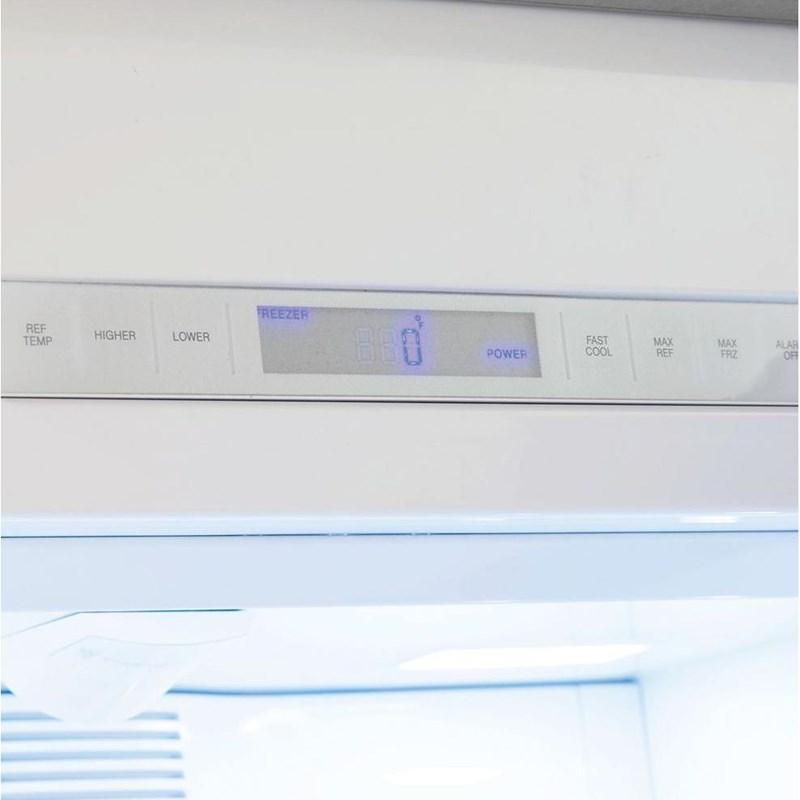

- ELECTRONIC TEMPERATURE CONTROL. — Electronic controls with digital temperature readout.
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Energy Guide (en)
Specifications
| Manufacturer Color | Panel Ready | Door Hinge | Right | Color | Panel Ready |
| Series Name | 5 Series – FDRB | Installation Type | Built-In | Counter-Depth | N |
| Refrigerator Type | All Refrigerator | Interior Light | Y | Frost Free | Y |
| Digital Display | Y | Weight | 232.24 kg | Water System | None |
| Ice System | None | Overall Depth | 61.0 cm | Class Height | 70" and More |
| Class Width | 35" to 37.9" | Width | 91.5 cm | Height (With Hinge) | 210.2 cm |
| Refrigerator | 22.0 cu. ft. | Total | 22.0 cu. ft. | ||
|
Technologies ProChill™ Temperature Management | Variable Speed DC Overdrive™ Compressor | Odor Eliminator™ Evaporator | Maintenance-free Super Clog Resistant™ Condenser | Plasmacluster Ion Air Purifier | Humidity Zone™ Drawers with Soft-Close Slides
| |||||
|
Additional Dimensions Overall Height (from bottom): 82-3/4" (210.2 cm) min. to 84-1/16" (213.5 cm) max. | Overall Depth from rear: - To front edge of side trim: 23-3/16" (58.9 cm), - To front of top grille: 24" (61.0 cm) | Cutout Width: 36" (91.5 cm) | Cutout Height: 82-7/8" (210.5 cm) min. to 84-1/16" (213.5 cm) max. | Cutout Depth: 24" (61.0 cm) min.* | *Custom panel models fit flush in 25" (63.5 cm) deep cabinet openings. They can be installed in standard | 24" (61.0 cm) deep openings. The door faces and top grille will protrude 3/4" (1.9 cm) into the room. | Maximum Panel Weight: 60 lb. (27.2 kg)
| |||||
|
Warranty 2-year full – covers complete unit | 6-year full – sealed refrigeration system | 90-day full – cosmetic parts such as glass, painted items, and decorative items | 12-year limited – sealed refrigeration system
| |||||
| Optional | |||||
|
Information 115 V | 60 Hz | 15 A | 3-wire cord with grounded 3-prong plug attached to product | Maximum Amp Usage: 6.5 amps
| |||||
Accessories
• FDRB5364L – 36"W All Refrigerator – Custom Panel – left hinge
• PHK28SS – Professional SS handle kit
• DDGK663SS – 66"W Grill Kit
• DDGK723SS – 72"W Grill Kit
• FCTKSS – Center trim kit
Door Hinge: Right
Specifications
Manufacturer Color
Panel Ready
Door Hinge
Right
Color
Panel Ready
Series Name
5 Series – FDRB
Installation Type
Built-In
Counter-Depth
N
Refrigerator Type
All Refrigerator
Interior Light
Y
Frost Free
Y
Digital Display
Y
Weight
232.24 kg
Water System
None
Ice System
None
Overall Depth
61.0 cm
Class Height
70" and More
Class Width
35" to 37.9"
Width
91.5 cm
Height (With Hinge)
210.2 cm
Refrigerator
22.0 cu. ft.
Total
22.0 cu. ft.
Technologies
ProChill™ Temperature Management | Variable Speed DC Overdrive™ Compressor | Odor Eliminator™ Evaporator | Maintenance-free Super Clog Resistant™ Condenser | Plasmacluster Ion Air Purifier | Humidity Zone™ Drawers with Soft-Close Slides
Additional Information
Variable Speed DC Overdrive™ Compressor quickly chills food and saves energy | Single compressor system is one of the quietest, most technologically advanced compressors available | Electronic controls maintain even temperatures within one degree °F to keep food fresher longer | Odor Eliminator™ Evaporator removes odors and excess humidity | Maintenance-free Super Clog Resistant™ Condenser prevents dust and other airborne particles from clogging the condenser | Plasmacluster Ion Air Purifier uses advanced ion technology to eliminate airborne bacteria, mold, and odors to enhance food preservation | Functions at 100% capacity and never degrades or needs replacing | All items are in clear view with bright energy-efficient LED lighting from top and sidewalls | Ramp on theater lighting provides better visibility | Two adjustable Humidity Zone™ Drawers with NEW soft-close slides | Humidity can be set high for leafy greens or low for fruits and vegetables with skins | Four deli drawers with soft-close slides store meats and cheeses | Additional space for large pizza box storage | Two in-the-door dairy compartments with covers | Patented adjustable aluminum door bins securely store heavy items | 36"W. models have two half-width door bins and three full-width door bins | Seamless glass shelves make cleanup easy and maximize usable space | Adjustable door stops – 90, 110 and 120 degrees
Additional Dimensions
Overall Height (from bottom): 82-3/4" (210.2 cm) min. to 84-1/16" (213.5 cm) max. | Overall Depth from rear: - To front edge of side trim: 23-3/16" (58.9 cm), - To front of top grille: 24" (61.0 cm) | Cutout Width: 36" (91.5 cm) | Cutout Height: 82-7/8" (210.5 cm) min. to 84-1/16" (213.5 cm) max. | Cutout Depth: 24" (61.0 cm) min.* | *Custom panel models fit flush in 25" (63.5 cm) deep cabinet openings. They can be installed in standard | 24" (61.0 cm) deep openings. The door faces and top grille will protrude 3/4" (1.9 cm) into the room. | Maximum Panel Weight: 60 lb. (27.2 kg)
Warranty
2-year full – covers complete unit | 6-year full – sealed refrigeration system | 90-day full – cosmetic parts such as glass, painted items, and decorative items | 12-year limited – sealed refrigeration system
Optional
FDRB5364R – 36"W All Refrigerator – Custom Panel – right hinge | FDRB5364L – 36"W All Refrigerator – Custom Panel – left hinge | PHK28SS – Professional SS handle kit | DDGK663SS – 66"W Grill Kit | DDGK723SS – 72"W Grill Kit | FCTKSS – Center trim kit
Information
115 V | 60 Hz | 15 A | 3-wire cord with grounded 3-prong plug attached to product | Maximum Amp Usage: 6.5 amps
