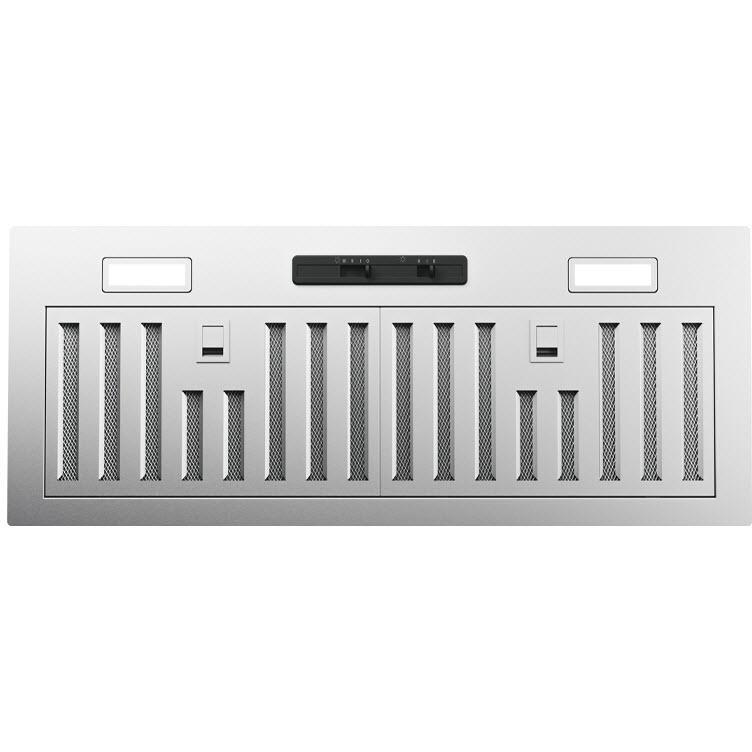

Zephyr-Stainless Steel-Hood Inserts AK8100BS

Sku: 13V8100S
The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product.
$1,099.00
OR
Flexiti Financing
$45.79 + taxes/fees With 24 month financing







Payment Options:

  • visa
  • american express
  • master
Maximum quantity available reached.

About this Product

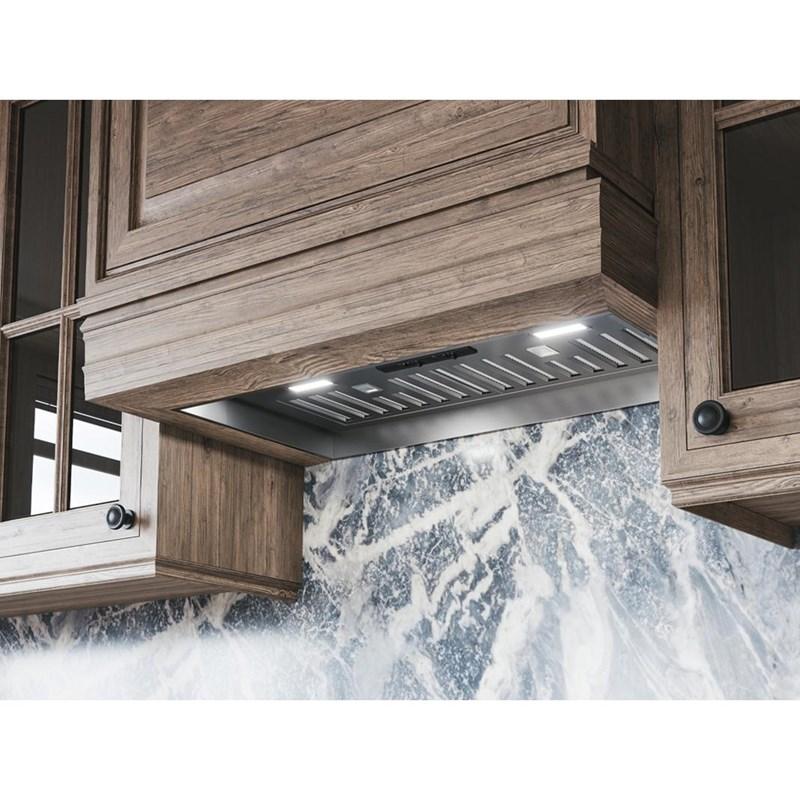

The Tornado I provides muscle and flexibility in a small, barely-visible packaged beneath your custom hood enclosure. This 600-CFM insert is upgraded with two hybrid baffle filters, dual-level LumiLight LED lighting, and an angled housing for a better fit within any custom hood. An optional adjustable-depth, stainless steel liner is available to protect your cabinetry and provide a more finished appearance.

Documents

Product Sheet (en)

Product Sheet (en)

Dimensions Guide (en)

Dimensions Guide (en)

Owner's manual (en)

Owner's manual (en)

Installation guide (en)

Installation guide (en)

Highlights

Blower CFM (Min. - Max.) 200 - 600  |  Sones (Min. - Max.) 1.4 - 6  |  Mechanical Slide Controls  |  LumiLight LED, 6W x2  |  Dual-Level Lighting  |  Hybrid Baffle x2  |  Recirculating Option

Specifications

Style Custom Insert Manufacturer Color Stainless Steel Series Name Tornado I
Installation Built-In Blower Included Y Airflow 600 CFM
Color Stainless Steel Width 70.0 cm Depth 28.41 cm
Height 31.43 cm Class Width 28" Speeds 3 Speeds
UPC# 646328009884 Warranty 10 Years Parts, 1 Year Labor
Ducting Information
Vertical Internal Blower 6" Round  |  Horizontal Internal Blower 6" Round
Information
120 V  |  60 Hz  |  3 A
Optional
30" Liner (17-1/2" - 20-1/2" Depth) AK0800AS  |  36" Liner (17-1/2" - 20-1/2" Depth) AK0836AS  |  Recirculating Kit ZRC-0080  |  Make-Up Air Kit MUA006A

Accessories

• 30" Liner (17-1/2" - 20-1/2" Depth) AK0800AS
• 36" Liner (17-1/2" - 20-1/2" Depth) AK0836AS
• Recirculating Kit ZRC-0080
• Make-Up Air Kit MUA006A

Specifications

Dimensions Width27.56"Height12.37"Depth11.19"
Finish: Stainless Steel
MPN: AK8100BS
Product Details:

Style

Custom Insert

Manufacturer Color

Stainless Steel

Series Name

Tornado I

Installation

Built-In

Blower Included

Y

Airflow

600 CFM

Color

Stainless Steel

Width

70.0 cm

Depth

28.41 cm

Height

31.43 cm

Class Width

28"

Speeds

3 Speeds

Warranty

10 Years Parts, 1 Year Labor

Additional Information

Blower CFM (Min. - Max.) 200 - 600  |  Sones (Min. - Max.) 1.4 - 6  |  Mechanical Slide Controls  |  LumiLight LED, 6W x2  |  Dual-Level Lighting  |  Hybrid Baffle x2  |  Recirculating Option

Ducting Information

Vertical Internal Blower 6" Round  |  Horizontal Internal Blower 6" Round

Information

120 V  |  60 Hz  |  3 A

Optional

30" Liner (17-1/2" - 20-1/2" Depth) AK0800AS  |  36" Liner (17-1/2" - 20-1/2" Depth) AK0836AS  |  Recirculating Kit ZRC-0080  |  Make-Up Air Kit MUA006A


UPC: 646328009884
