About this Product

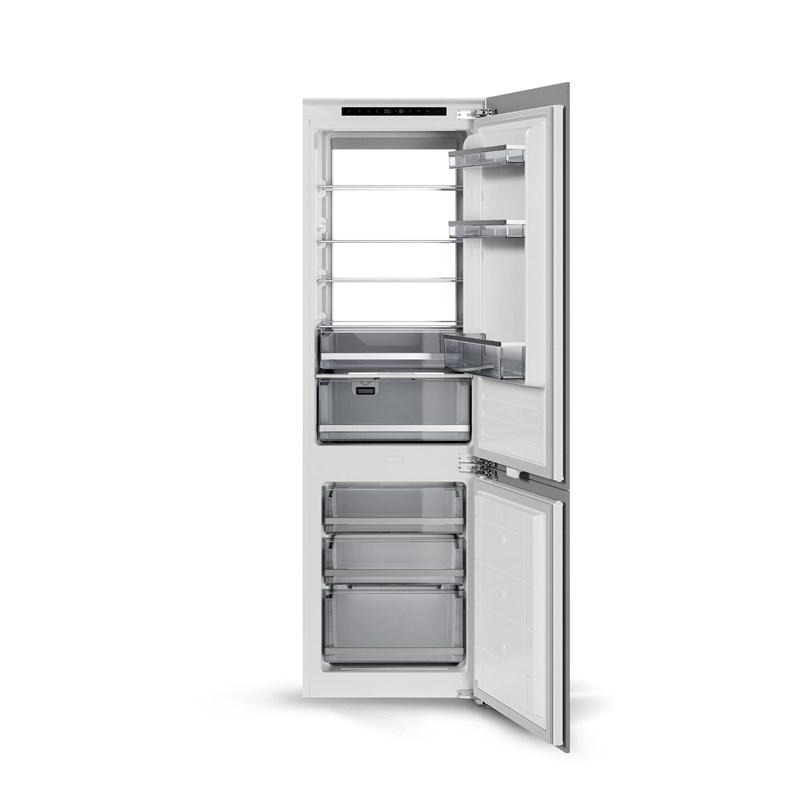

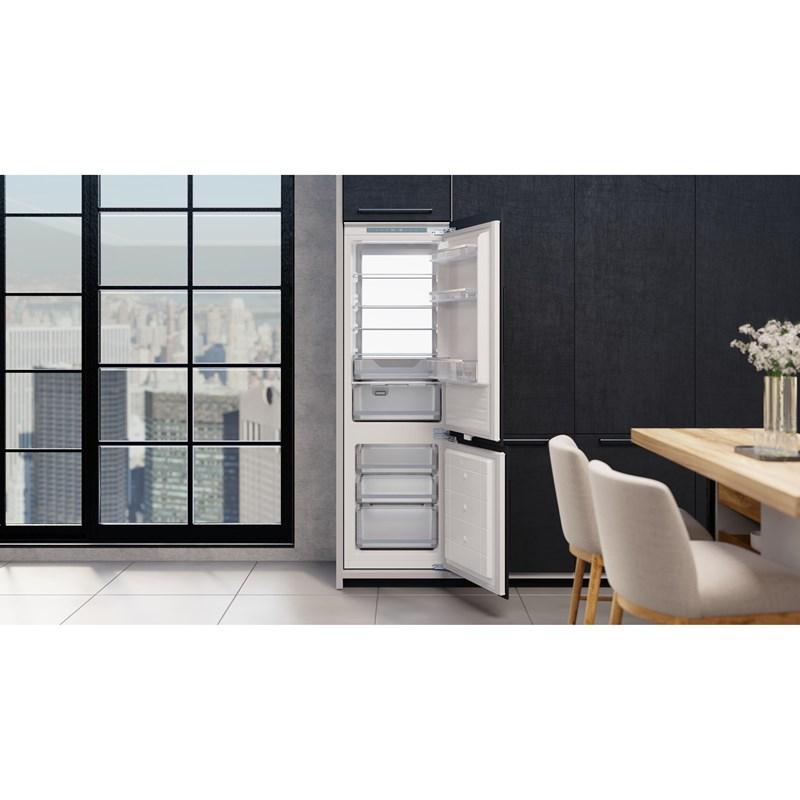

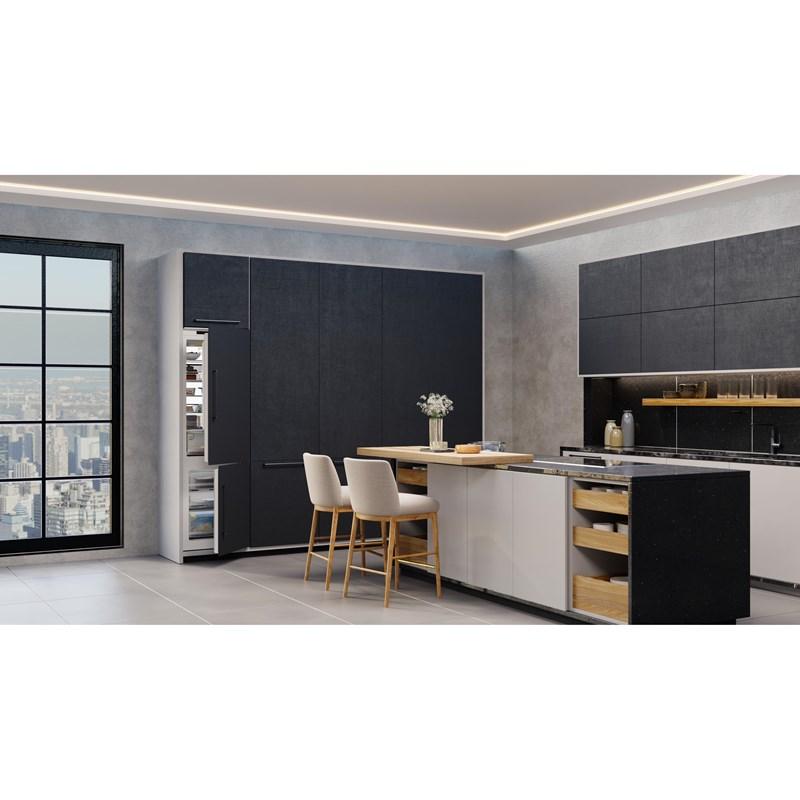

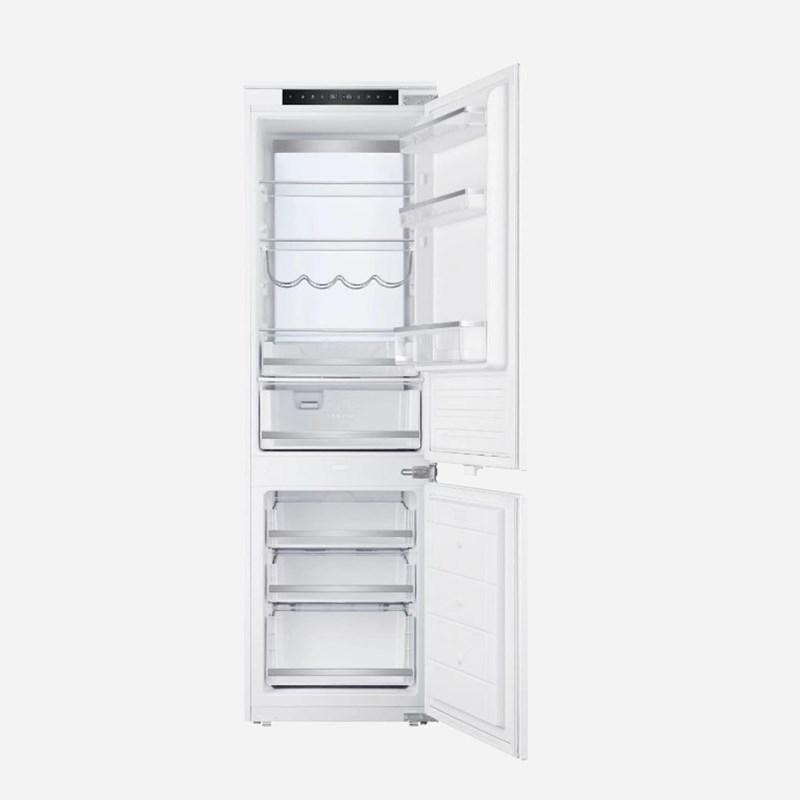

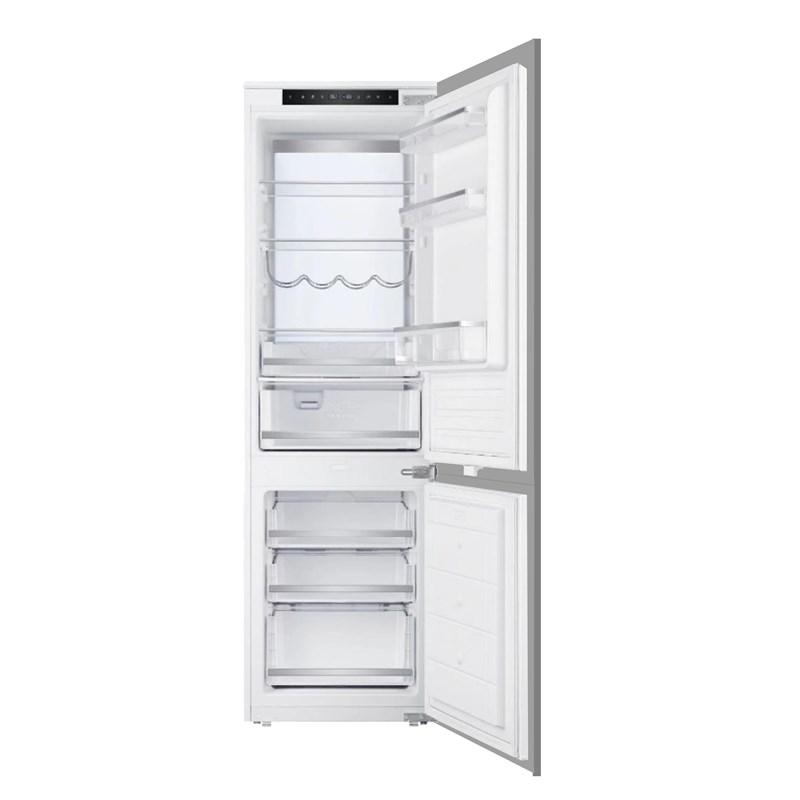

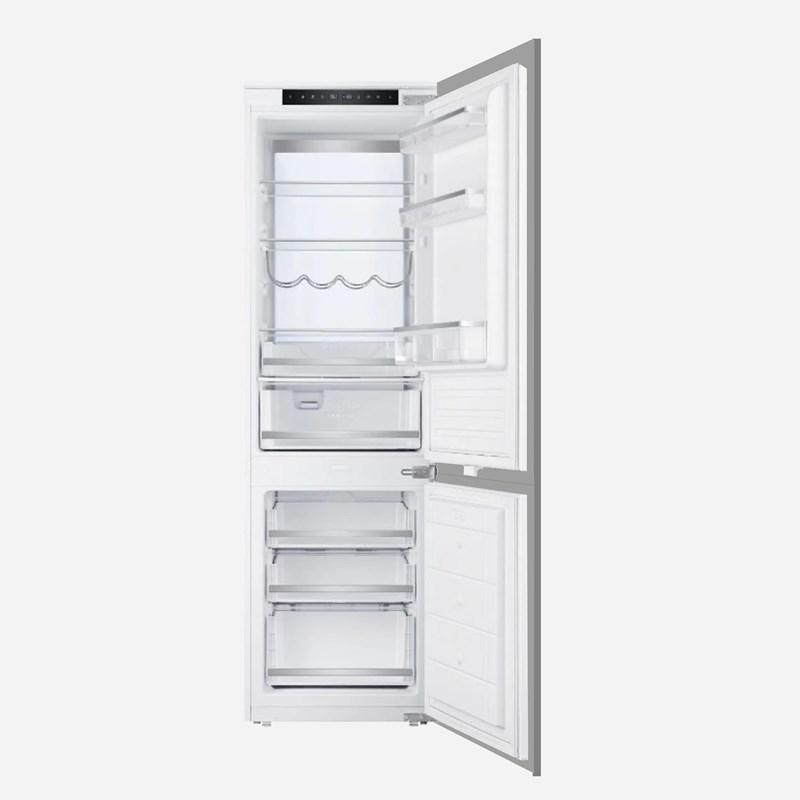

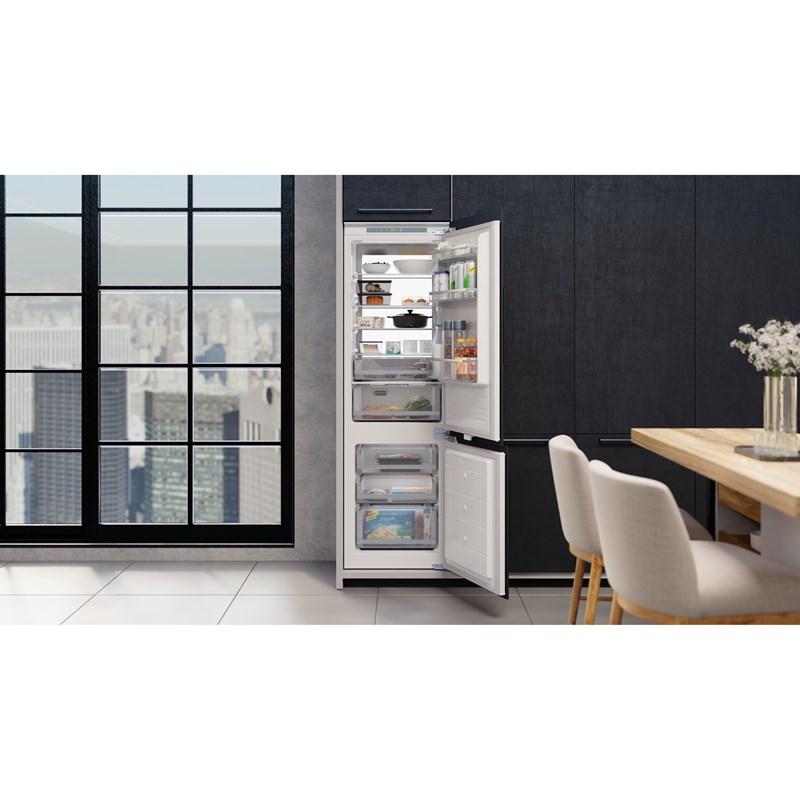

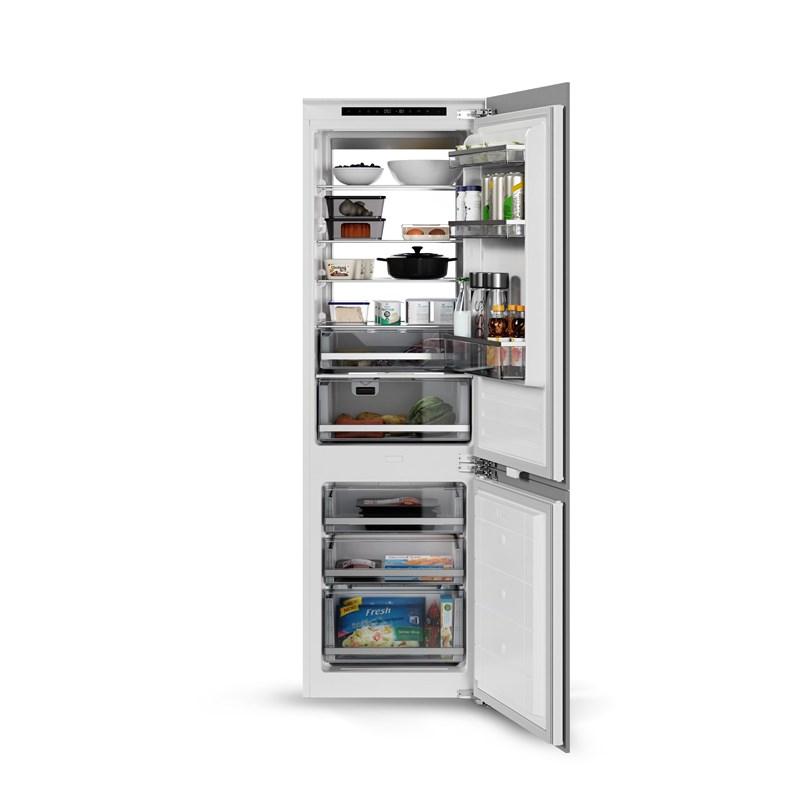

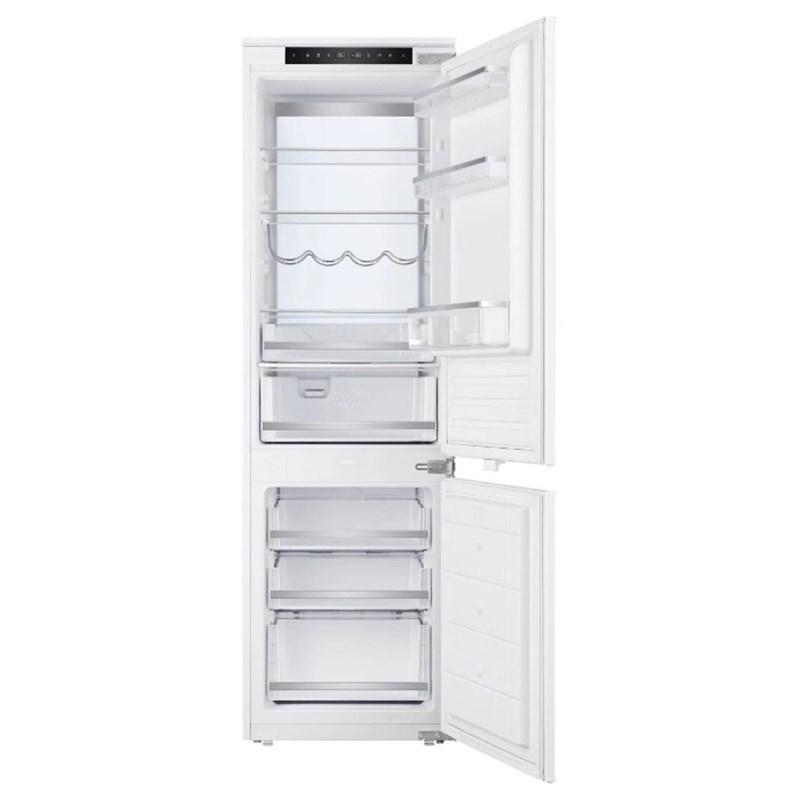

Upgrade your kitchen with the perfect blend of style, functionality, and innovation. Introducing Elica's 22" Panel Ready Refrigerator with Bottom Mount Freezer boasting a convenient 8.4 Cu.Ft. Capacity. It is more than an appliance; it's a statement of modern living with large storage space, adjustable temperature and perfect preservation for your food. Elevate your kitchen with a seamlessly integrated appliance with Panel Ready Capabilities and unique 3D adjustment for perfect flush installation.
Documents
Specifications
| Total | 8.37 cu. ft. | Freezer | 2.37 cu. ft. | Refrigerator | 6.0 cu. ft. |
| Height (With Hinge) | 176.85 cm | Width | 53.98 cm | Additional Dimensions | Cut Out Dimensions: 22 1/16" W x 22 1/16" D x 70 1/8" H |
| Weight | 60.33 kg | Overall Depth | 54.93 cm | Class Width | 22.9" or less |
| Class Height | 65" - 70" | Energy Star Certified | Y | Sabbath Mode | Y |
| Frost Free | Y | Digital Display | Y | Crisper Drawers | Y |
| Wine Storage | Y | Interior Light | Y | Installation Type | Built-In |
| Series Name | Dolomite | Manufacturer Color | Panel Ready | Reversible Doors | Y |
| Counter-Depth | N | Color | Panel Ready | Door Hinge | Right |
| Refrigerator Type | Bottom Freezer | Warranty | Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts& In-Home Labor by registering on elica.com | Ice System | None |
| Water System | None | ||||
|
Technologies Total NO-Frost fridge and freezer
| |||||
|
Additional Freezer Information Temperature range: +5°F (-15°C)to-11°F(-24°C) | Drawers: 1 Large Freezer drawer, 2 Medium Freezer drawer
| |||||
|
Information Electric: 115V/60 Hz | Plug Type: NEMA 5-15 P plug | Power Cord Length: 6.25 feet | Energy consumption: 372 kw/year
| |||||
|
Optional Pro Handle Stainless Steel Kit: EPHKBSS | Tubular Handle Stainless Steel Kit: ETHKBSS
| |||||
Accessories
• Tubular Handle Stainless Steel Kit: ETHKBSS
Door Hinge: Right
Specifications
Total
8.37 cu. ft.
Freezer
2.37 cu. ft.
Refrigerator
6.0 cu. ft.
Height (With Hinge)
176.85 cm
Width
53.98 cm
Weight
60.33 kg
Overall Depth
54.93 cm
Class Width
22.9" or less
Class Height
65" - 70"
Energy Star Certified
Y
Sabbath Mode
Y
Frost Free
Y
Digital Display
Y
Crisper Drawers
Y
Wine Storage
Y
Interior Light
Y
Installation Type
Built-In
Series Name
Dolomite
Manufacturer Color
Panel Ready
Reversible Doors
Y
Counter-Depth
N
Color
Panel Ready
Door Hinge
Right
Refrigerator Type
Bottom Freezer
Weight
65.77 kg
Warranty
Two (2) Years Parts & In-Home Labor. Earn an additional One (1) Year of Parts& In-Home Labor by registering on elica.com
Ice System
None
Water System
None
Additional Dimensions
Cut Out Dimensions: 22 1/16" W x 22 1/16" D x 70 1/8" H
Additional Information
ETL US
Technologies
Total NO-Frost fridge and freezer
Additional Information
Temperature range: +35°F (2°C) to 46°F (8°C), Chiller drawer: 30°F (-1°C) to 41°F(5°C) | Shelving: 2 Height adjustable cantilever, Spill-Proof Glass shelves + Wine rack | Drawers: 1 Humidity control Drawer +, 1 Chiller Adjustable Temp Drawer | Door Storage: 3 Height adjustable Bins | Reversible Door: Field Reversible | Interior Finish: White plastic liner | Hinge Design: Articulating 90° opening flush hinge | Refrigerant type: R600A | Compressor: Variable Speed with Inverter | Noise: Ultra Quiet 41 db(A) | Lighting: LED 6500K 150 lumens | Controls: Electronic Soft-Touch Digital Black Glass display | Sabbath & Holiday Mode | ECO Mode | Soft close crisper & pantry drawers | Ultra Quiet operation | True Flush Install - 3D door adjustment | Cool Day LED interior light side walls & ceiling
Additional Freezer Information
Temperature range: +5°F (-15°C)to-11°F(-24°C) | Drawers: 1 Large Freezer drawer, 2 Medium Freezer drawer
Information
Electric: 115V/60 Hz | Plug Type: NEMA 5-15 P plug | Power Cord Length: 6.25 feet | Energy consumption: 372 kw/year
Optional
Pro Handle Stainless Steel Kit: EPHKBSS | Tubular Handle Stainless Steel Kit: ETHKBSS
