About this Product
Smart. Simple. Built for Every Project: With near-silent performance, SmartSense technology, and Wi-Fi, Bluetooth, and voice activation capabilities, the HBN3 series offers the perfect blend of features, functionality, and value for a more enjoyable cooking experience.
Features
-
FEATURES - HBN3 — • Powered by an internal blower system with a maximum of 650 CFM.
• Near-silent performance at less than 0.3 sones on low speed.
• SmartSense technology uses infrared sensors to monitor heat from the cooking surface and automatically adjusts the hood fan speed to eliminate heat, CO2, and other cooking emissions.
• Wi-Fi, Bluetooth, and voice activation capabilities enable hands-free operation; also compatible with the BEST Kitchen app.
• Single-person installation with the EZ Install bracket system.

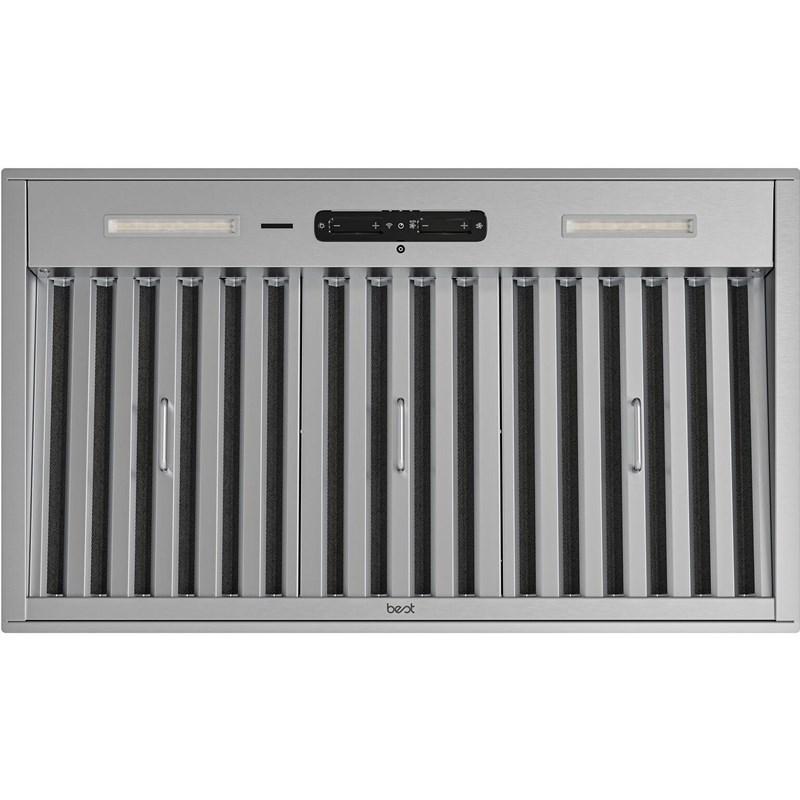

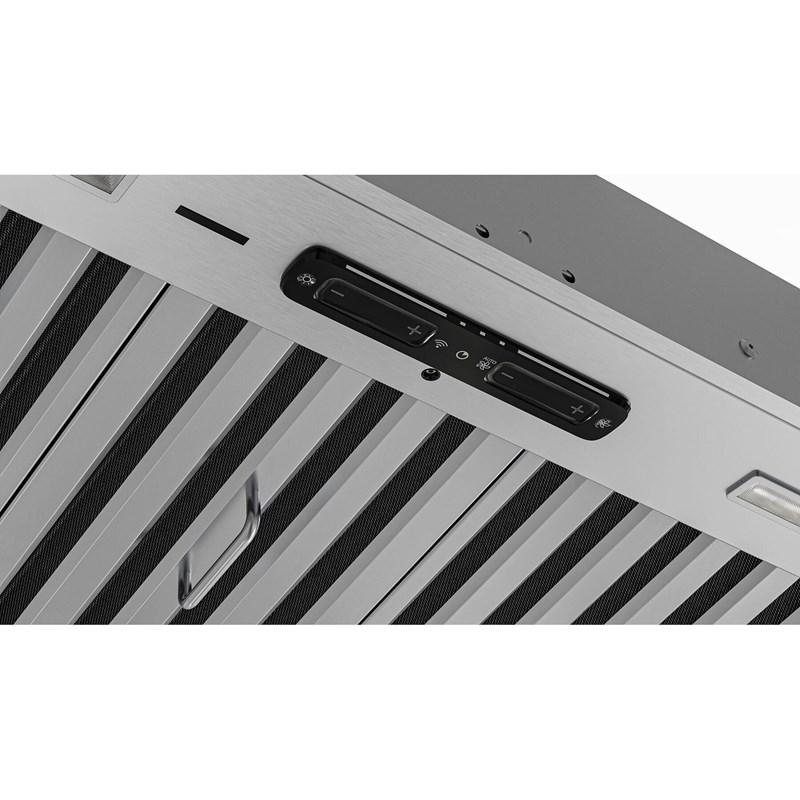

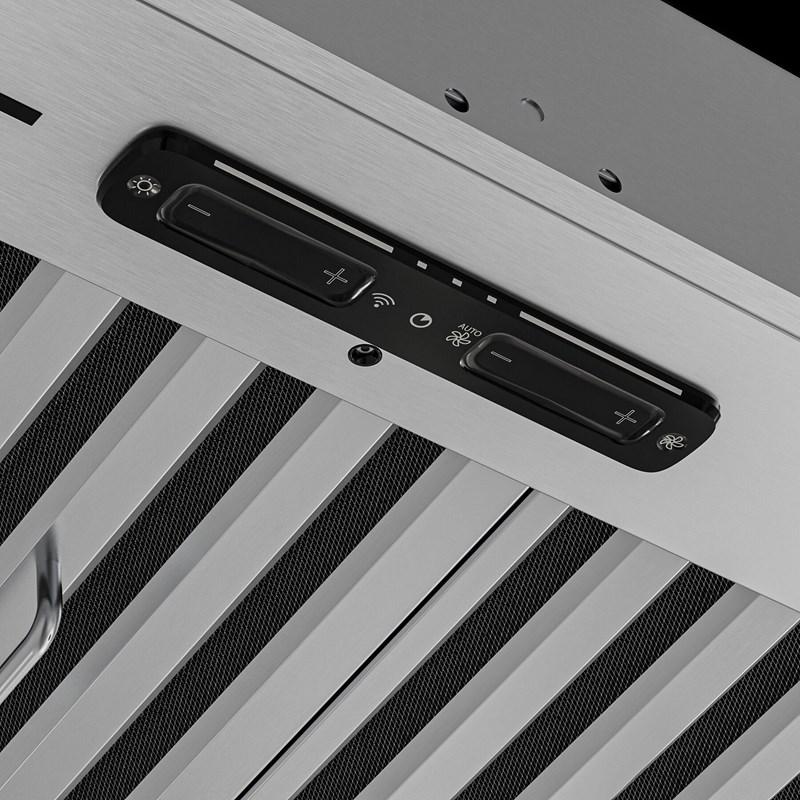

• Capacitive touch slider control provides four fan speeds and four LED lighting levels.
• Hybrid Baffle™ filters offer full coverage to remove smoke, odors, and pollutants.
• Code Ready Technology® (CRT) allows airflow limitation to 300 or 400 CFM to meet local make-up air code requirements.
• The Heat Sentry® safety feature automatically adjusts blower speed if exhaust temperatures exceed 200°F, protecting you and your home.
• Compatible with 8" or 3-1/4" x 10" ducting; supports vertical (round) or horizontal (rectangular only) installation.
Documents
Highlights
Delay-Off | Filter Clean Reminder | Filter Type: Perimeter with Mesh | Control Type: Touch Slider | Lighting Type: LED Modules (6W per Module) | 2 Lights | 4 Lighting Levels | Max Blower CFM: 650
Specifications
| Style | Custom Insert | Airflow | 650 CFM | Installation | Built-In |
| Blower Included | Y | Color | Stainless Steel | Series Name | HBN3 |
| Manufacturer Color | Stainless Steel | Speeds | 4 Speeds | Wi-Fi | Y |
| Bluetooth | Y | UPC# | 26715271283 | Height | 35.56 cm |
| Width | 73.34 cm | Depth | 51.44 cm | Additional Dimensions | Cutout W x D: 28 1/2"W x 19 5/8"D |
| Class Width | 30" | Warranty | 5 Years Parts, 2 Years Labor | Included | Backdraft Damper |
|
Information Amps @ 120V: 3.8 (HBN33096SS, HBN33696SS), 7.1 (HBN348212SS) | Electrical Connection: Direct Wire
| |||||
|
Ducting Information Duct Size: 8" or 3 1/4" x 10" | Duct Direction: Vertical (round) or Horizontal (rectangular only)
| |||||
|
Technologies Heat Sentry™ | Wi-Fi / Bluetooth Connectivity | Voice Control | SmartSense | BEST Kitchen app
| |||||
|
Optional ADA Kit: HAWRK5 | Universal MUA Damper: MD8TU or MD10TU | Power Cord Kit: HCK44
| |||||
Accessories
• Universal MUA Damper: MD8TU or MD10TU
• Power Cord Kit: HCK44
Specifications
Style
Custom Insert
Airflow
650 CFM
Installation
Built-In
Blower Included
Y
Color
Stainless Steel
Series Name
HBN3
Manufacturer Color
Stainless Steel
Speeds
4 Speeds
Wi-Fi
Y
Bluetooth
Y
Height
35.56 cm
Width
73.34 cm
Depth
51.44 cm
Class Width
30"
Warranty
5 Years Parts, 2 Years Labor
Included
Backdraft Damper
Information
Amps @ 120V: 3.8 (HBN33096SS, HBN33696SS), 7.1 (HBN348212SS) | Electrical Connection: Direct Wire
Additional Information
Delay-Off | Filter Clean Reminder | Filter Type: Perimeter with Mesh | Control Type: Touch Slider | Lighting Type: LED Modules (6W per Module) | 2 Lights | 4 Lighting Levels | Max Blower CFM: 650
Ducting Information
Duct Size: 8" or 3 1/4" x 10" | Duct Direction: Vertical (round) or Horizontal (rectangular only)
Technologies
Heat Sentry™ | Wi-Fi / Bluetooth Connectivity | Voice Control | SmartSense | BEST Kitchen app
Additional Dimensions
Cutout W x D: 28 1/2"W x 19 5/8"D
Optional
ADA Kit: HAWRK5 | Universal MUA Damper: MD8TU or MD10TU | Power Cord Kit: HCK44
