About this Product

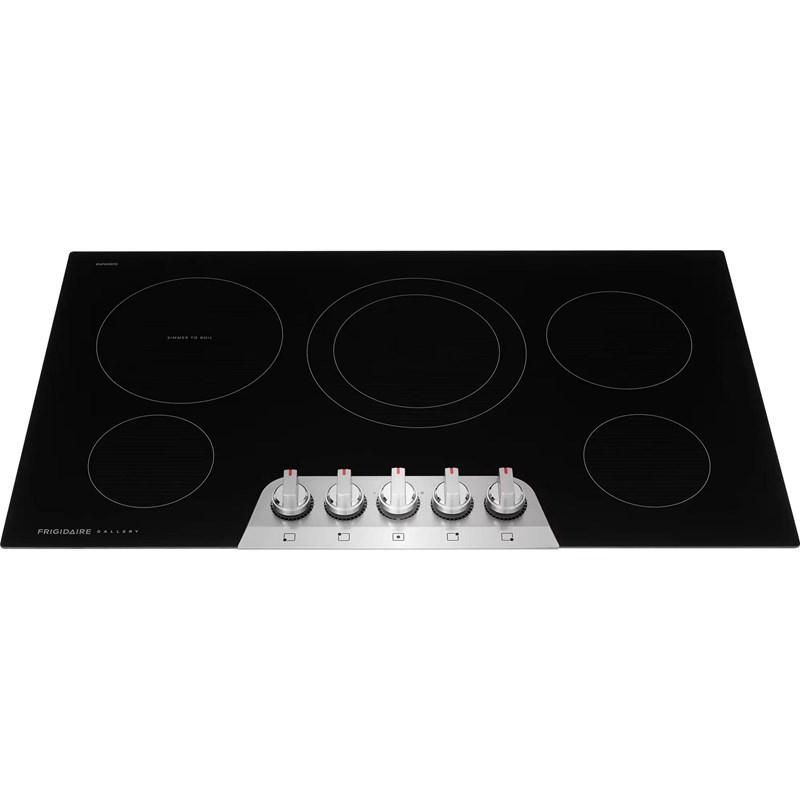

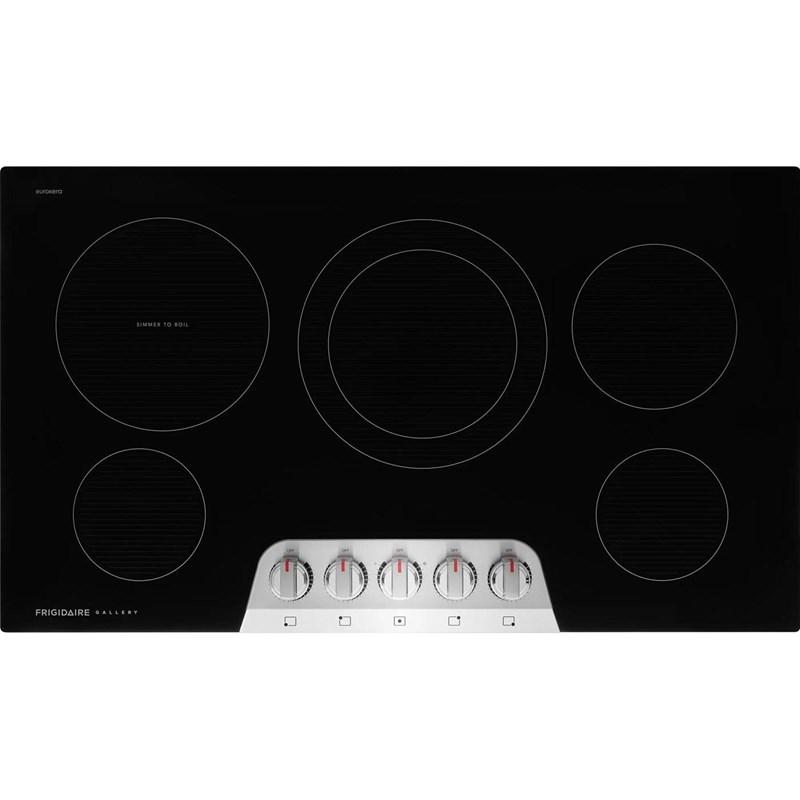

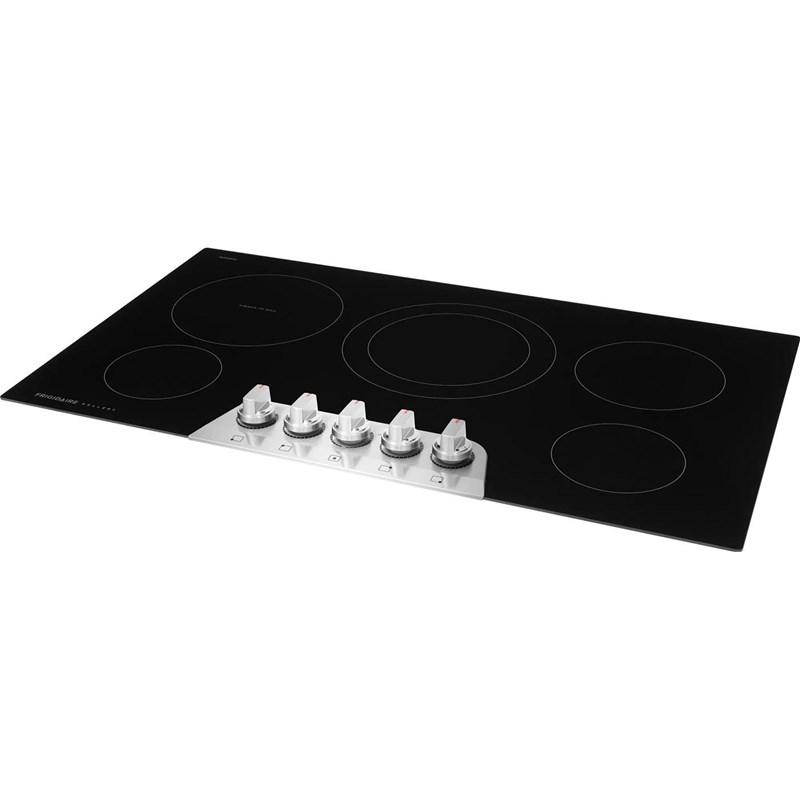

The Frigidaire Gallery 36" Electric Cooktop offers expansive cooking versatility with five powerful elements designed to handle everyday meals and elaborate dishes alike. Featuring a 3,200-Watt EvenTemp™ element for fast, consistent heat, a flexible dual center element that expands from 9" to 12", and a convenient Keep Warm zone, it adapts to cookware of all sizes. Backlit LED knobs illuminate when in use for added safety, while the smooth ceramic glass surface and front control design ensure easy cleaning and effortless temperature control.
Features

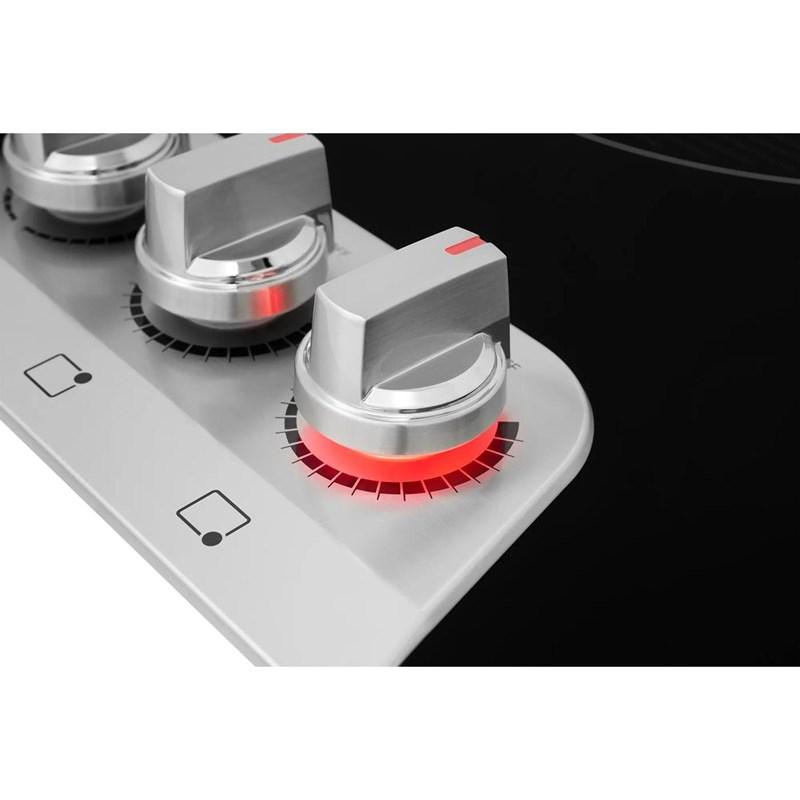

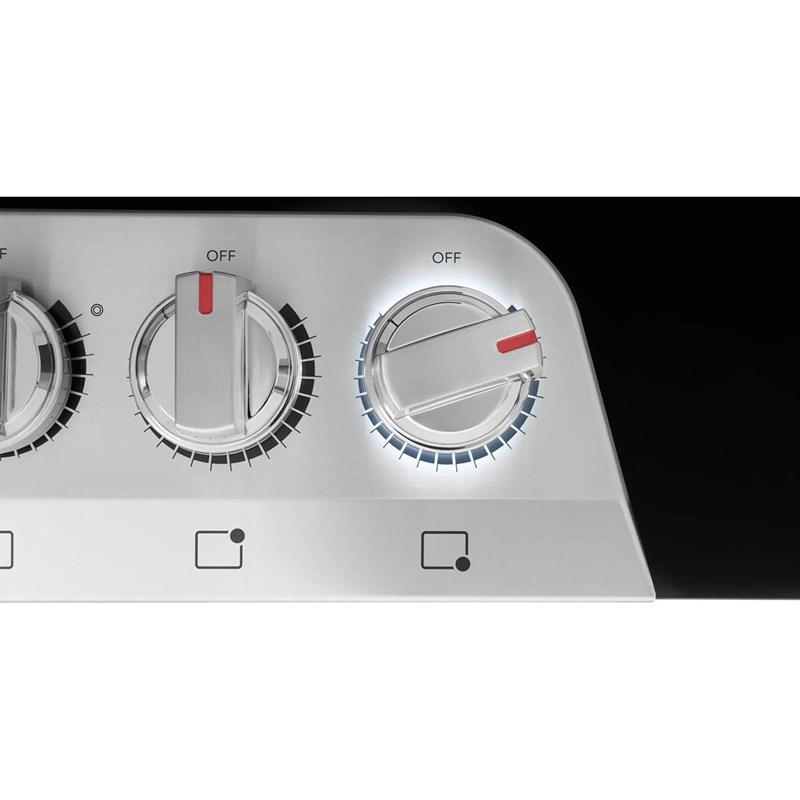

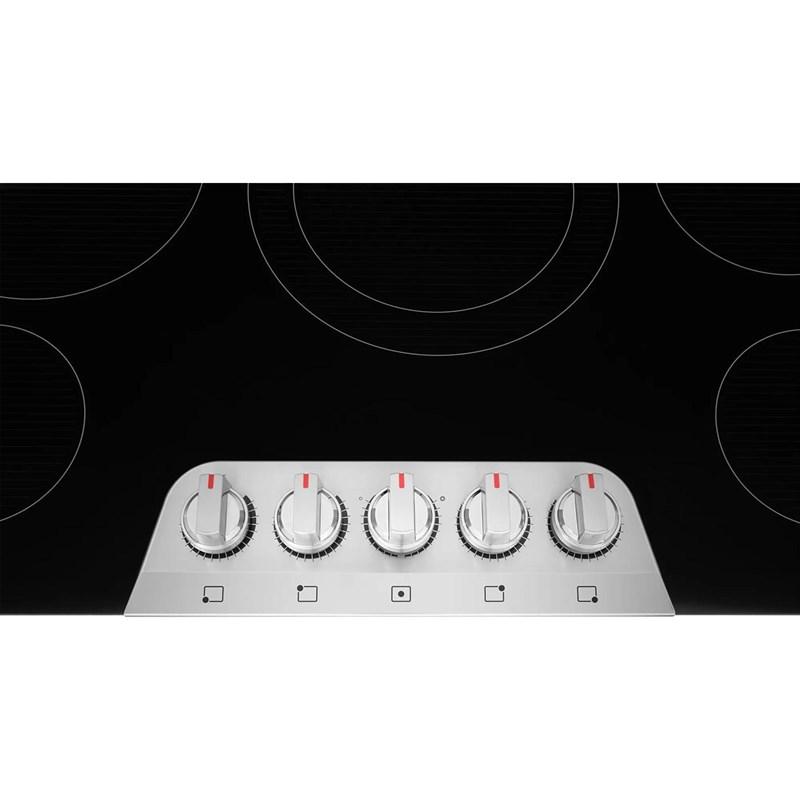

- BRIGHT, BACKLIT LED KNOBS — Backlit LED knobs light up when the cooktop is in use.
-
CERAMIC GLASS COOKTOP —
For a more beautiful cooktop that’s easy to clean.
Documents
Highlights
Control Location: Front | Power Supply Connection Location: Right Center
Specifications
| Burners/Elements | 5 | Elements | Smoothtop | Height | 6.67 cm |
| Depth | 54.29 cm | Width | 93.35 cm | Weight | 15.88 kg |
| Class Width | 36" | ADA Compliant | Y | Color | Stainless Steel |
| Fuel Type | Electric | Type | Built-In | Manufacturer Color | Stainless Steel |
| Warranty | Warranty - Labor: 1 Year | ||||
|
Power Output Right Front Element Burner: 1200 Watts | Right Rear Element Burner: 1800 Watts | Left Front Element Burner: 1200 Watts | Left Rear Element Burner: 3200 Watts | Center Rear Element Burner (Small): 1800 Watts | Center Rear Element Burner (Large): 3000 Watts
| |||||
|
Burner/Element Size Right Front Element Burner Size: 6" | Right Rear Element Burner Size: 7" | Left Front Element Burner Size: 6" | Left Rear Element Burner Size: 9" | Center Rear Element Burner Size (Small): 9" | Center Rear Element Burner Size (Large): 12"
| |||||
|
Information Amps @ 240 Volts: 43.3 Amps | Connected Load @ 240V: 10.4 kW | Minimum Circuit Required: 50 Amps | Voltage Rating: 240 V
| |||||
|
Additional Dimensions Cutout Height: 5" | Minimum Cutout Width: 33 7/8" | Minimum Cutout Depth: 19 1/8" | Maximum Cutout Width: 36 1/8" | Maximum Cutout Depth: 20 1/2"
| |||||
|
Information CSA, UL
| |||||
Specifications
Burners/Elements
5
Elements
Smoothtop
Height
6.67 cm
Depth
54.29 cm
Width
93.35 cm
Weight
15.88 kg
Class Width
36"
ADA Compliant
Y
Color
Stainless Steel
Fuel Type
Electric
Type
Built-In
Manufacturer Color
Stainless Steel
Warranty
Warranty - Labor: 1 Year
Power Output
Right Front Element Burner: 1200 Watts | Right Rear Element Burner: 1800 Watts | Left Front Element Burner: 1200 Watts | Left Rear Element Burner: 3200 Watts | Center Rear Element Burner (Small): 1800 Watts | Center Rear Element Burner (Large): 3000 Watts
Burner/Element Size
Right Front Element Burner Size: 6" | Right Rear Element Burner Size: 7" | Left Front Element Burner Size: 6" | Left Rear Element Burner Size: 9" | Center Rear Element Burner Size (Small): 9" | Center Rear Element Burner Size (Large): 12"
Information
Amps @ 240 Volts: 43.3 Amps | Connected Load @ 240V: 10.4 kW | Minimum Circuit Required: 50 Amps | Voltage Rating: 240 V
Additional Dimensions
Cutout Height: 5" | Minimum Cutout Width: 33 7/8" | Minimum Cutout Depth: 19 1/8" | Maximum Cutout Width: 36 1/8" | Maximum Cutout Depth: 20 1/2"
Additional Information
Control Location: Front | Power Supply Connection Location: Right Center
Information
CSA, UL
