About this Product

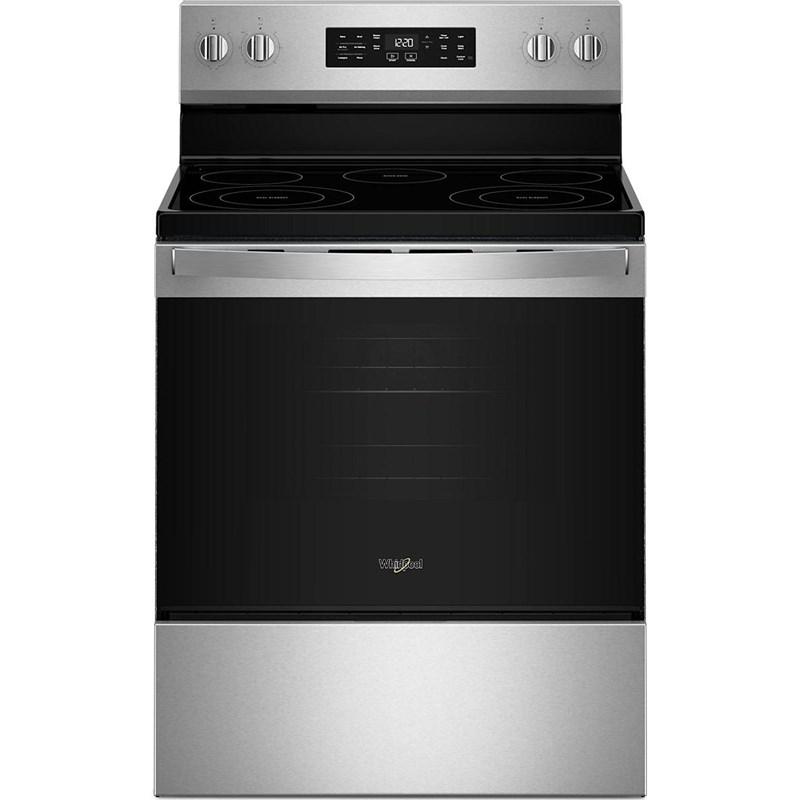

Whirlpool 30-inch Electric Range with Air Cooking Technology and Steam Clean. Experience the difference of Air Cooking Technology with Air Baking with this 30-inch electric range. Get crispy fast with No Preheat Air Fry or make more feel-good meals with a variety of cooking modes. Boil 40% faster with 2 FlexHeat™ Dual Radiant Elements and prevent soils from building up by regularly using Steam Clean.
Features
- AIR COOKING TECHNOLOGY — Get the ultimate Air Cooking technology and bring fresh options to family dinner with No Preheat Air Fry, Air Baking, Air Broil, Air Roast and Air Reheat.
- 6 COOKING MODES — Make more feel-good meals with a variety of 6 Cooking Modes. Choose from modes that use Air Cooking Technology, like No Preheat Air Fry and Air Baking, or use traditional thermal cooking modes like No Preheat Mode, Bake, Broil, and Keep Warm.

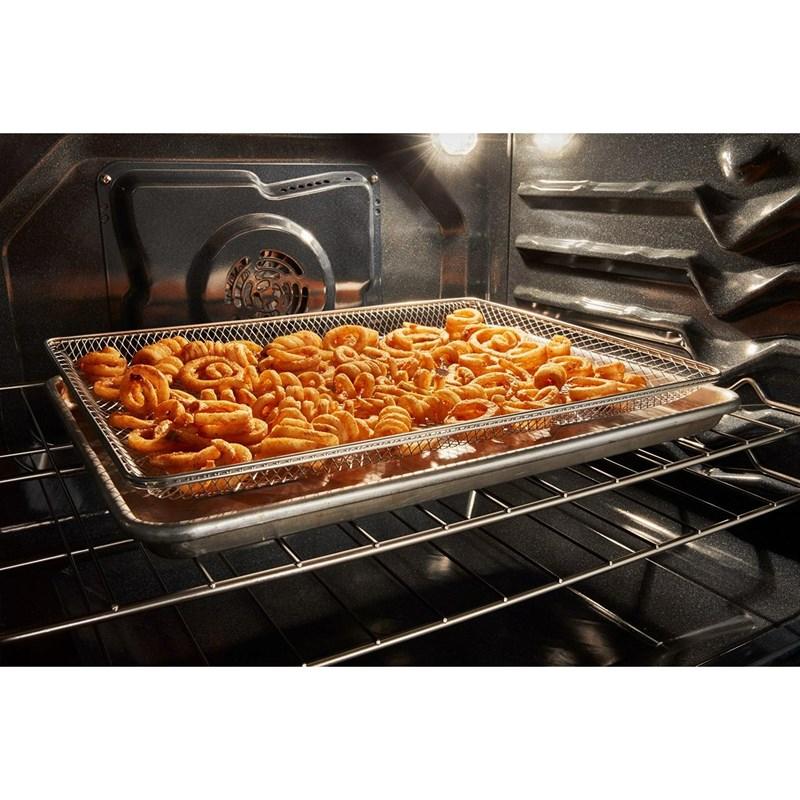

- NO PREHEAT AIR FRY — Save time* with No Preheat Air Fry. Our most advanced air fry mode delivers the right heat at the right time, while using less oil than traditional deep frying. Get fast, crispy, tasty results with No Preheat Air Fry.
- STEAM CLEAN. — Use the Steam Clean Option to quickly and easily loosen light messes inside the oven without harsh chemicals or cleaners—just add water, run the cycle, and wipe away.

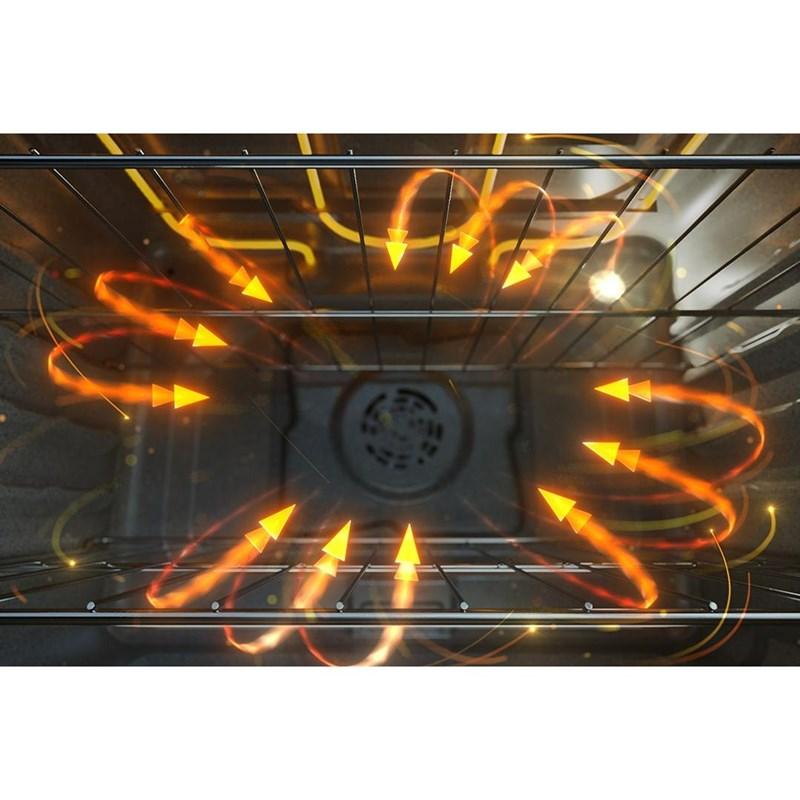

- AIR BAKING — Go from gooey to golden and get even results when baking on multiple racks with Air Baking. Our high-speed fan optimizes air flow and drives consistent heat throughout the oven. Get golden results on breads, pastries and more.
- BAKE — Spend less time monitoring with a built-in temperature sensor to help Bake evenly. This sensor manages oven temperature for delicious results every time.
- BROIL — Redefine mealtime with Broil to make crispy-melty nachos, juicy-seared meat, toasty grilled cheese and more.
- STORAGE DRAWER — Full width storage drawers offer more storage space.
- SABBATH MODE — This range is designed to meet the needs of those who are kosher and Sabbath observant. When Sabbath mode is enabled, the oven is set to remain on the "Bake" setting at a constant temperature until it's manually turned off. In addition, displays, tones and all other cooking and cleaning cycles are disabled. The oven light will also not activate when the oven door is opened and heating elements will not immediately turn on or off.
-

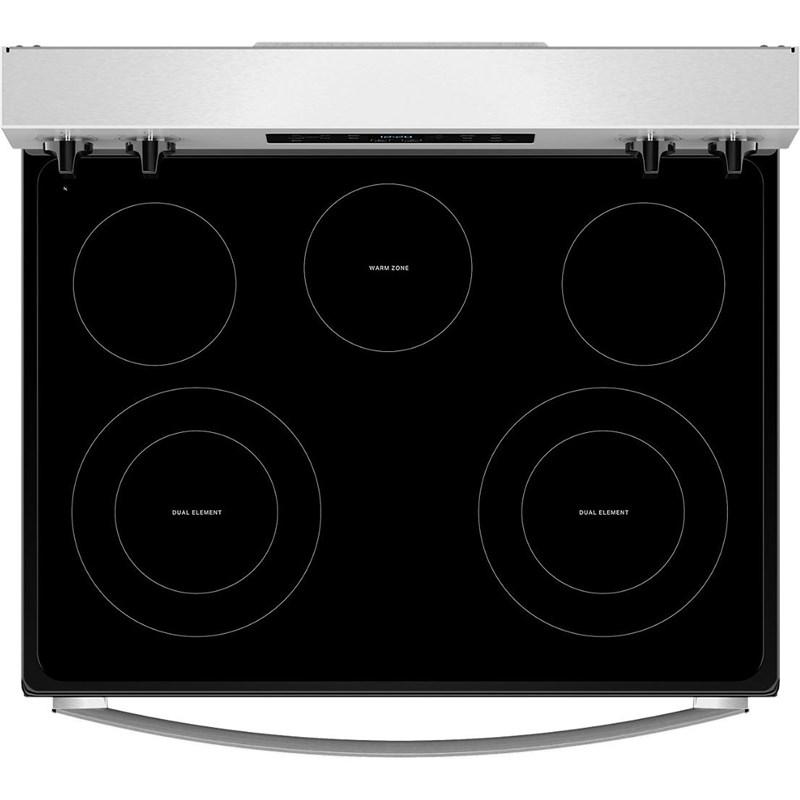

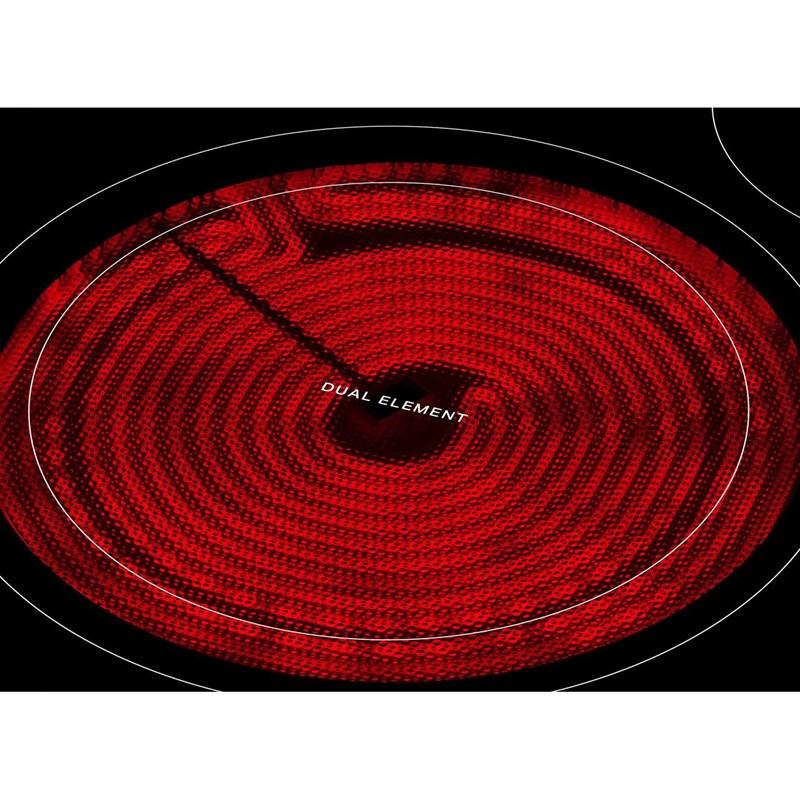

2 FLEXHEAT™ DUAL RADIANT ELEMENTS — Customize your element size for large or small cookware and boil 40% faster* with two FlexHeat™ Dual Radiant Elements, designed with a 6" inner ring and 9" expandable outer ring.
*When comparing the 9" element to the standard 6" element on the same unit. - WARM ZONE ELEMENT — Keep food warm on the cooktop while you’re finishing the rest of the meal using this low-powered center element.
Documents
Highlights

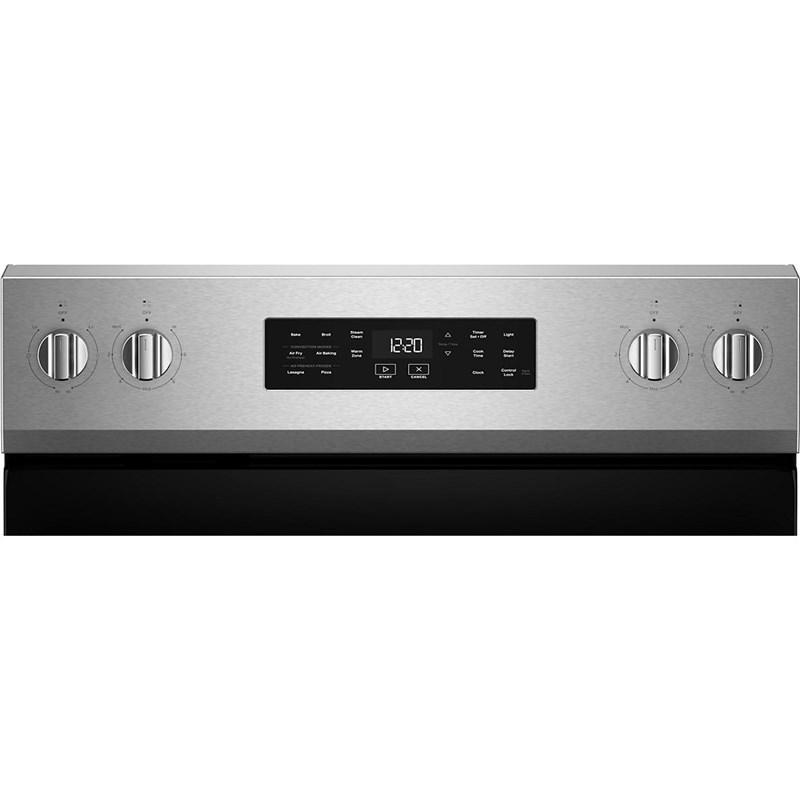

Cooktop Surface Material: Glass | Heating Element On Indicator Light | Hot Surface Indicator Light | Oven Automatic Shut-Off | Power On Indicator Light | Power Outage Compatible | Bake Element Power: 2,400 W | Broiler Element Power: 3,400 | Broiler Location: Top Center | Convection Element Type: Fan | Door Removable | Interior Color: Grey | Number of Oven Lights: 1 | Number of Oven Racks: 2 | Number of Rack Guides: 5 | Oven Cooking System: Convection | Oven Light Switch Location: Oven Control | Oven Light Type: Halogen | Oven Rack Front Material: Metal | Oven Rack Type: 2 Standard | Temperature Sensor | Door Lock | Door Type: Glass | Handle Material: Metal | Handle Type: Reach Through Handle | Knob Type: Plastic | Oven Control Location: Backguard | Oven Control Type: Tap Touch | Oven Window Size: Extra Large
Specifications
| Burners/Elements | 5 | Elements | Smoothtop | Height | 121.62 cm |
| Depth (Without Handles) | 64.29 cm | Width | 75.9 cm | Class Width | 30" |
| Depth (Including Handles) | 71.12 cm | Capacity (cu. ft.) | 5.3 | Number of Ovens | Single |
| Delay Bake/Start | Y | Digital Temperature Display | Y | Oven Light | Y |
| Self-Cleaning | Y | Convection | Y | Air Fry | Y |
| Sabbath/Star-K | Y | Installation Type | Freestanding | Color | Stainless Steel |
| Appliance Care | Oven Cleaning Type: Steam Clean | Fuel Type | Electric | Manufacturer Color | FingerPrint Resistant Stainless Steel |
| UPC# | 883049941097 | Weight | 72.57 kg | Depth | 73.66 cm |
| Warranty | 1-Year parts and labor | ||||
|
Burners/Elements Output Left Front Element Burner Power: 3000W | Right Rear Element Burner Power: 1200W | Right Front Element Burner Power: 3000W | Left Rear Element Burner Power: 1200W | Center Rear Element Burner Power: 100W
| |||||
|
Burner/Element Size Left Front Element Burner Size: 9in./6in. | Right Rear Element Burner Size: 6in. | Right Front Element Burner Size: 12in./9in. | Left Rear Element Burner Size: 6in. | Center Rear Element Burner Size: 6in.
| |||||
|
Additional Dimensions Cutout Depth: 24 in | Cutout Height: 36 in | Cutout Width: 30 in | Oven Interior Depth: 18-1/2 in | Oven Interior Width: 24-1/2 in | Depth With Door Open 90 Degree: 46.69 in | Maximum Height: 47.88 in | Minimum Height: 46.880 in
| |||||
|
Programs Convection Functions: | Air Baking, Bake, Broil, Keep Warm, No Preheat, No Preheat Air Fry, No Preheat Frozen Bake Lasagna, No Preheat Frozen Bake Pizza, Warm Zone | Oven Selections: | Audible Signal, Bake, Broil, Clock, Control Lock, Convect Modes, Cook Time, Delay Start, Language Conversion, Light, No Preheat - Frozen, Sabbath Mode, Start/Cancel, Steam Clean, Temp/Time Selection, Timer Set/Off, Stop Time, Timer
| |||||
|
Information Volts: 208-240 | Amps: 40 | Hz:60 | Watts: 7900
| |||||
|
Technologies Air Cooking Technology | FlexHeat™ Dual Radiant Elements
| |||||
|
Information UL
| |||||
Specifications
Burners/Elements
5
Elements
Smoothtop
Height
121.62 cm
Depth (Without Handles)
64.29 cm
Width
75.9 cm
Class Width
30"
Depth (Including Handles)
71.12 cm
Capacity (cu. ft.)
5.3
Number of Ovens
Single
Delay Bake/Start
Y
Digital Temperature Display
Y
Oven Light
Y
Self-Cleaning
Y
Convection
Y
Air Fry
Y
Sabbath/Star-K
Y
Installation Type
Freestanding
Color
Stainless Steel
Appliance Care
Oven Cleaning Type: Steam Clean
Fuel Type
Electric
Manufacturer Color
FingerPrint Resistant Stainless Steel
Height
124.46 cm
Weight
72.57 kg
Width
81.28 cm
Depth
73.66 cm
Warranty
1-Year parts and labor
Burners/Elements Output
Left Front Element Burner Power: 3000W | Right Rear Element Burner Power: 1200W | Right Front Element Burner Power: 3000W | Left Rear Element Burner Power: 1200W | Center Rear Element Burner Power: 100W
Burner/Element Size
Left Front Element Burner Size: 9in./6in. | Right Rear Element Burner Size: 6in. | Right Front Element Burner Size: 12in./9in. | Left Rear Element Burner Size: 6in. | Center Rear Element Burner Size: 6in.
Additional Dimensions
Cutout Depth: 24 in | Cutout Height: 36 in | Cutout Width: 30 in | Oven Interior Depth: 18-1/2 in | Oven Interior Width: 24-1/2 in | Depth With Door Open 90 Degree: 46.69 in | Maximum Height: 47.88 in | Minimum Height: 46.880 in
Programs
Convection Functions: | Air Baking, Bake, Broil, Keep Warm, No Preheat, No Preheat Air Fry, No Preheat Frozen Bake Lasagna, No Preheat Frozen Bake Pizza, Warm Zone | Oven Selections: | Audible Signal, Bake, Broil, Clock, Control Lock, Convect Modes, Cook Time, Delay Start, Language Conversion, Light, No Preheat - Frozen, Sabbath Mode, Start/Cancel, Steam Clean, Temp/Time Selection, Timer Set/Off, Stop Time, Timer
Information
Volts: 208-240 | Amps: 40 | Hz:60 | Watts: 7900
Additional Information
Cooktop Surface Material: Glass | Heating Element On Indicator Light | Hot Surface Indicator Light | Oven Automatic Shut-Off | Power On Indicator Light | Power Outage Compatible | Bake Element Power: 2,400 W | Broiler Element Power: 3,400 | Broiler Location: Top Center | Convection Element Type: Fan | Door Removable | Interior Color: Grey | Number of Oven Lights: 1 | Number of Oven Racks: 2 | Number of Rack Guides: 5 | Oven Cooking System: Convection | Oven Light Switch Location: Oven Control | Oven Light Type: Halogen | Oven Rack Front Material: Metal | Oven Rack Type: 2 Standard | Temperature Sensor | Door Lock | Door Type: Glass | Handle Material: Metal | Handle Type: Reach Through Handle | Knob Type: Plastic | Oven Control Location: Backguard | Oven Control Type: Tap Touch | Oven Window Size: Extra Large
Technologies
Air Cooking Technology | FlexHeat™ Dual Radiant Elements
Information
UL
