About this Product

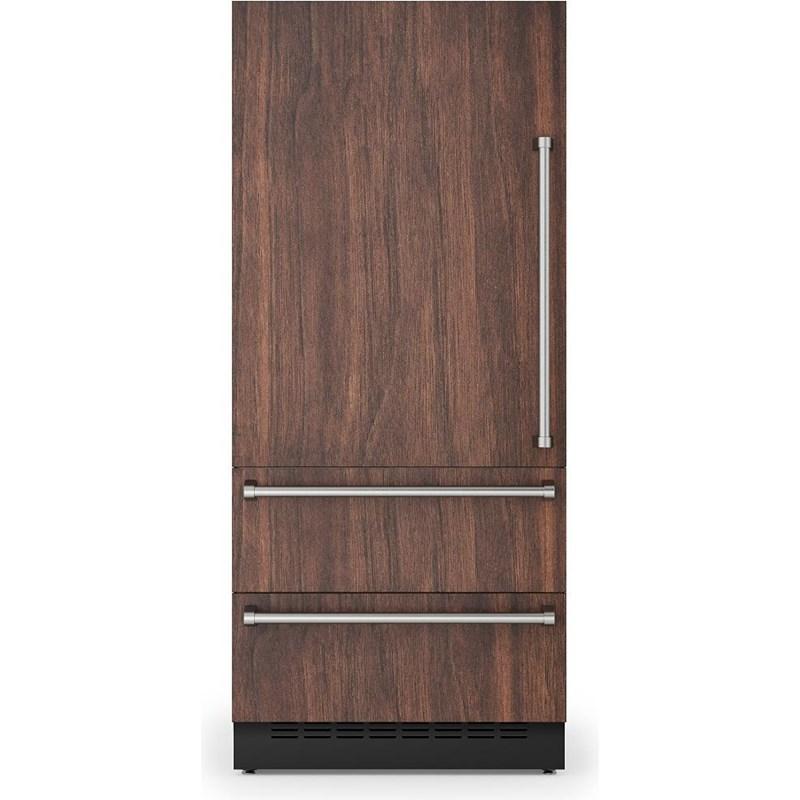

Viking 36" Custom Panel Fully Integrated Bottom-Freezer Refrigerator with § Innovative touch control maintains consistent temperature in the compartments. It features an extremely quiet dual compressor system with electronic controls and the compressor located on the bottom allows for full integration of the product. The PlasmaCluster™ Ion Air Purifier utilizes advanced ion technology to eliminate airborne bacteria, mold, and odors
Documents
Product Sheet (en)
Dimensions Guide (en)
Owner's manual (en)
Installation guide (en)
Specifications
| Height (With Hinge) | 212.09 cm | Width | 91.12 cm | Class Height | 70" and More |
| Overall Depth | 60.96 cm | Class Width | 35" to 37.9" | Installation Type | Freestanding/Built-In |
| Manufacturer Color | Panel Ready | Color | Panel Ready | Door Hinge | Left |
| Counter-Depth | N | Refrigerator Type | Bottom Freezer | Interior Light | Y |
| Crisper Drawers | Y | Ice System | Interior | Filtration | Y |
| Water System | None | Sabbath Mode | Y | Weight | 211.83 kg |
| Total | 19.4 cu. ft. | ||||
|
Additional Dimensions Cutout Width: 36" (91.4 cm) | Cutout Height: 84" (91.5 cm) min. to 84-1/16" (213.5 cm) max. | Cutout Depth: 24" (61.0 cm) plus panel thickness | Overall Height (from bottom) MAX: 84-1/2" (214.6 cm) max | Maximum Panel Weight: Fresh food 45 lbs. (20.4 kg), Freezer 20 lbs. (9.0 kg)
| |||||
|
Series Name FDBMIC | 7 Series
| |||||
|
Technologies PlasmaCluster™ Ion Air Purifier utilizes advanced ion technology to eliminate airborne bacteria, mold, and odors
| |||||
|
Dispenser Features Dual size ice maker | Easily switch between medium and large ice cubes | Max Ice Mode temporarily increase ice cube production for 24 hours | Water filter provides pure water for ice production
| |||||
|
Information Electrical Requirements: 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with grounded 3-prong plug attached to product | Maximum Amp Usage: 9.9 amps
| |||||
|
Optional PHK528-SS – Professional Stainless Steel handle (1 piece/28") | RWFIC – Replacement Water Filter
| |||||
|
Warranty 2-year full covers complete unit | 6-year full – sealed refrigeration system | 90-day full – cosmetic parts such as glass, painted items, and decorative items | 12-year limited – sealed refrigeration system
| |||||
|
Additional Freezer Information Bottom drawer can switch between a refrigerator, fresh food space, or freezer | Temperature Range - Freezer Compartment: 9°F (-13°C) to -9°F (-23°C)
| |||||
Accessories
• RWFIC – Replacement Water Filter
Door Hinge: Left
Specifications
Height (With Hinge)
212.09 cm
Width
91.12 cm
Class Height
70" and More
Overall Depth
60.96 cm
Class Width
35" to 37.9"
Installation Type
Freestanding/Built-In
Manufacturer Color
Panel Ready
Color
Panel Ready
Door Hinge
Left
Counter-Depth
N
Refrigerator Type
Bottom Freezer
Interior Light
Y
Crisper Drawers
Y
Ice System
Interior
Filtration
Y
Water System
None
Sabbath Mode
Y
Weight
211.83 kg
Total
19.4 cu. ft.
Additional Dimensions
Cutout Width: 36" (91.4 cm) | Cutout Height: 84" (91.5 cm) min. to 84-1/16" (213.5 cm) max. | Cutout Depth: 24" (61.0 cm) plus panel thickness | Overall Height (from bottom) MAX: 84-1/2" (214.6 cm) max | Maximum Panel Weight: Fresh food 45 lbs. (20.4 kg), Freezer 20 lbs. (9.0 kg)
Series Name
FDBMIC | 7 Series
Additional Information
Uniform air circulation maintains consistent temperatures | Ensures food stored in different compartments gets equal treatment | Maintains temperature to within 1ºF to keep food fresher longer | Extremely quiet dual compressor system with electronic controls | Compressor located on the bottom allows for full integration of the product | Temperature Range - Refrigerator Compartment: 34°F (1°C) to 45°F (7°C) | Antibacterial stainless steel interior crisper drawers | Stainless steel non-porous surface is micro peened to resist bacteria and germs | Helps maintain high food quality and shields against the spread of bacteria | Inside corners of drawers have a radius for easy cleaning | Crisper drawers operate at a temperature 2°F to 3°F lower than the rest of the refrigerator | State-of-the-art closing system ensures refrigerator crisper drawers close smoothly and quietly | Innovative touch control maintains consistent temperature in the compartments | Easy user interface allows for personalization of settings | Special Modes include Max Refrigerator, Max Freezer, Max Ice, Vacation, Sabbath, Triple Mode Convertible Drawer | Side and top mounted energy-efficient LED lighting enhances visibility | Patented Easy Lift Shelf Position System adds storage flexibility | Two adjustable glass shelves, one fixed glass shelf, three adjustable door bins | Proprietary Fully Articulating Hinge has three-dimensional adjustability for a perfect fit in integrated installations | Hinge damper allows for smoothness when opening and closing door | Unit is custom panel ready to accept matching cabinetry panels or the Viking Professional and RVL Door Panel Kits | Inlet Water Requirements: 1/4" copper tubing inlet waterline; minimum 20 psi; maximum 120 psi
Technologies
PlasmaCluster™ Ion Air Purifier utilizes advanced ion technology to eliminate airborne bacteria, mold, and odors
Dispenser Features
Dual size ice maker | Easily switch between medium and large ice cubes | Max Ice Mode temporarily increase ice cube production for 24 hours | Water filter provides pure water for ice production
Information
Electrical Requirements: 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with grounded 3-prong plug attached to product | Maximum Amp Usage: 9.9 amps
Additional Information
UL
Optional
PHK528-SS – Professional Stainless Steel handle (1 piece/28") | RWFIC – Replacement Water Filter
Warranty
2-year full covers complete unit | 6-year full – sealed refrigeration system | 90-day full – cosmetic parts such as glass, painted items, and decorative items | 12-year limited – sealed refrigeration system
Additional Freezer Information
Bottom drawer can switch between a refrigerator, fresh food space, or freezer | Temperature Range - Freezer Compartment: 9°F (-13°C) to -9°F (-23°C)
