About this Product

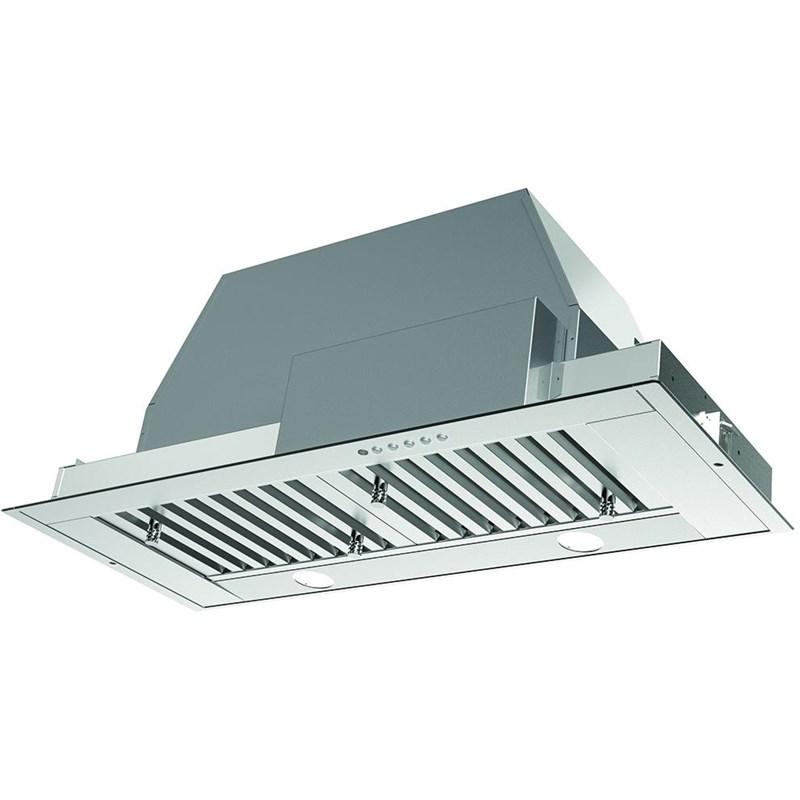

This Faber Pro style built-in range hood with a depth of 13 3/4" makes it an ideal choice for custom depth 15" cabinetry and perfect for kitchen remodeling projects. The restaurant style baffle filters and all metal motor housing and impellers will stand up to the heat!
Features
- EASY SNAP MOUNTING CLIPS — Installation with easy with built-in adjustable clips that tighten onto the sides of the cabinet floor.
- PRO BAFFLE FILTER — Professional style baffle grease filters, which are dishwasher safe and are able to stand up to pro cooking
- PRO MOTOR — The motor in this hood is surrounded in metal with all metal impellers for top performance.
- DIRECT REAR VENTING — Vent the ducting up or rotate the blower to the back to avoid extra duct work when on an outside wall.
Documents
Highlights
Electronic controls with white LED | LED lighting (2 x 5W) | Easy snap mounting clips | Professional style baffle grease filters | Pro motor with metal impellers | 10-minute intensive speed | 15-minute auto shut off | CFM: 150, 295, 395, 560 | Sones: 2.8, 4.3, 6.0, 7.5
Specifications
| Style | Custom Insert | Airflow | 600 CFM | Color | Stainless Steel |
| Manufacturer Color | Stainless Steel | Installation | Built-In | Blower Included | Y |
| Series Name | Inca SD | Speeds | 4 | Dishwasher-Proof Filters | Y |
| Width | 72.07 cm | Depth | 34.93 cm | Class Width | 30" |
| Included | Power cord | UPC# | 7612985636223 | Warranty | Limited 2 Years |
|
Technologies Variable Air Management (VAM system)
| |||||
|
Ducting Information Top/rear ducting (Vari-Duct) | 6" round
| |||||
|
Additional Dimensions Cut out: 29" 27 5/8" w x 13 9/16" d | Height inside cabinet: 12 15/16" high
| |||||
|
Optional FILTER1: Charcoal Filter Kit | FILTER1LL: Long Lasting Charcoal Filter Kit | REMCTRL2: Remote Control | LINE30ST / LINE36ST: Stainless Steel Liner 30 and 36" | MUDAMPER6 / MUDAMPER8: Universal Make-Up Air Damper | WIREBOX: Fixed Wiring Box
| |||||
Accessories
• FILTER1LL: Long Lasting Charcoal Filter Kit
• REMCTRL2: Remote Control
• LINE30ST / LINE36ST: Stainless Steel Liner 30 and 36"
• MUDAMPER6 / MUDAMPER8: Universal Make-Up Air Damper
• WIREBOX: Fixed Wiring Box
Specifications
Style
Custom Insert
Airflow
600 CFM
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Built-In
Blower Included
Y
Series Name
Inca SD
Speeds
4
Dishwasher-Proof Filters
Y
Width
72.07 cm
Depth
34.93 cm
Class Width
30"
Included
Power cord
Warranty
Limited 2 Years
Additional Information
Electronic controls with white LED | LED lighting (2 x 5W) | Easy snap mounting clips | Professional style baffle grease filters | Pro motor with metal impellers | 10-minute intensive speed | 15-minute auto shut off | CFM: 150, 295, 395, 560 | Sones: 2.8, 4.3, 6.0, 7.5
Technologies
Variable Air Management (VAM system)
Ducting Information
Top/rear ducting (Vari-Duct) | 6" round
Additional Dimensions
Cut out: 29" 27 5/8" w x 13 9/16" d | Height inside cabinet: 12 15/16" high
Optional
FILTER1: Charcoal Filter Kit | FILTER1LL: Long Lasting Charcoal Filter Kit | REMCTRL2: Remote Control | LINE30ST / LINE36ST: Stainless Steel Liner 30 and 36" | MUDAMPER6 / MUDAMPER8: Universal Make-Up Air Damper | WIREBOX: Fixed Wiring Box
