About this Product

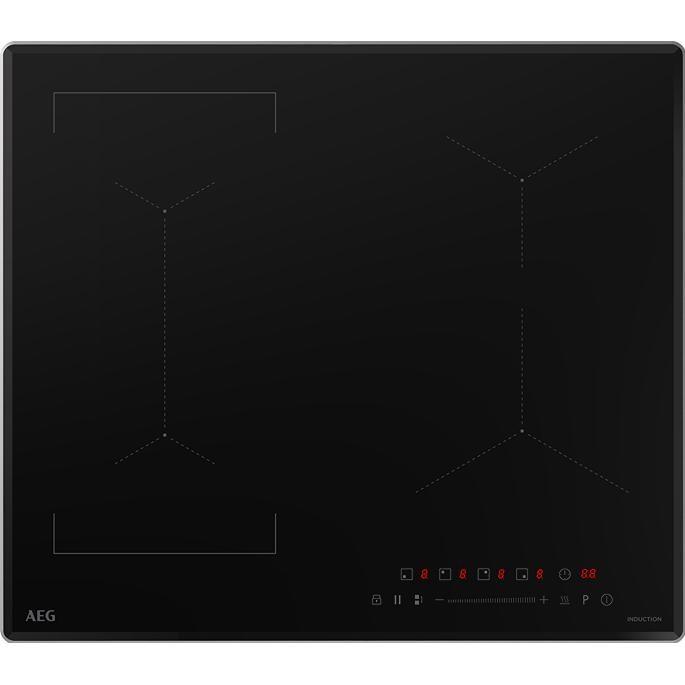

This AEG induction cooktop features quicker heat for extra speed with PowerBoost, touch & slide design controls, and pause function.
Features
- BRIDGE ZONE FUNCTION — The Bridge function combines two cooking zones together to fit any large or long pan. Sharing the same temperature and time setting, the linked zones are ideal when you’re cooking for dinner parties or bigger celebrations.
- TOUCH & SLIDE DESIGN CONTROLS — The touch & slide design controls user interface allows for precise temperature control in an instant without having to toggle through the plus and minus buttons. Heat levels can be adjusted quickly, easily, and accurately.
- QUICKER HEAT FOR EXTRA SPEED WITH POWERBOOST — A blast of fast. No more waiting around for pots to boil. The PowerBoost function gives you an instant burst of heat. PowerBoost is perfect for tasks that require you to boil a large pot of water quickly.
- PAUSE FUNCTION — The pause function is useful if your cooking is interrupted. With the touch of a button all cooking zones will pause the cooking process, whilst another restarts it again with the same settings.
Documents
Highlights
Cooktop Control Type Touch & Slide Design Controls | Control Location Front - Right | Number of Zones: 4 Cooking Zones | Lighted Icons: Red - LED Light | Bridge Zone Cooking Element: Left Side | Power Stage Setting: 0-9 Power Levels | Power Boost Control | Digital Timer Control: 00-99 minutes | Pause Function | Keep Warm Control | Residual Heat Indicator | Automatic Safety Switch Off
Specifications
| Height | 9.04 cm | Width | 59.06 cm | Class Width | 24" |
| Additional Dimensions | Cut-Out Dimensions (W / H / D): 22 1/16" x min. 5 1/16" x 19 5/16" (560mm x min. 129mm x 490mm) | Depth | 52.07 cm | Type | Built-In |
| Fuel Type | Electric Induction | Manufacturer Color | Black Ceramic Glass / Beveled Edges / Metal Frame | Color | Black |
| Warranty | Parts & Labor: 2 Years | Digital Display | Y | Control Lock | Y |
| Elements | Smoothtop | Burners/Elements | 4 | ||
|
Information Total Connected Load: 7200 W | Amperage (AMP): 40 AMP | Power Range / Rated Voltage: AC 208V ~ 60Hz ~ 6.2kW or AC 240V ~ 60Hz ~ 7.2kW | Power Cord Length: 51" (1300mm)
| |||||
|
Burner/Element Size Diameter of Cooking Zones - Front Right: 6" (152mm) | Diameter of Cooking Zones - Front Left: 81/2" x 81/2" (216mm x 216mm) | Diameter of Cooking Zones - Rear Right: 7" (177mm) | Diameter of Cooking Zones - Rear Left: 81/2" x 81/2" (216mm x 216mm) | Diameter of Bridge Zone - Left: 81/2" x 17" (216mm x 431mm)
| |||||
|
Power Output Zone / Power Boost Watts - Front Right: 1200 W / 1500 W Power Boost | Zone / Power Boost Watts - Front Left: 2000 W / 2600 W Power Boost | Zone / Power Boost Watts - Rear Right: 1800 W / 2300 W Power Boost | Zone / Power Boost Watts - Rear Left: 2000 W / 2600 W Power Boost | Bridge Zone / Power Boost Watts - Left: 3600 W
| |||||
Specifications
Height
9.04 cm
Width
59.06 cm
Class Width
24"
Depth
52.07 cm
Type
Built-In
Fuel Type
Electric Induction
Manufacturer Color
Black Ceramic Glass / Beveled Edges / Metal Frame
Color
Black
Warranty
Parts & Labor: 2 Years
Digital Display
Y
Control Lock
Y
Elements
Smoothtop
Burners/Elements
4
Information
Total Connected Load: 7200 W | Amperage (AMP): 40 AMP | Power Range / Rated Voltage: AC 208V ~ 60Hz ~ 6.2kW or AC 240V ~ 60Hz ~ 7.2kW | Power Cord Length: 51" (1300mm)
Additional Dimensions
Cut-Out Dimensions (W / H / D): 22 1/16" x min. 5 1/16" x 19 5/16" (560mm x min. 129mm x 490mm)
Additional Information
Cooktop Control Type Touch & Slide Design Controls | Control Location Front - Right | Number of Zones: 4 Cooking Zones | Lighted Icons: Red - LED Light | Bridge Zone Cooking Element: Left Side | Power Stage Setting: 0-9 Power Levels | Power Boost Control | Digital Timer Control: 00-99 minutes | Pause Function | Keep Warm Control | Residual Heat Indicator | Automatic Safety Switch Off
Burner/Element Size
Diameter of Cooking Zones - Front Right: 6" (152mm) | Diameter of Cooking Zones - Front Left: 81/2" x 81/2" (216mm x 216mm) | Diameter of Cooking Zones - Rear Right: 7" (177mm) | Diameter of Cooking Zones - Rear Left: 81/2" x 81/2" (216mm x 216mm) | Diameter of Bridge Zone - Left: 81/2" x 17" (216mm x 431mm)
Power Output
Zone / Power Boost Watts - Front Right: 1200 W / 1500 W Power Boost | Zone / Power Boost Watts - Front Left: 2000 W / 2600 W Power Boost | Zone / Power Boost Watts - Rear Right: 1800 W / 2300 W Power Boost | Zone / Power Boost Watts - Rear Left: 2000 W / 2600 W Power Boost | Bridge Zone / Power Boost Watts - Left: 3600 W
