About this Product

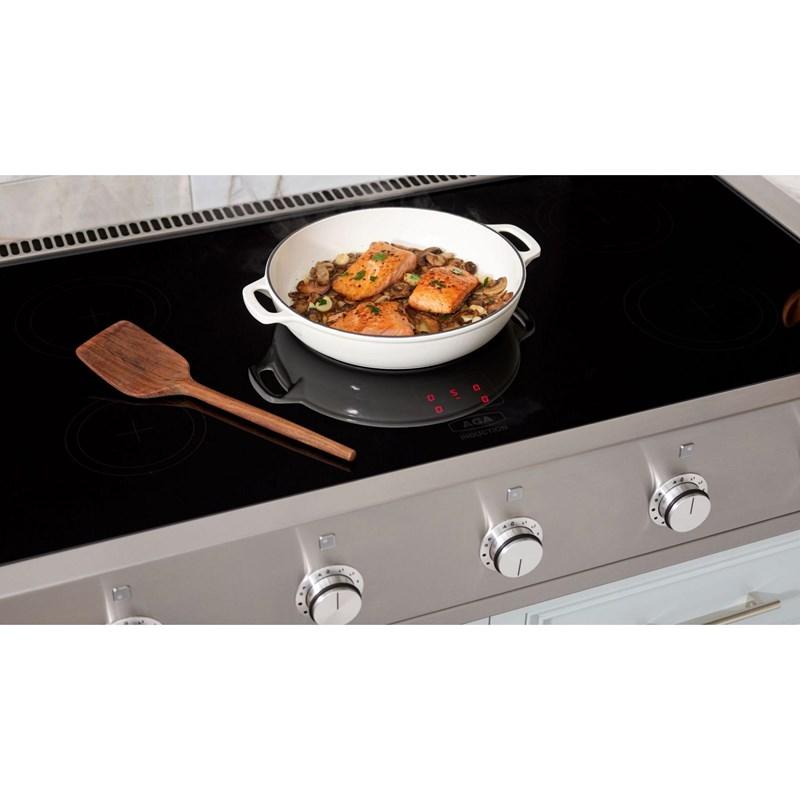

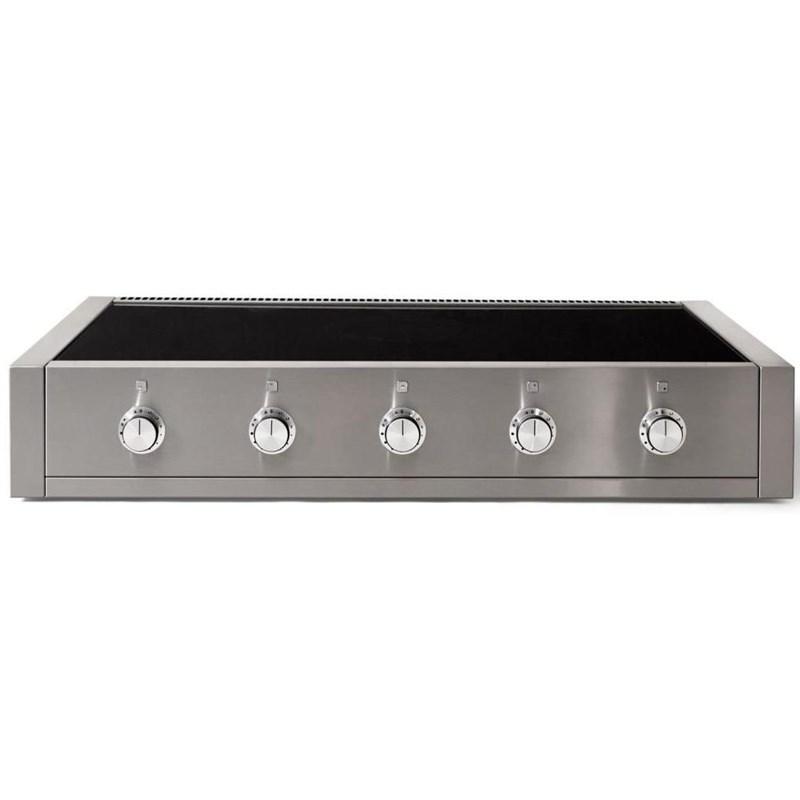

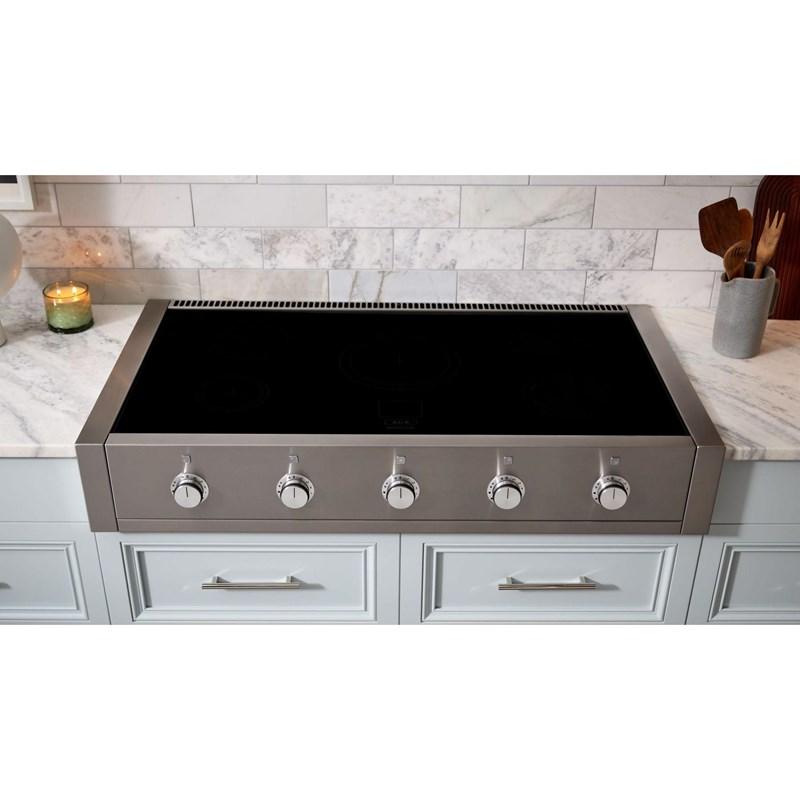

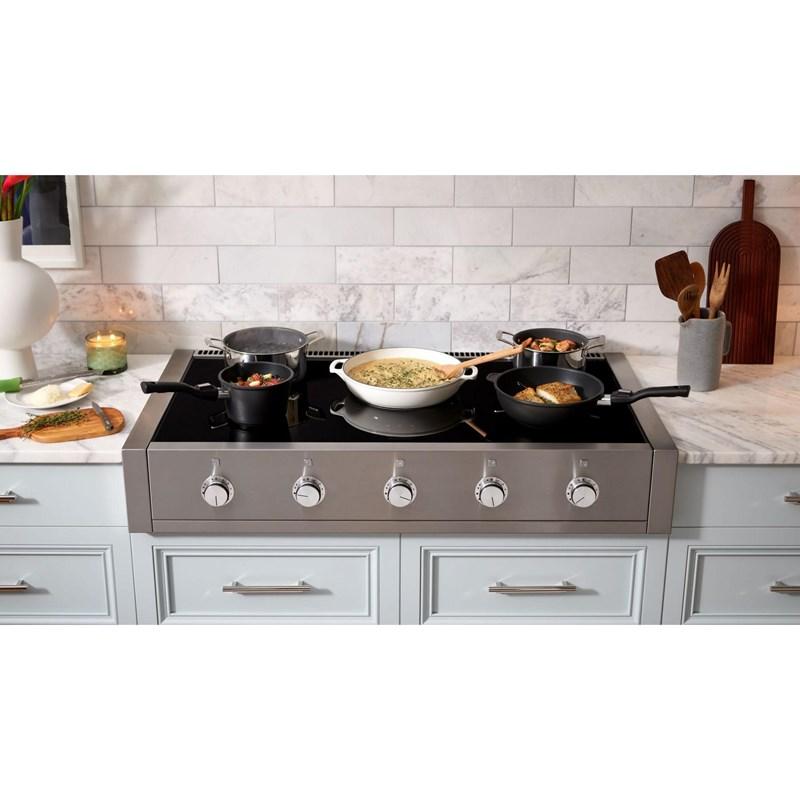

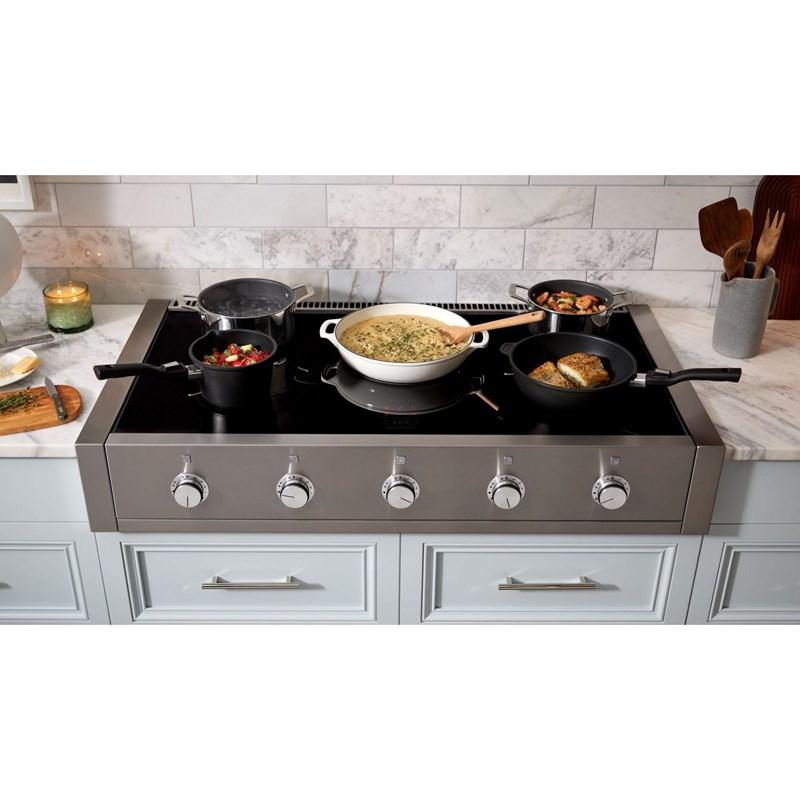

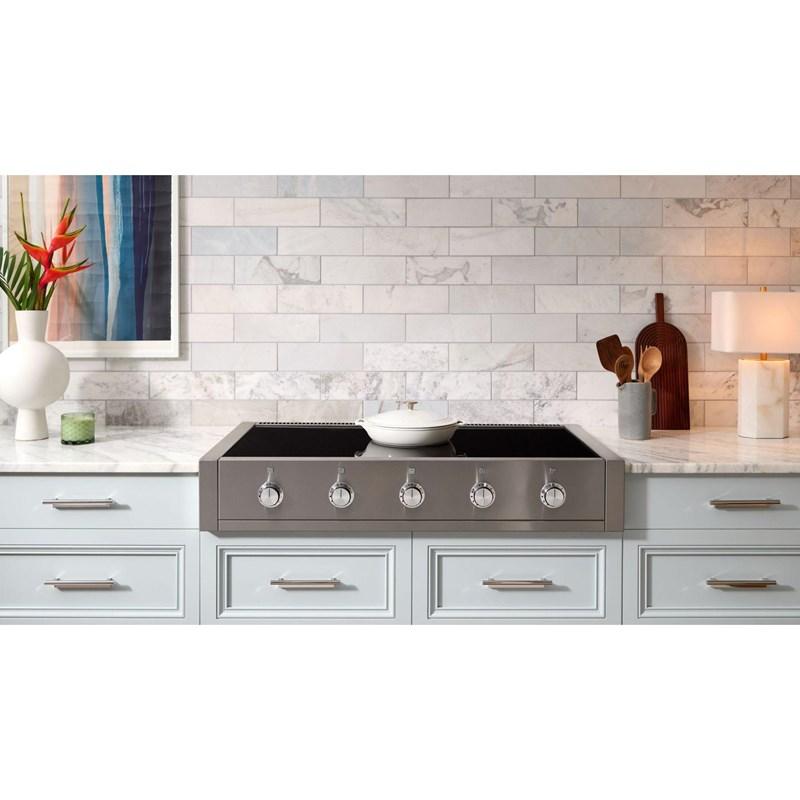

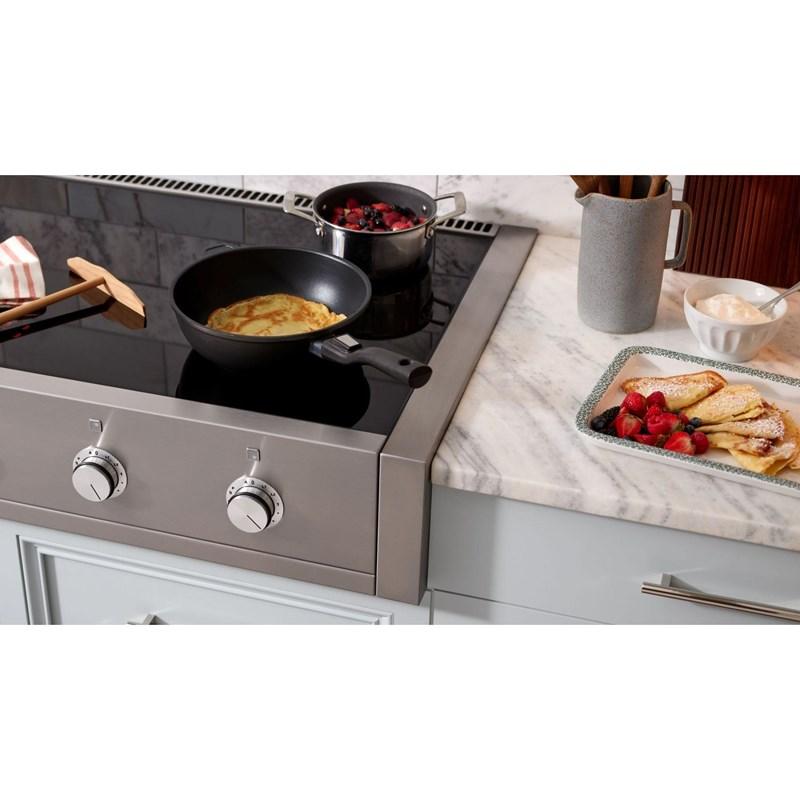

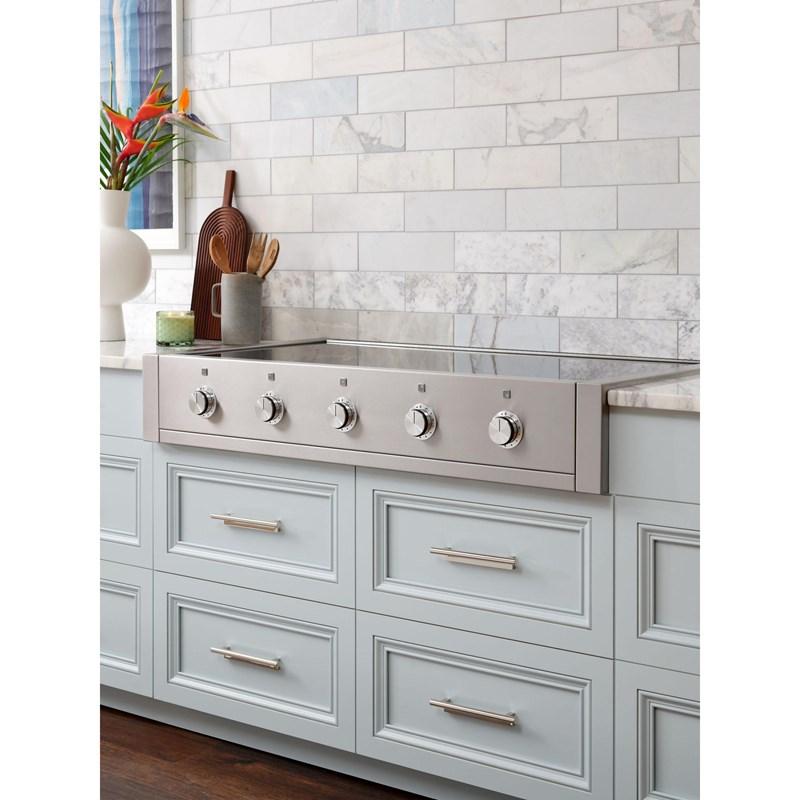

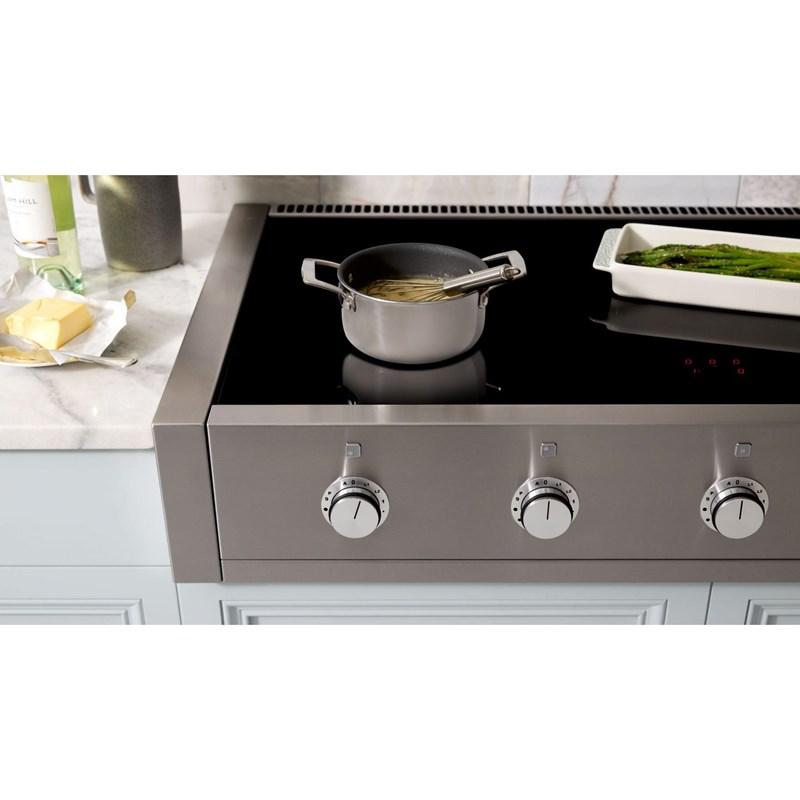

AGA 36-inch induction rangetop. Designed and built in the UK, the AGA Mercury 5-zone Induction Rangetop is a technical masterpiece, the embodiment of exquisite quality and stylish, thoughtful design.
Documents
Highlights

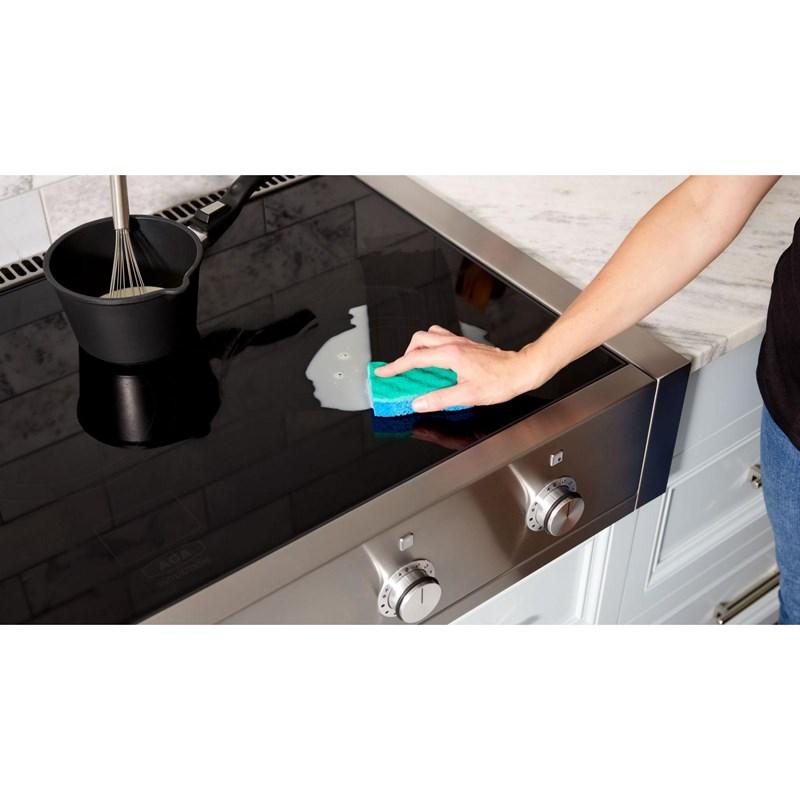

Extra-large 35 1/2" W x 21 1/2" D ceramic glass surface with 5 induction burners and facia touch controls efficiently utilizes / transfers / captures 90% of energy generated compared to only 55% with that of a traditional gas burner | Hob display features: 3700w boost, residual heat indicator, 9 power settings, overheat detection and child safety lock. | 5 Hi-Fi Style Infinite Controls turn with stereo-like grace
Specifications
| Height | 20.7 cm | Width | 90.0 cm | Class Width | 36" |
| Weight | 40 kg | Depth | 67.8 cm | Type | Rangetop |
| Series Name | Mercury | Fuel Type | Electric Induction | Color | Stainless Steel |
| Manufacturer Color | Stainless Steel | Warranty | 2 Year Warranty on parts and labor with the exception of cosmetic damage | Control Lock | Y |
| Elements | Smoothtop | Burners/Elements | 5 | ||
|
Information Electric Supply: 240 V 60 Hz | Electric Rating: 240V (2 Wire + Grd), 60Hz, 11.4 kW | Branch Circuit Protection: 50 A | Connection Type: NEMA 14-50 P
| |||||
|
Power Output Front Left Element: 1.4 kW (Max) 2.2 kW (Boost) | Rear Left Element: 1.85 kW (Max) 3.0 kW (Boost) | Center Element: 2.3 kW (Max) 3.7 kW (Boost) | Front Right Element: 1.85 kW (Max) 3.0 kW (Boost) | Rear Right Element: 1.85 kW (Max) 3.0 kW (Boost)
| |||||
Specifications
Height
20.7 cm
Width
90.0 cm
Class Width
36"
Weight
40 kg
Depth
67.8 cm
Type
Rangetop
Series Name
Mercury
Fuel Type
Electric Induction
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Warranty
2 Year Warranty on parts and labor with the exception of cosmetic damage
Control Lock
Y
Elements
Smoothtop
Burners/Elements
5
Weight
45.36 kg
Information
Electric Supply: 240 V 60 Hz | Electric Rating: 240V (2 Wire + Grd), 60Hz, 11.4 kW | Branch Circuit Protection: 50 A | Connection Type: NEMA 14-50 P
Additional Information
Extra-large 35 1/2" W x 21 1/2" D ceramic glass surface with 5 induction burners and facia touch controls efficiently utilizes / transfers / captures 90% of energy generated compared to only 55% with that of a traditional gas burner | Hob display features: 3700w boost, residual heat indicator, 9 power settings, overheat detection and child safety lock. | 5 Hi-Fi Style Infinite Controls turn with stereo-like grace
Power Output
Front Left Element: 1.4 kW (Max) 2.2 kW (Boost) | Rear Left Element: 1.85 kW (Max) 3.0 kW (Boost) | Center Element: 2.3 kW (Max) 3.7 kW (Boost) | Front Right Element: 1.85 kW (Max) 3.0 kW (Boost) | Rear Right Element: 1.85 kW (Max) 3.0 kW (Boost)
