Description

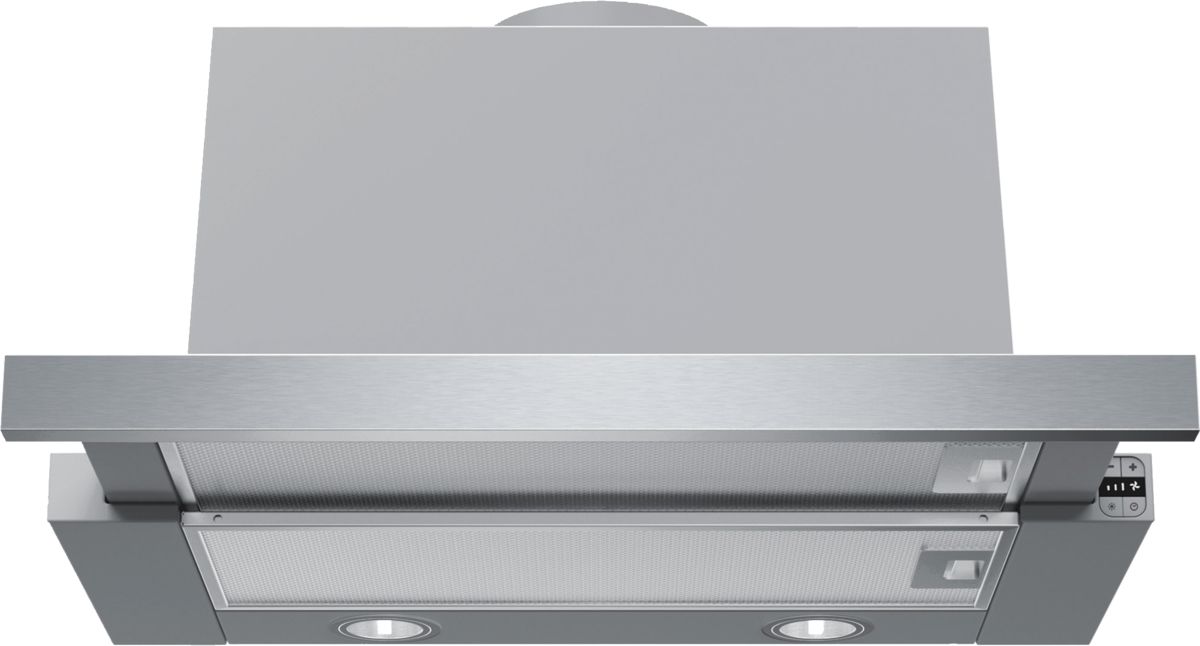

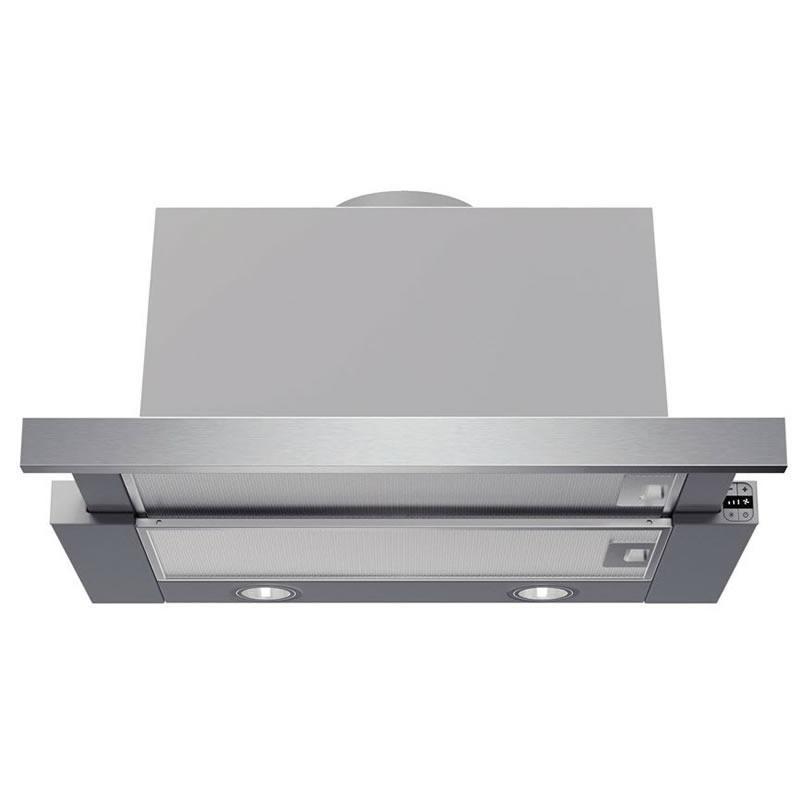

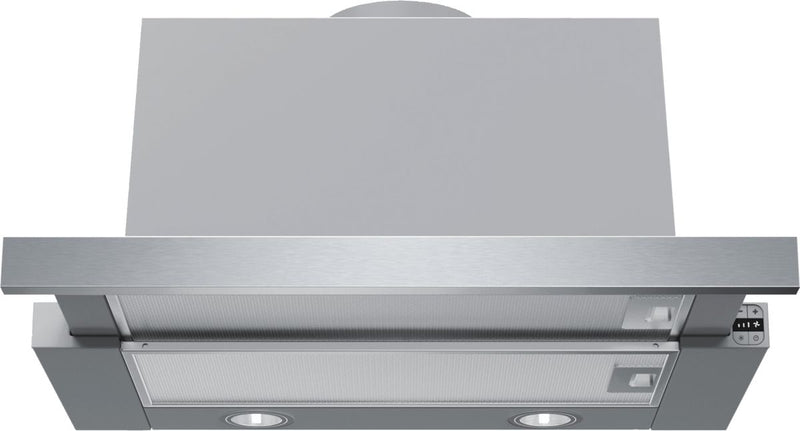

This sleek pull-out hood allows the user to close the hood when not in use and it installs flush with cabinetry.

Design

• Visor is fully extended during use.

Performance

• 2 Halogen Lights - 12 Volt, 20 Watt Max., G-4 Base
• 6" round duct at discharge.

Efficiency

• Absorb odors with charcoal replacement filters.

Convenience

• Convenient timer built into control from 1-60 minutes.
• Signal on LCD display will illuminate as a reminder to check filters for cleaning.
• Audible tone when select controls are pressed.



Features

• Touch Controls with LCD Display
• 400 CFM Integrated Blower Included
• Four Speed Touch Controls with LCD Display
• Dishwasher Safe Aluminum Mesh Filters
• Converts to Recirculation Mode with Accessory Kit(Separate Purchase Required)

Specifications

General
Type of appliance width (cm)	60 cm
Depth of the product	300 mm
Construction type	Built-in
Operating Mode	Convertable: Ducted / Recirculating
Maximum output recirculating air	391 m /h
Type of control	LED, Push buttons, Slide switch
Connectivity
Home Connect	No
Construction type
Diameter of air duct (mm)	150 mm
Color body	Stainless steel
Grease filter material	Washable aluminium
Grease filter type	Multilayer cassette
Installation Type	Built-in
Material	Stainless steel
Motor location	Integrated motor in hood body
Number of motors	1
Operating Mode	Convertable: Ducted / Recirculating
Typology	Pull-out
Connection
Watts (W)	280 W
Power cord length (cm)	116 cm
Frequency (Hz)	60 Hz
Total power of the lamps (W)	20; 20 W
Total output power of the motors	0 W
Volts (V)	120 V

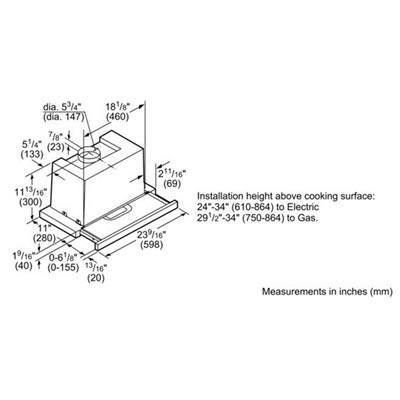

While we do our best to make sure our dimension data is accurate, errors sometimes do occur -- in all cases, dimensions should be confirmed by reviewing the manufacturer supplied dimension drawing and/or cut sheet.
