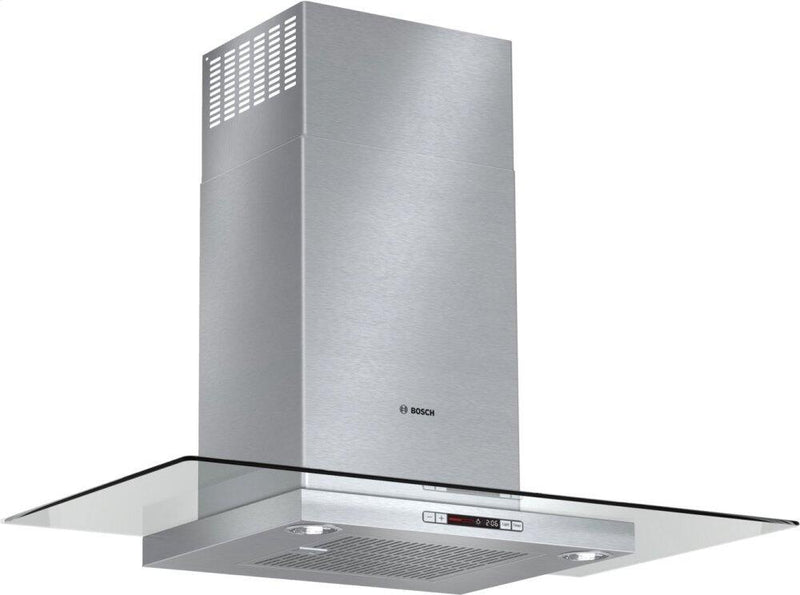

Bosch 36" glass canopy chimney hood Benchmark™ Series. This hood features 2 halogen lights, LCD display and washable filters.
INTEGRATED BLOWER 600 CFM600 cfm centrifugal integrated blower included
TOUCH CONTROLS WITH LCD DISPLAY
Four speed touch controls with lcd display
DISHWASHER SAFE
Dishwasher safe filters with stainless steel covers
Features
- Speeds:
4 - Additional Information:
• Touch Controls with LCD Display
• Dishwasher Safe Aluminum Mesh Filters
• 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base
• Blower will automatically turn on at high speed if excessive heat is sensed in the control area
• Absorb odors with charcoal replacement filters
• Convenient timer built into control from 1-60 minutes
• Signal on LCD display will illuminate as a reminder to check filters for cleaning
• Audible tone when select controls are pressed
• 4-stage speed settings
• Approval certificates: CSA, UL - Dishwasher-Proof Filters:
Y - Ducting Information:
• Convertable: Ducted / Recirculating
• Diameter of air duct (in) top: 8
Accessories
- Optional:
• Converts to Recirculation Mode with Accessory Kit (Sold separately)
• Duct Extension Accessory Kit Available for 9' to 12' Ceilings
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Additional documents(en)
Specifications
Dimensions
Width36"Height27"Depth19"
Finish: Stainless Steel
MPN: HCG56651UC
Product Details:
Style
ChimneyAirflow
600 CFMSeries Name
Benchmark®Manufacturer Color
Stainless SteelColor
Stainless SteelInstallation
Wall MountBlower Included
YSpeeds
4Additional Information
• Touch Controls with LCD Display
• Dishwasher Safe Aluminum Mesh Filters
• 2 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base
• Blower will automatically turn on at high speed if excessive heat is sensed in the control area
• Absorb odors with charcoal replacement filters
• Convenient timer built into control from 1-60 minutes
• Signal on LCD display will illuminate as a reminder to check filters for cleaning
• Audible tone when select controls are pressed
• 4-stage speed settings
• Approval certificates: CSA, ULDishwasher-Proof Filters
YDucting Information
• Convertable: Ducted / Recirculating
• Diameter of air duct (in) top: 8Optional
• Converts to Recirculation Mode with Accessory Kit (Sold separately)
• Duct Extension Accessory Kit Available for 9' to 12' CeilingsInformation
• 530 W
• 110 V
• 60 Hz
• Plug type: 120V-3 prongWidth
91.44 cmClass Width
36"Height
69.69 cmDepth
50.0 cmAdditional Dimensions
• Height of the chimney (in): 25 7/8" - 40 13/16"/25 7/8" - 44 3/4"
• Required distance above cooktops/ranges: 24"/27"Weight
25.40 kgWeight
28.58 kgWidth
101.57 cmWarranty
Limited 1 Year Parts and LaborUPC#
825225909064
UPC: 825225909064
Weight: 25.4
