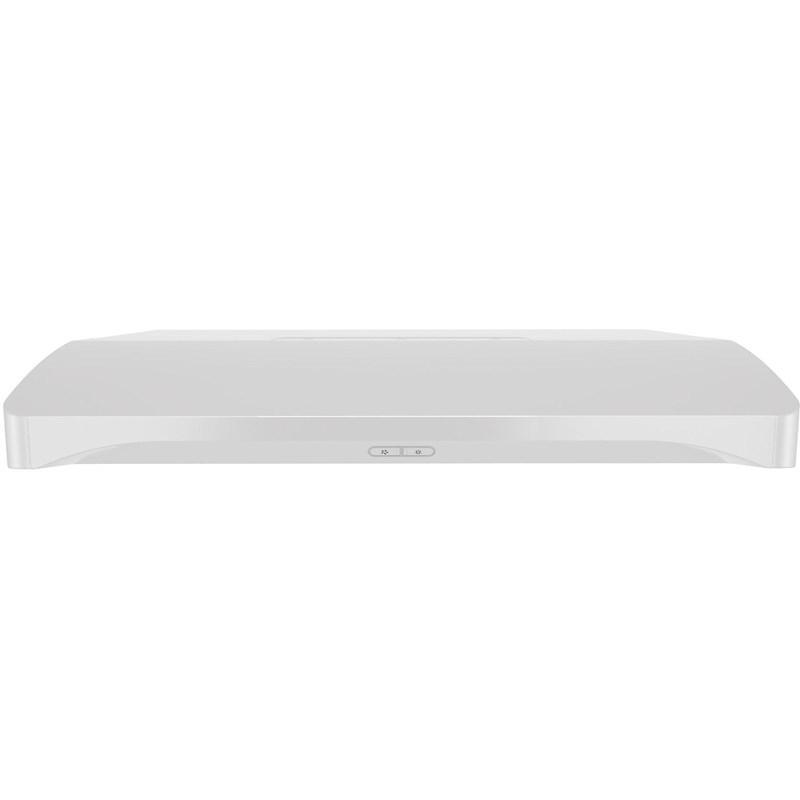

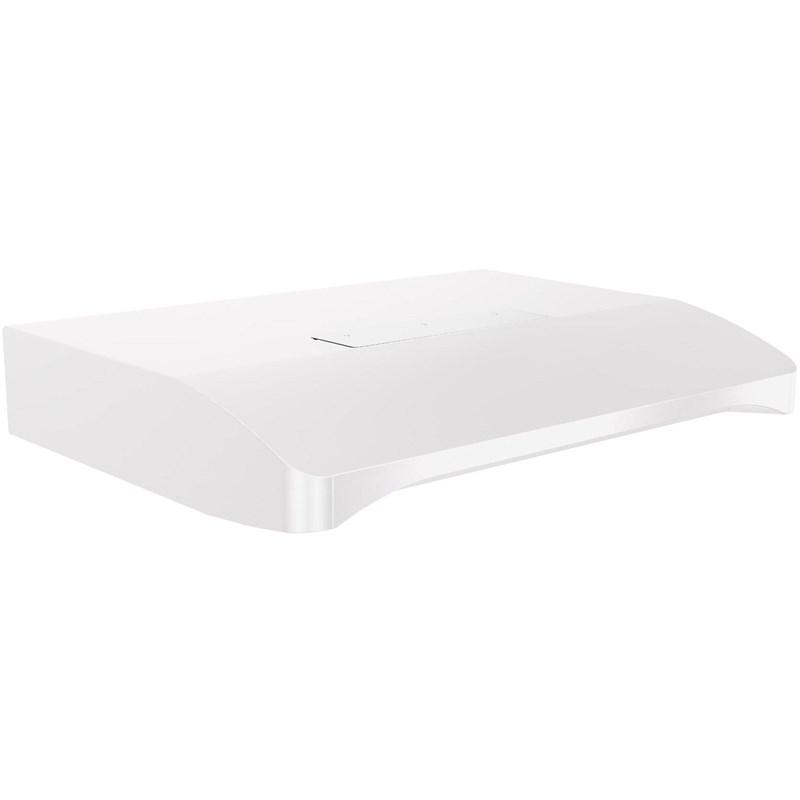

Broan® Elite Atla 2 Series 30" convertible under-cabinet range hood with a 300 CFM three-speed blower. The Captur™ system's advanced blower design features a forward-positioned centric inlet to remove smoke and odor faster. The sculpted lines of Alta™ bring an exciting choice to typical range hood shapes. Wide curves, tap-touch capacitive controls and LED lighting present a clean, striking design.

Supported by a 3-year warranty — illuminate evenly and are tested in cooking environments to ensure long life without dimming.

The Broan Captur™ exhaust ventilation system provides the fastest air flow management and filtration in its class for better performance quieter operation and less energy use.

Provide highly efficient grease removal and patterned cover provides a decorative complement to the hood design.

Two-bracket system that holds the hood for you while you make electrical and ducting connections. It's easy and fast - up to 50% less installation time.

Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface

Features

• Ducting Information:• 7" Round - Vertical
  • 3 1/4" x 10" - Horizontal/Vertical
• Additional Information:• Capacitive touch control type
  • Smooth, easy-to-clean surface
  • Non-ducted recirculation capable
  • Capture efficiency: 98.1
  • Integrated LED Module lighting
  • Light levels: 2
  • Smooth-flow blower wheel design
  • High flow deluxe micro-mesh filters
  • Filter clean reminder
  • Sones: 1.2
  • UL Listed
  • ADA Capable
• Wi-Fi:N
• Dishwasher-Proof Filters:Y
• Speeds:3
• Technologies:• Captur™ system
  • EZ1 brackets

Accessories

• Optional:• Replacement grease filter: HPFA3A30 (Type "C3")
  • Non-duct filter: HPF30 (Type "Xc")
  • 7" Round damper: BP87Q
  • ADA wiring kit: HAWRK3
  • Make-up air dampers: MD6TU, MD8TU and MD10TU
• Included:Light bulbs

Documents

• Product Sheet (en)
• Dimensions Guide (en)
• Owner's manual (en)
• Installation guide (en)
• Warranty Details (en)
• Additional documents(en)
