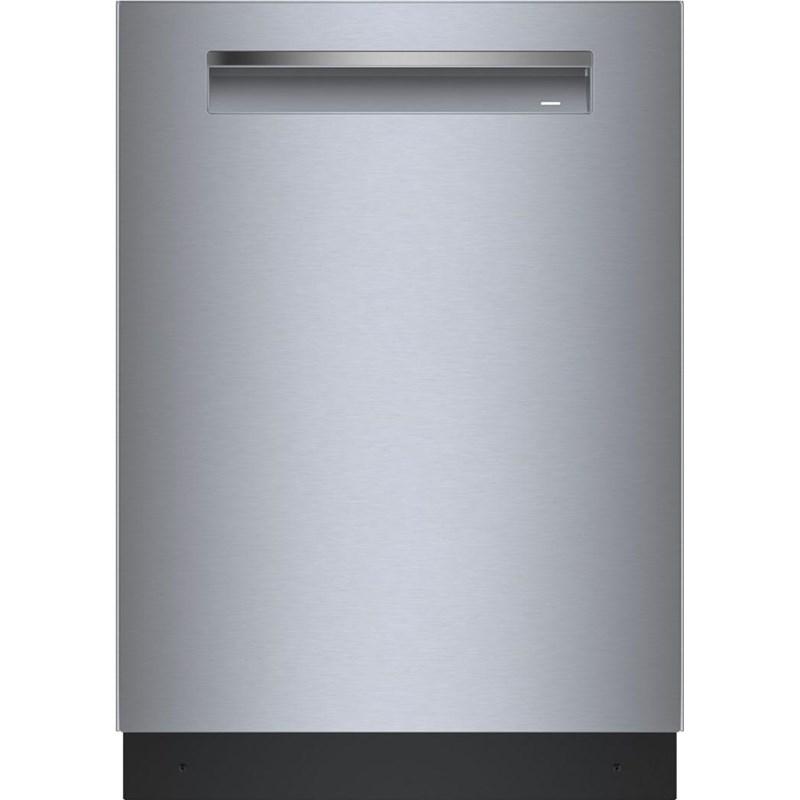

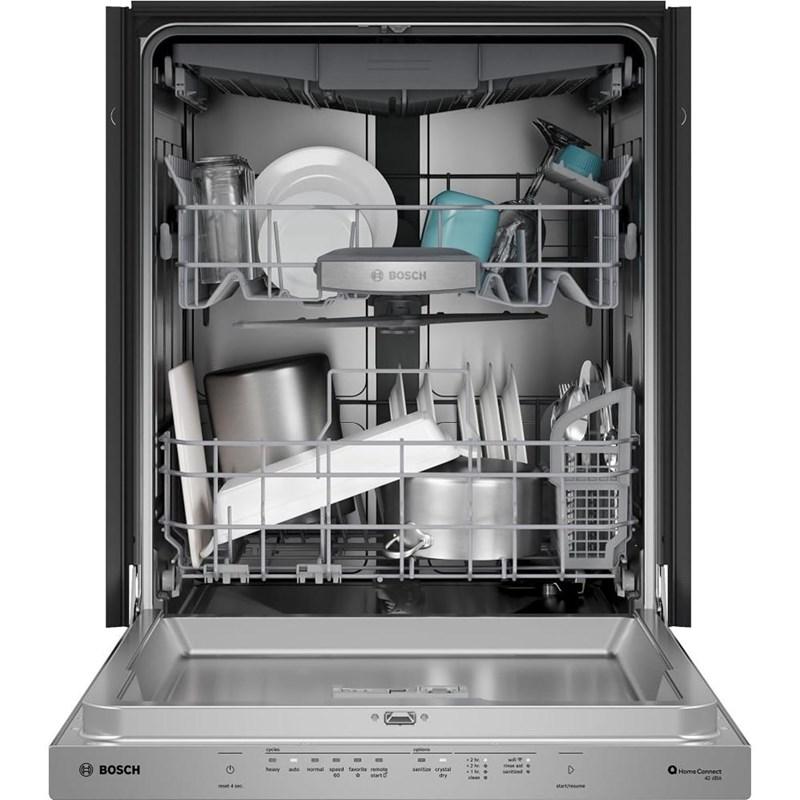

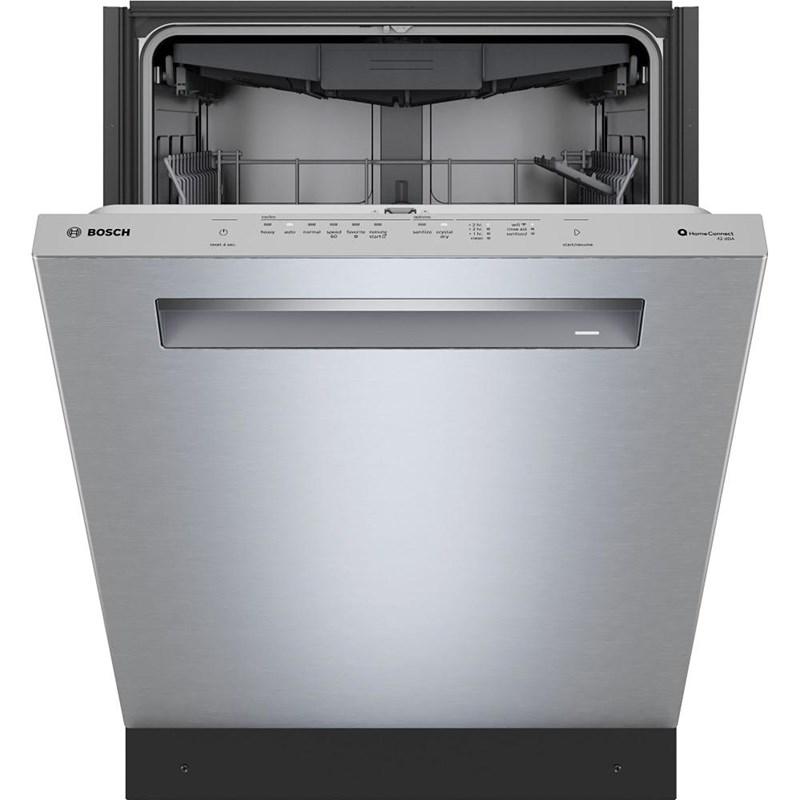

The Bosch 800 Series 24-inch Top Control Dishwasher delivers exceptional cleaning and drying performance with Patented CrystalDry™ technology, ensuring spotless, moisture-free dishes. With a 16 place setting capacity, it accommodates large loads effortlessly. Stay connected and in control with Wi-Fi-enabled Home Connect®, allowing remote monitoring and operation for ultimate convenience.
HOME CONNECT™.Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder – only with Home Connect.
INFOLIGHT®
InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready
Features
- Additional Information:
• Concealed water heating element
• Five-level wash
• Water usage per cycle: 3.2 gal - Technologies:
• PrecisionWash® System
• CrystalDry™ System
• RackMatic®
• Leak protection system: 24/7 AquaStop®
• Home Connect® (Wi-Fi enabled)
• InfoLight® - Wi-Fi:
Y - 3rd Rack System:
Y
Accessories
- Optional:
• Junction Box SMZPCJB1UC
• Junction Box + Supply Hose Kit SMZ3IN1UC
• Supply Hose Kit with Elbow SMZSH1ABUC
• Drain Hose Extension Kit SGZ1010UC
• Dishwasher Accessory Kit SMZ5000
• Flexible Silverware Basket SMZ4000UC
• Anti-Tarnish Silverware Cassette SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
Documents
Specifications
Energy Star Certified
YNSF® Certified
YType
Built-InColor
Stainless SteelSilence Rating
42 dBPlace Settings
16Manufacturer Color
Stainless SteelTub Material
Stainless SteelSeries Name
800 SeriesDepth (Without Handle)
60.2 cmClass Width
24"Height (Min.)
86.0 cmWidth
59.8 cmAdditional Dimensions
Required cutout size (HxWxD): 33 7/8" x 24" x 24"Weight
43.54 kgAdditional Information
• Concealed water heating element
• Five-level wash
• Water usage per cycle: 3.2 galTechnologies
• PrecisionWash® System
• CrystalDry™ System
• RackMatic®
• Leak protection system: 24/7 AquaStop®
• Home Connect® (Wi-Fi enabled)
• InfoLight®Wi-Fi
Y3rd Rack System
YOptional
• Junction Box SMZPCJB1UC
• Junction Box + Supply Hose Kit SMZ3IN1UC
• Supply Hose Kit with Elbow SMZSH1ABUC
• Drain Hose Extension Kit SGZ1010UC
• Dishwasher Accessory Kit SMZ5000
• Flexible Silverware Basket SMZ4000UC
• Anti-Tarnish Silverware Cassette SMZ5002UC
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UCInformation
• Total annual energy consumption: 240 kWh
• 1440 W
• 12 A
• 120 V
• Power cord full length: 67"
• Power cord install length from edge of unit when facing the door: Left – 45", Right – 56"Options

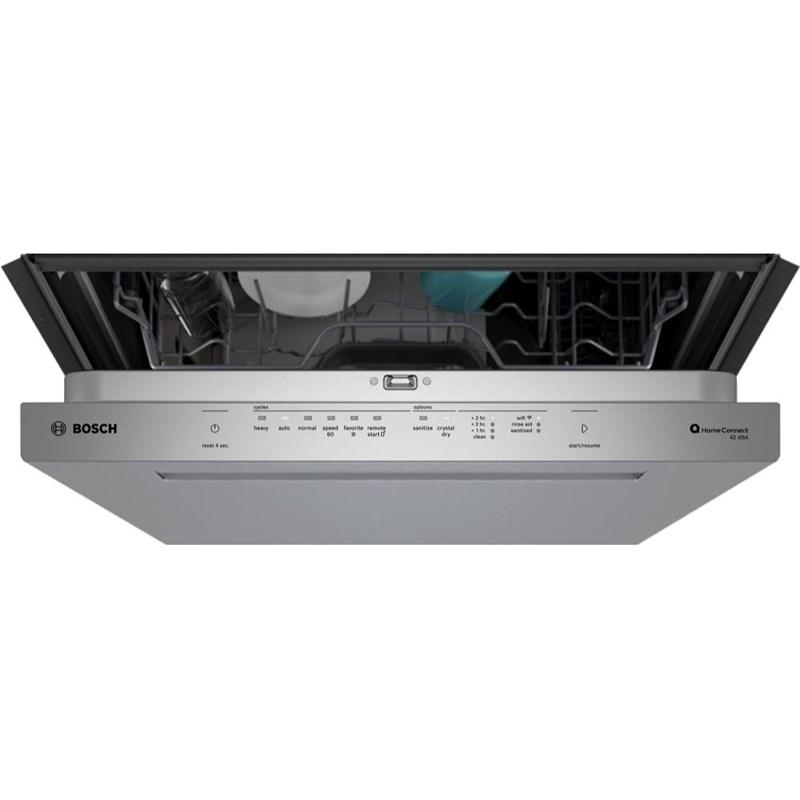

• Options (control panel): 3 (Sanitize, Remote Start, Crystal Dry)
• Additional options (in Home Connect®): 2 (Half Load, Eco)Wash Cycles
• Wash cycles (control panel): 5 (Heavy, Auto, Normal, Speed60 (1hr Wash), Favorite)
• Additional wash cycles (in Home Connect®): 3 (Delicate, Rinse, MachineCare)Number of Cycles
8
