About this Product
Café 24-inch Built-In Smart Top Control Dishwasher. Elevate your kitchen with this innovative dishwasher that combines style and intelligence. Equipped with a stainless steel tub for durability and interior lighting for added convenience, this dishwasher goes beyond the basics. The smart features allow you to control and monitor your dishwasher from anywhere using your smartphone or voice commands.
Features
- LUMINOUS LED LIGHTS — Shine bright with uniform LED lighting throughout this well lit dishwasher for simplified loading and unloading.
- 39 DBA DISHWASHER — Enjoy a peaceful kitchen while delivering a powerful wash thanks to this super silent 39 dBA dishwasher.

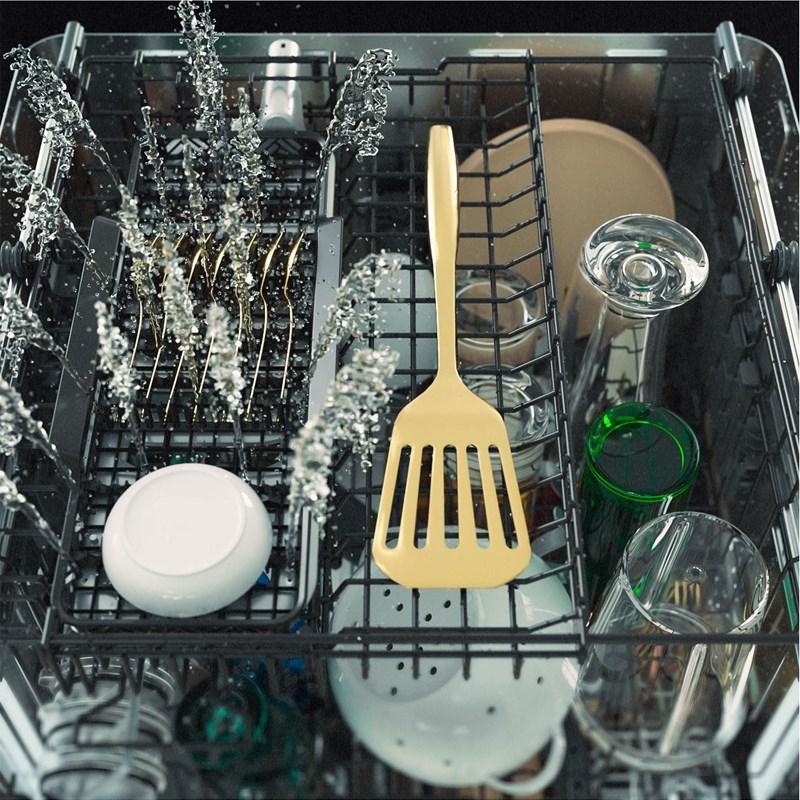

- CUSTOMFIT TOP RACK WITH ULTRA WASH. — Load your way in this dishwasher with a customizable top rack. The CustomFit Top Rack can be configured to maximize flexibility. In addition, the UltraWash Zone uses powerful jets to target stuck-on food on silverware, cooking utensils and ramekins.
- CUSTOMFIT BASKET WITH ULTRA WASH — Load more than just silverware in this flexible basket with dedicated wash jets below. The CustomFit Basket holds all your silverware, stemware and reusable straws, so items that were hand wash before can safely be washed in the dishwasher.
- CUSTOMFIT LID CADDY — Cup lids and blender blades can easily dry thanks to the CustomFit Lid Caddy. It is designed to hold items at the perfect position for cleaning and restricts water from pooling, so pieces come out clean and dry after every wash.
- SMART FEATURES POWERED BY SMARTHQ™ — Built-in WiFi and the SmartHQ™ app make it easy to control and monitor your smart dishwasher from anywhere. You can also conveniently access the latest features like Favorites, which allows you to access your favorite cycles with a single button.
Documents
Highlights
Cycle Countdown with Bi-Color LED Status Light on door | Cycle Progress Indicators: Clean/Sanitized/Smart | Last Cycle Memory | Audible End-of-Cycle Signal | Dual Convection Ultra Dry | Ultra/Normal/Off | Fan Assist Dry | Interior Lighting: 4 - Café Expression | Latch: Pull with Handle | Leveling System: 3 Point Leveling | Racking Material: Nylon | Showroom Power Mode | Top Rack/3rd Rack: Washing, Sliding 3rd Rack w/ removable caddy | Lower Rack: | Ball-Tip Tines | 1/2 fixed tines, 1/2 fold down tines | 1 Rack handle | Dispenser: | Rinse Aid with Indicator and Adjustment | Electronic Low Rinse Aid Sensor | Rack Features: | Lid Manager | Ball-Tipped Tines | Adjustable Upper Rack | Full Extension Slides - Upper | Cafe Flex Silverware Basket | Upper Rack: | Premium Height Adjustable | Ball-Tip Tines | 1/2 fixed tines, 1/2 fold-down tines | Fixed tines with Bottle Jets | 1 Rack handle | Smooth Glide Upper Rack | Lid Manager | Wash Arms: | 4 Wash Levels | Lower | Middle | Upper | 3rd Rack | Bottle Jets | Deep Clean Silverware Jets | Wash System Features: | Variable Speed Dual Pumps and Motors | Bottle Jets (4) | Middle Wash Arm | Lower Wash Arm | Automatic Temperature Control | Drain Pump | Hard Food Disposer with removable filter | Deep Clean Silverware Jets | 90+ Spray Jet Wash System | Side Jets | Hidden Heater | Automatic HotStart
Specifications
| Energy Star Certified | Y | UL Listed | Y | Type | Built-In |
| Silence Rating | 39 dB | Tub Material | Stainless Steel | Place Settings | 16 |
| Series Name | 800 Series | Manufacturer Color | Matte White | Color | White |
| Number of Cycles | 6 | Control Lock | Y | Filtration System | Y |
| Delay Start Information | 1-12 Hours | 3rd Rack System | Y | Delay Start | Y |
| Wi-Fi | Y | Width | 60.32 cm | Height (Min.) | 86.36 cm |
| Depth (Without Handle) | 60.96 cm | Weight | 56.25 kg | Additional Dimensions | Height w/Legs Extended - Maximum Height: 34.625 in |
| Depth (Including Handle) | 60.96 cm | Class Width | 24" | UPC# | 084691914648 |
| Warranty | Limited 1 Year Parts and Labor | Height | 89.66 cm | Depth | 66.29 cm |
| Included | CXADTH1PVBZ: Brushed Bronze Kit - 1 handle | ||||
|
Information OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
| |||||
|
Wash Cycles Auto Wash | Cookware | Normal | Gentle | Express | Cascade Platinum Plus (on app)
| |||||
|
Options Delay Start 1-12 Hr. | Bottle Wash (on app) | Wash Zones/Half Load (on app) | Favorites (on app) | WiFi/Remote Enabled | Sabbath Mode | Start/Cancel | Favorites | Presoak + Sanitize (Certified to NSF Standard 184) | Hi-Temp Wash | Silverware Wash | Heated Dry Off | Normal Dry | Ultra Dry | Lock Controls
| |||||
|
Technologies 100% Filtration with Hard Food Disposer and Removable Filter | Built-in Wi-Fi Connect | Active Flood Protect | Leak Defense with Active Flood Protect | Assist/WiFI/Remote Enabled
| |||||
|
Information 120 V | 60 Hz | 10.2 A
| |||||
|
Optional CXADTH1PVSS: Brushed Stainless Steel Kit - 1 handle | CXADTH1PVBT: Brushed Black Kit - 1 handle | CXADTH1PVCU: Brushed Copper Kit - 1 handle | CXADTH1PVFB: Flat Black Kit - 1 handle | CXCE1HKPMCG: Brushed Brass Kit - 6 knobs
| |||||
Accessories
• CXADTH1PVBT: Brushed Black Kit - 1 handle
• CXADTH1PVCU: Brushed Copper Kit - 1 handle
• CXADTH1PVFB: Flat Black Kit - 1 handle
• CXCE1HKPMCG: Brushed Brass Kit - 6 knobs
Specifications
Energy Star Certified
Y
UL Listed
Y
Type
Built-In
Silence Rating
39 dB
Tub Material
Stainless Steel
Place Settings
16
Series Name
800 Series
Manufacturer Color
Matte White
Color
White
Number of Cycles
6
Control Lock
Y
Filtration System
Y
Delay Start Information
1-12 Hours
3rd Rack System
Y
Delay Start
Y
Wi-Fi
Y
Width
60.32 cm
Height (Min.)
86.36 cm
Depth (Without Handle)
60.96 cm
Weight
56.25 kg
Depth (Including Handle)
60.96 cm
Class Width
24"
Warranty
Limited 1 Year Parts and Labor
Weight
62.14 kg
Width
62.23 cm
Height
89.66 cm
Depth
66.29 cm
Included
CXADTH1PVBZ: Brushed Bronze Kit - 1 handle
Information
OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately
Wash Cycles
Auto Wash | Cookware | Normal | Gentle | Express | Cascade Platinum Plus (on app)
Options
Delay Start 1-12 Hr. | Bottle Wash (on app) | Wash Zones/Half Load (on app) | Favorites (on app) | WiFi/Remote Enabled | Sabbath Mode | Start/Cancel | Favorites | Presoak + Sanitize (Certified to NSF Standard 184) | Hi-Temp Wash | Silverware Wash | Heated Dry Off | Normal Dry | Ultra Dry | Lock Controls
Additional Information
Cycle Countdown with Bi-Color LED Status Light on door | Cycle Progress Indicators: Clean/Sanitized/Smart | Last Cycle Memory | Audible End-of-Cycle Signal | Dual Convection Ultra Dry | Ultra/Normal/Off | Fan Assist Dry | Interior Lighting: 4 - Café Expression | Latch: Pull with Handle | Leveling System: 3 Point Leveling | Racking Material: Nylon | Showroom Power Mode | Top Rack/3rd Rack: Washing, Sliding 3rd Rack w/ removable caddy | Lower Rack: | Ball-Tip Tines | 1/2 fixed tines, 1/2 fold down tines | 1 Rack handle | Dispenser: | Rinse Aid with Indicator and Adjustment | Electronic Low Rinse Aid Sensor | Rack Features: | Lid Manager | Ball-Tipped Tines | Adjustable Upper Rack | Full Extension Slides - Upper | Cafe Flex Silverware Basket | Upper Rack: | Premium Height Adjustable | Ball-Tip Tines | 1/2 fixed tines, 1/2 fold-down tines | Fixed tines with Bottle Jets | 1 Rack handle | Smooth Glide Upper Rack | Lid Manager | Wash Arms: | 4 Wash Levels | Lower | Middle | Upper | 3rd Rack | Bottle Jets | Deep Clean Silverware Jets | Wash System Features: | Variable Speed Dual Pumps and Motors | Bottle Jets (4) | Middle Wash Arm | Lower Wash Arm | Automatic Temperature Control | Drain Pump | Hard Food Disposer with removable filter | Deep Clean Silverware Jets | 90+ Spray Jet Wash System | Side Jets | Hidden Heater | Automatic HotStart
Technologies
100% Filtration with Hard Food Disposer and Removable Filter | Built-in Wi-Fi Connect | Active Flood Protect | Leak Defense with Active Flood Protect | Assist/WiFI/Remote Enabled
Information
120 V | 60 Hz | 10.2 A
Additional Dimensions
Height w/Legs Extended - Maximum Height: 34.625 in
Optional
CXADTH1PVSS: Brushed Stainless Steel Kit - 1 handle | CXADTH1PVBT: Brushed Black Kit - 1 handle | CXADTH1PVCU: Brushed Copper Kit - 1 handle | CXADTH1PVFB: Flat Black Kit - 1 handle | CXCE1HKPMCG: Brushed Brass Kit - 6 knobs
