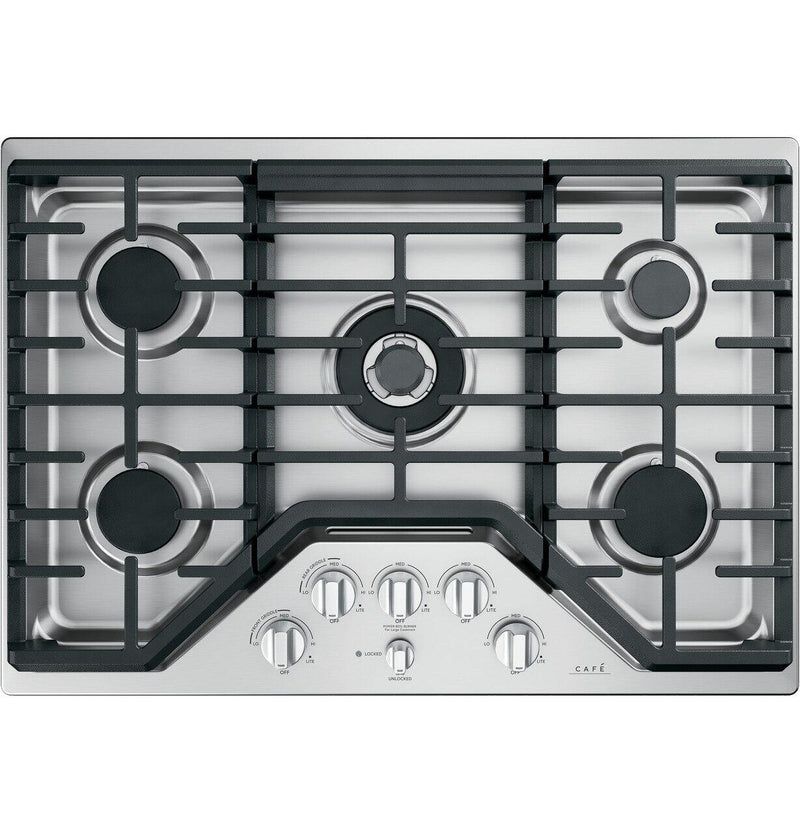

Always have the space you need to whip up your specialties thanks to this Café™ 30" built-in gas cooktop with five sealed burners. Continuous, cast-iron burner grates let you easily move heavy cookware across the surface without worry. Get the most from your cooktop and eliminate the need for extra cookware with the extra-large, integrated cooktop griddle.
20,000 BTU TRIPLE RING BURNERSear, fry and sautee on a 20,000 BTU triple ring burner.
EXTRA-LARGE, INTEGRATED COOKTOP GRIDDLE
Get the most from your cooktop and eliminate the need for extra cookware with an extra-large, integrated cooktop griddle.
SEALED COOKTOP BURNERS
Keep your kitchen sparkling, even when there's a spill with sealed cooktop burners that contain messes for easy cleanup.
Features
- Digital Display:N
- Downdraft Ventilation:N
- Additional Information:Electronic ignition system
- Clock:N
- Control Lock:Y
Accessories
- Included:• CXCG1K0PMSS: Brushed Stainless Steel Kit - 6 knobs
 • Stainless steel cleaner
 • Cast iron griddle: JXGRIDL230
 • LP conversion kit
- Optional:• CXCG1K0PMBZ: Brushed Bronze Kit - 6 knobs
 • CXCG1K0PMBT: Brushed Black Kit - 6 knobs
 • CXCG1K0PMCU: Brushed Copper Kit - 6 knobs
 • CXCG1K0PMFB: Flat Black Kit - 6 knobs
 • CXADTH1PMCG : Brushed Brass Kit - 1 handle
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
Specifications
- Surface FeaturesHeavy cast, dishwasher safe continuous edge-to-edge matte black cooktop burner grates
- BurnersSealed
- Burners/Elements5
- Power Output• Left front: 9,500 BTU
 • Left rear: 9,500 BTU
 • Right front: 12,000 BTU
 • Right rear: 5,000 BTU
 • Center: 20,000 BTU Tri-ring Power Boil
- Information• 120V
 • 60Hz
 • 5A
- Height13.97 cm
- Width76.20 cm
- Class Width30"
- Additional DimensionsCutout dimensions (width x depth): 28-1/2" x 19-5/8"
- Weight20.41 kg
- Depth53.34 cm
- TypeBuilt-In
- Fuel TypeNatural Gas
- Manufacturer ColorStainless Steel
- ColorStainless Steel
- ADA CompliantY
- Included• CXCG1K0PMSS: Brushed Stainless Steel Kit - 6 knobs
 • Stainless steel cleaner
 • Cast iron griddle: JXGRIDL230
 • LP conversion kit
- Optional• CXCG1K0PMBZ: Brushed Bronze Kit - 6 knobs
 • CXCG1K0PMBT: Brushed Black Kit - 6 knobs
 • CXCG1K0PMCU: Brushed Copper Kit - 6 knobs
 • CXCG1K0PMFB: Flat Black Kit - 6 knobs
 • CXADTH1PMCG : Brushed Brass Kit - 1 handle
- Width69.34 cm
- Height27.94 cm
- Depth85.09 cm
- Weight23.13 kg
- Warranty• Limited 1-year for entire appliance on parts and labor
 • See written warranty for full details
- Digital DisplayN
- Downdraft VentilationN
- Additional InformationElectronic ignition system
- ClockN
- Control LockY
- UPC#084691834489
