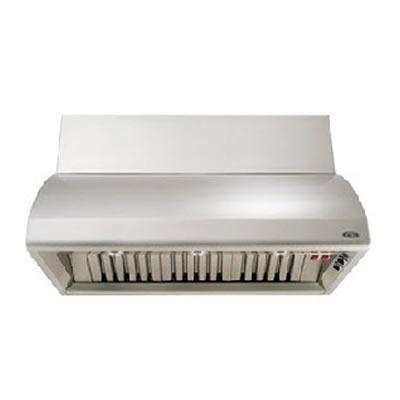

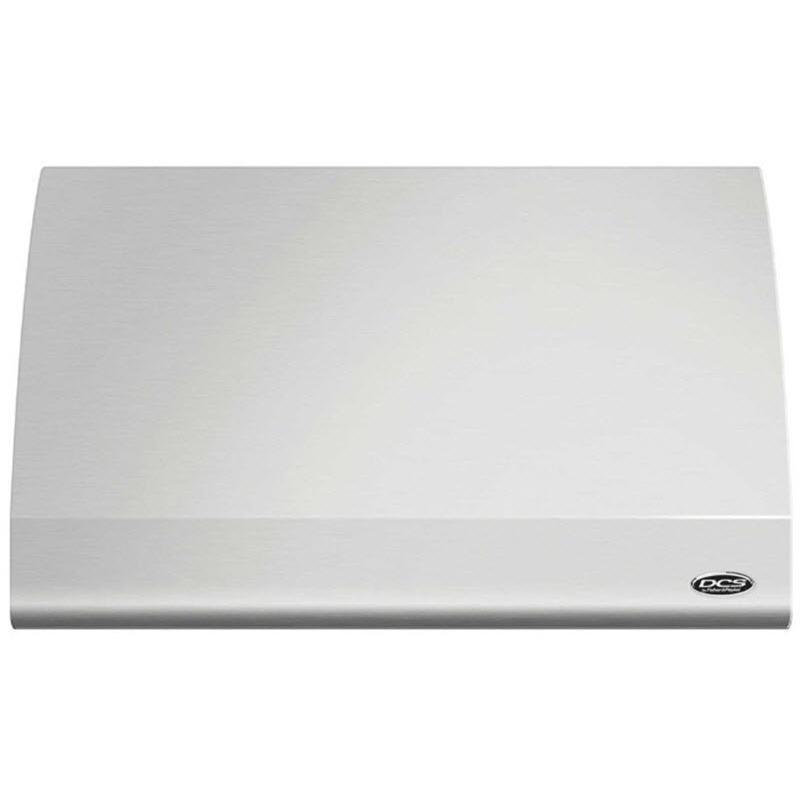

DCS by Fisher&Paykel 36" vent hood-wall mount trad. Brushed stainless steel finish. All professional chefs know where there is smoke there is flavor. But there is also grease, steam and odors you do not want your guest to smell, or to become part of your drapes. This vent hood guarantees a much more enjoyable cooking experience.

For a more enjoyable cooking experience, this DCS vent hood successfully eliminates unwanted grease, smoke and odors instantly with four fan speeds up to a powerful 1200 CFM.

The high quality finish, premium grade stainless steel and robust product design combine to deliver a well built and effective wall hood, to match your pro-style kitchen.

Wall mount hoods use stainless steel baffle filters to efficiently capture grease.

The high quality stainless steel baffle filters are easy to remove and dishwasher safe.

Two-level halogen lighting effectively illuminates the cooking surface. Wall mount hoods are designed for easy installation of the optional infrared warming light accessory.

Features

• Speeds:4
• Ducting Information:• 8" Round
  • Maximum duct length: 40 ft
• Dishwasher-Proof Filters:Y
• Additional Information:• 2 level halogen lighting (50 watts, 120V)
  • Stainless steel baffles and grease filter trays
  • Vertical discharge only
  • Sones rating: 9

Accessories

• Optional:• Vertical or horizontal ducting
  • IR30 – Kit with single 175 W heat lamp
  • VDC1230 – 12" Duct cover
  • VDC630 – 6" Duct cover
  • BGS-3030 – 29-7/8" W x 28-1/8" H with two warming shelves
  • BGS-1230 – 29-7/8" W x 10-1/8" H
• Included:• Duct transition
  • Inline damper

Documents

• Product Sheet (en)
• Dimensions Guide (en)
• Owner's manual (en)
• Installation guide (en)
