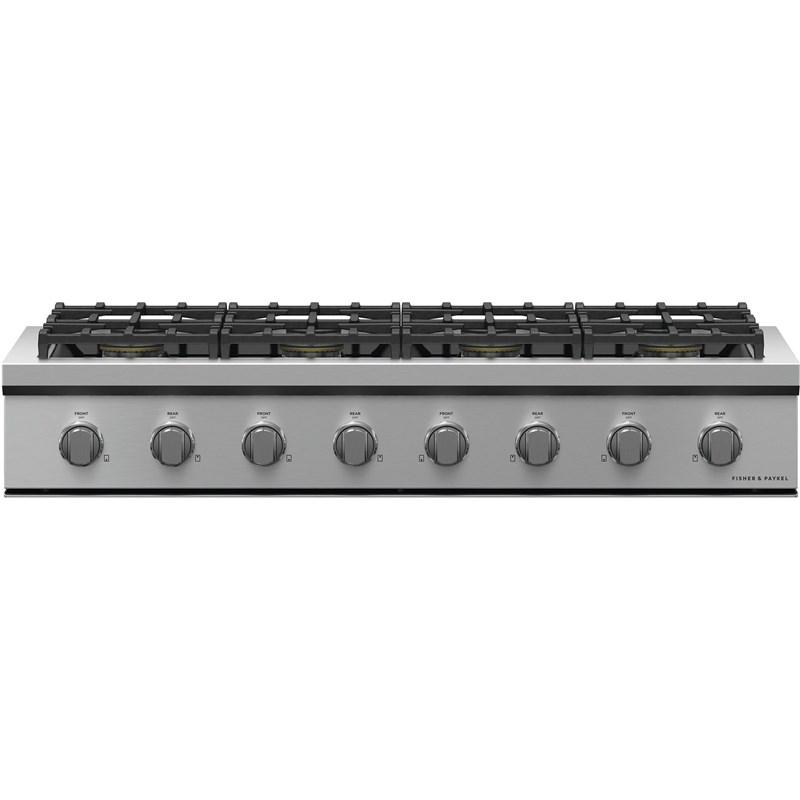

Fisher & Paykel 48-inch gas rangetop with 8 sealed burners. Continuous surface grates designed for pots and pans to move safely across the cooktop.
COOKTOP POWER - SEALED DUAL FLOW BURNERS™Sealed Dual Flow Burners™ deliver rangetop power up to 22,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
GAS COOKTOP CONTROL
From the highest to the lowest temperatures you get total control. A precise full surface simmer is delivered across all burners.
COOKING FLEXIBILITY - CONTINUOUS SURFACE
The continuous surface grates are designed for pots and pans to move safely across the rangetop. The deep-platform style grates provide full coverage so heat goes directly onto the pot, for a faster boil.
EASY TO CLEAN (GAS COOKTOPS)
The durable, sealed cooking surface and stainless steel finish with dishwasher-safe grates make cleaning up easy.
INFORMATION AT A GLANCE - LED HALO
LED halo control dials provide information at a glance and assist in alerting you if any burners are accidentally left on.
RANGETOP - DESIGN QUALITY
This rangetop is built to last with craftsmanship in every detail, featuring real stainless steel, cast-iron trivets, and titanium coated dials.
Features
- Technologies:
Sealed Dual Flow Burners™ - Additional Information:
• Simmer on All Burners: 140°F
• Titanium Coated, Illuminated Metal Dials
Accessories
- Optional:
• Combustible situation BGCV2-3048H
• Non combustible situation BGCV2-3048 / BGCV2-1248
• Pro hood HCB48-12_N
Documents
- Product Sheet (en)
- Dimensions Guide (en)
- Owner's manual (en)
- Installation guide (en)
- Warranty Details (en)
Specifications
Information
• 120 V
• 60 Hz
• 15 AHeight
21.11 cmWidth
121.6 cmClass Width
48" or MoreDepth
71.12 cmType
RangetopSeries Name
Series 7 ProfessionalFuel Type
Natural GasManufacturer Color
Stainless SteelColor
Stainless SteelOptional
• Combustible situation BGCV2-3048H
• Non combustible situation BGCV2-3048 / BGCV2-1248
• Pro hood HCB48-12_NWarranty
2 Years Parts and LaborTechnologies
Sealed Dual Flow Burners™Additional Information
• Simmer on All Burners: 140°F
• Titanium Coated, Illuminated Metal DialsUPC#
822843820085Burners
SealedBurners/Elements
8Power Output
• Total Power: 158,000 BTU
• Max Burner Power: 23,500 BTU
• Power Back Centre Burner: 18,500 BTU
• Power Back Centre (2) Burners: 18,500 BTU
• Power Back Left Burner: 18,500 BTU
• Power Back Right Burner: 18,500 BTU
• Power Front Centre Burner: 18,500 BTU
• Power Front Centre (2) Burners: 18,500 BTU
• Power Front Left Burner: 23,500 BTU
• Power Front Right Burner: 23,500 BTUSabbath Mode
Y
