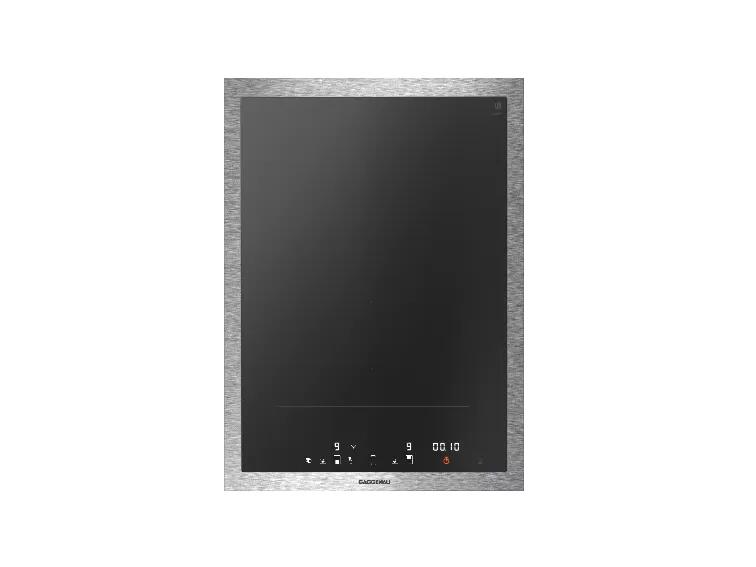

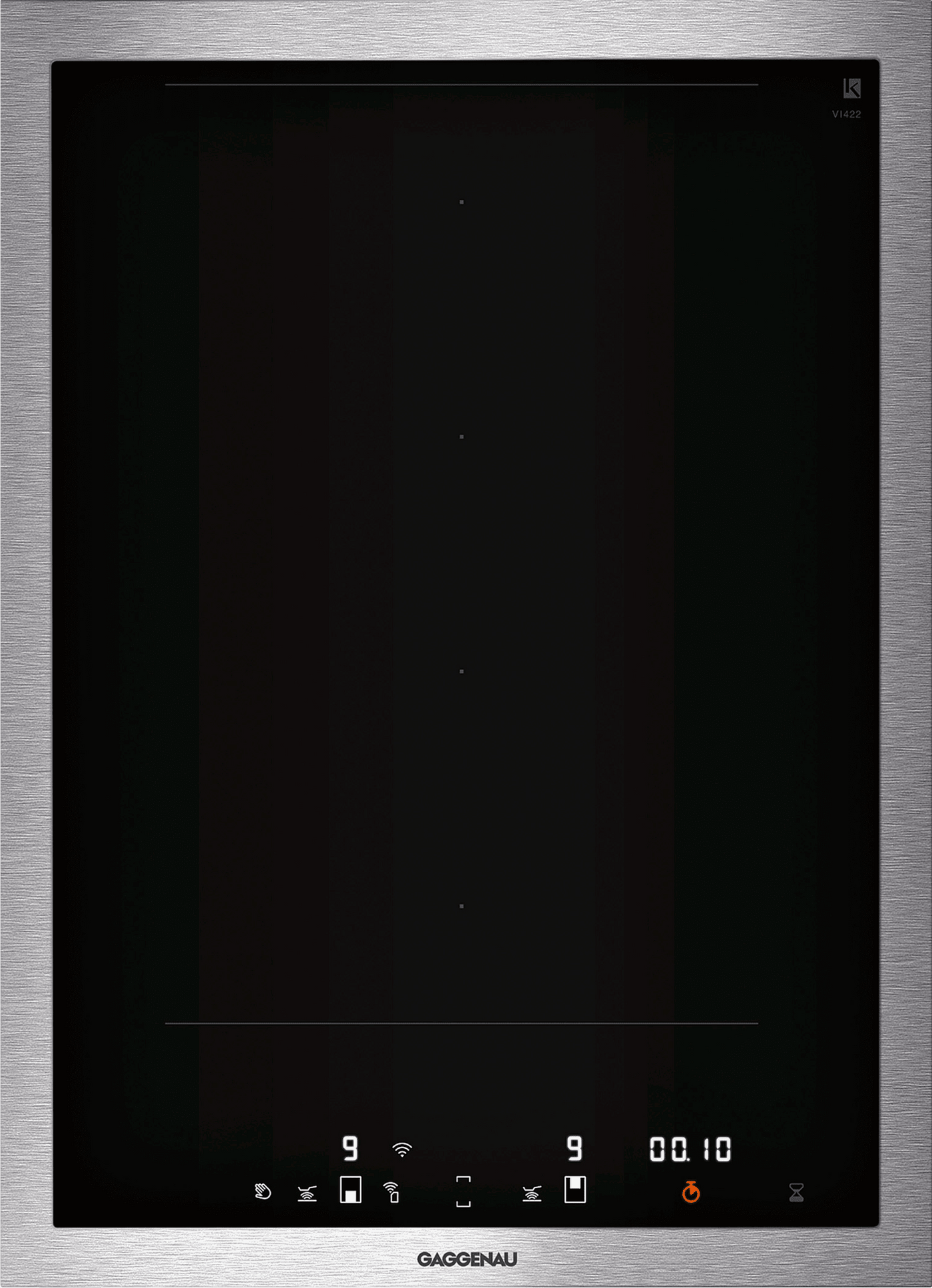

Gaggenau Cooktop-VI422613

Sku: 90G53633
The product images shown may represent the range of product, or be for illustration purposes only and may not be an exact representation of the product.
 Contact Us to Purchase







Payment Options:

  • visa
  • american express
  • master
Maximum quantity available reached.

Cooking zones

  • 2 flex induction cooking areas. Small area: 7 1/2" x 9" (2200 W, with booster 3700 W), Large area: 15" x 9" (3300 W, with booster 3700 W).
Operation

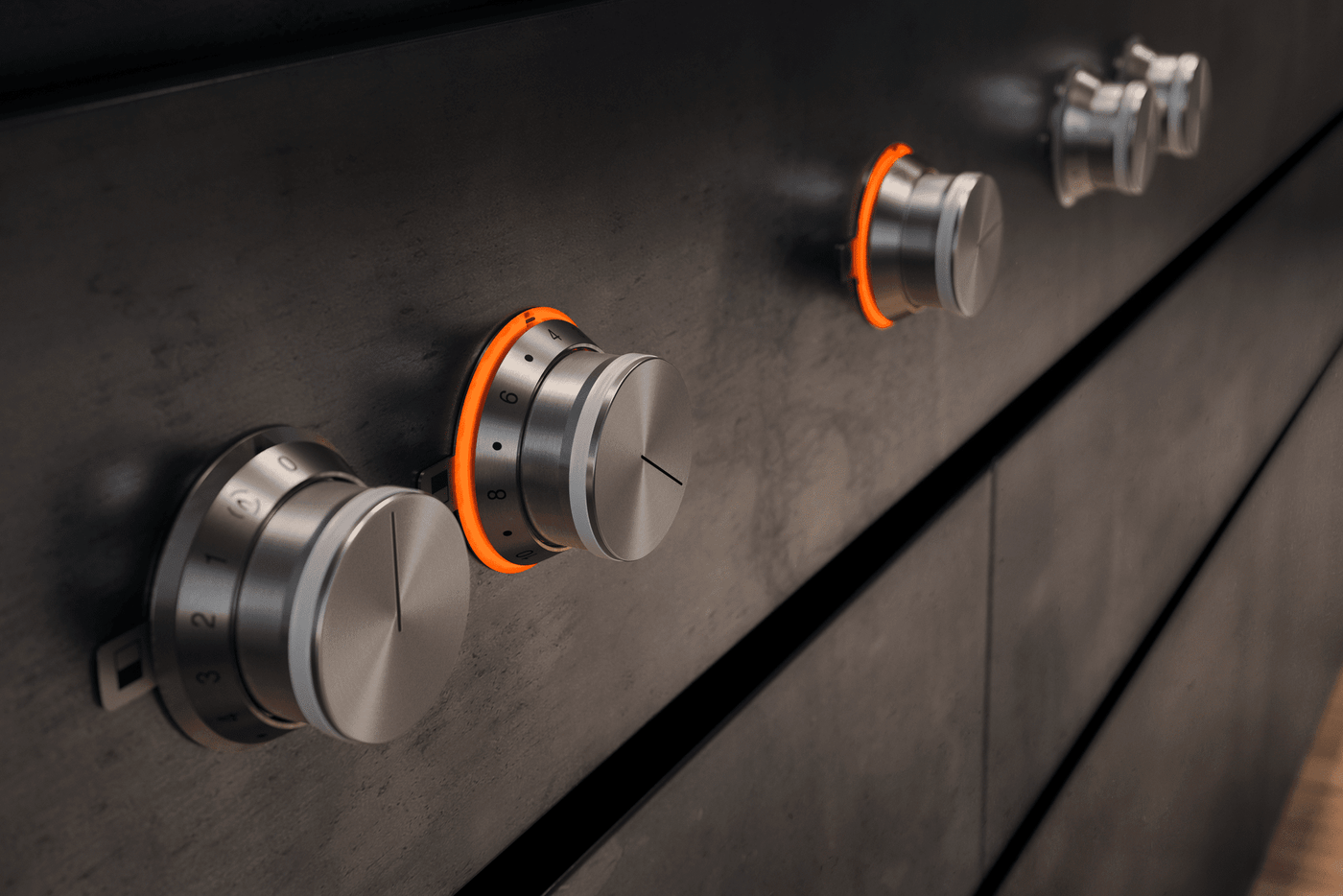

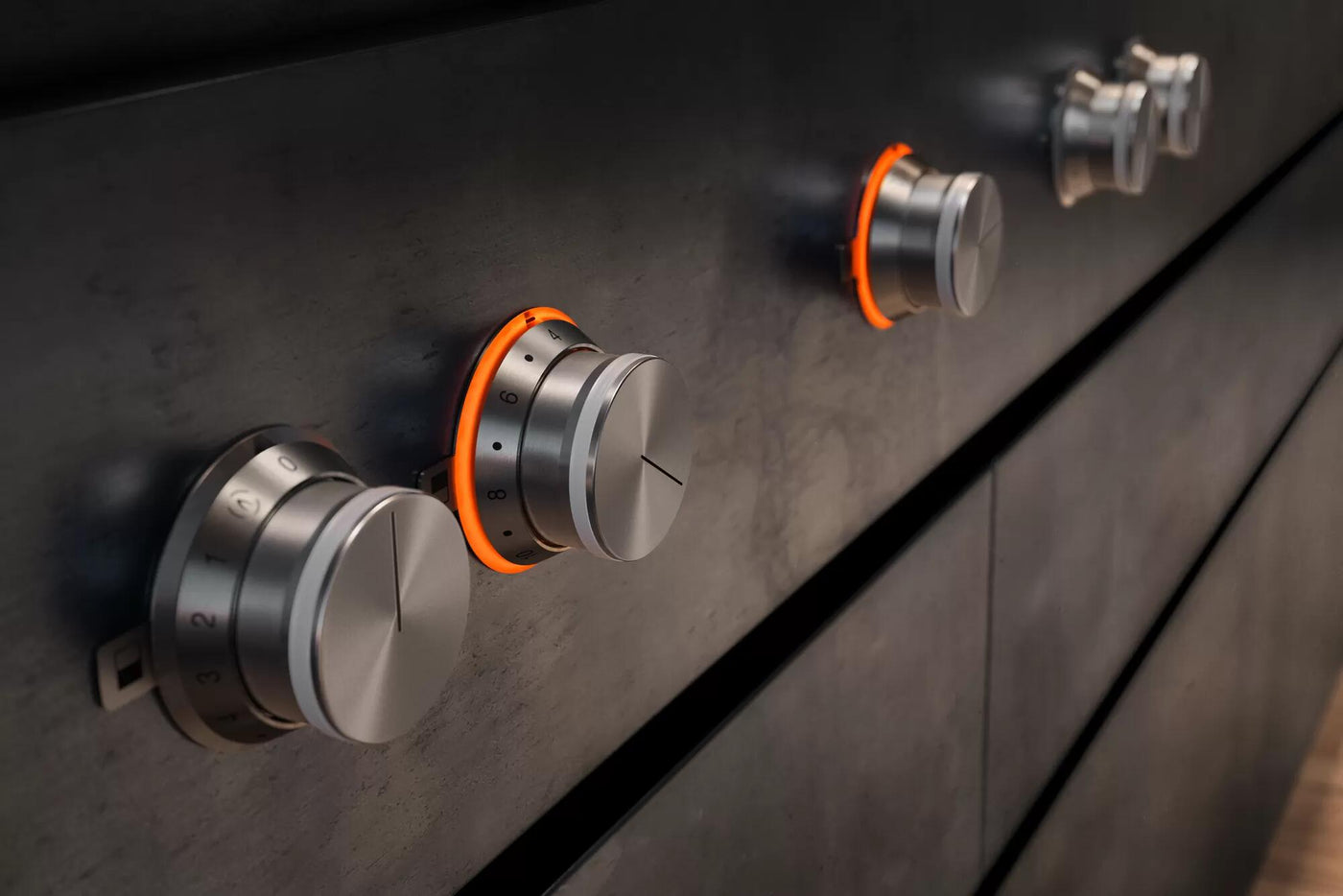

  • Control knobs with illuminated
    ring, cooking zone and output level
    markings.
  • Electronic power control in 17 output levels.
  • User friendly control with bi-coloured display (white / orange).
Features
  • Flex function for rectangular cooking areas.
  • Frying sensor function.
  • Booster function.
  • Stopwatch.
  • Short-term timer.
  • Options menu.
  • Power management.
  • Cooktop-based ventilation control (with suitable hood).
  • Home network integration for digital services (Home Connect) wireless via WiFi.
  • The use of the Home Connect functionality depends on the Home Connect services, which are not available in every country. For further information please check: home-connect.com.
Safety
  • Operation indicator.
  • Pot detection.
  • Digital 2 stage residual heat indicator
  • Safety shut-off.
Planning notes
  • Depending on the type of installation - surface- or flush-mounted, with or without cover - the specific location of the cut-out and the control knob positions may vary.
  • The horizontal positioning of the knobs may be aligned with the specific cooking areas.
  • The adjacent drawing "Installation of the control knob" must be observed if the panel is more than 1" thick. There must be a recess at the rear for proper electronic knob installation.
  • If combining several Vario appliances of the 400 series, a connection strip VA 420 must be placed between the appliances. Depending on the type of installation, the corresponding connection strip must be provided.
  • The bearing capacity and stability,
    in the case of thin countertops in
    particular, must be supported using
    suitable substructures. Take into
    account the appliance weight and
    additional loads.
  • Additional instructions for flush mounting:
  • Flush installation is possible in countertops made of stone, synthetics or solid wood. Heat resistance and watertight sealing of the edges must be observed. For other materials, please consult with your countertop manufacturer.
  • The groove must be continuous and even, so that uniform placing of the appliance on the gasket is ensured. Do not use discontinuous lining.
  • The joint width may vary due to size tolerances of the combinations and of the countertop cut-out.
  • If installing several appliances in individual cut-outs allow for a division bar of inimum 1 " (50 mm) between the individual cut-outs.
  • Operates with magnetic (induction)
    iron pots and pans only. For an optimal
    heat distribution, the use of flat bottom
    cookware is recommended.
  • Appliance can be snapped into the countertop from above.
  • Appliance weight: approx. 12 kg.
Rating
  • Total rating: Connected load: 3120 W
  • Plan for a 59 1/16" connecting cable
    without plug (hardwire required).
  • Power consumption standby/display off 0.5 W.
  • Power consumption standby/network 1.4 W.
  • Please check the user manual for how to switch off the WiFi module.
  • Total Amps: 15 A.
  • 208 - 240 V / 60 Hz.
  • Flex function for combining the rectangular cooking areas
  • Free positioning of cookware inside combined cooking areas
  • Frying sensor function for temperature control in pans
  • Easy control of all functions with bi-coloured display
  • Solid stainless steel control knobs

Specifications

MPN: VI422613
